OrientTrack
Meet the most versatile track of all. The elegant OrientTrack combines the size of its smaller brothers with the sophisticated features of the big guys. And above all, it's super smooth, reliable and silent.
- Choose between slim (internal) gliders for straight tracks or sturdy 2-wheel runners (external) for straight or curved tracks.
- Both manual and motor control possible for all setups
- A small bendable radius allows for custom curves
OrientTrack comes with many types of curtain attachments to cover all your needs: master carriers, master gliders, ball raced runner, gliders, overlap carriers. All developed to operate as smooth and silent as possible. There's even a special acoustic runner available which hides the track and prevents an air gap between your acoustic drape and the ceiling.
The all-round OrientTrack suspension system is perfect to use on stage, in TV studios, smaller theatres and architectural installations, as well as for complex track systems with custom curves.

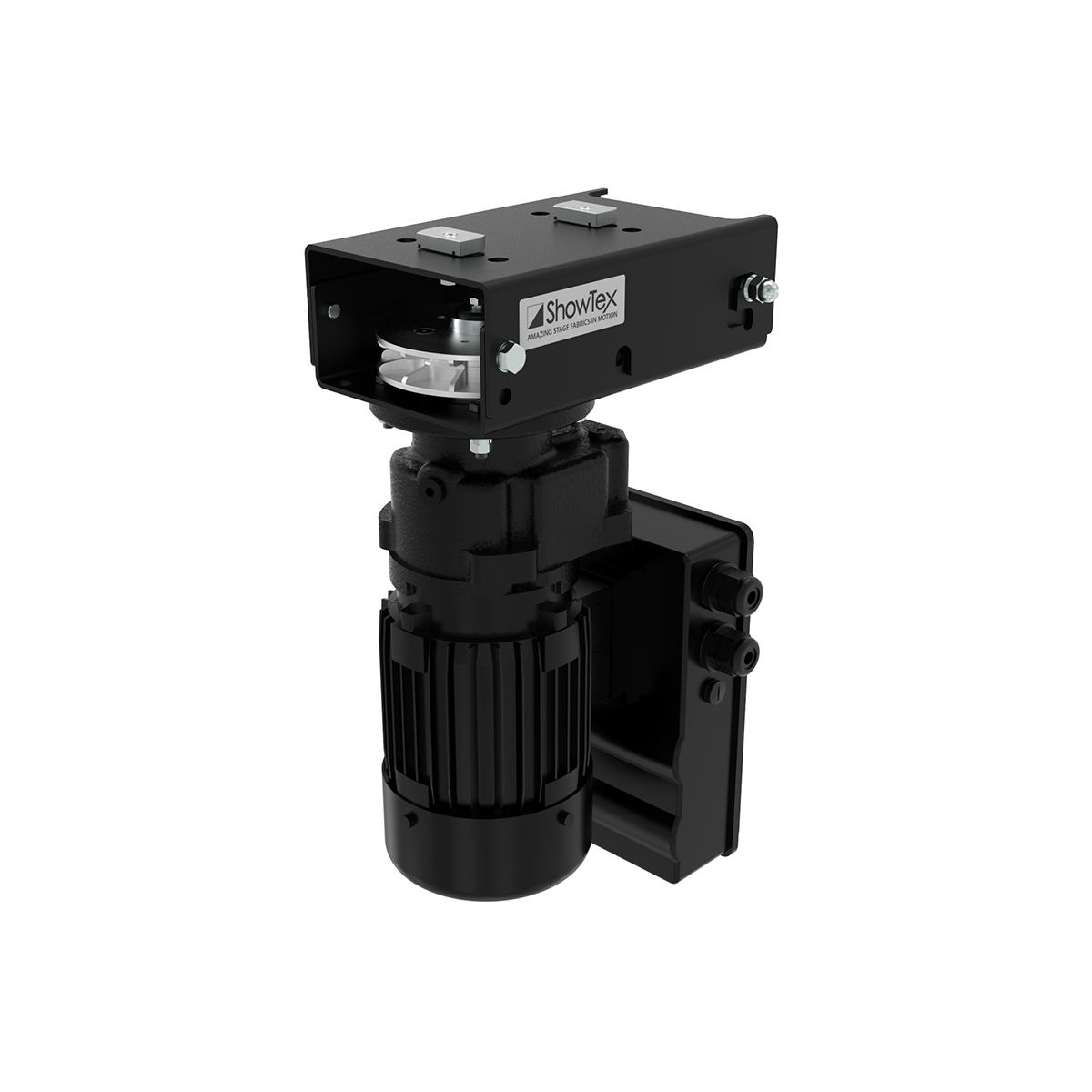

OrientTrack is compatible with our range of Rope Drive motors.
TECHNICAL DATA - ORIENT TRACK - CURTAIN TRACK
| Accessory | Article code | Information |
|---|---|---|
01. OrientTrack | 8067 0001 6007 | Weight: 0.98 kg/m • Length: 6 m • Black |
02. Curved Track 90° rad 35 cm | 8067 0007 0357 | Weight: 0.98 kg/m • Black |
Curved Track 90° rad 50 cm | 8067 0007 0507 | Weight: 0.98 kg/m • Black |
Curved Track 90° rad 100 cm | 8067 0007 1007 | Weight: 0.98 kg/m • Black |

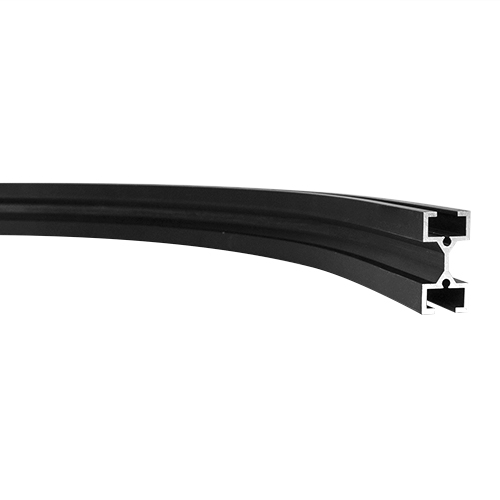

03. Curved Track / Custom Made | 8067 0007 0027 | Weight: 0.98 kg/m • Black |

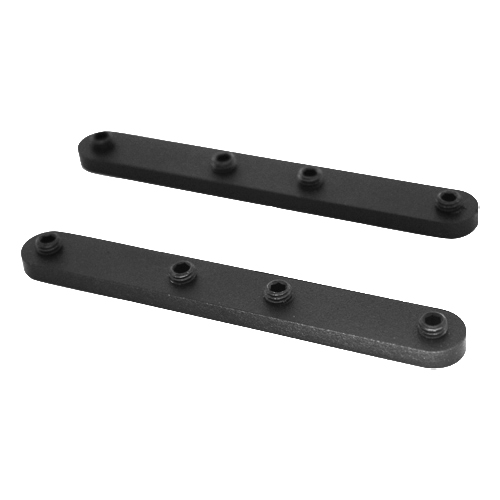

04. Joiner Set for Runners | 8067 0040 0007 | Weight: 0.20 kg/set • Set of 2 pieces • Black |

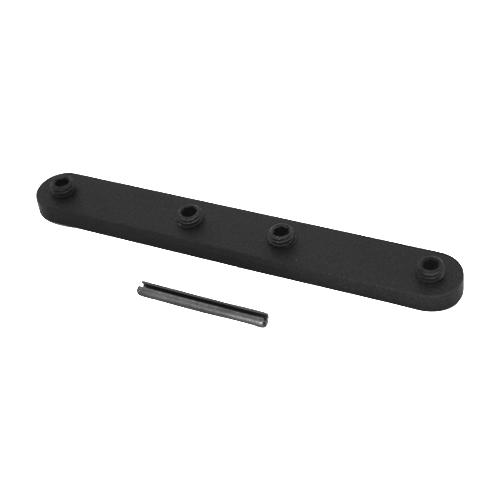

05. Joiner Set for Gliders | 8067 0040 0017 | Weight: 0.12 kg/set • Set of 2 pieces • Black |
06. Channel Nut M8 for OrientTrack | 8067 9224 0001 | Weight: 0.01 kg/pc • Galvanised |
07. Construction Channel Nut M10 | 8700 9224 0101 | Weight: 0.03 kg/pc • Galvanised |

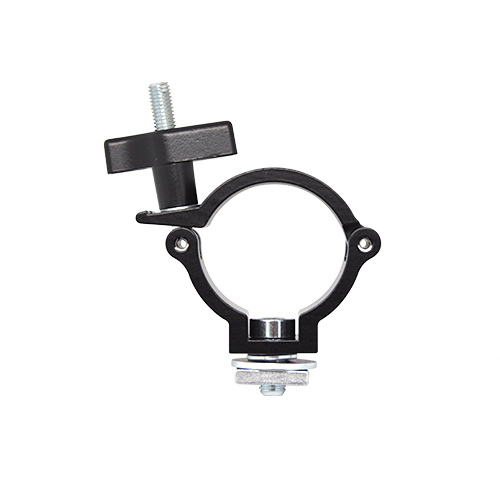

08. 75 kg Clamp with Channel Nut | 8067 0680 0007 | Weight: 0.20 kg/pc • Black |

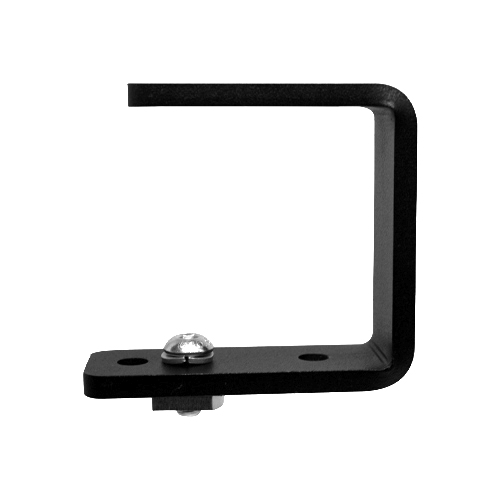

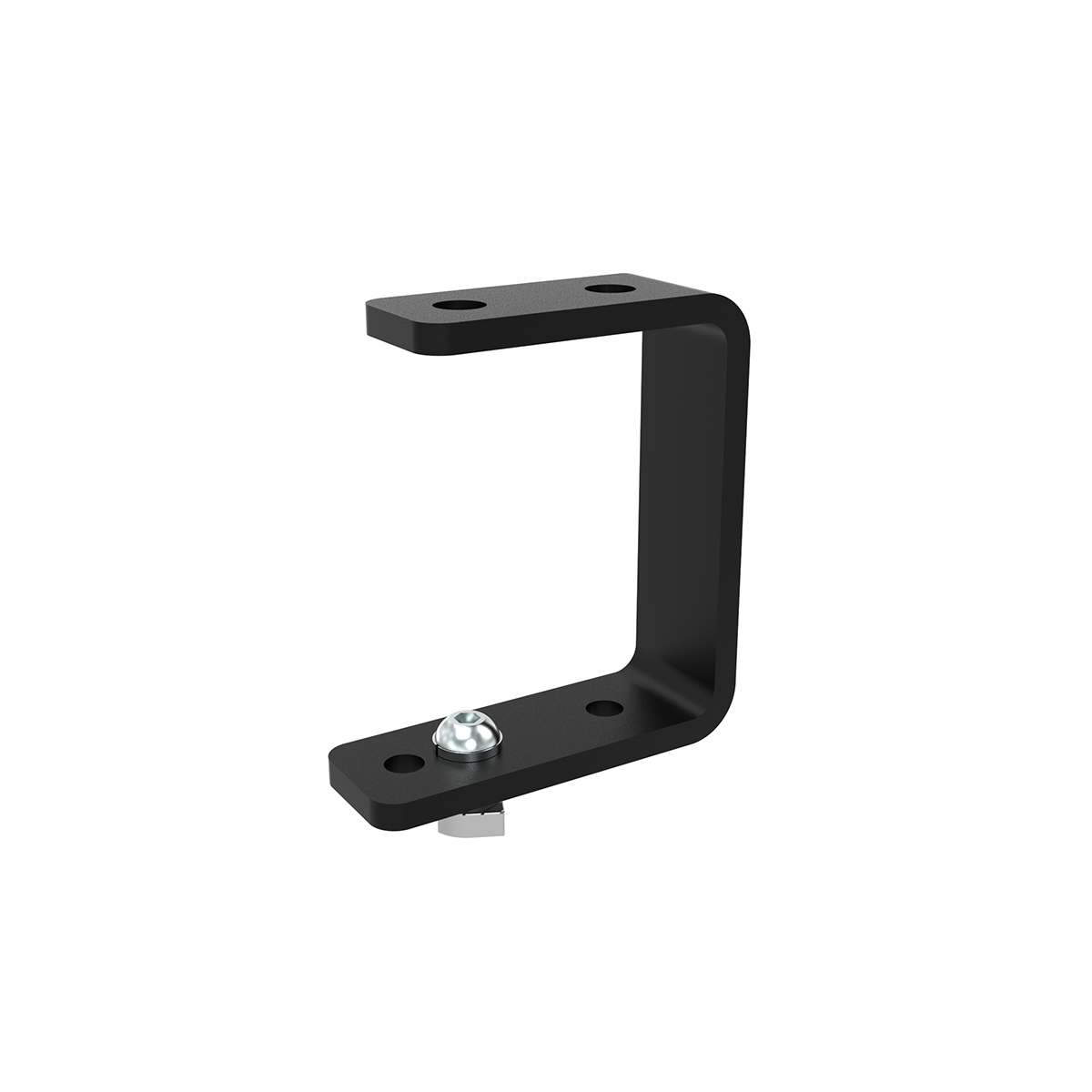

09. Curved Track Suspension Bracket | 8067 0550 0007 | Weight: 0.32 kg/pc • For curved track • Black |

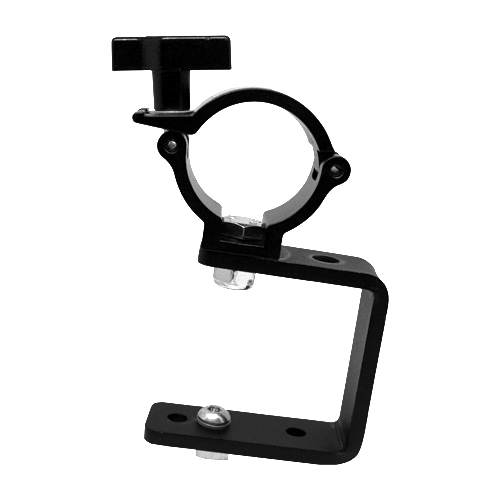

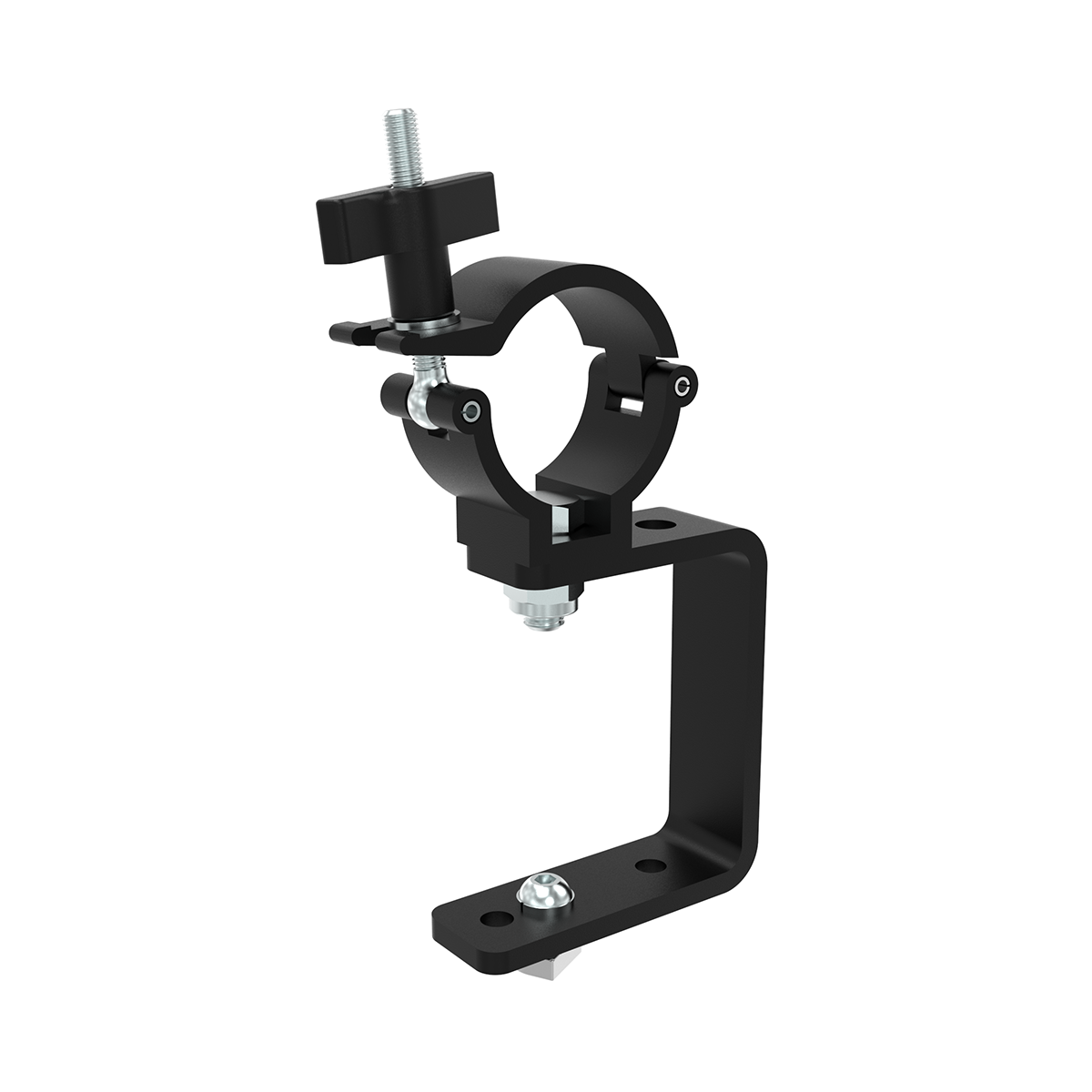

10. Curved Track Suspension Bracket with 75 kg clamp | 8067 0550 0017 | Weight: 0.50 kg/pc • For curved track • Black |

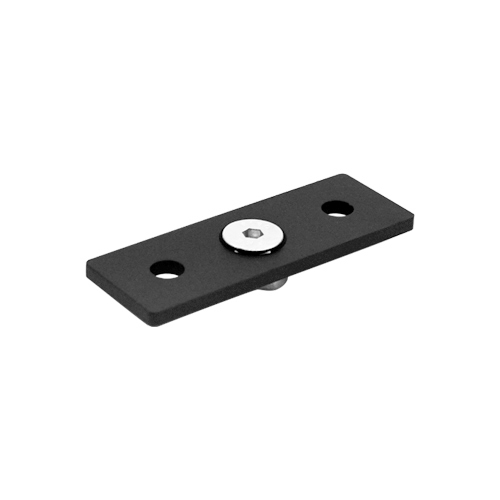

11. Ceiling Bracket | 8067 0110 0007 | Weight: 0.09 kg/pc • Black |

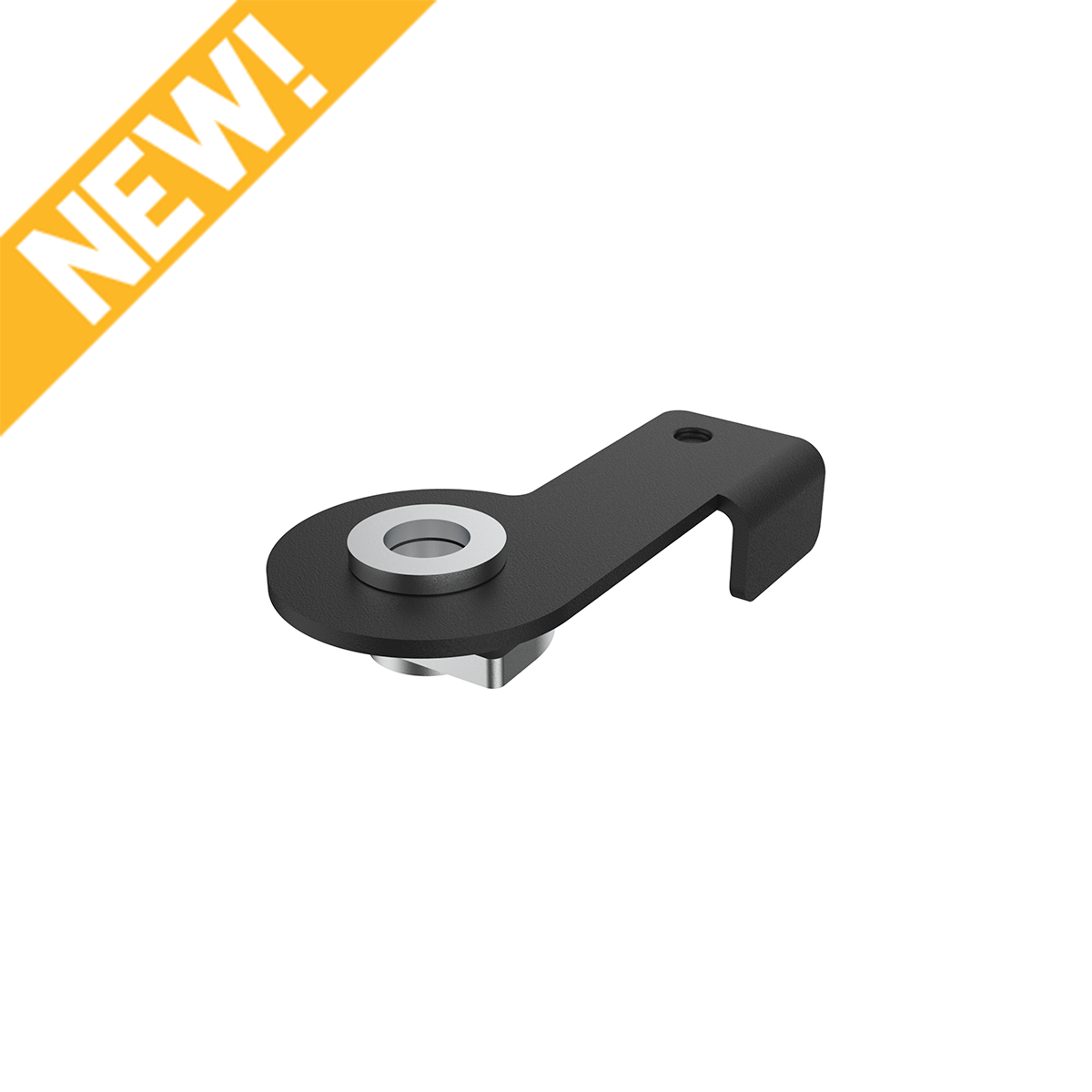

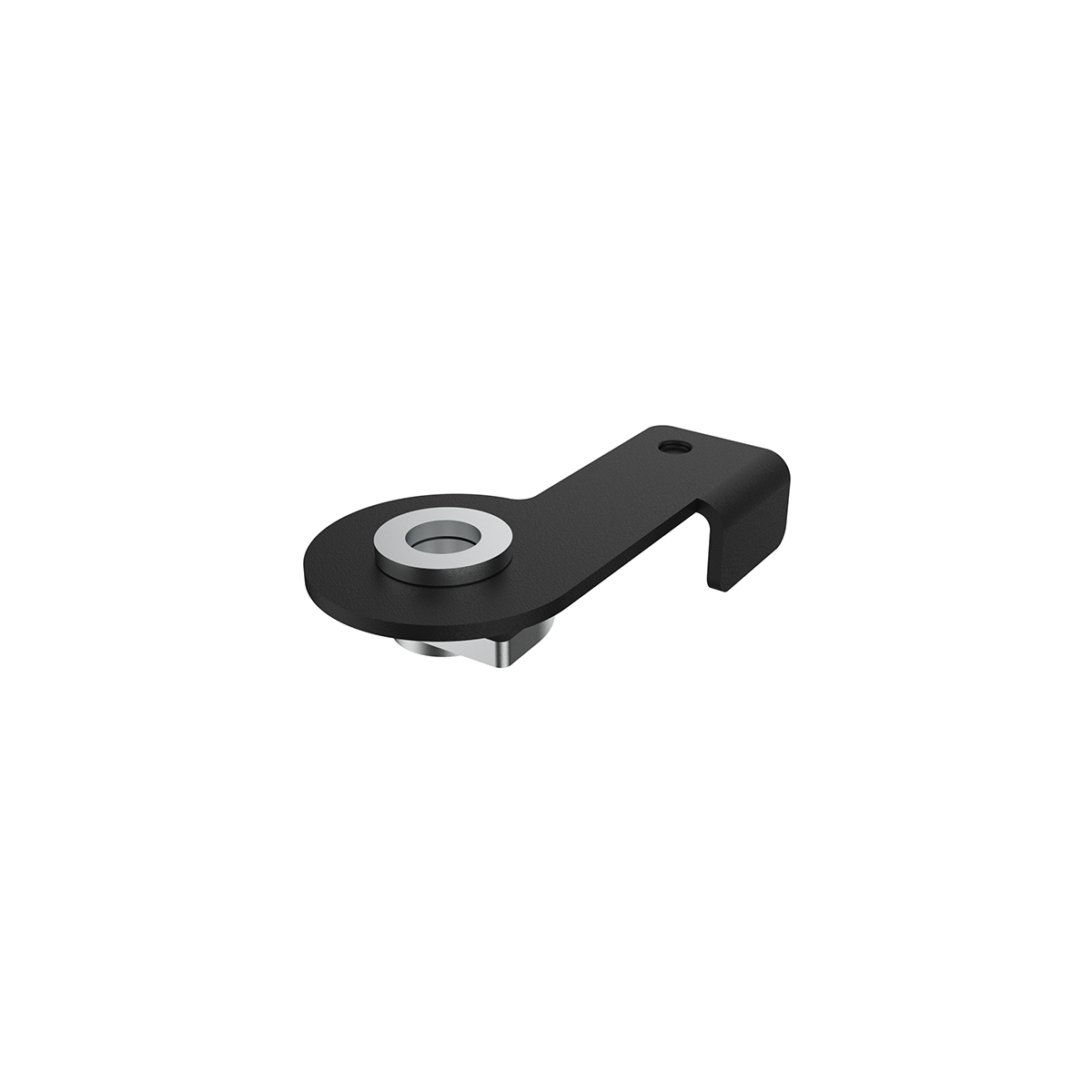

12. Hidden Ceiling Bracket | 8055 0110 0017 | Weight: 0.02 kg • WLL: 75 kg SF: 5:1 • Black |

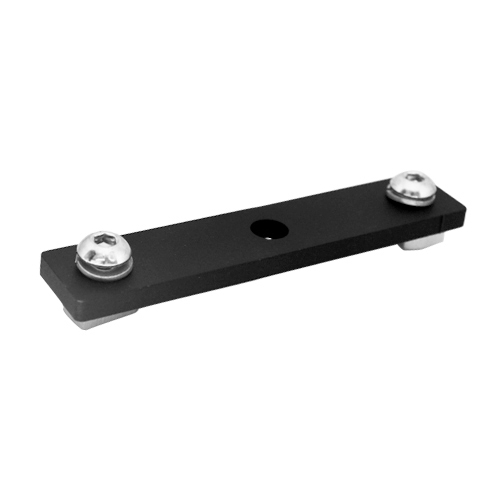

13. Overlap Clip | 8067 0696 0007 | Weight: 0.41 kg/pc • For double track setup • Black |

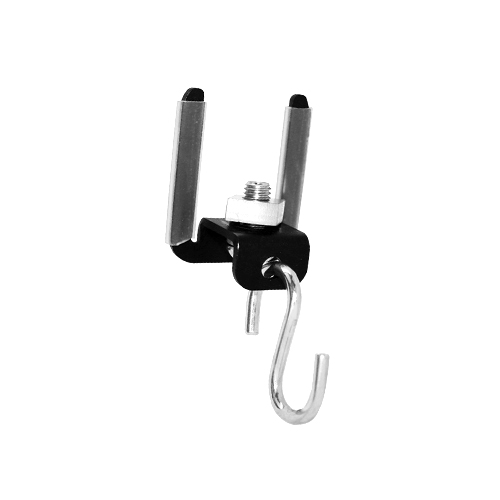

14. End Stop | 8067 0050 0007 | Weight: 0.06 kg/pc • With 1 S-hook • Black |

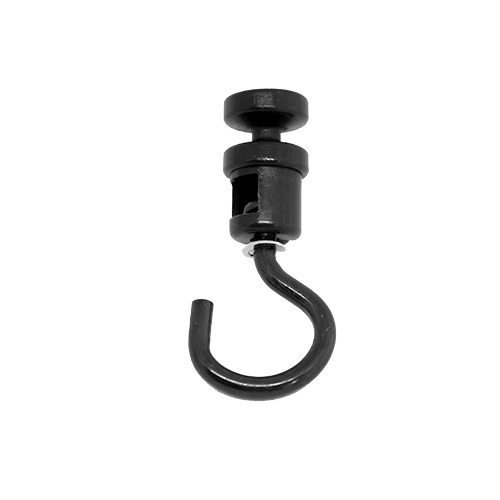

15. Glider | 8067 0195 0007 | Weight: 0.03 kg/pc • With swivel hook • Black |

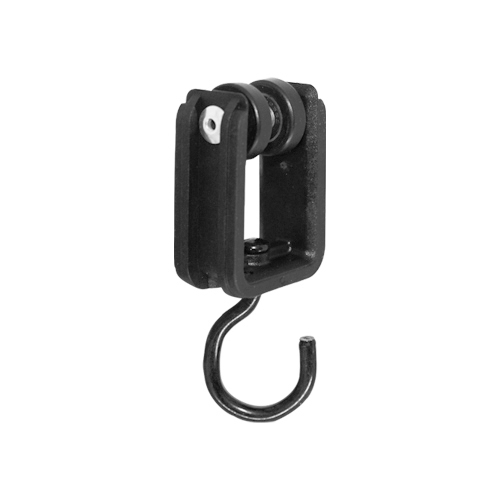

16. Ball Raced Runner with Swivel Hook | 8067 0205 0007 | Weight: 0.06 kg/pc • With swivel hook • Black |

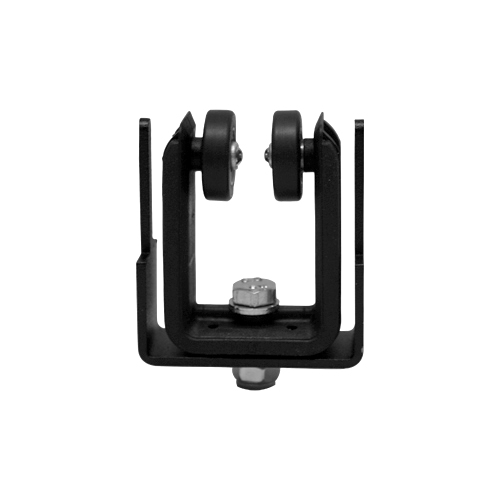

17. Ball Raced Runner with Acoustic Bracket | 8067 0205 0097 | Weight: 0.07 kg/pc • Black |

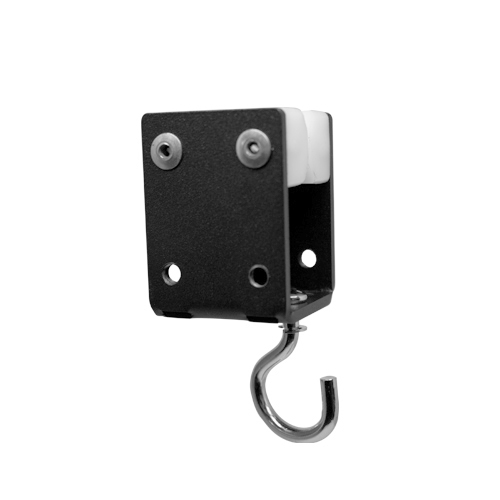

18. Master Glider with Swivel Hook | 8067 0220 0007 | Weight: 0.17 kg/pc • With swivel hook • Black |

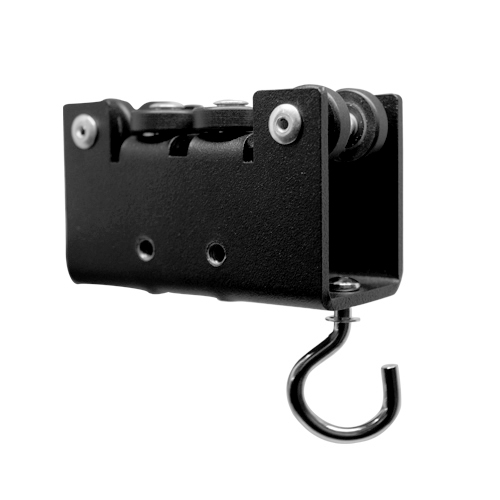

19. Master Carrier with Swivel Hook | 8067 0221 0007 | Weight: 0.41 kg/pc • With swivel hook • Black |

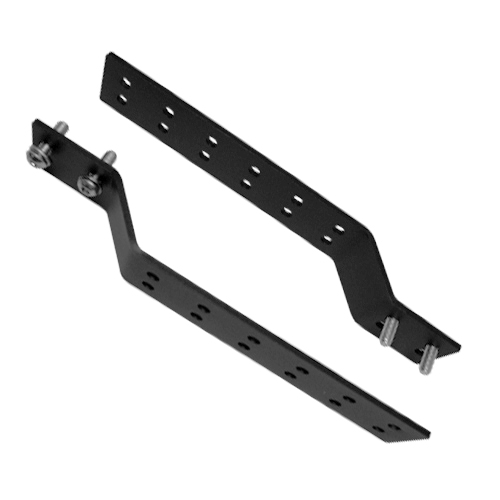

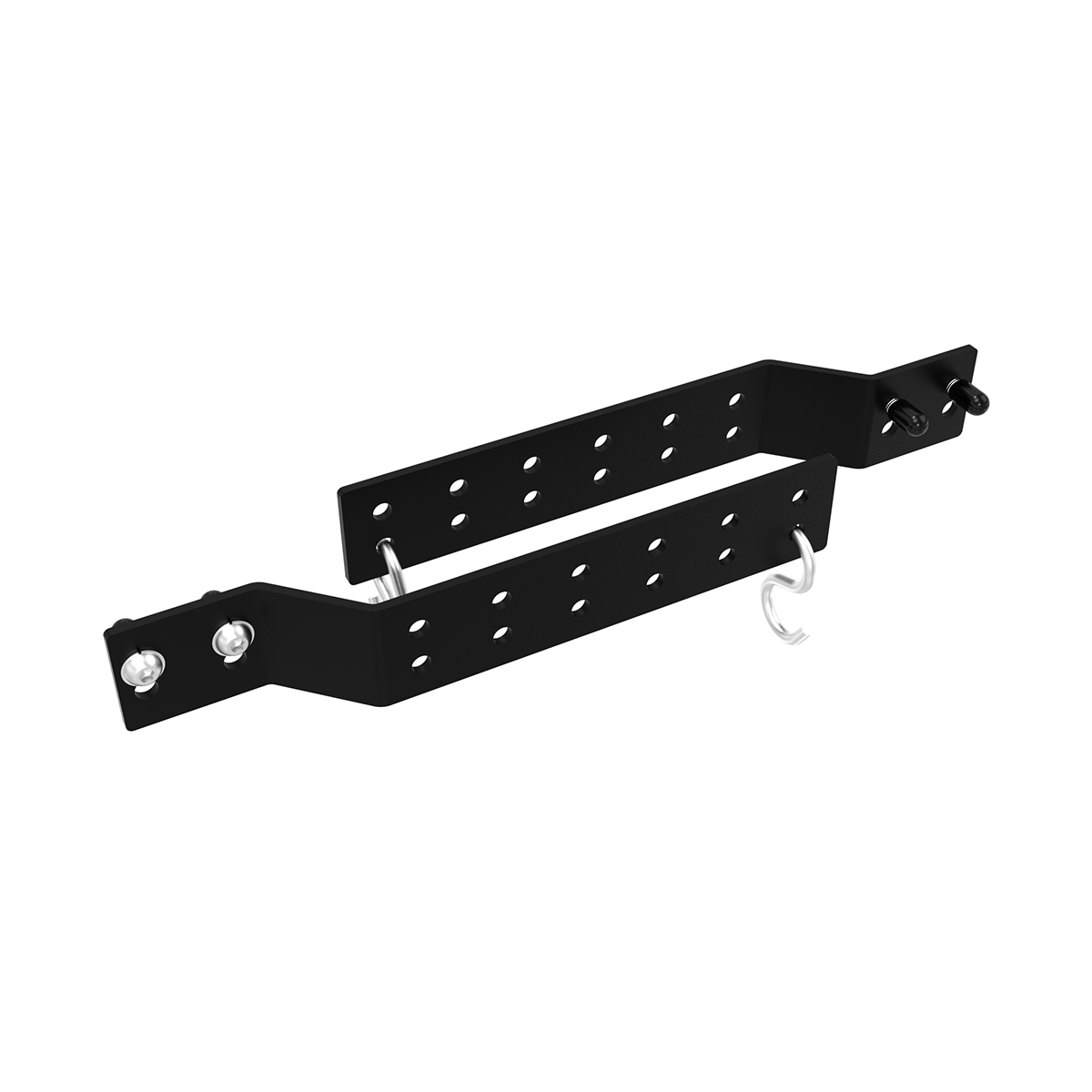

20. Overlap Arm Set | 8067 0240 0007 | Weight: 0.34 kg/set • Set of 2 pieces |
With 2 S-hooks • Black | ||

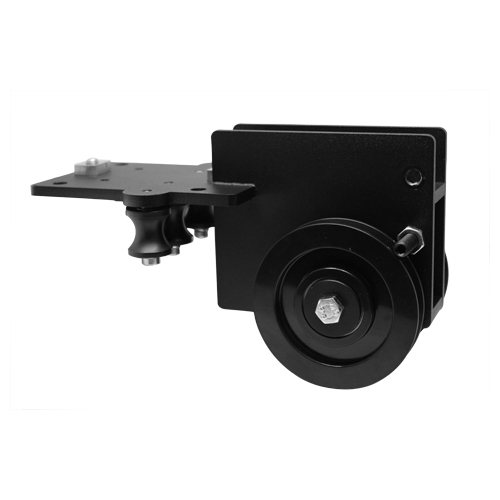

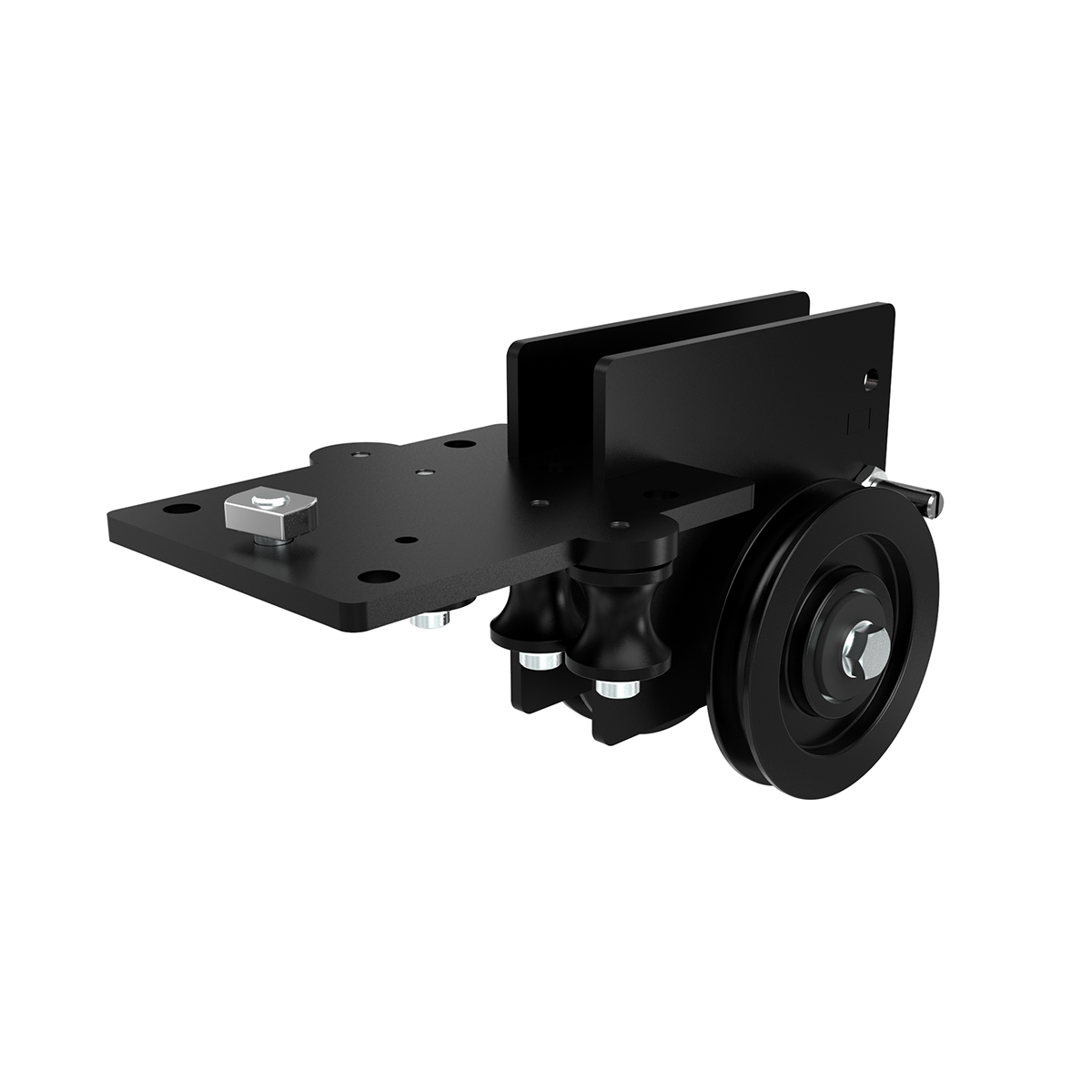

21. Head Pulley Single & Double Track | 8067 0400 0017 | Weight: 2.42 kg/pc • Black |

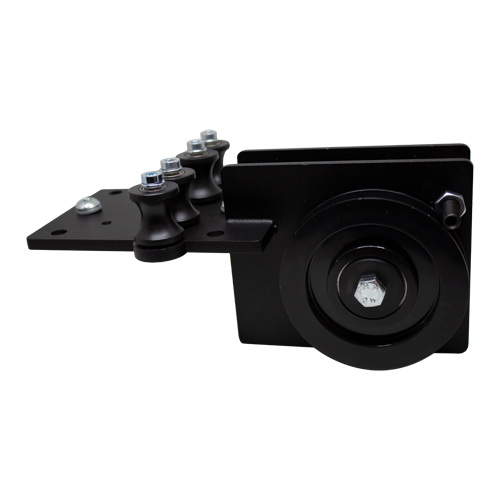

22. Head Pulley Curved Track | 8067 0520 0037 | Weight: 2.42 kg/pc • Black |

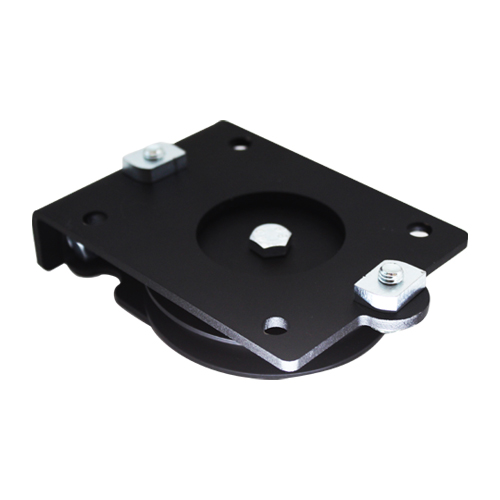

23. Return Pulley | 8067 0410 0027 | Weight: 1.17 kg/pc • Black |
For single, double & curved track | ||

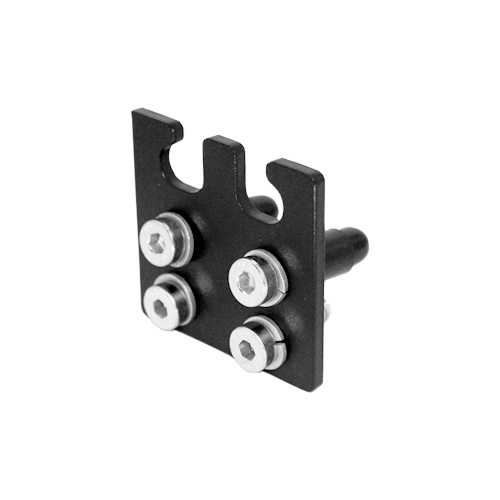

24. Rope Clamp Plate | 8067 0249 0007 | Weight: 0.11 kg/set • For single & double track • Black |
25. Line pickup | 8067 0694 0007 | Weight: 0.20 kg/pc • For double track • Black |

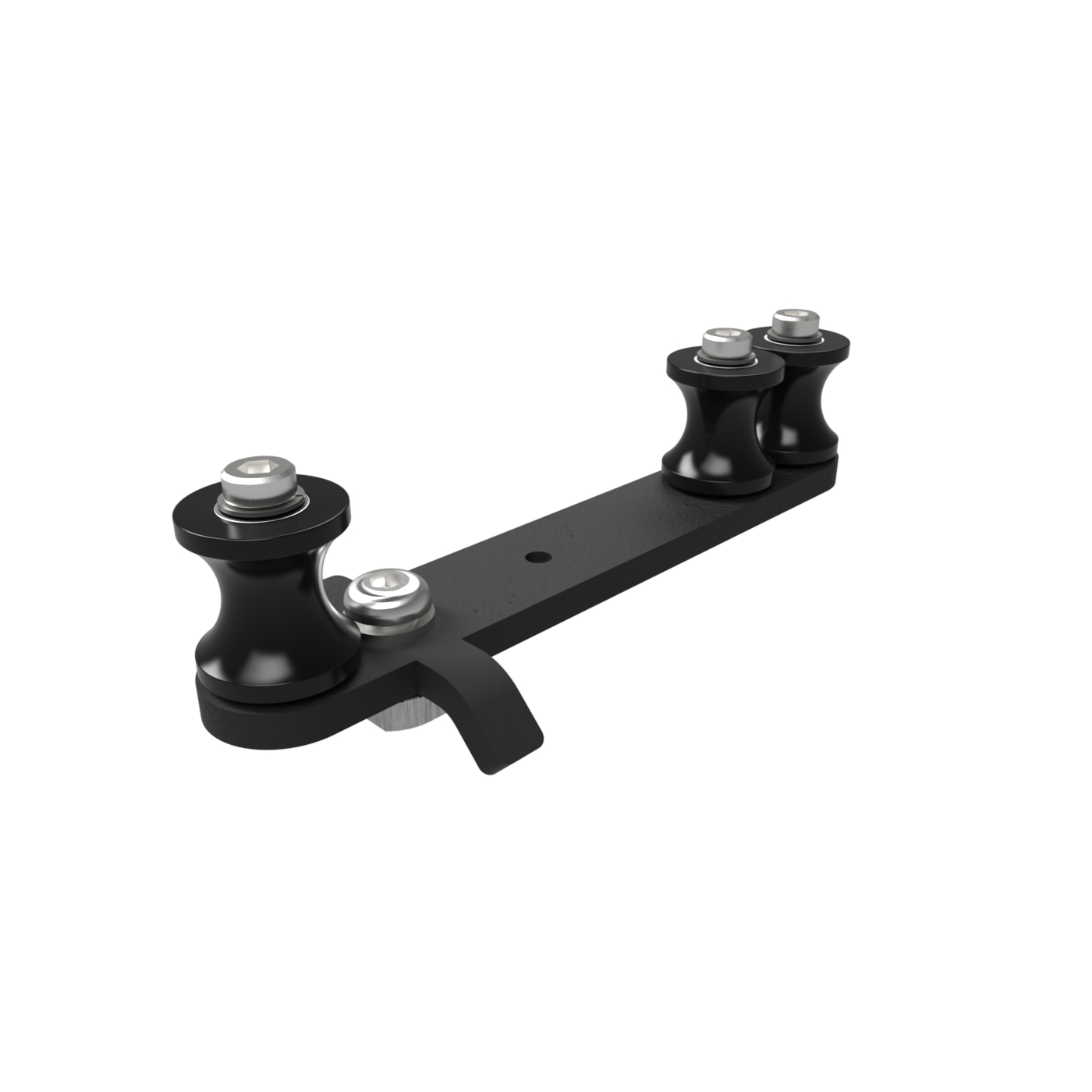

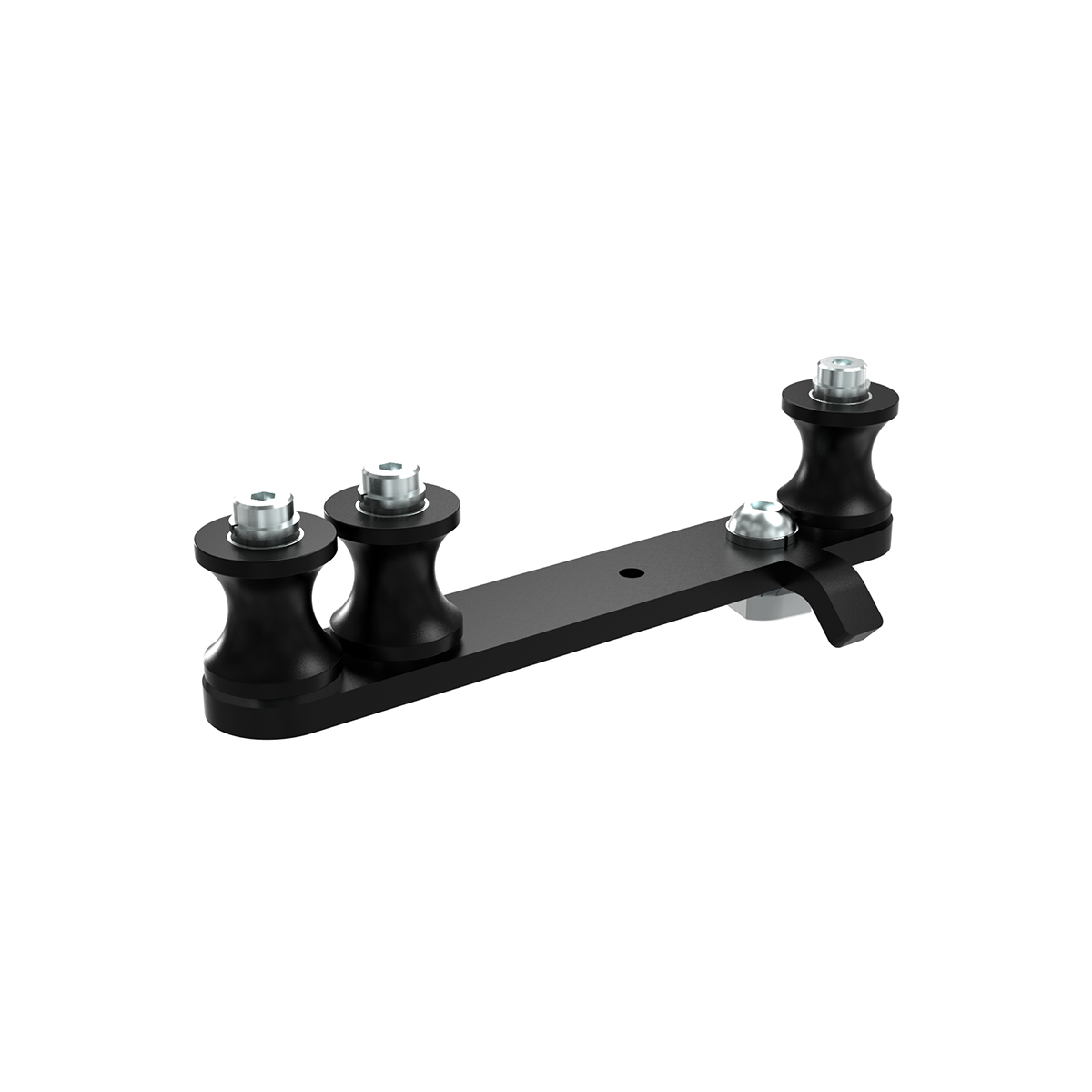

26. Curve Cord Guide | 8067 0500 0007 | Weight: 0.42 kg/pc • For curved track • Black |

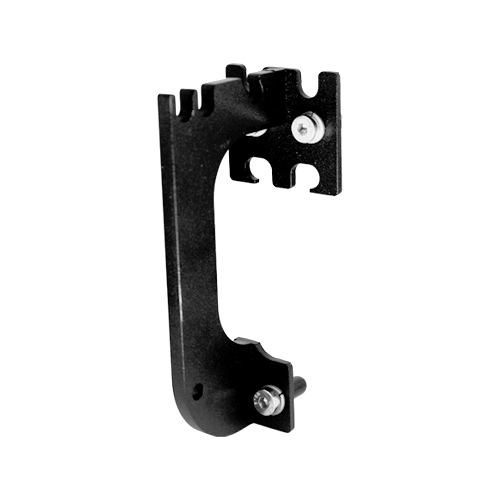

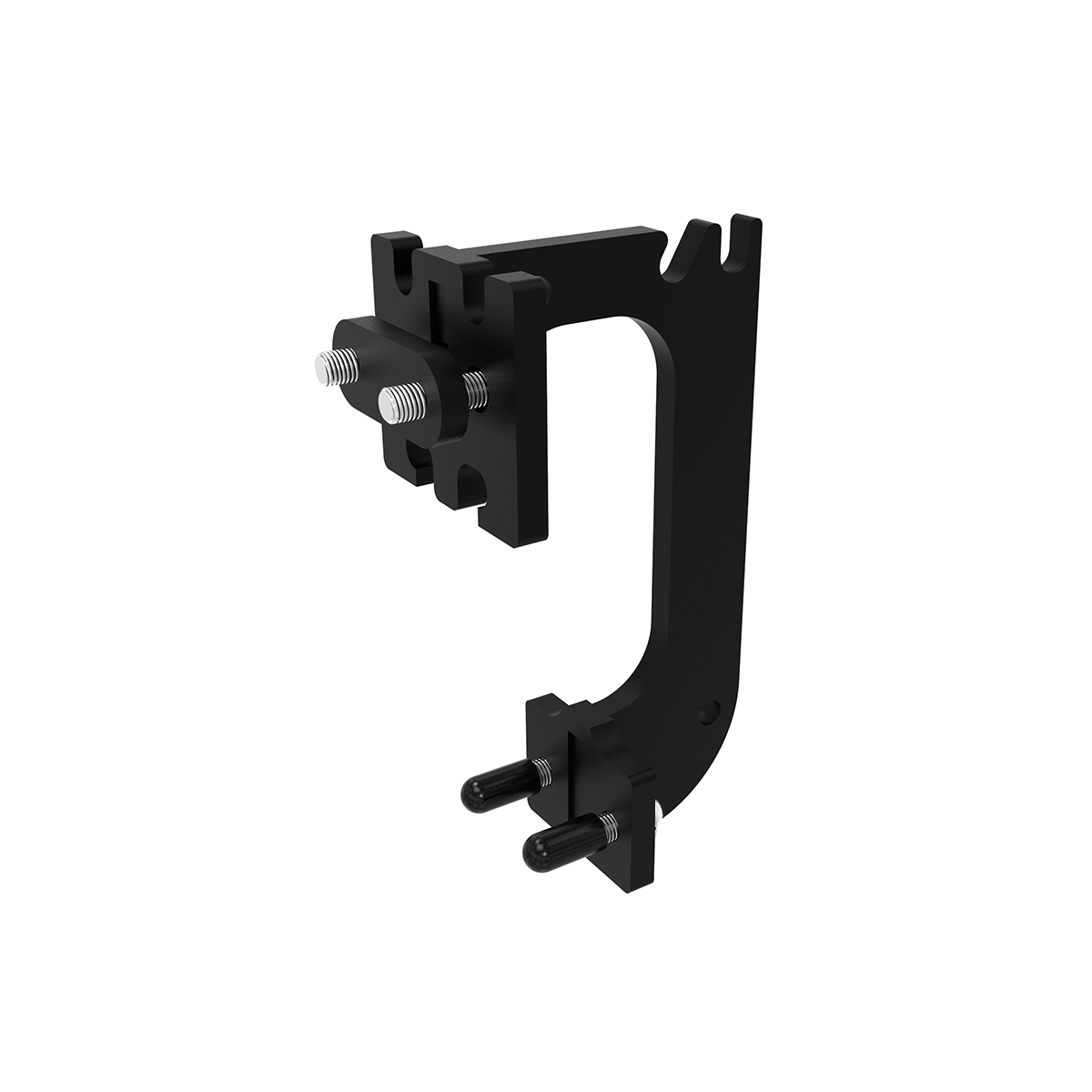

27. Curve Master Carrier arm | 8067 0510 0507 | Weight: 0.29 kg/pc • For curved track • Black |

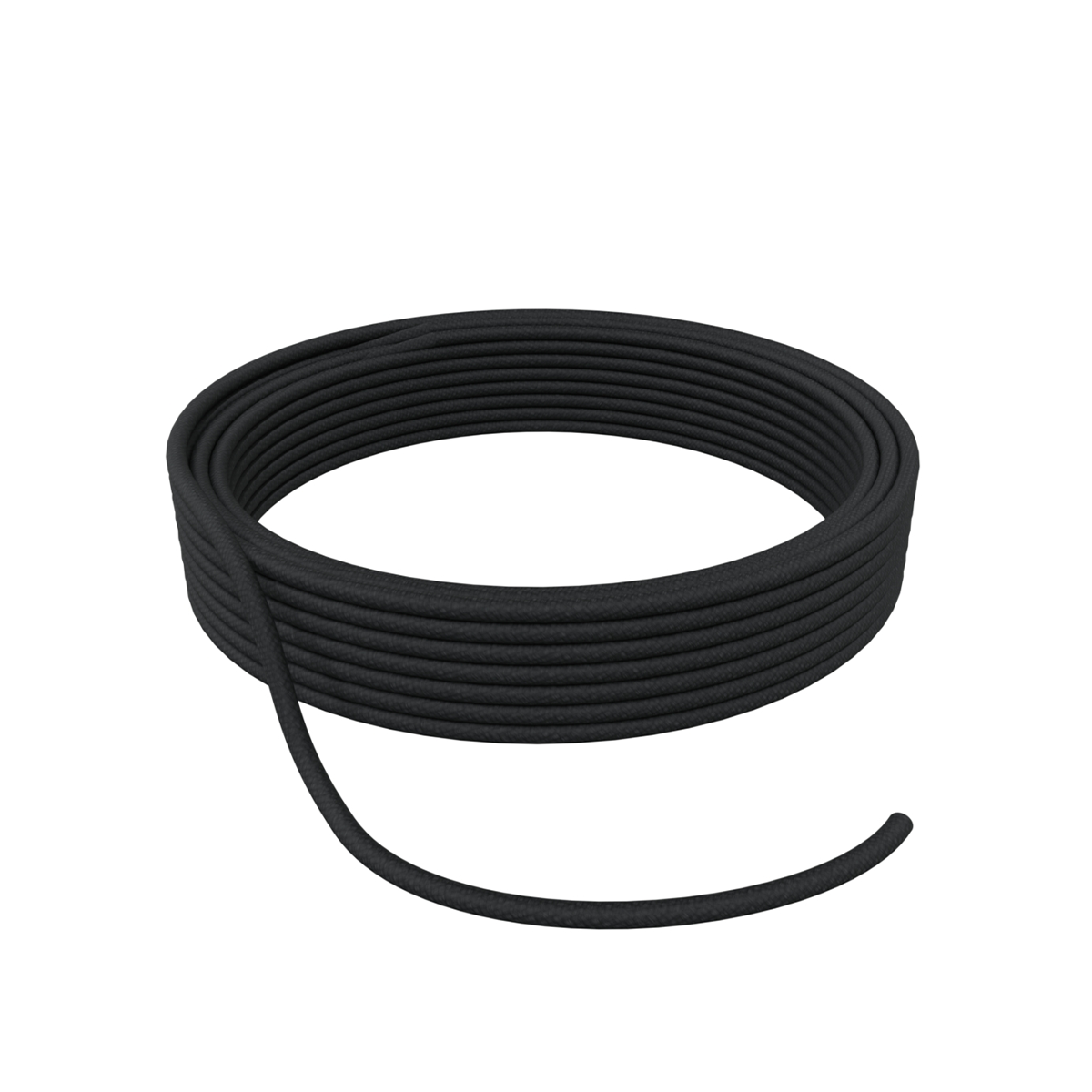

28. Double Braided Rope 8 mm | 7530 0308 1007 | Weight: 0.043 kg/m • 100 m • Black |
7530 1308 0027 | Weight: 0.043 kg/m • 100 m • Black - orange - green | |

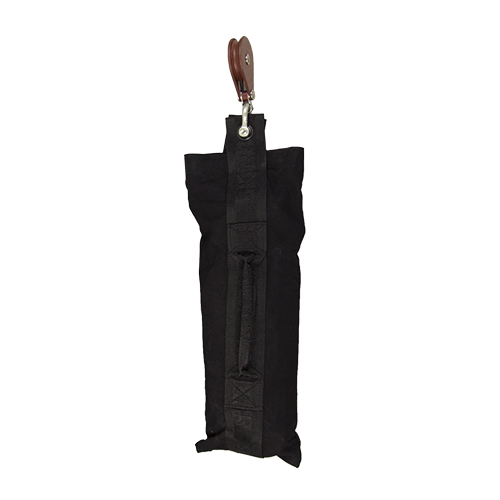

29. Weighted Return Pulley | 8050 0415 0077 | Weight: 5.50 kg/pc • Black |

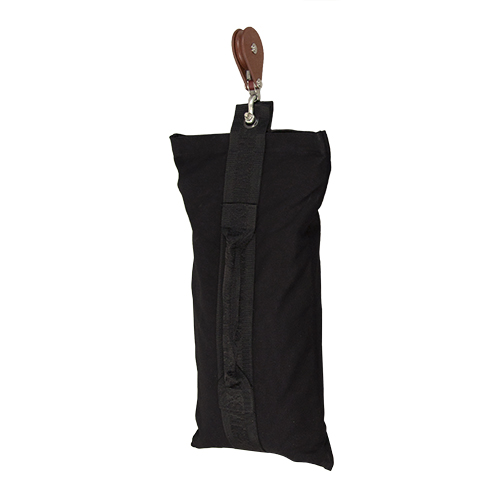

30. Weighted Return Pulley XL | 8050 0415 0097 | Weight: 10.50 kg/pc • Black |
31. Limit Switch set | 8050 0770 0013 | Weight: 0.27 kg/set • Set of 2 pieces • Black |
32. Limit Switch Ski | 8067 0770 0007 | Weight: 0.18 kg/pc • For motor operation • Black |

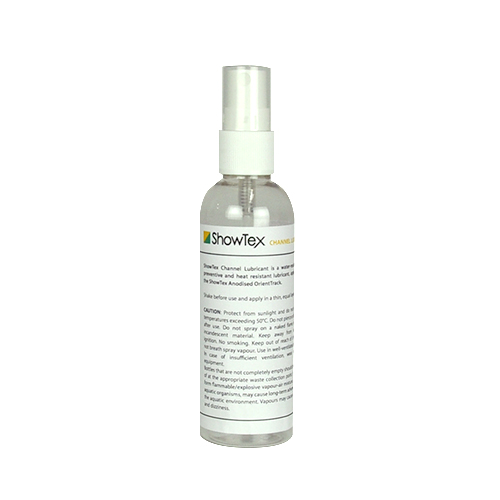

33. Channel Lubricant | 8067 9999 0001 | Volume: 100 ml • For gliders |
34. RopeAssist | 8050 0425 0107 | Weight: 6.54 kg/piece |
