Rail H100轨道
多功能，经济型轨道，适合中等到重型幕布使用。
- 全方位轨道系统，手动或电动控制均可，非常适合电视演播室，中型场馆或剧院。
- Rail H100可通过DMX控制。
Rail H100轨道Rope Drive马达系列
| 配件 | 产品代码 | 信息 |
|---|---|---|

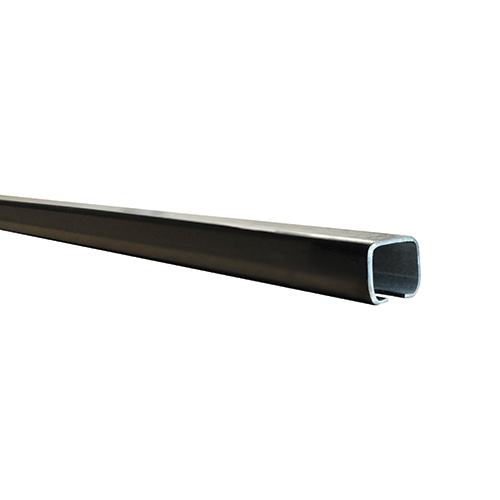

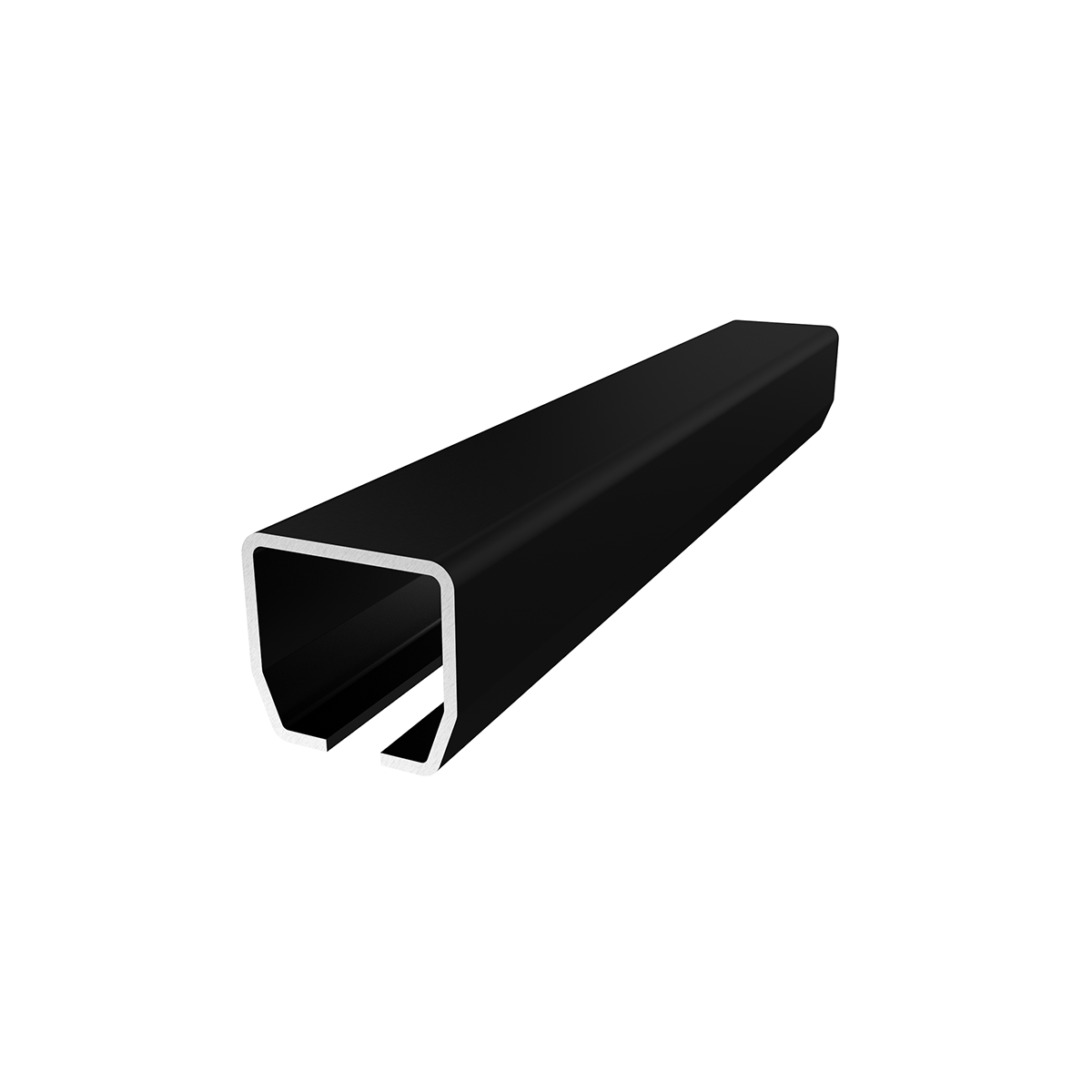

1. Track | 8050 0001 60## | Length: 600 cm • 1. 34 kg/meter |

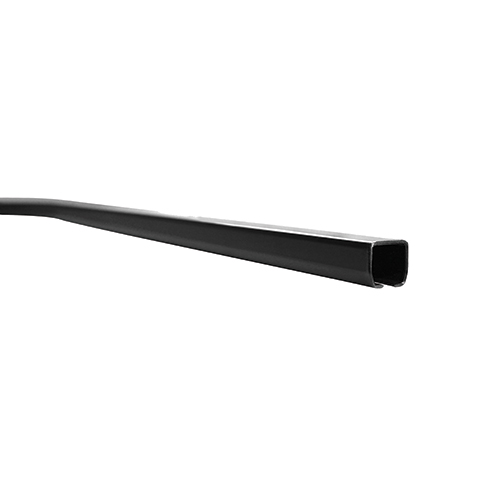

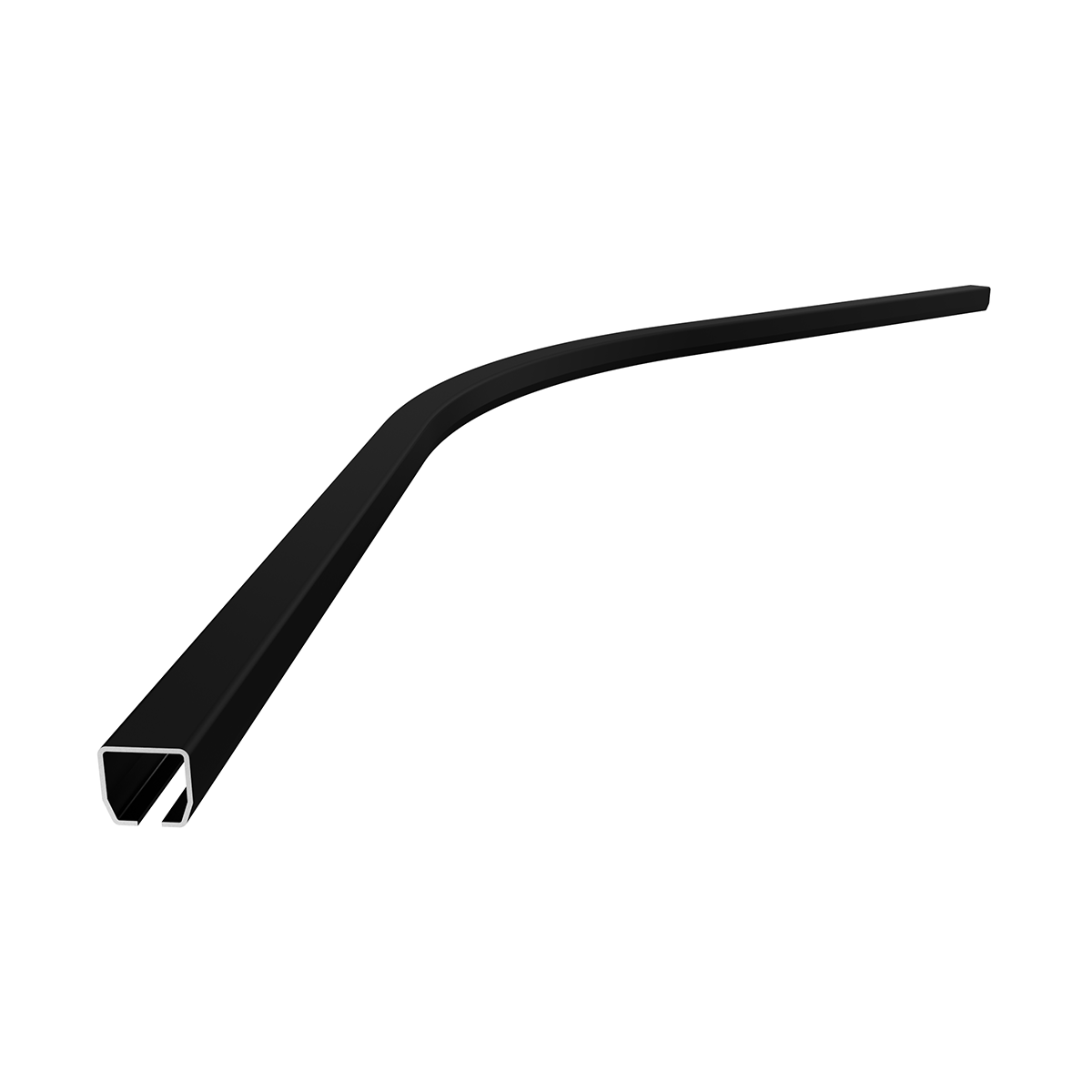

2. Curved Track 45° | 8050 0004 06## | Radius: 65 cm • 1.85 kg/piece |

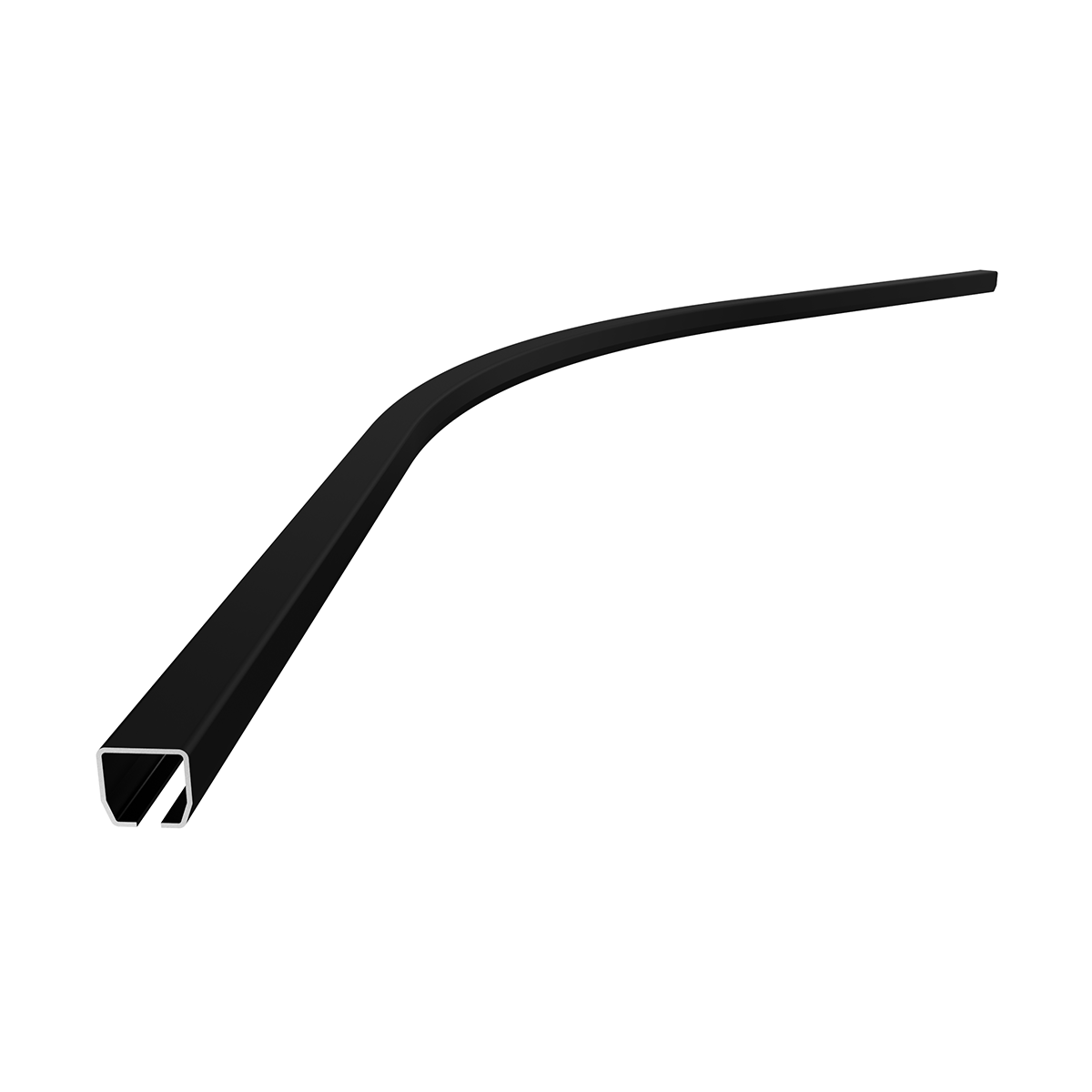

8050 0004 10## | Radius: 100 cm • 2.66 kg/piece | |

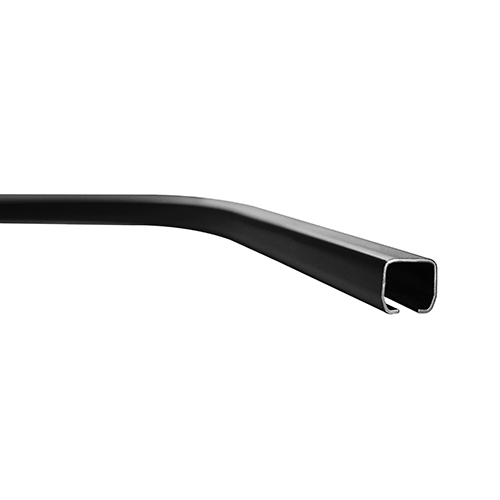

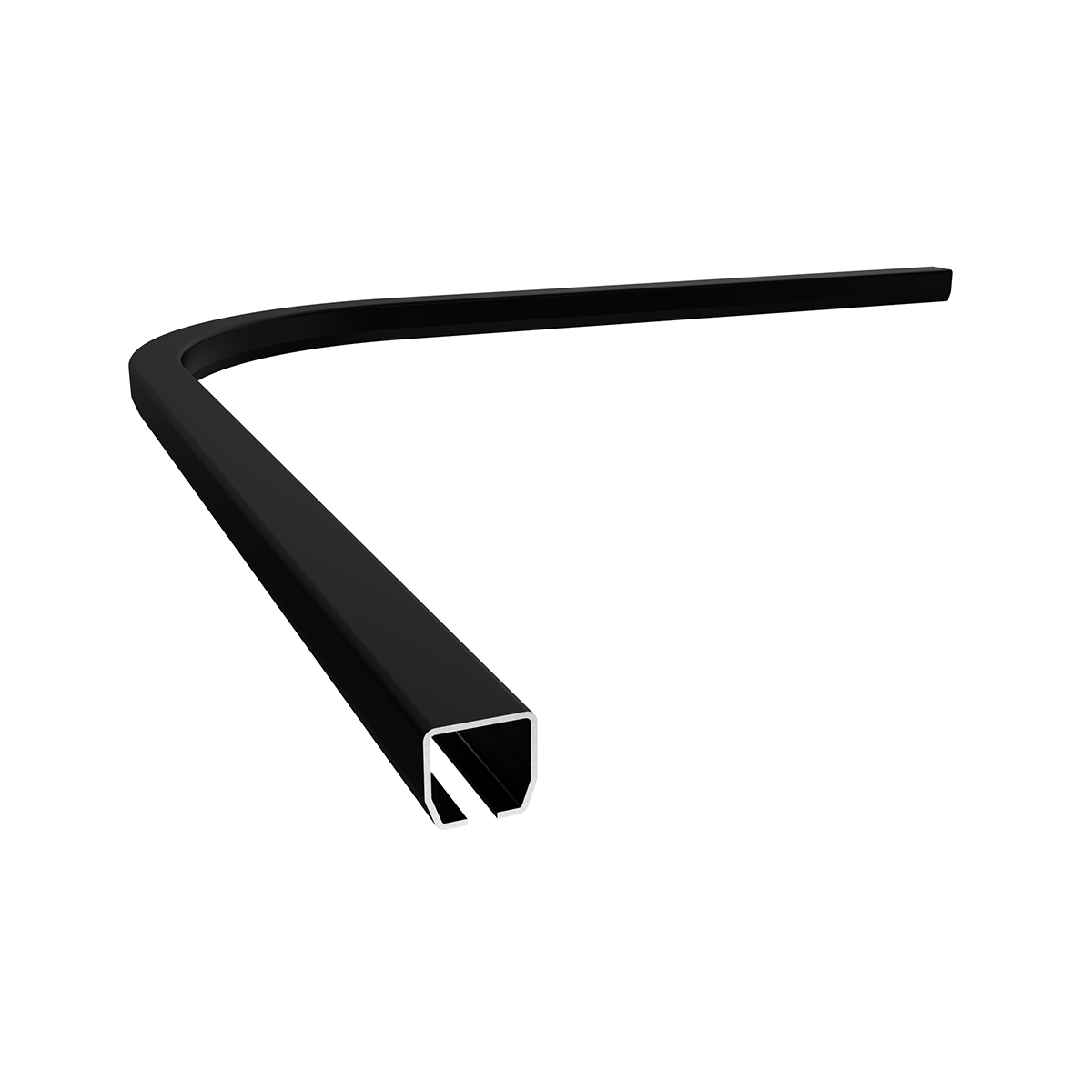

3. Curved Track 90° | 8050 0007 02## | Radius: 20.5 cm • 1.93 kg/set |

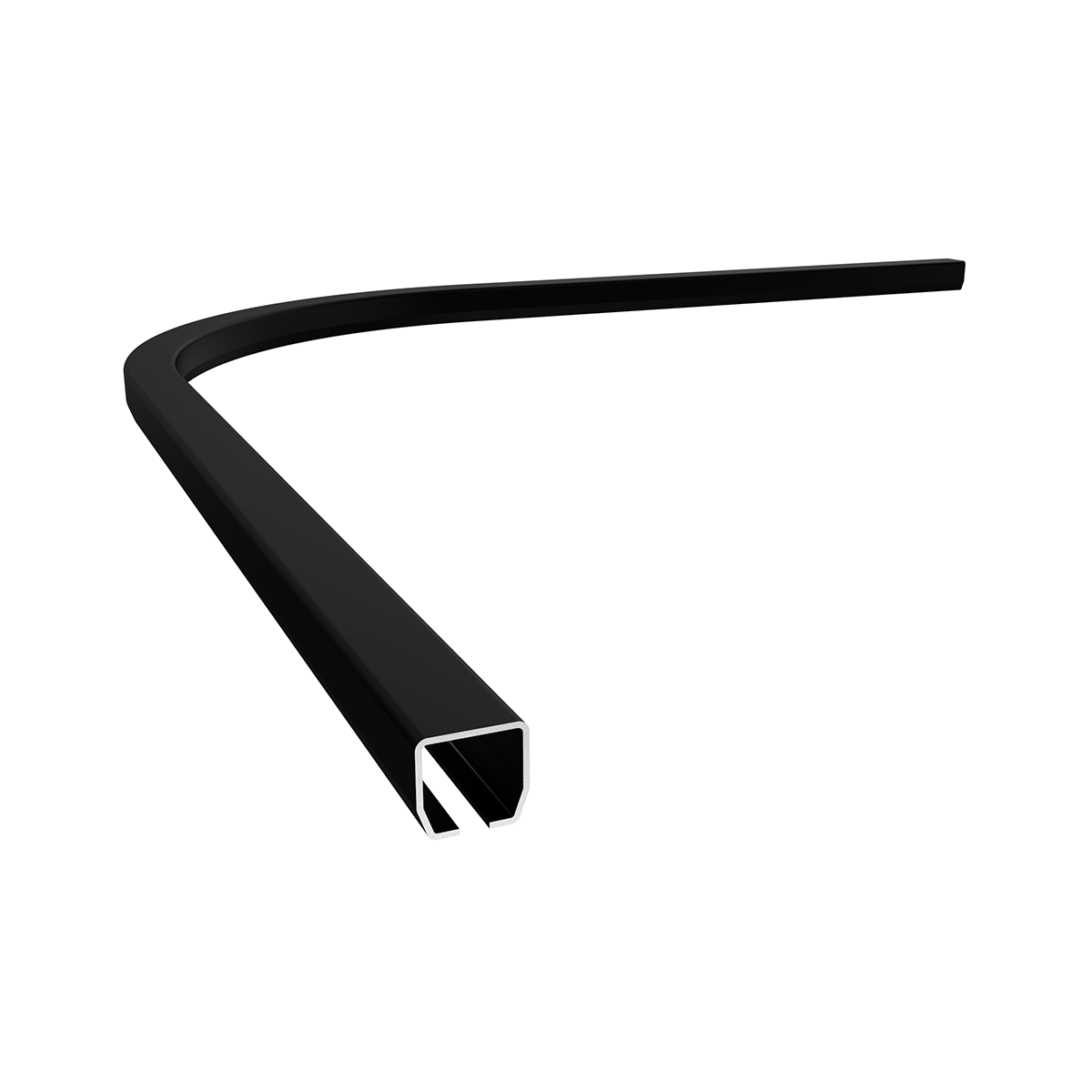

8050 0007 03## | Radius: 30 cm • 1.92 kg/set | |

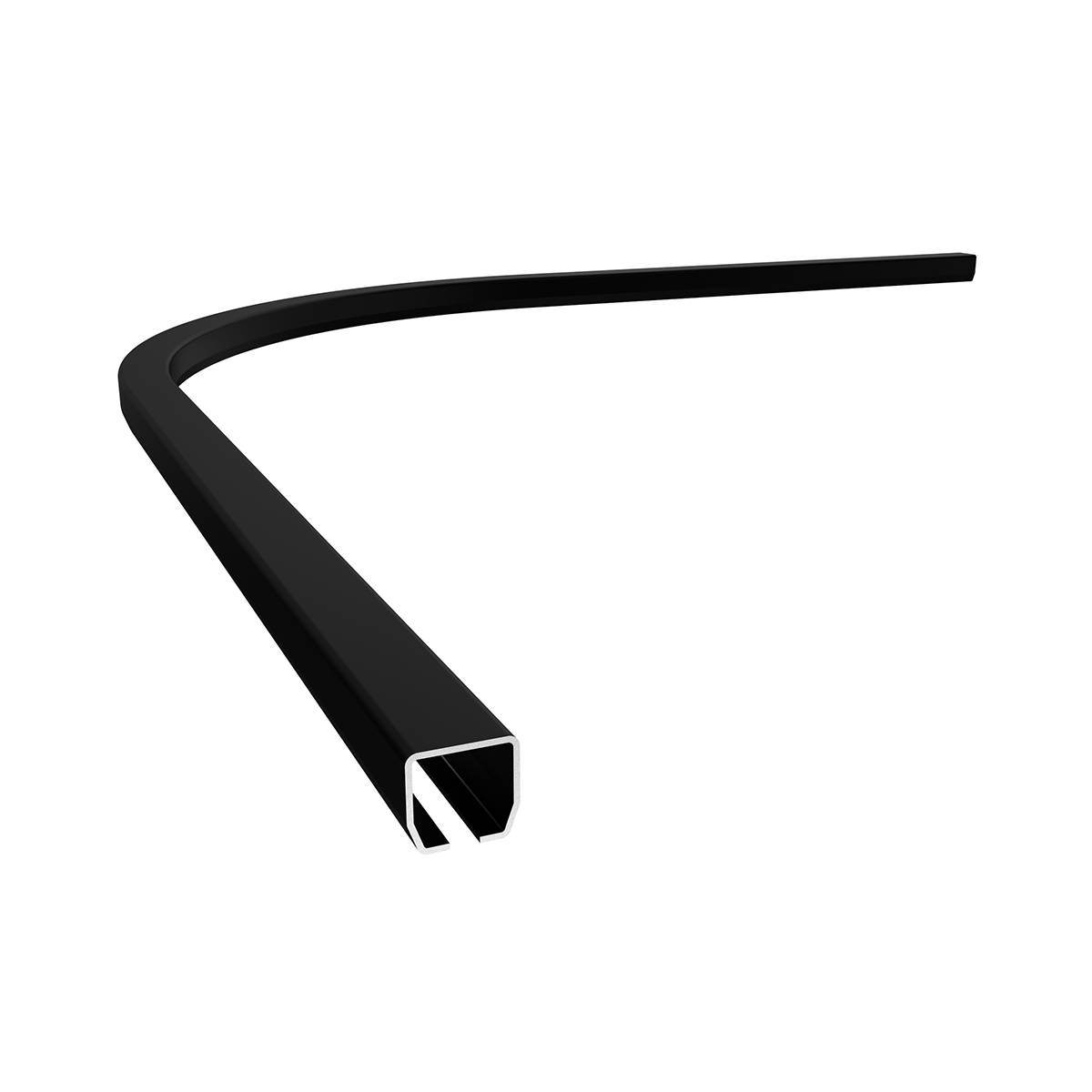

8050 0007 04## | Radius: 40 cm • 2.61 kg/set | |
8050 0007 05## | Radius: 50 cm • 2.48 kg/set | |

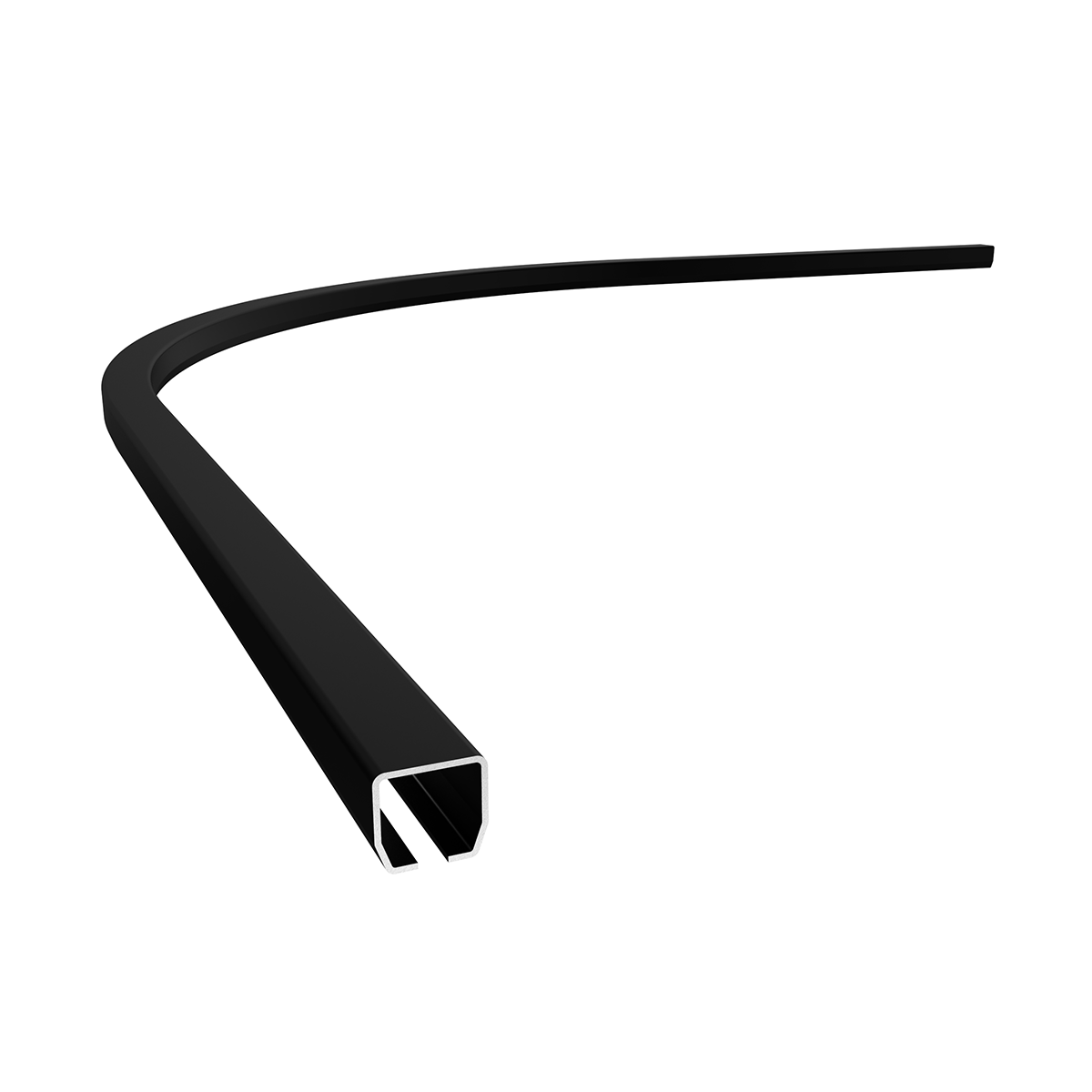

8050 0007 065# | Radius: 65 cm • 2.10 kg/set | |

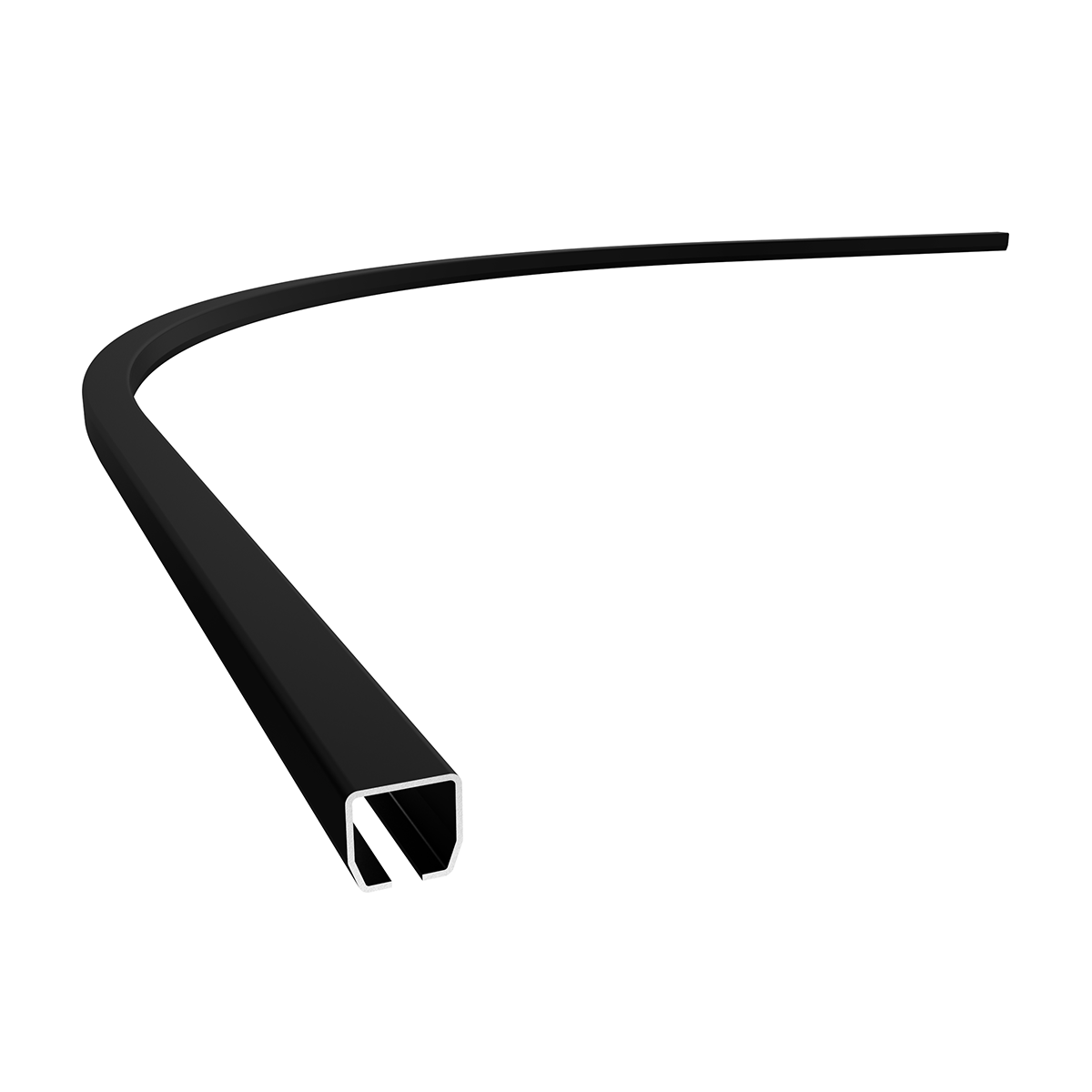

8050 0007 10## | Radius: 100 cm • 4.88 kg/set | |

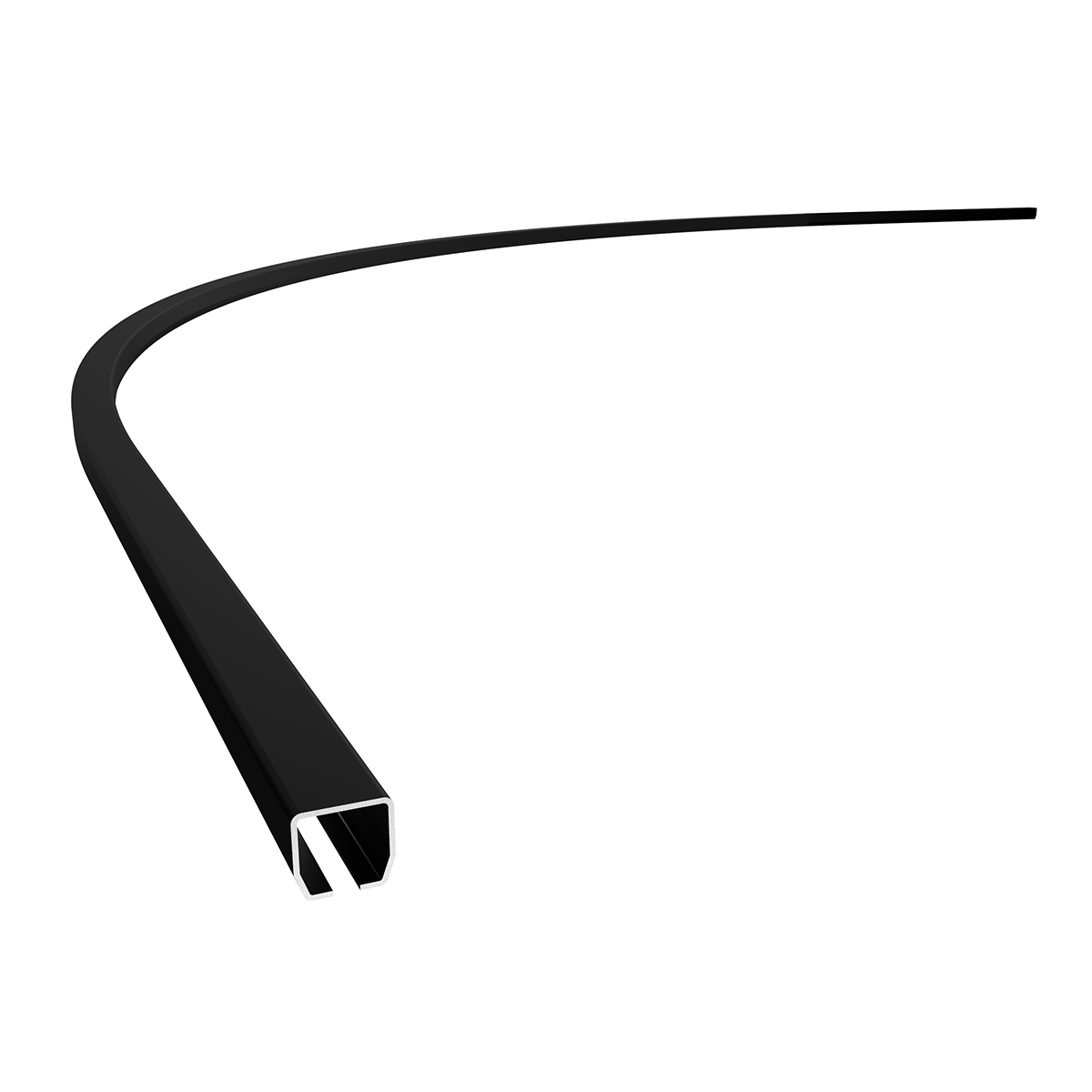

8050 0007 20## | Radius: 200 cm • 5.10 kg/set | |

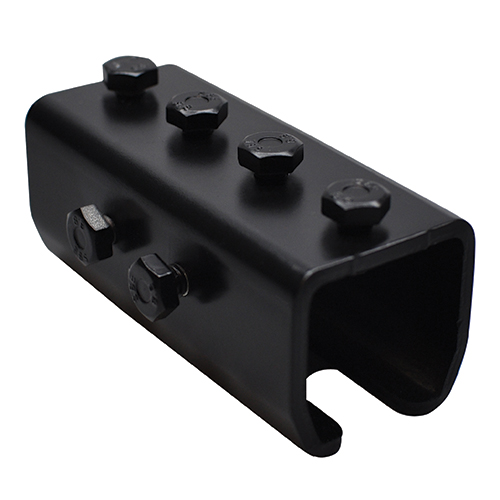

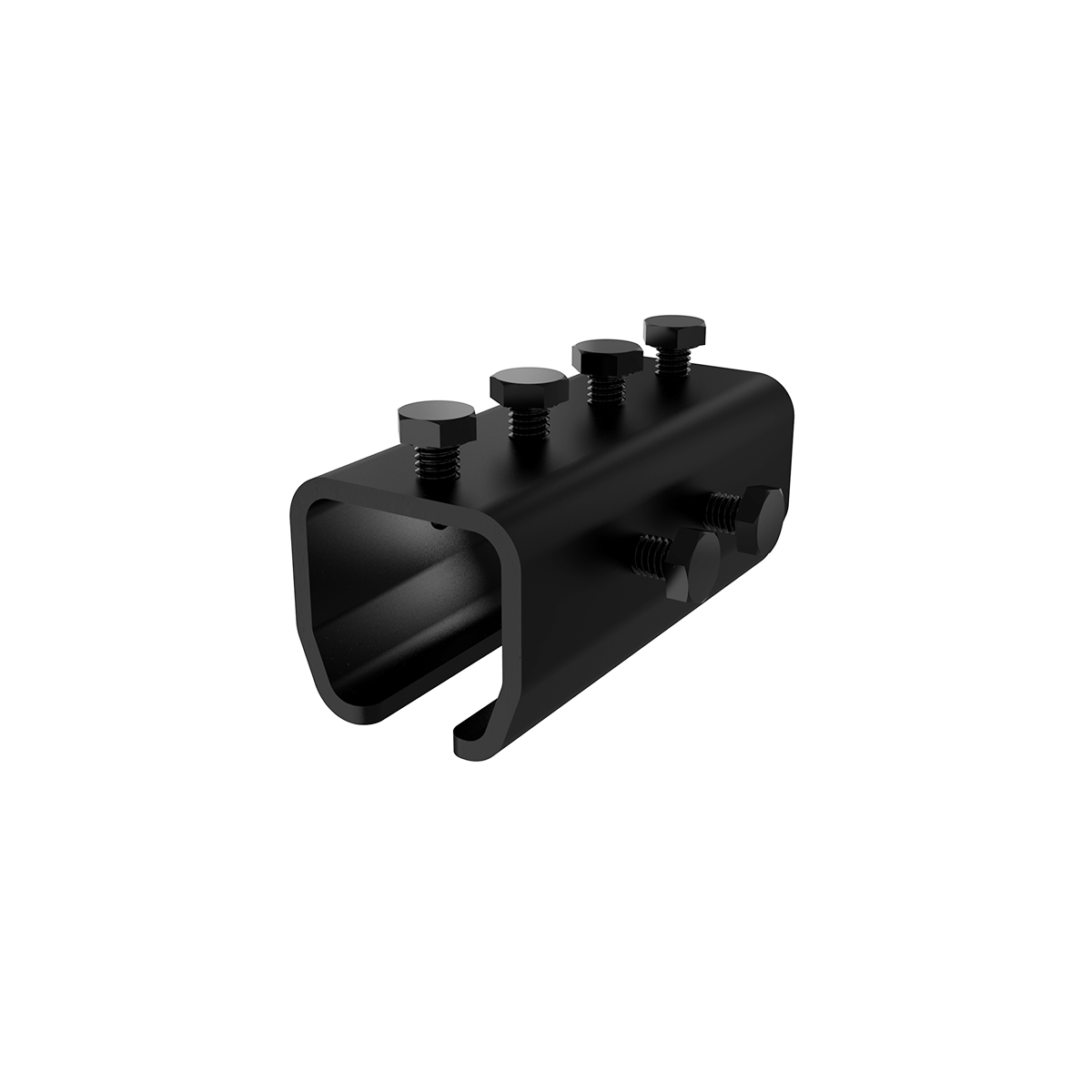

4. Coupling | 8050 0040 08## | Weight: 0.24 kg/piece |

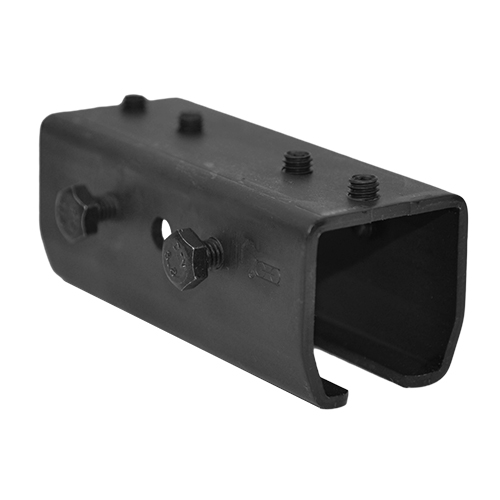

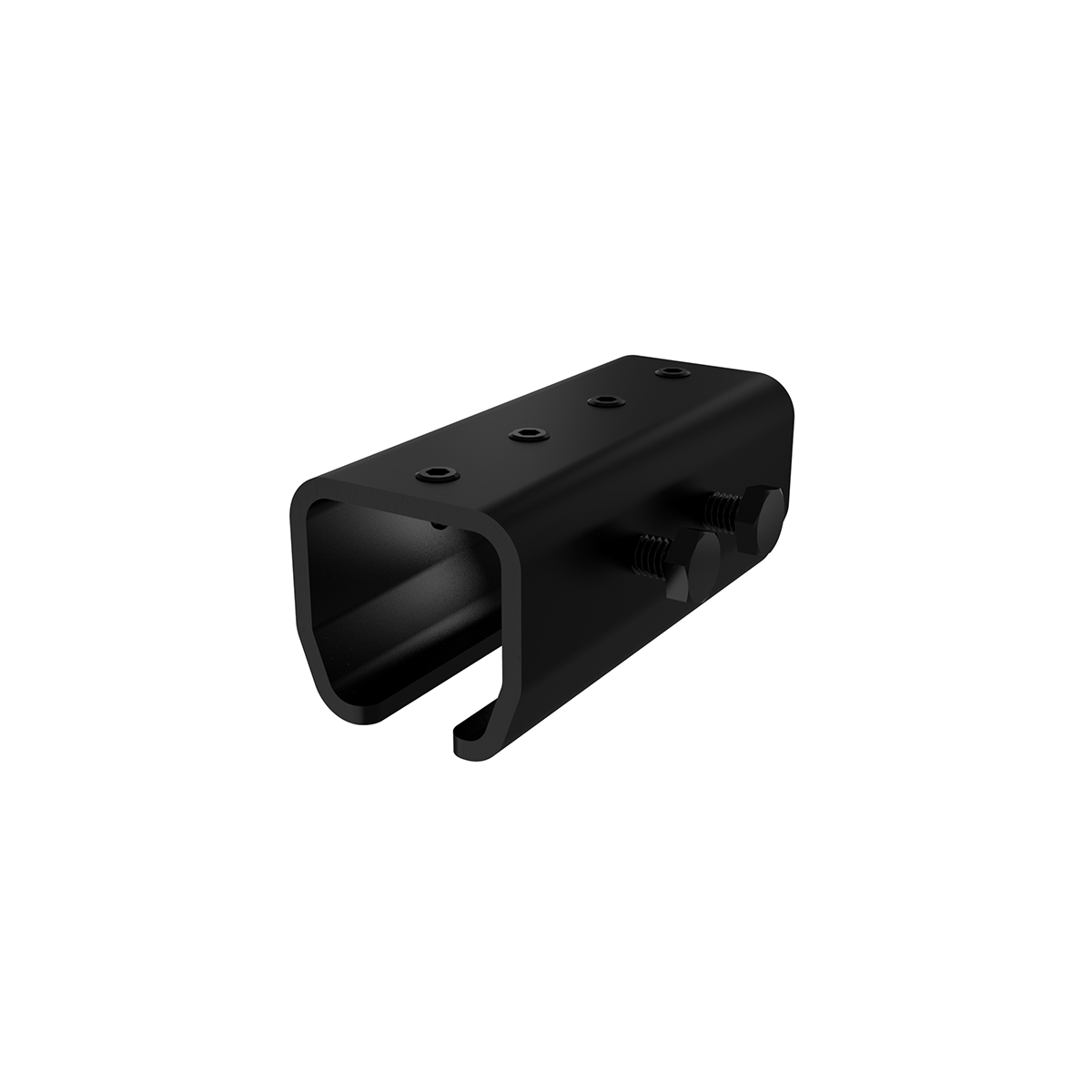

5. Coupling for ceiling suspension | 8050 0040 0811 | To combine with ceiling bracket • 0.24 kg/piece |

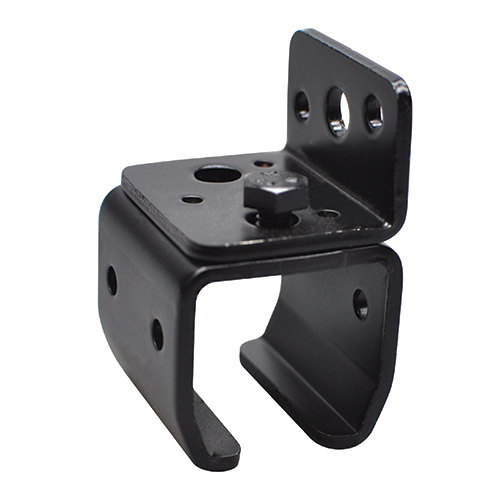

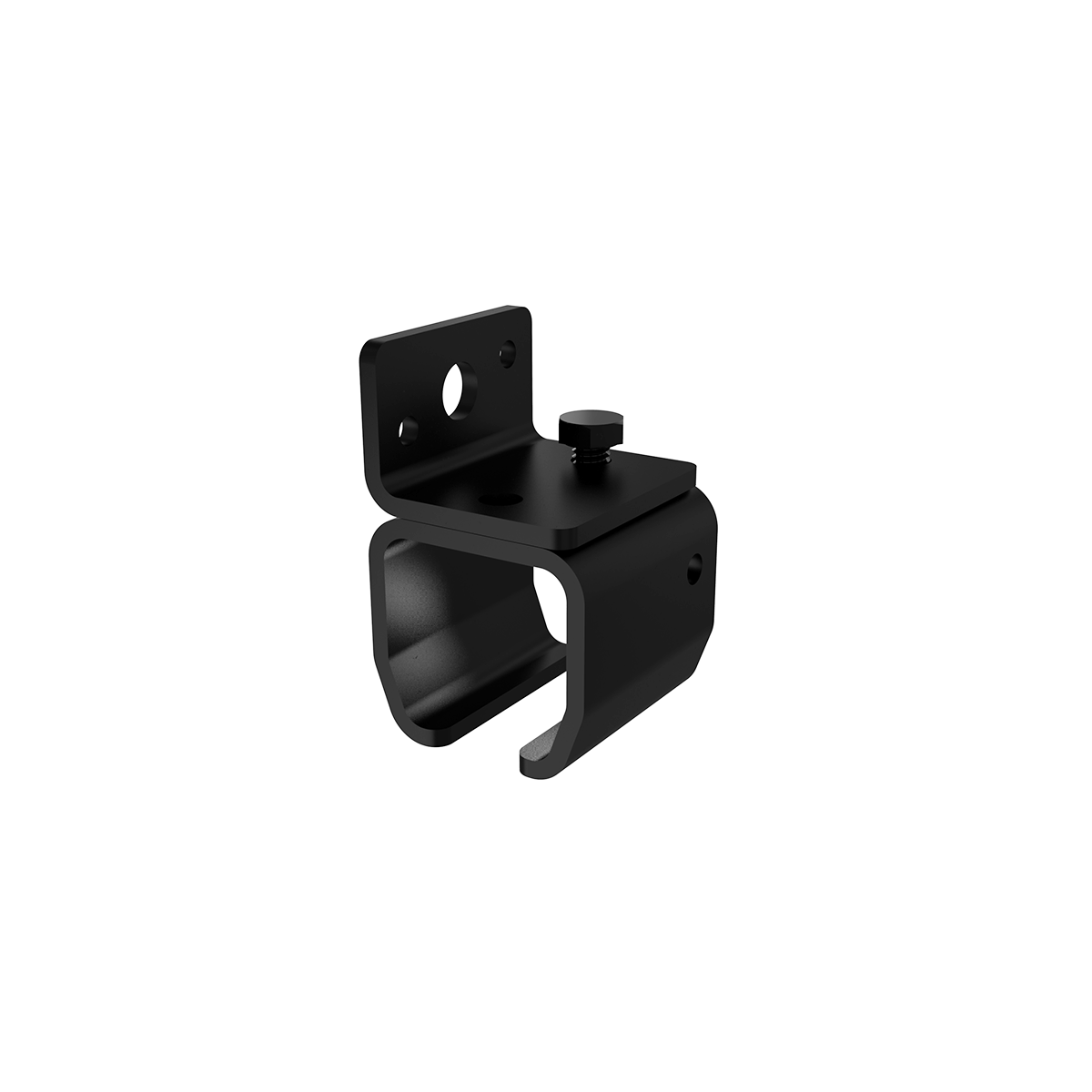

6. Wall Bracket | 8050 0100 00## | Weight: 0.14 kg/piece |

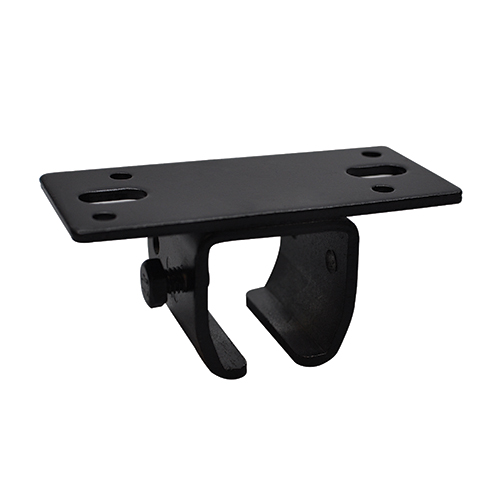

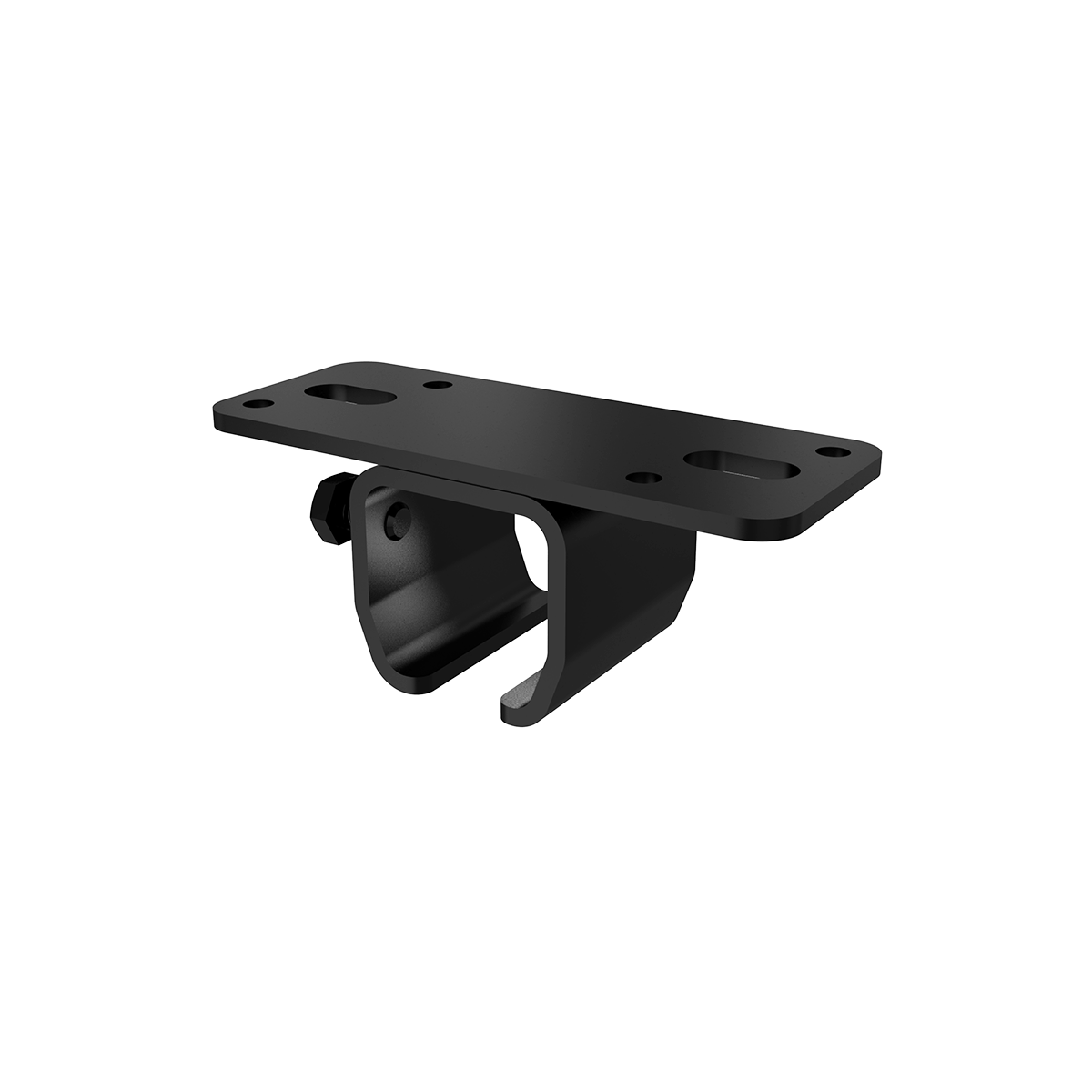

7. Ceiling Bracket | 8050 0110 00## | Weight: 0.18 kg/piece |

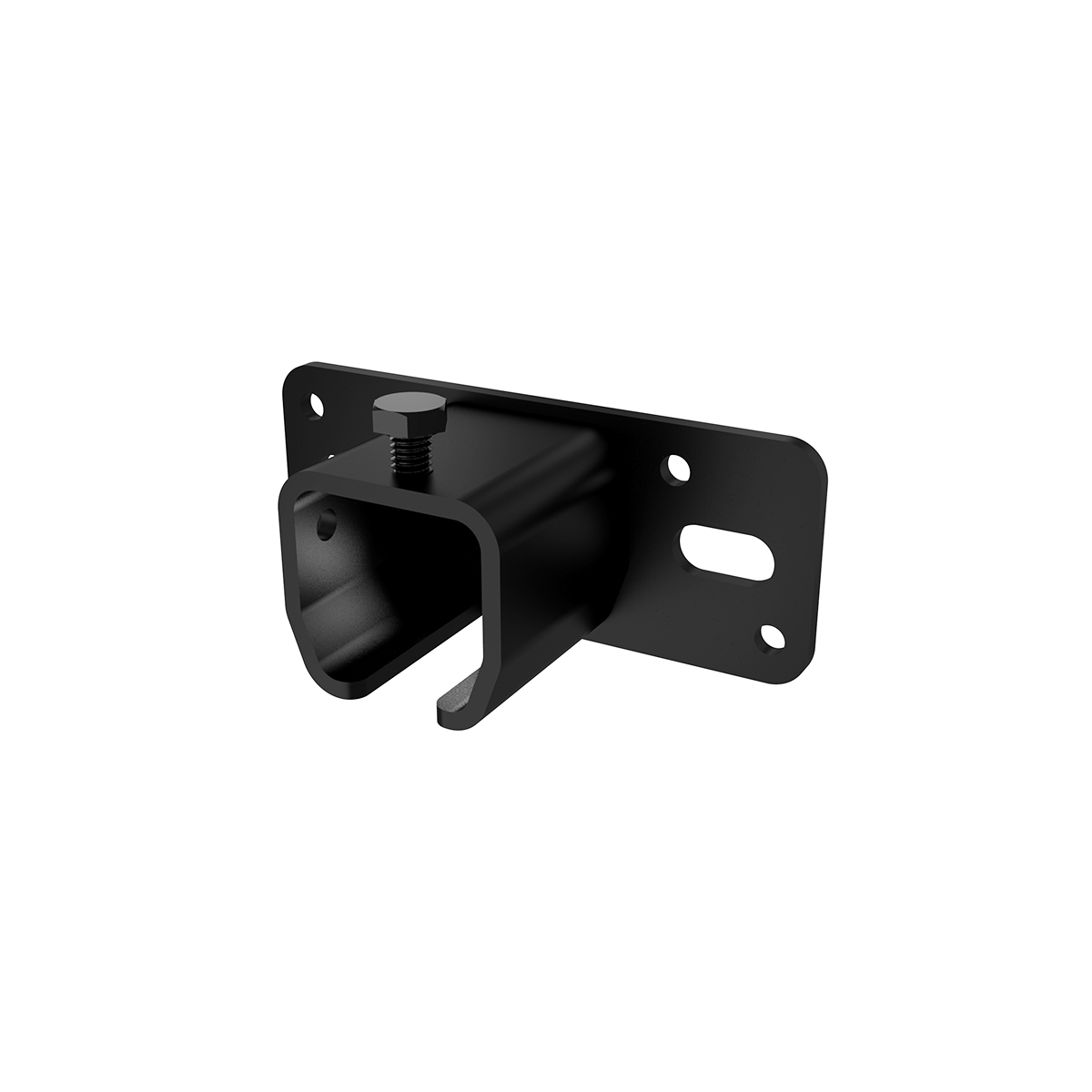

8. Wall Bracket | 8050 0100 0037 | Horizontal • Weight: 0.14 kg/piece |

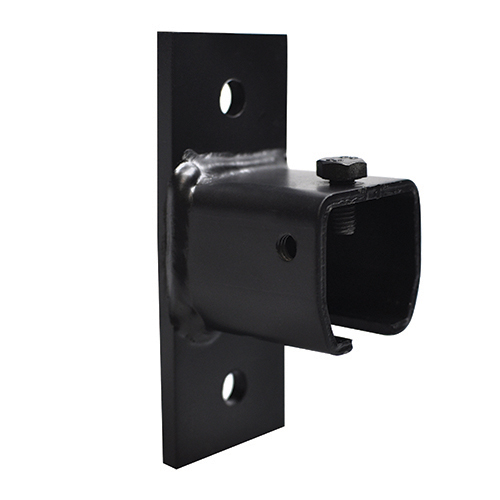

8050 0100 0057 | Vertical • Weight: 0.14 kg/piece | |

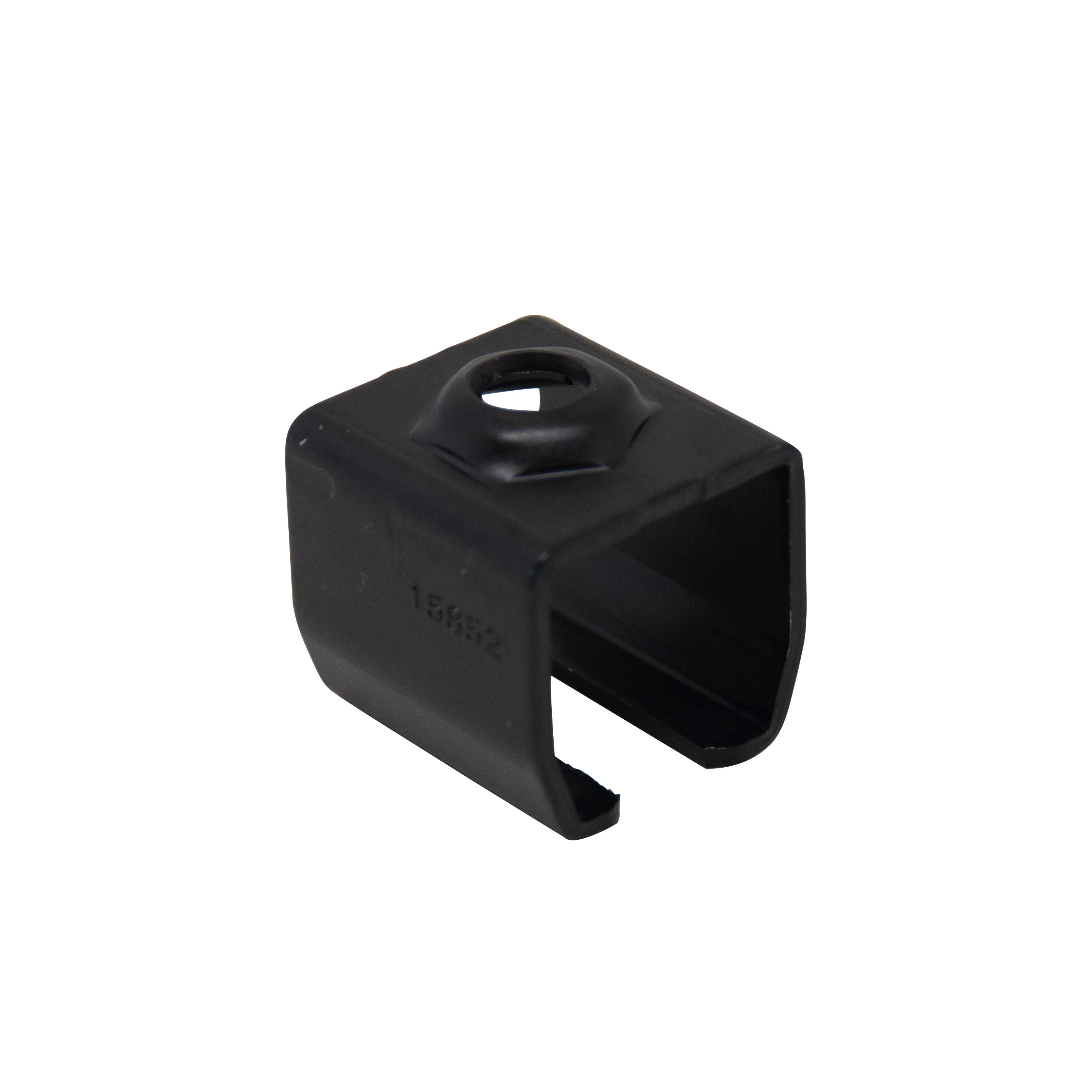

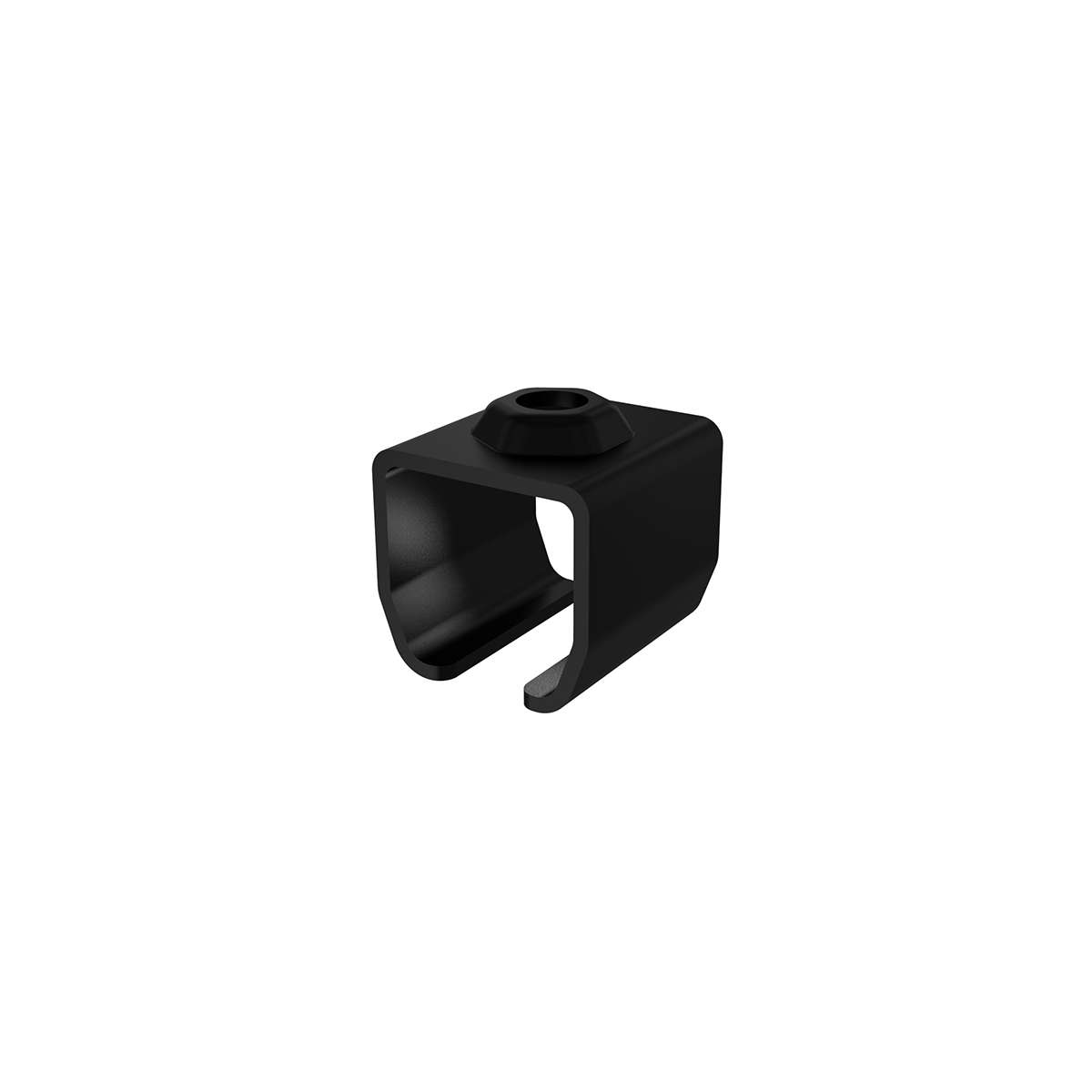

9. Bracket for threaded rod | 8050 0131 000# | Weight: 0.08 kg/piece |

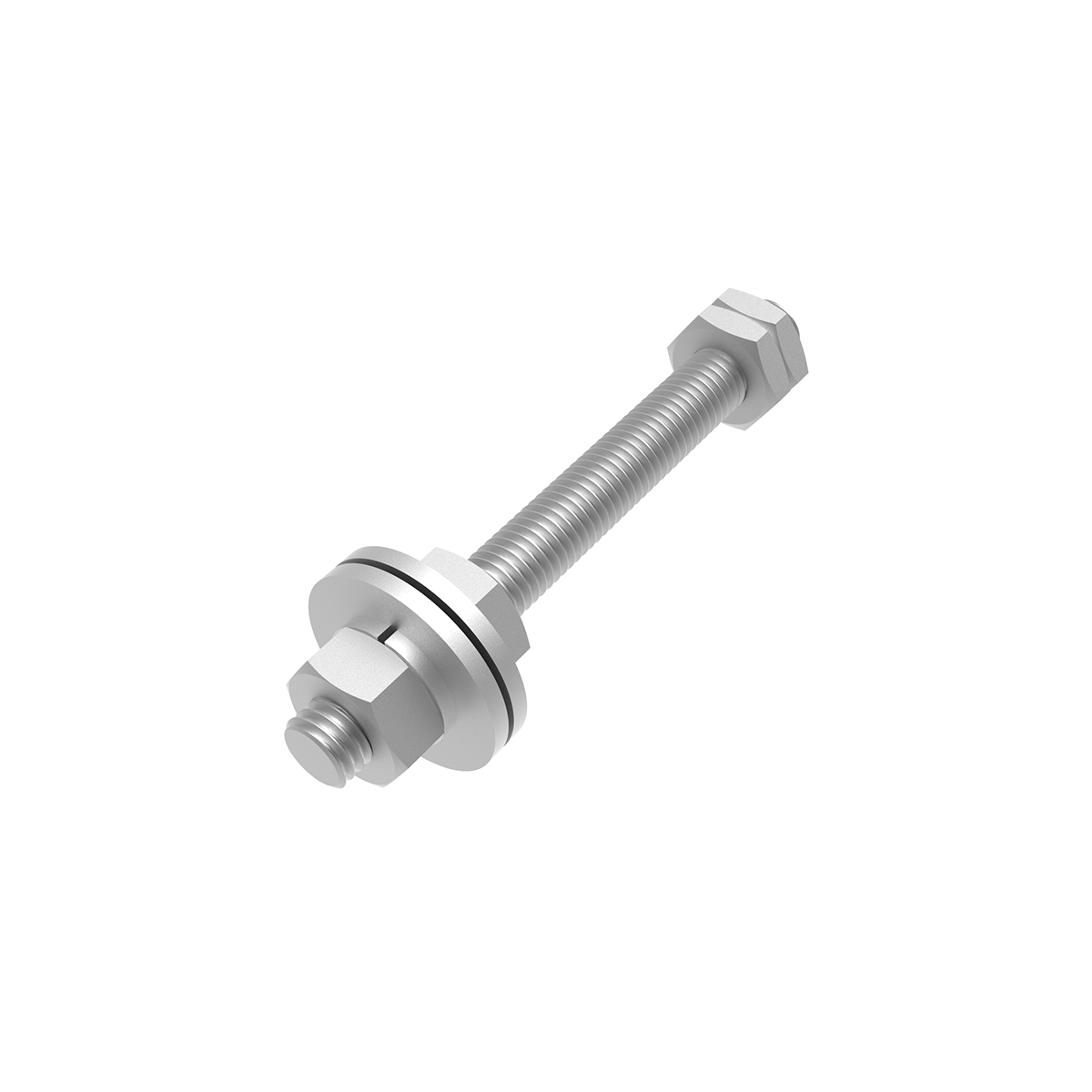

10. Threaded rod M10 | 8700 9210 041# | Length: 10 cm • Weight: 0.10 kg/piece |
8700 9210 042# | Length: 20 cm • Weight: 0.15 kg/piece | |
8700 9210 045# | Length: 50 cm • Weight: 0.25 kg/piece | |
11. Endstop | 8050 0050 0001 | Weight: 0.03 kg/piece |
12. Ball Raced Runner | 8050 0205 008# | With swivel hook • 8 kg capacity • Weight: 0.03 kg/piece |
13. Ball Raced Master Carrier | 8050 0221 016# | With 1 S-hook • 15 kg capacity • Weight: 0.05 kg/piece |

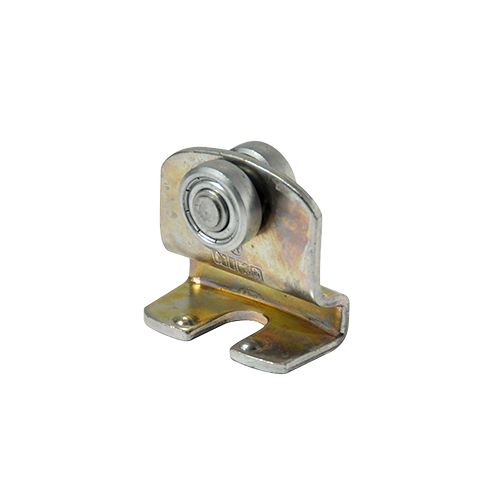

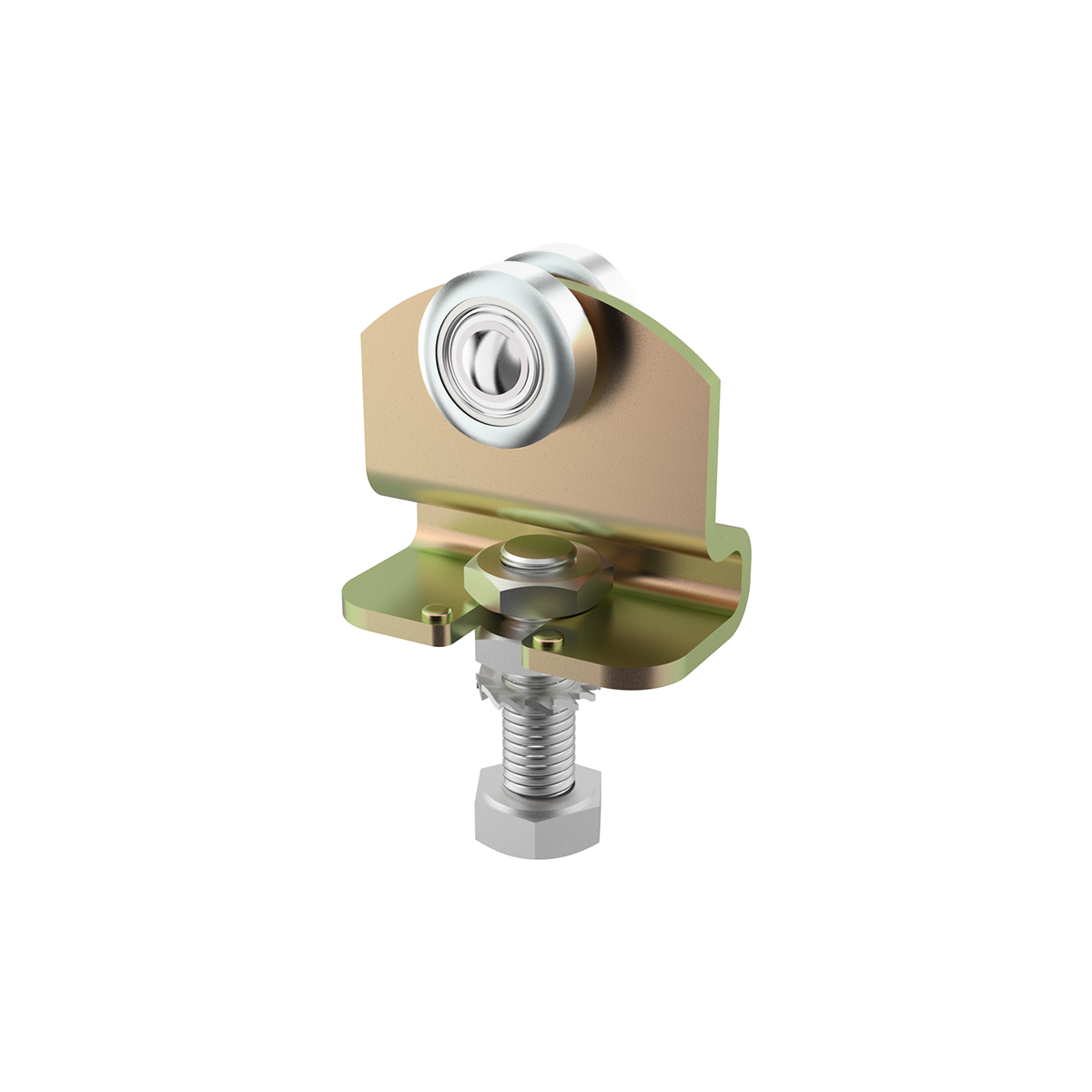

14. Scenery Carrier | 8050 0230 0001 | SWL: 60 kg • Weight: 0.11 kg/piece |
15. Master Carrier with brake | 8050 0221 0197 | 15 kg capacity • Weight: 0.22 kg/piece |
16. Short Overlap Carrier | 8050 0245 0057 | With 2 S-hooks • Weight: 0.09 kg/piece |
17. Overlap Carrier Set | 8050 0246 0167 | Set of 2 pieces • With 4 S-hooks • Weight: 0.82 kg/piece |
18. Master Carrier for motor | 8050 0228 016# | With 1 S-hook • Weight: 0.12 kg/piece |
19. Short Overlap Master Carrier for motor | 8050 0245 1057 | Weight: 0.09 kg/piece • with 2 S-hooks |
20. Overlap Carrier Set for motor | 8050 0246 1167 | Set of 2 pieces • Weight: 0.82 kg/set • with 4 S-hooks |
21. Head Pulley | 8050 0400 0047 | Weight: 1.65 kg/piece |
22. Return Pulley | 8050 0410 0047 | Weight: 0.95 kg/piece |
23. Weighted Return Pulley | 8050 0415 0077 | Weight: 5.50 kg/piece |
8050 0415 0097 | Weight: 10.50 kg/piece | |
24. Floor Fixed Return Pulley | 8050 0420 0007 | Weight: 3.38 kg/piece |
25. Double Braided Rope | 7530 0308 1007 | ø: 8 mm • Weight: 0.04 kg/meter |
26. Cable Clamp | 8050 0248 0035 | Set of 3 pieces • ø: 8 mm • Weight: 0.035 kg/piece |
27. RopeAssist | 8050 0425 0107 | Weight: 6.54 kg/piece |
