ShowTrack curtain track for heavy curtains

ShowTrack

Patience rideau en section « I » pour rideaux et décors lourds. ShowTrack est un système très durable et permet des portées supérieures.

Les patiences de 6 m de long ont moins de raccords.
Réalisés en aluminium extrudé, les patiences fonctionnent en silence.
À combiner avec ChainTrack pour un mouvement multidirectionnel du rideau.
Patiences droites ou cintrées sur mesure.

Compatible avec notre gamme de moteurs Rope Drive.

DONNÉES TECHNIQUES – SHOWTRACK – PATIENCE RIDEAU

Accessoire	Code article	Information
01. Track	8075 0001 6007	Weight: 3.24 kg/m • Length: 6.00 m
02. Curved Track 90°	8075 0007 1007	Weight: 5.09 kg • Radius: 1.00 m
03. Joint Plate set	8075 0042 1807	Weight: 0.74 kg/set • To connect track profiles
04. Overlap Clip	8075 0696 1207	Weight: 0.29 kg • To align overlapping track profiles
05. End Stop	8075 0050 0007	Weight: 0.27 kg • With S-Hook to hang a curtain grommet
06. Flat End Stop	8075 0053 0007	Weight: 0.14 kg • For the centre of a track
07. Hook Clamp	8075 0680 0007	Weight: 0.89 kg • For suspension on trusses and tubes
08. Ceiling Bracket	8075 0110 0007	Weight: 0.14 kg • For direct ceiling suspension
09. Offset Bracket	8075 0690 0607	Weight: 0.37 kg • For Double/Curved Track offset
10. Offset Bracket HD	8075 0550 0007	Weight: 0.96 kg • For Double/Curved Track offset
11. Runner	8070 0209 0257	Weight: 0.28 kg • Ball-raced
12. Rear Fold Runner	8070 0212 0257	Weight: 0.30 kg • Ball-raced • For rear fold wipe effect
13. Master Carrier	8070 0227 0507	Weight: 0.80 kg • Ball-raced • With Rope Clamp
14. Master Carrier Curved Track 50 kg	8070 0510 0507	Weight: 1.24 kg • Ball-raced • With Rope Clamp • For Curved Track
15. Master Carrier Curved Track 100 kg	8070 0510 1007	Weight: 2.96 kg • Ball-raced • With Rope Clamp • For Curved Track
16. Scenery Carrier 50 kg	8070 0230 0507	Weight: 0.85 kg • Ball-raced • With Rope Clamp
17. Scenery Carrier 100 kg	8070 0230 1037	Weight: 2.32 kg • Ball-raced • With Rope Clamp
18. Scenery Carrier 350 kg	8075 0230 3507	Weight: 3.70 kg • Ball-raced • With Rope Clamp
19. Quick Release Carrier 100 kg	8070 0230 1067	Weight: 3.70 kg • Ball-raced • With Rope Clamp
20. Quick Release Carrier 350 kg	8070 0230 3537	Weight: 3.70 kg • Ball-raced • With Rope Clamp
21. RotoDraper Carrier	8700 0699 0037	Weight: 3.40 kg • Ball-raced • With Rope Clamp
22. Scenery Hanger	8070 0235 0507	Weight: 0.98 kg • To suspend scenery
23. Overlap Arm set	8070 0241 0007	Weight: 0.60 kg • For overlap in Single Track • Master Carrier
24. Overlap Arm set HD	8070 0241 0017	Weight: 0.69 kg • For overlap in Single Track • Scenery Carrier 100 / 350 kg
25. Head Pulley Single Track	8075 0400 0017	Weight: 0.54 kg • For Single Track rope operation
26. Return Pulley Single Track	8075 0410 0017	Weight: 0.48 kg • For Single Track rope operation
27. Head Pulley Double Track	8075 0400 0027	Weight: 1.38 kg • For Double Track rope operation
28. Return Pulley Double Track	8075 0410 0027	Weight: 1.38 kg • For Double Track rope operation
29. Head Pulley Curved Track	8075 0520 0007	Weight: 1.73 kg • For Curved Track rope operation
30. Return Pulley Curved Track	8075 0523 0007	Weight: 1.22 kg • For Curved Track rope operation
31. Rope Pickup	8075 0694 0007	Weight: 0.27 kg • For Double Track

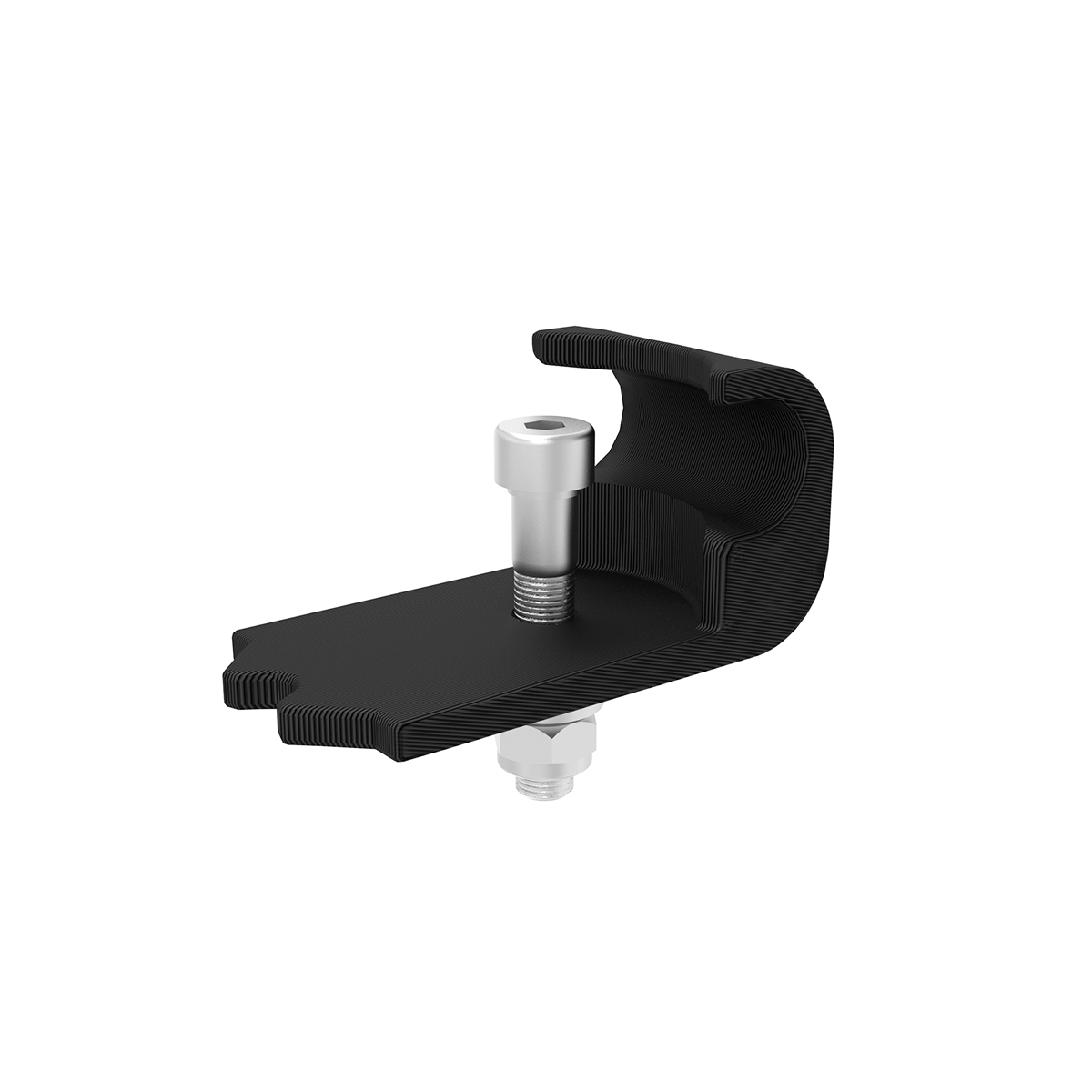

32. Rope Guide Curved Track	8075 0500 0007	Weight: 0.46 kg • For Curved Track
33. Limit Switch Ski	8075 0770 0017	Weight: 0.23 kg • For motor operation
34. Double Braided Rope	7530 0308 1007	Weight: 0.04 kg/m • ⌀ 8 mm • For rope and motor operation
35. Weighted Return Pulley	8050 0415 0077	Weight: 5.50 kg • For rope operation
	8050 0415 0097	Weight: 10.50 kg • For rope operation
36. Floor Fixed Return Pulley	8050 0420 0007	Weight: 3.38 kg • For rope operation
37. RopeAssist	8050 0425 0107	Weight: 6.54 kg • For comfortable rope operation
