ShowPipe
Variante tubulaire du rail H100 en aluminium, affichant les mêmes caractéristiques.
- Cette patience rideau se monte facilement et rapidement.
- À insérer dans les tubes ronds en aluminium de 50 mm, ce qui permet de l'intégrer facilement dans notre système EasyDrape, là où le rideau doit pouvoir bouger.
- Commande par DMX possible.
Compatible avec notre gamme de moteurs Rope Drive.
DONNÉES TECHNIQUES – SHOWPIPE – PATIENCE RIDEAU
| Accessoire | Code article | Information |
|---|---|---|

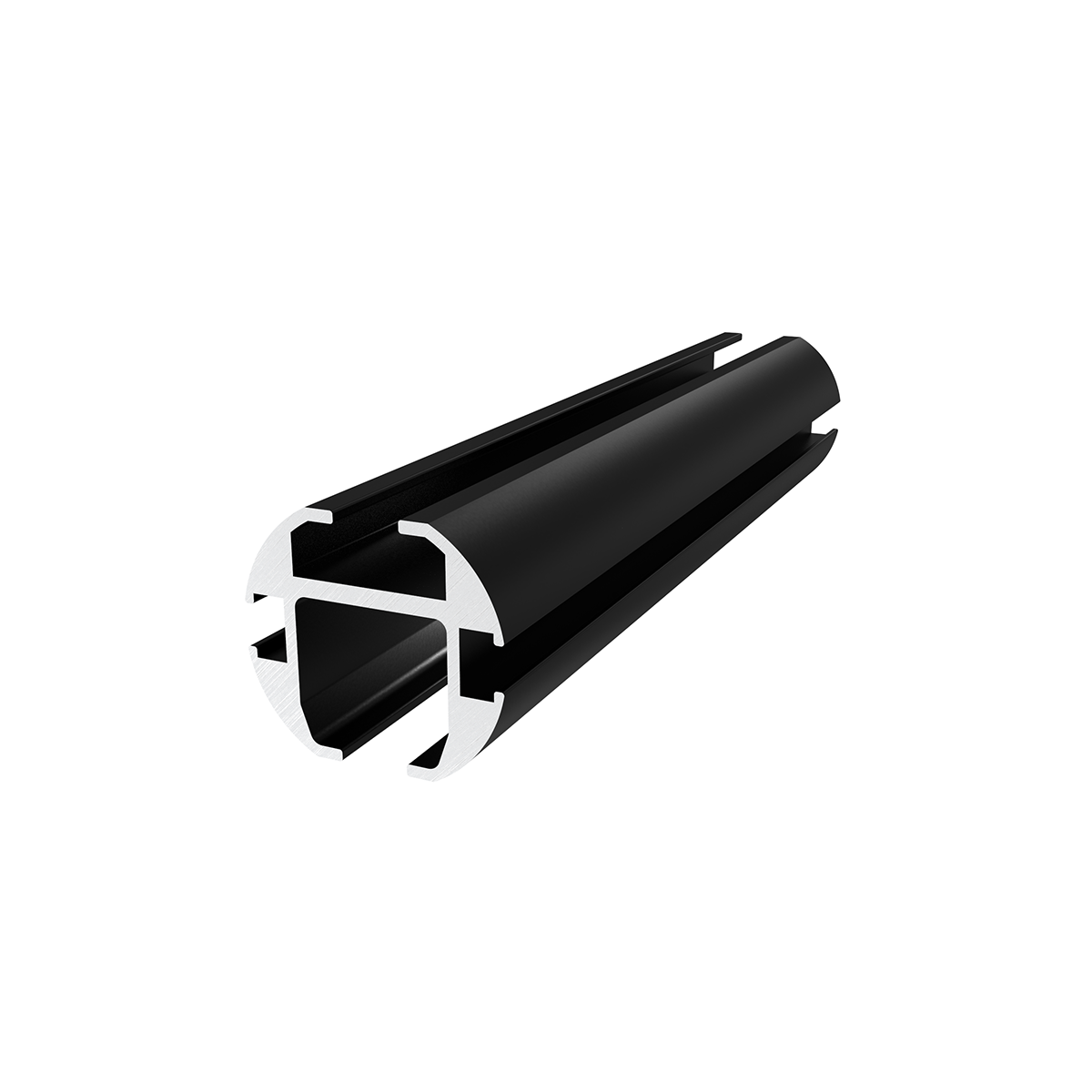

1. Track | 8055 0001 6007 | Length: 600 cm • Weight: 1.31 kg/meter |

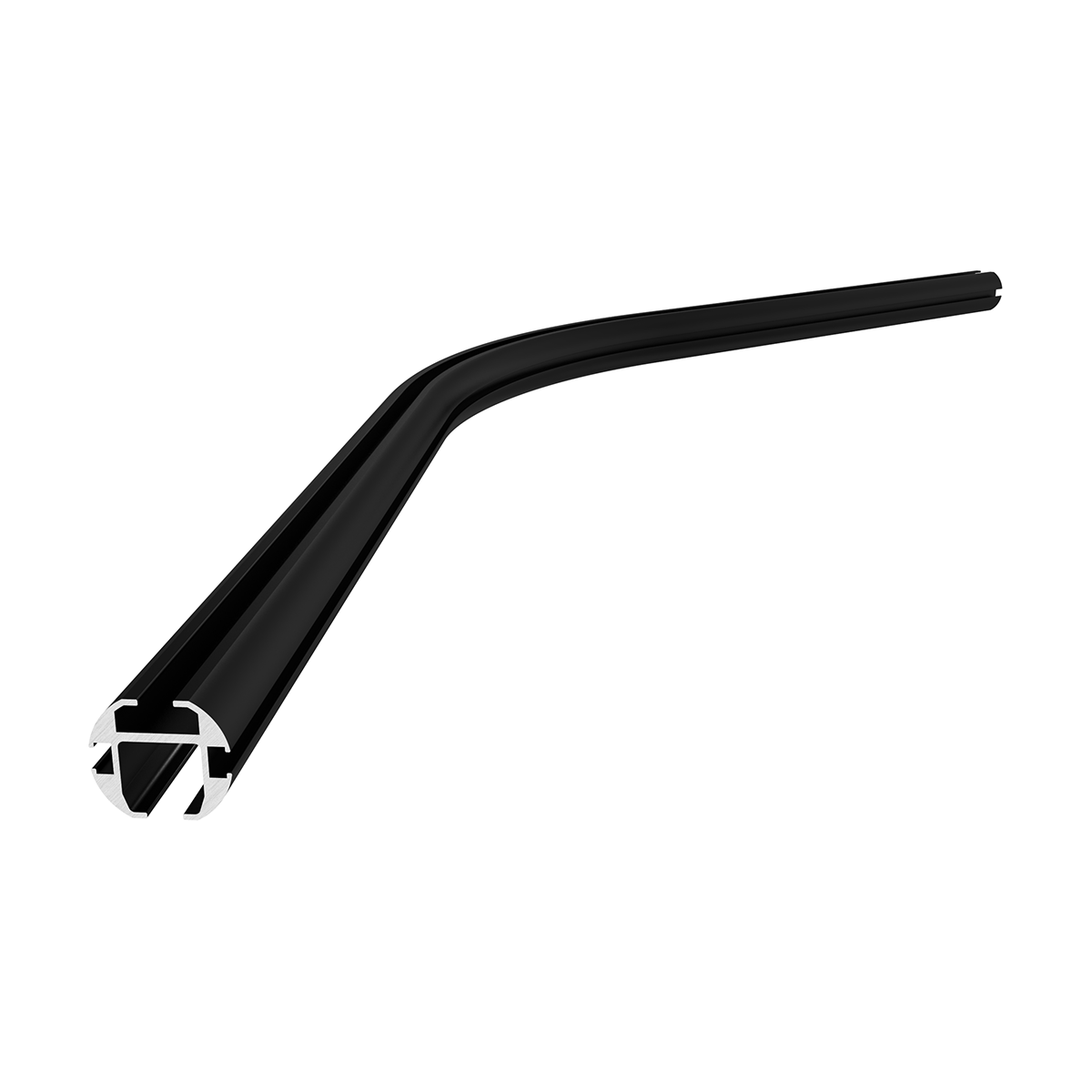

2. Curved Track | 8055 0004 0757 | 45° • Radius: 75 cm • Weight: 1.54 kg/piece |

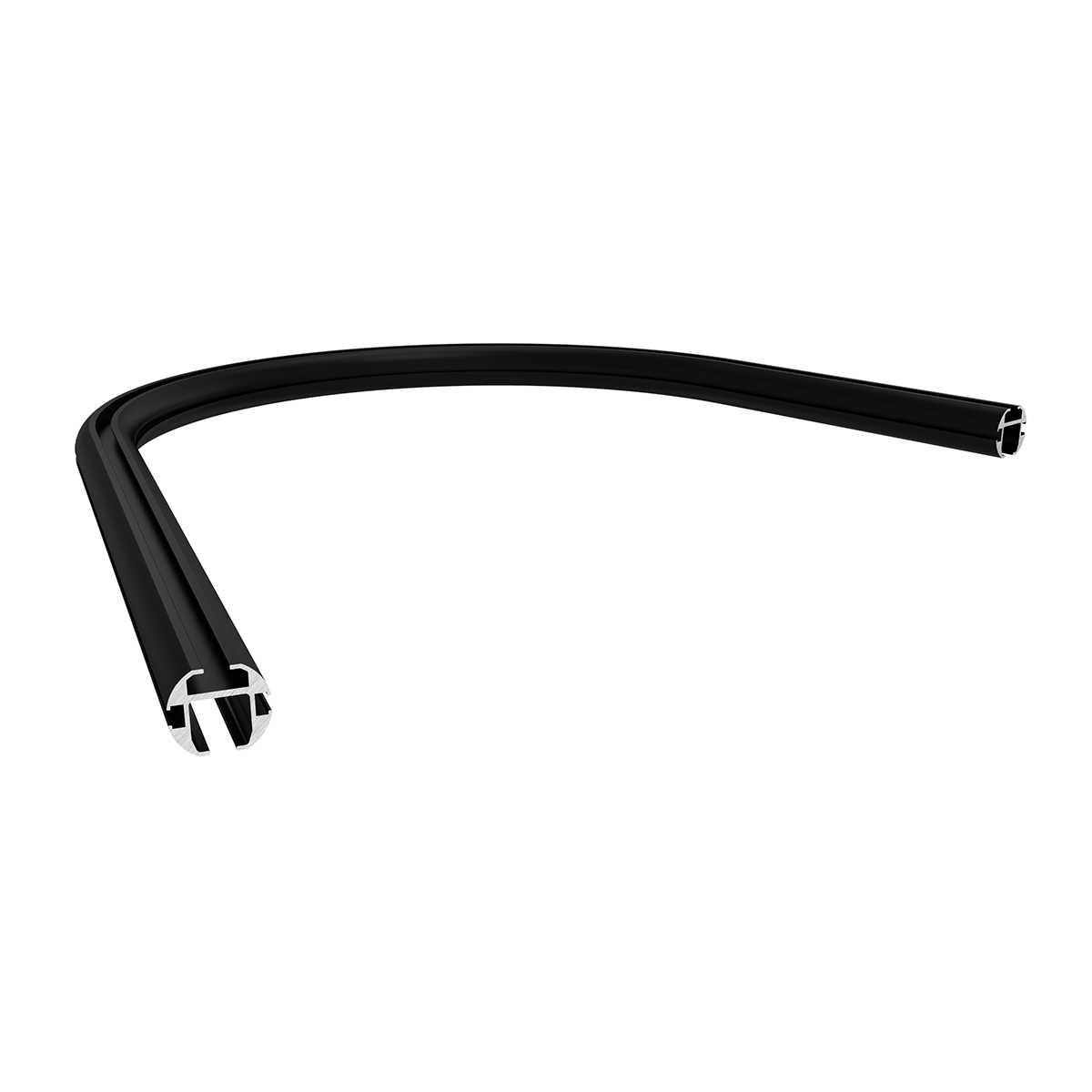

(can also be custom-curved) | 8055 0004 1007 | 45° • Radius: 100 cm • Weight: 2.06 kg/piece |

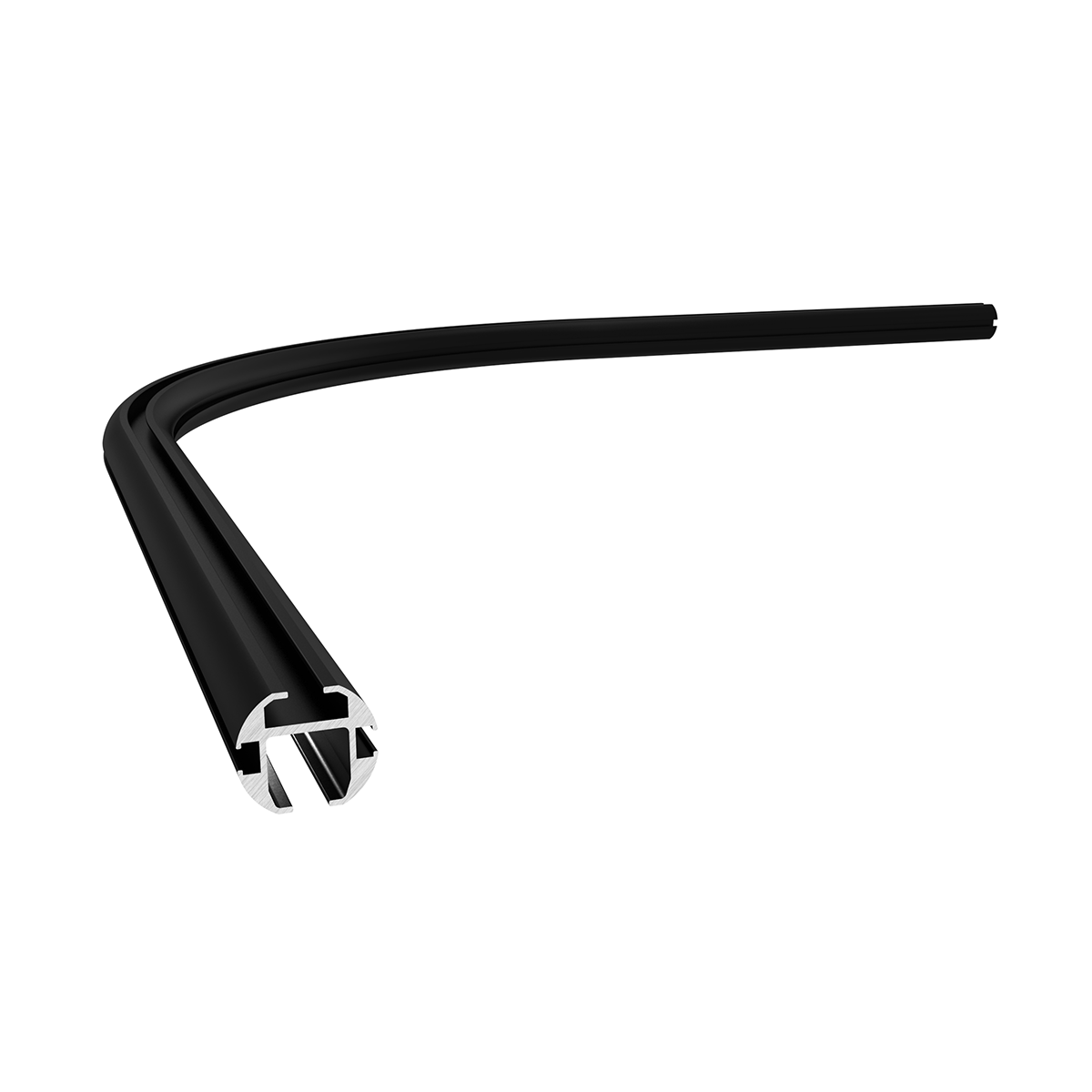

8055 0007 0507 | 90° • Radius: 50 cm • Weight: 1.54 kg/piece | |
8055 0007 0757 | 90° • Radius: 75 cm • Weight: 1.54 kg/piece | |
8055 0007 1007 | 90° • Radius: 100 cm • Weight: 2.06 kg/piece | |
3. Joiner Set | 8055 0042 1507 | Includes left and right pieces • Weight: 0.11 kg/set |

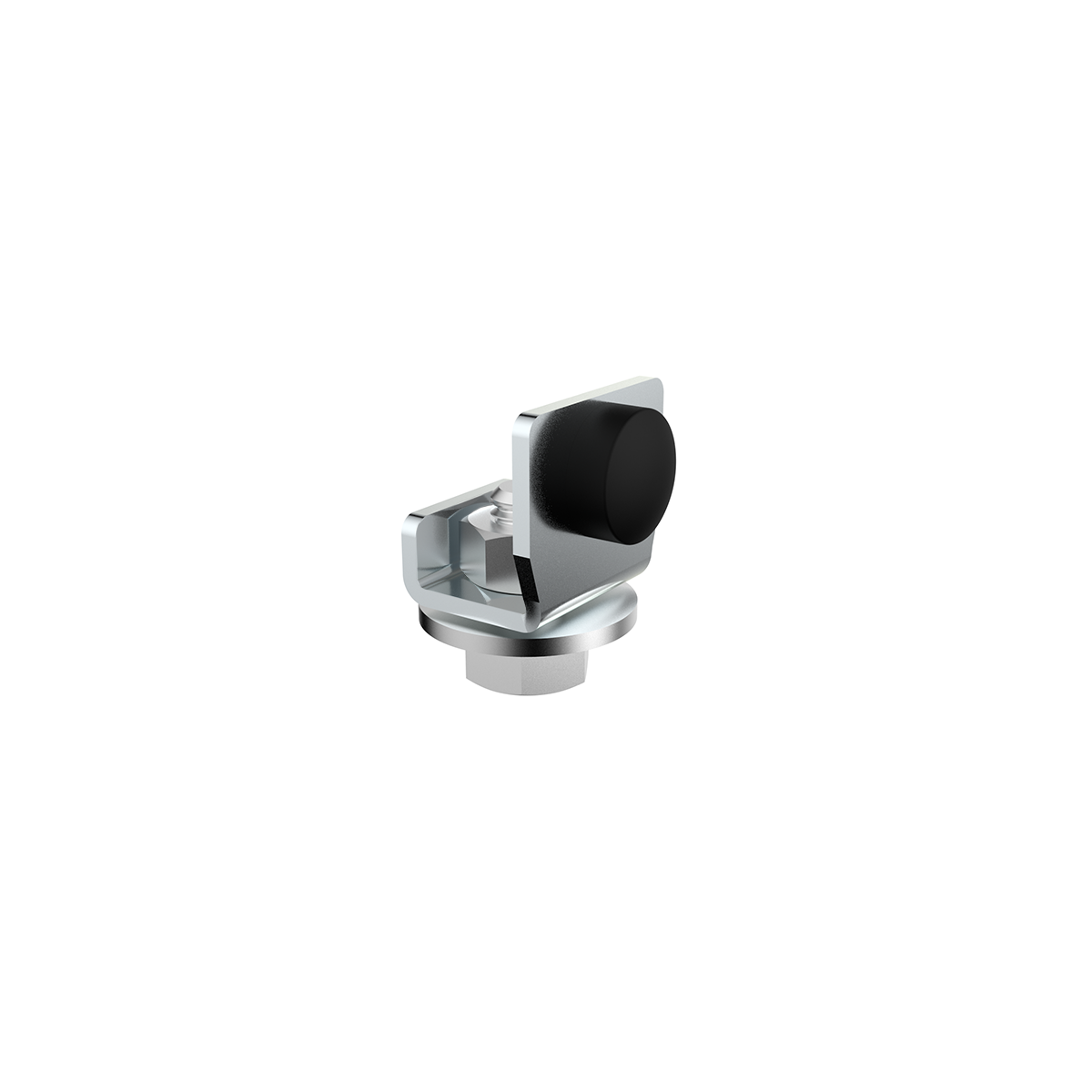

4. End Stop | 8050 0050 0001 | Weight: 0.03 kg/piece |
5. Half Coupler Clamp 75 kg | 8055 0680 0757 | Fits ø 48/51 mm tubes • 75 kg capacity |
+ Channel Nut M10 | Weight: 0.40 kg/piece | |
6. Hidden Ceiling Bracket | 8055 0110 0027 | Weight: 0.02 kg • WLL: 40 kg SF: 5:1 • Black |
7. Diamond-Shaped Nut | 8700 9224 0011 | Weight: 0.01 kg/piece |
8. Square Channel Nut | 8055 9224 0007 | Weight: 0.02 kg/piece |
9. Ball Raced Runner | 8050 0205 008# | With swivel hook • 8 kg capacity • Weight: 0.03 kg/piece |
10. Glider | 8067 0195 0007 | With swivel hook • SWL: 6 kg • Weight: 0.17 kg/pc |
11. Ball Raced Master Carrier | 8050 0221 016# | With 1 S-hook • 15 kg capacity • Weight: 0.05 kg/piece |
12. Scenery Carrier | 8055 0230 0002 | 60 kg capacity • Weight: 0.11 kg/piece |
13. Master Carrier with Brake | 8050 0221 0197 | 15 kg capacity • Weight: 0.22 kg/piece |
14. Short Overlap Carrier | 8050 0245 0057 | With 2 S-hooks • Weight: 0.09 kg/piece |
15. Overlap Carrier Set | 8050 0246 0167 | Set of 2 pieces • With 4 S-hooks • Weight: 0.82 kg/set |
16. Master Carrier for Motor Control | 8050 0228 0163 | With 1 S-hook • Weight: 0.116 kg/piece |
8050 0228 0167 | With 1 S-hook • Weight: 0.116 kg/piece | |
17. Short Overlap Carrier for Motor Control | 8050 0245 1057 | Weight: 0.09 kg/piece • with 2 S-hooks |
18. Overlap Carrier Set for Motor Control | 8050 0246 1167 | Set of 2 pieces • Weight: 0.82 kg/set • with 4 S-hooks |

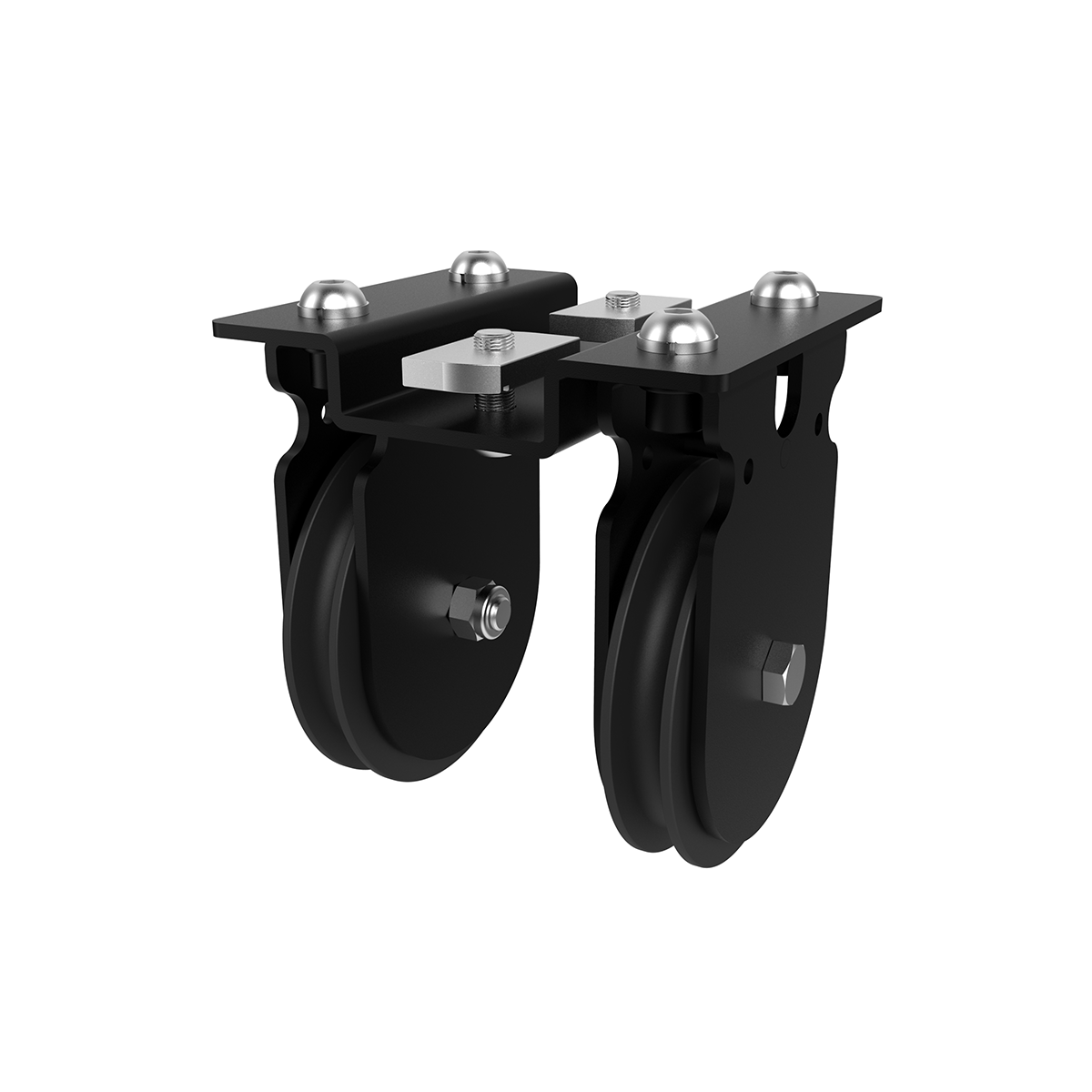

19. Head Pulley | 8050 0400 0047 | Weight: 1.65 kg/piece |
20. Return Pulley | 8050 0410 0047 | Weight: 0.95 kg/piece |
21. Weighted Return Pulley | 8050 0415 0077 | Weight: 5.50 kg/piece |
8050 0415 0097 | Weight: 10.50 kg/piece | |
22. Floor Fixed Return Pulley | 8050 0420 0007 | Weight: 3.38 kg/piece |

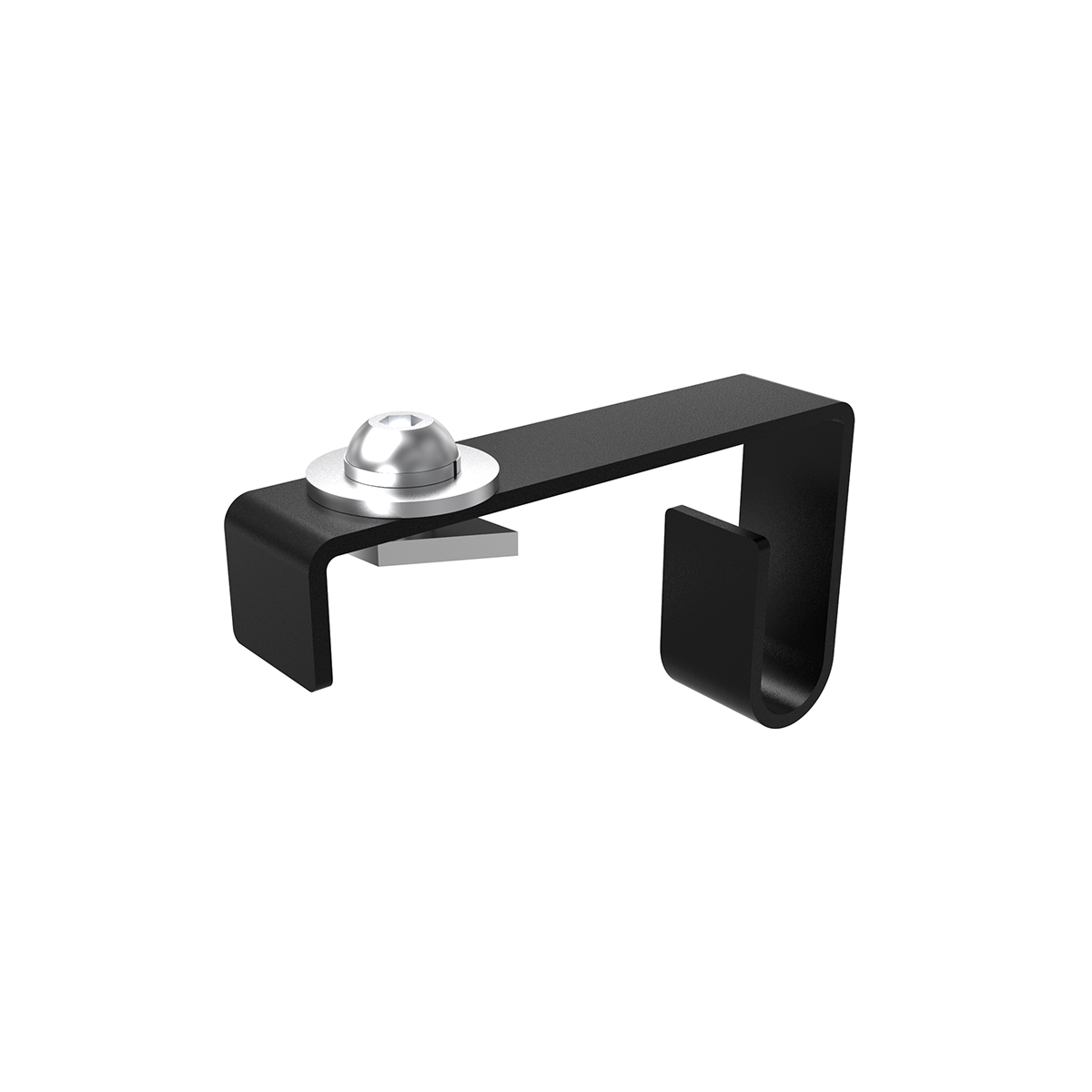

23. Line Pickup | 8055 0694 0007 | Weight: 0.2 kg/piece |
24. Double Braided Rope (Ø8 mm) | 7530 0308 1007 | Weight: 0.04 kg/meter |
25. Rope Clamp (set of 3) | 8050 0248 0035 | Weight: 0.035 kg/piece |
26. Limit Switch Set | 8050 0770 0010 | Weight: 0.226 kg/set |
27. RopeAssist | 8050 0425 0107 | Weight: 6.54 kg/piece |
ShowPipe accessoires:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
