1 Info

Save time and space by using the toolless EasyDrape to safely hang expo drapes up to 5 m high. The stand-alone pipe & drape solution is ideal for trade show displays, venue masking, event decoration, banner stands or temporary room dividers.

Specifications:

A toolless system for a handy and silent installation.
Build your set at a comfortable height and push it up to as high as 5m.
No need for scaffolding or extensions.
Uprights with integrated 4-Way for easy mounting of horizontals.
Three standard lengths of Telescopic Uprights: 0.80 to 1.46 m - 1.80 to 3.37 m - 1.80 to 5.03 m
Three standard lengths of Horizontal Drape Support: 0.90 to 1.20 m - 1.20 to 1.80 m - 1.80 to 3.00 m
EasyDrape Supports ensure a safe installation.

2 Product Flyer

For more information regarding the set-ups that are possible for this ShowTex product, be sure to check the Product Flyer of this product.

3 Dimensions

3.1 Front of House Upright

3.2 3 m Upright

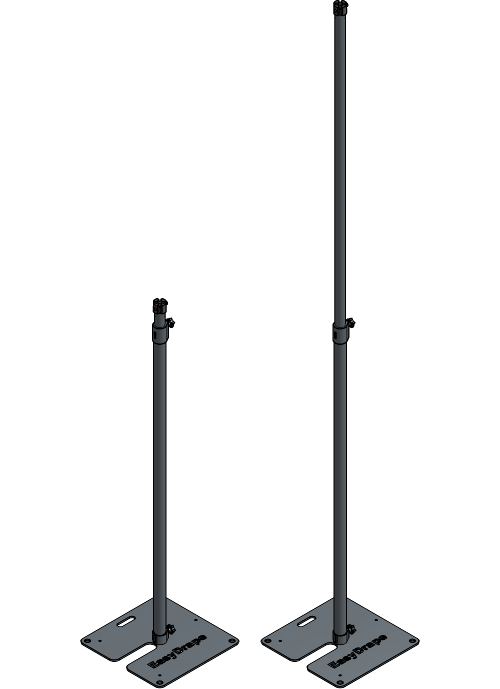

3.3 5 m Upright

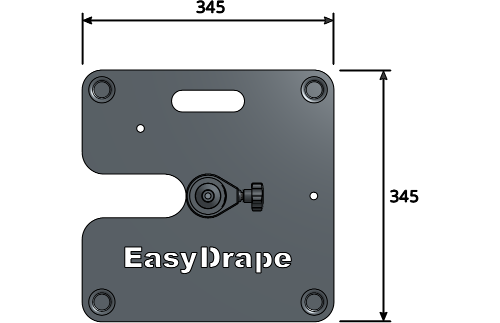

3.4 Front of House Base Plate

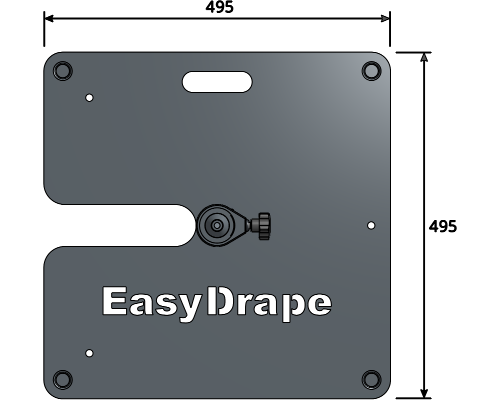

3.5 Base Plate

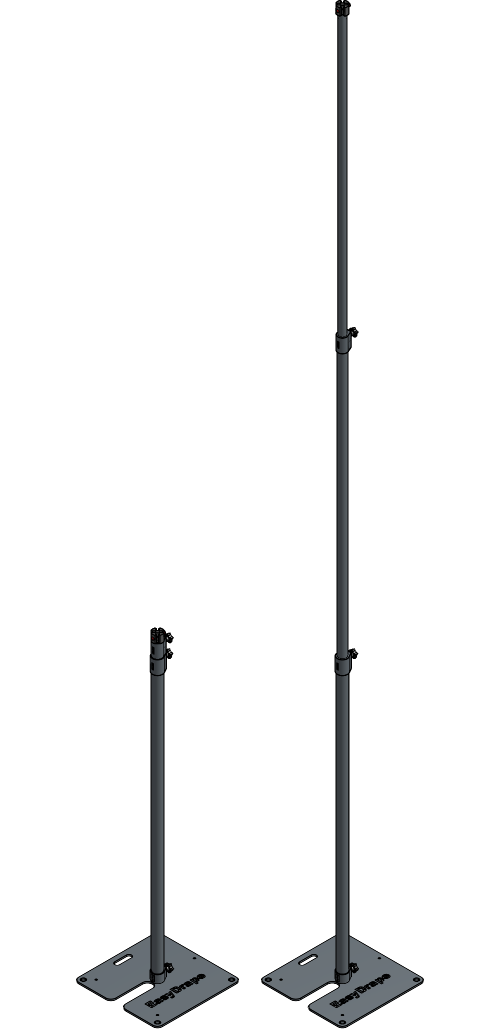

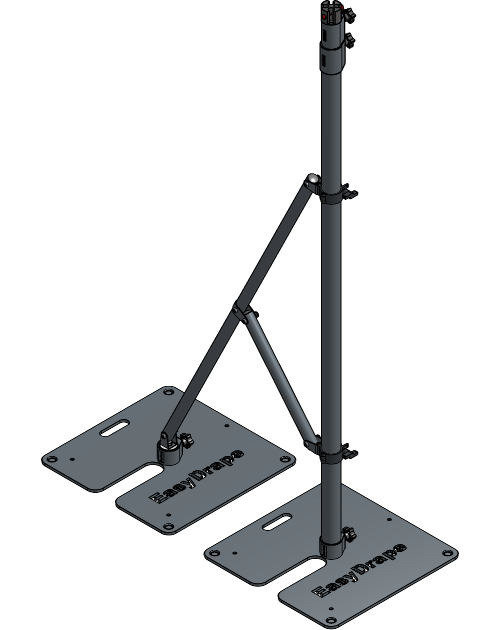

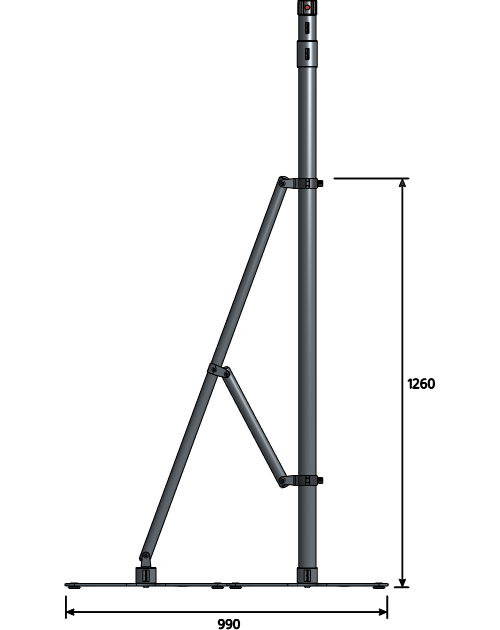

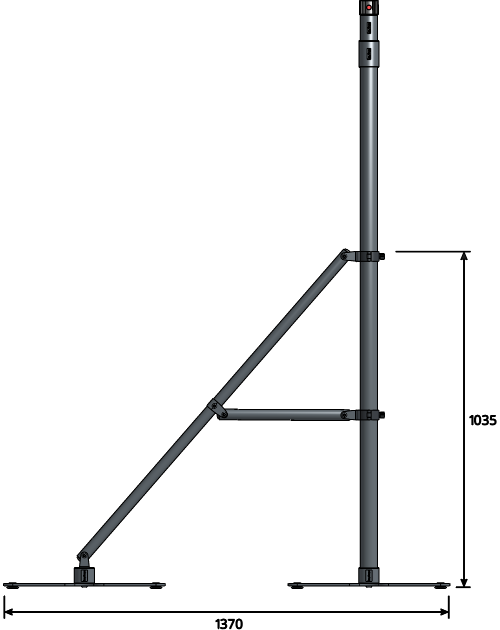

3.6 Upright with Support

4 Storage and Transport Options

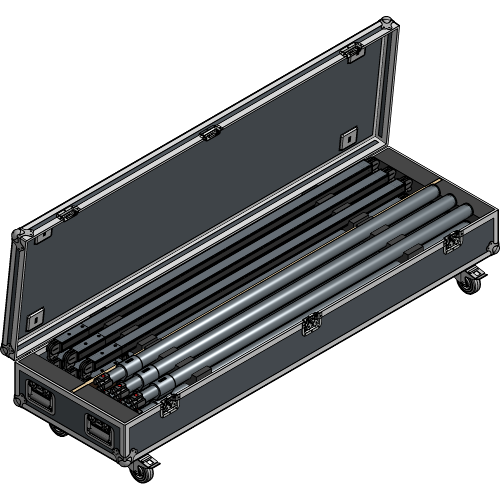

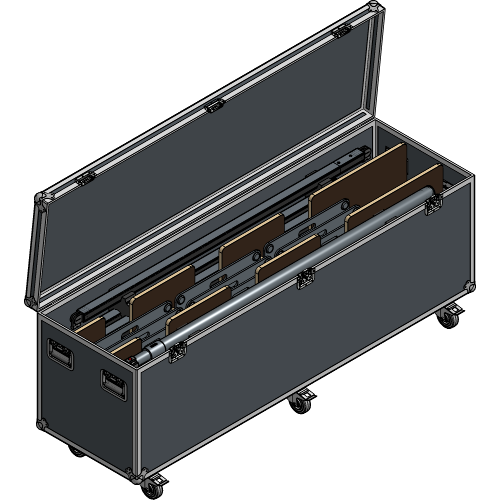

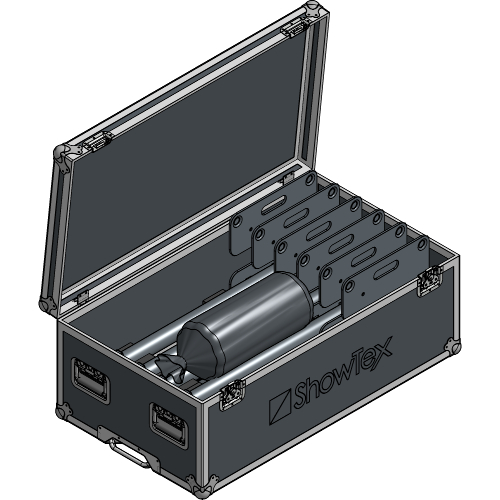

Flightcase

Dimensions: 2000 x 600 x 410 mm

The Flightcase is a storage option that’s capable of containing 9 Telescopic Uprights of both 3 and 5 m in their retracted state. It will also provide storage for 9 Horizontal Drape Supports of 1.20 to 1.80 m or 1.80 to 3.00 m. The Flightcase is often combined with a Base Plate Cart to have the extra Base Plate storage.

Flightcase xl

Dimensions: 2000 x 600 x 800 mm

The Flightcase xl is capable of containing 9 Telescopic Uprights of both 3 and 5 m in their retracted state. It will also provide storage for 9 Horizontal Drape Supports of 1.20 to 1.80 m or 1.80 to 3.00 m and has additional storage room for 9 Base Plates that are assembled with a Base Plate Coupler.

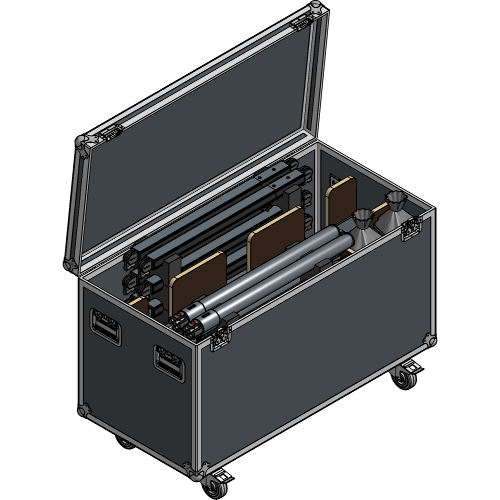

Front of House Flightcase

Dimensions: 1200 x 600 x 800 mm

The Front of House Flightcase is our storage option that’s capable of storing 12 Front of House Telescopic Uprights, 12 Horizontal Drape Supports of 0.90 to 1.20 m or 1.20 to 1.80 m and 12 Base Plates that are assembled with a Base Plate Coupler. It has additional storage room for about 4 curtains of 1.20 high and 6.00 m wide.

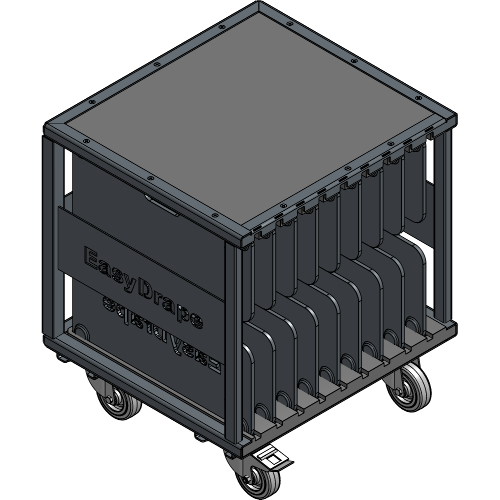

Base Plate Cart

Dimensions: 600 x 550 x 683 mm

The Base Plate Cart is a smaller storage option that’s capable of containing 9 Base Plates that are assembled with a Base Plate Coupler. The Base Plate Cart is often combined with a Flightcase to have the extra storage for Telescopic Uprights and Horizontal Drape Supports.

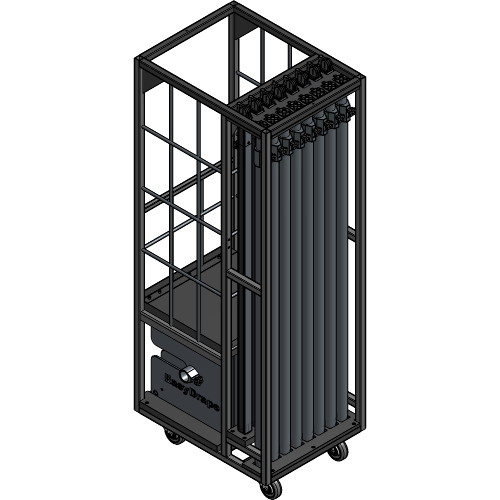

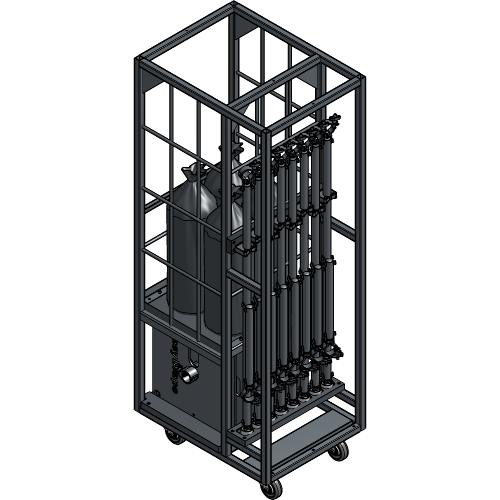

Trolley

Dimensions: 600 x 798 x 1980 mm

The Trolley is our biggest storage option that can store 8 Telescopic Uprights of both 3 and 5 m in their retracted state, 8 Horizontal Drape Supports of 0.90 to 1.20 m or 1.20 to 1.80 m and 8 Base Plates that are assembled with a Base Plate Coupler. It also has a big additional storage room for curtains. The Trolley can be delivered with a sturdy Rain Cover made out of PVC.

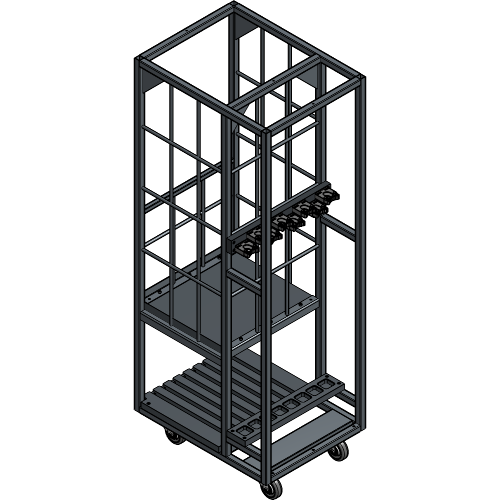

Support Trolley

Dimensions: 600 x 798 x 1980 mm

The Support Trolley is a replica of our other Trolley, but has been adjusted with different clamps to hold 8 Supports for Uprights instead of Horizontals and Uprights. The Support Trolley and has room for 8 Base Plates that are assembled with a Base Plate Coupler and has a big additional storage room for curtains. The Trolley can be delivered with a sturdy Rain Cover made out of PVC.

5 Technical Specifications

5.1 Components

Main Components

Telescopic Upright Front of House

Article number	Colour	Weight	Length
8750 2306 1307	Black	1.45 kg	0.80 m - 1.46 m

Telescopic Upright 3 m

Article number	Colour	Weight	Length
8750 2306 3377	Black	2.95 kg	1.80 m - 3.37 m

Telescopic Upright 5 m

Article number	Colour	Weight	Length
8750 2306 5057	Black	4.60 kg	1.80 m - 5.03 m

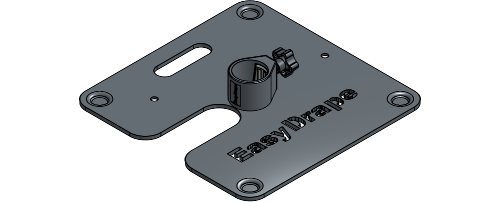

Base Plate Front of House

Article number	Colour	Weight
8750 2000 0057	Black	5.00 kg

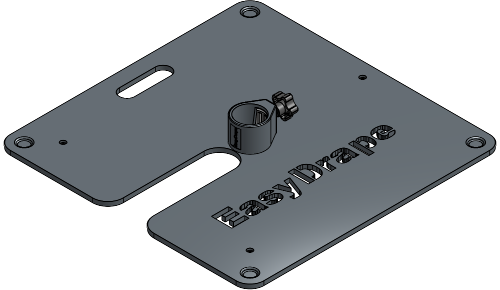

Base Plate

Article number	Colour	Weight
8750 2000 0147	Black	14.00 kg

Base Plate Coupler

Article number	Colour	Weight
8750 2306 0017	Black	0.22 kg

Horizontal Drape Support

Article number	Colour	Weight	Length
8750 2309 0907	Black	1.55 kg	0.90 m - 1.20 m
8750 2309 1207	Black	2.03 kg	1.20 m - 1.80 m
8750 2309 1807	Black	2.94 kg	1.80 m - 3.00 m

Support for Uprights

Article number	Colour	Weight	Length
8750 2306 5067	Black	1.60 kg	1.25 m

Accessories

Retractable Belt Upright

Article number	Colour	Weight	Length
8750 2317 0907	Black	1.08 kg	0.89 m

Hanging Rope Upright

Article number	Colour	Weight	Length
8750 2317 0917	Black	0.92 kg	0.89 m

Velvet Hanging Rope

Article number	Colour	Weight	Length
8750 2263 0107	Black	0.52 kg	1.57 m
8750 2263 0109	Red	0.52 kg	1.57 m

Coat Hooks

Article number	Colour	Weight	Length
8750 2317 1457	Black	2.94 kg	1.45 m

Offset Plate

Article number	Colour	Weight
8750 2263 0087	Black	0.31 kg

4-Way Track Connector

Article number	Colour	Weight
8750 2263 0104	Aluminium	0.01 kg

4-Way M10 Adaptor

Article number	Colour	Weight
8750 2263 0094	Aluminium	0.10 kg

Spare Parts

Upright Turn Button

Article number	Colour	Weight
8750 2270 0017	Black	0.02 kg

Horizontal Turn Button

Article number	Colour	Weight
8750 2309 0057	Black	0.02 kg

Coupler Turn Button

Article number	Colour	Weight
8750 2270 0007	Black	0.02 kg

Swivel

Article number	Colour	Weight
8750 2309 0007	Black	0.01 kg

Plastic Washer

Article number	Colour	Weight
8750 2309 0067	Black	0.01 kg
