EasyDrape

Product Flyer

1 Info

Save time and space by using the toolless EasyDrape to safely hang expo drapes up to 5 m high. The stand-alone pipe & drape solution is ideal for trade show displays, venue masking, event decoration, banner stands or temporary room dividers.

Specifications:

  • A toolless system for a handy and silent installation.
  • Build your set at a comfortable height and push it up to as high as 5m.
  • No need for scaffolding or extensions.
  • Uprights with integrated 4-Way for easy mounting of horizontals.

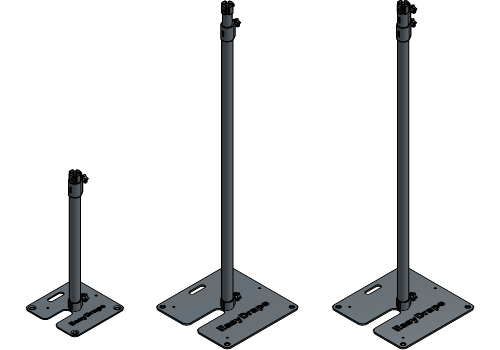

  • Three standard lengths of Telescopic Uprights: 0.80 to 1.46 m - 1.80 to 3.37 m - 1.80 to 5.03 m
  • Three standard lengths of Horizontal Drape Support: 0.90 to 1.20 m - 1.20 to 1.80 m - 1.80 to 3.00 m
  • EasyDrape Supports ensure a safe installation.

2 Technical Data Sheet

For more information regarding the components and technical specifications, be sure to check the Technical Data Sheet of this product.

3 EasyDrape Setups

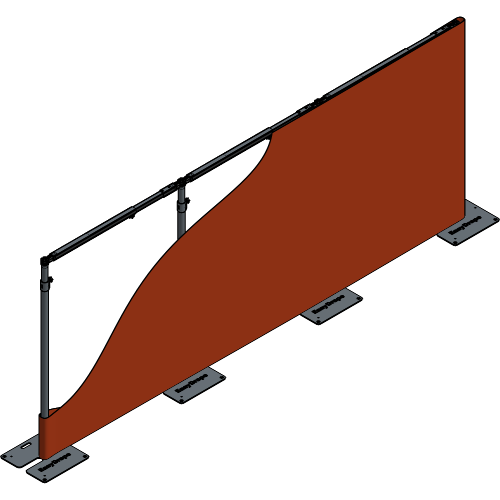

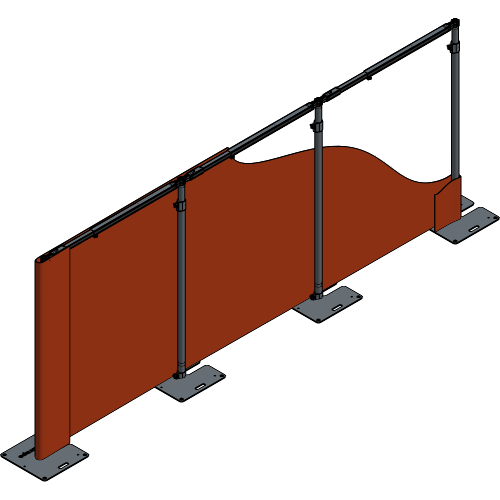

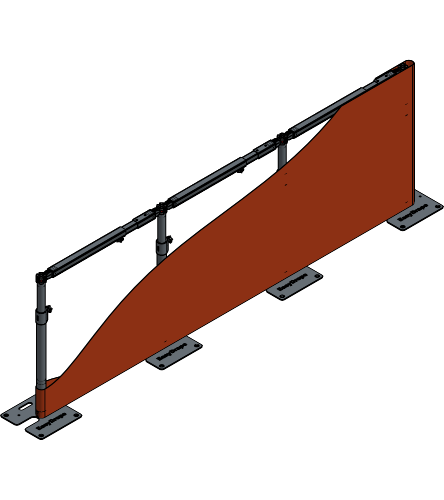

3.1 Wall Setup

The wall setup offers an efficient and toolless system to build curtain walls in no time. With a maximum height of 3 m and no need for additional support, it is ideal for dividing rooms and event halls. Choose your fabric and hang it directly onto the Horizontal using the hook & loop fastener.

This setup is adjustable between 1.80 m and 3.37 m, making it perfect for various room sizes.

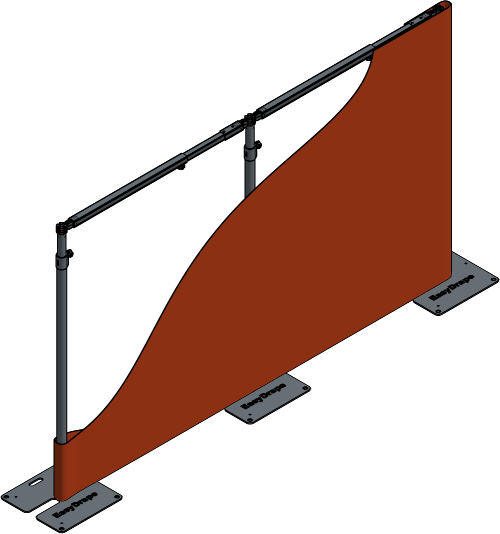

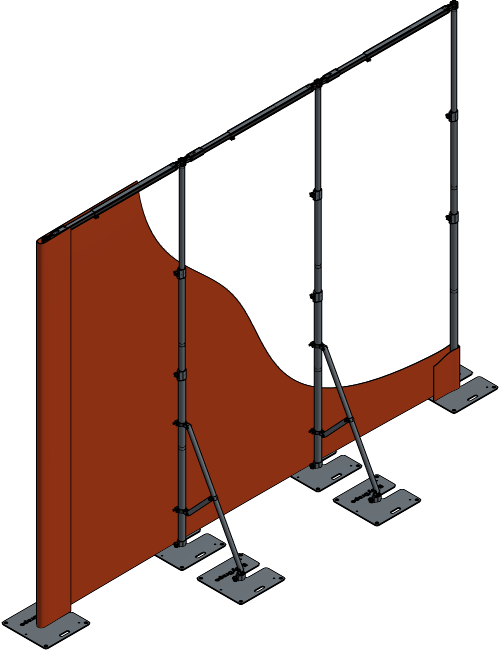

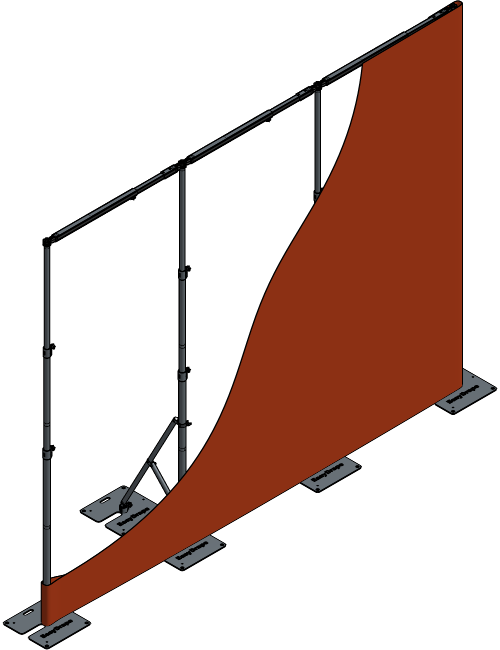

3.2 Wall Setup with Supports

The wall setup offers an efficient and toolless system to build very high curtain walls in no time. With a maximum height of 5 m, it is ideal for dividing bigger rooms and event halls. Choose your fabric and hang it directly onto the Horizontal using the hook & loop fastener.

Being supported by our versatile Supports, this setup is adjustable between 1.80 m and 5.03 m, making it perfect for various bigger room sizes depending on your needs.

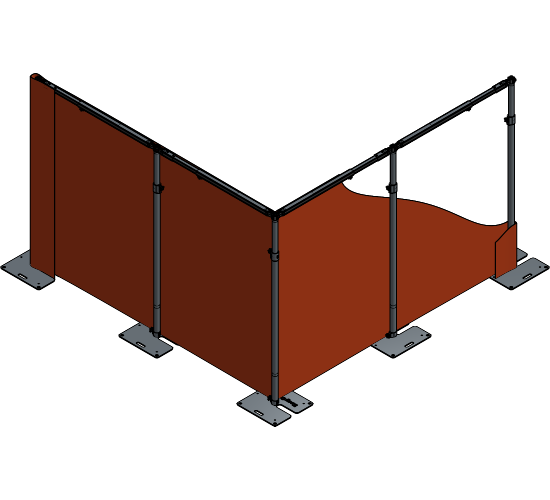

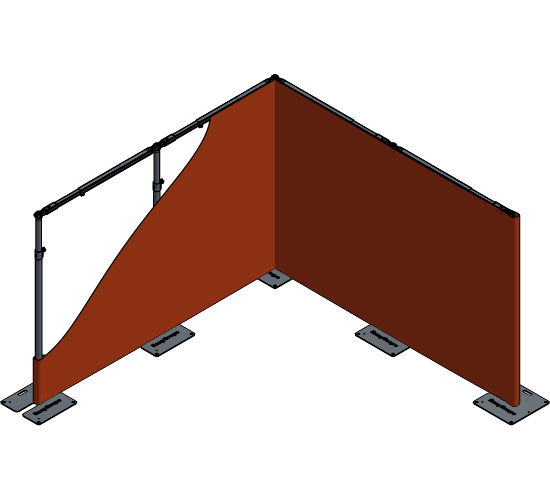

3.3 Corner Setup

The corner setup is merely an example of what the EasyDrape allows you to create. Corners, rooms and almost any kind of amazing shape you desire. The 4-Way gives you four directions to build, making it highly versatile for any project, creating corners of 90°.

Because of the great design of the 4-Way and the Swivel, it’s also possible to adjust the corner about 30° by turning the Uprights to have even more creative freedom.

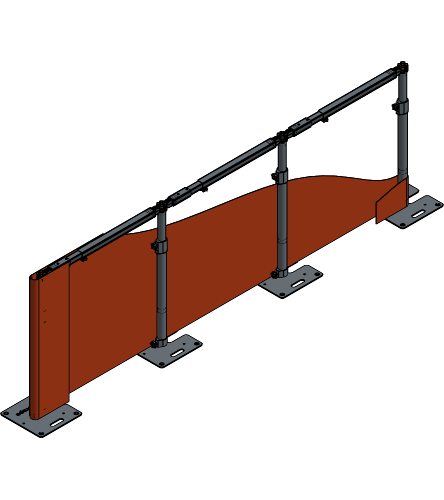

3.4 Front of House Setup

The Front of House setup allows you to mask your stage or front of house in no time. It features our smallest Uprights, being adjustable from 0.80 m to 1.46 m and a Base Plate of 6.5 kg for stability and ease of use. The full set is also available in a Flight Case for easy transport and storage.

With our Front of House setups, you can easily create a professional-looking front of house area for your events or performances.

4 Accessory Setups

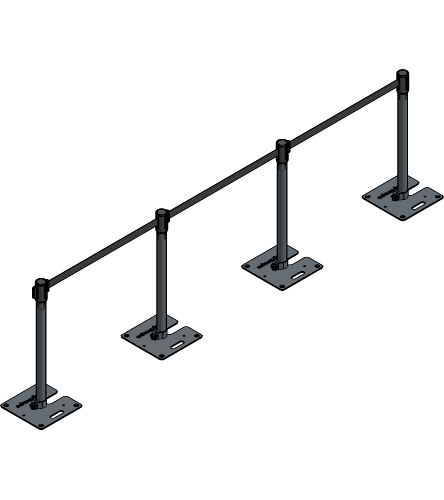

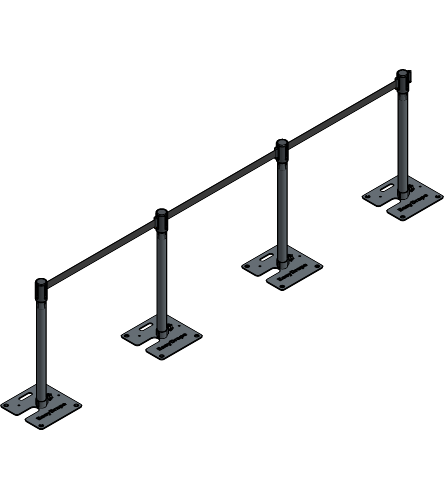

4.1 Retractable Belt

The Retractable Belt setup is the perfect tool for restricting access to a particular area or guiding people in a certain direction. Mounted on a fixed tube of 0.90 m, it offers stability and versatility. The belt length of 3 m allows you to cover a large area with ease and as few Uprights as possible.

Whether you need to control crowd flow or create clear barriers, this Retractable Belt setup is an excellent choice for your needs.

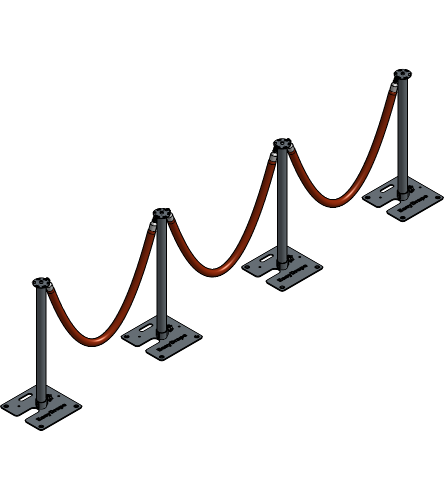

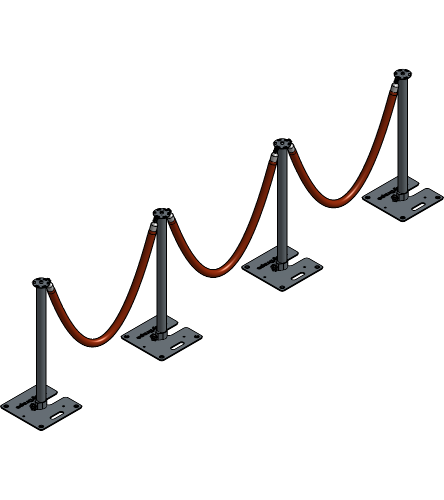

4.2 Hanging Rope

The Hanging Rope setup is the perfect tool for limiting an area or guiding people in a certain direction while in the meantime adding a touch of luxury with the velvet rope. The Mounted on a fixed tube of 0.90 m, it offers stability and versatility. The Hanging Rope is available in black and red velvet and hooks onto the ring on the Upright, making it easy to install and adjust.

Whether you’re organizing a VIP event or want to add a touch of elegance to your space, the Hanging Rope setup is an excellent choice.

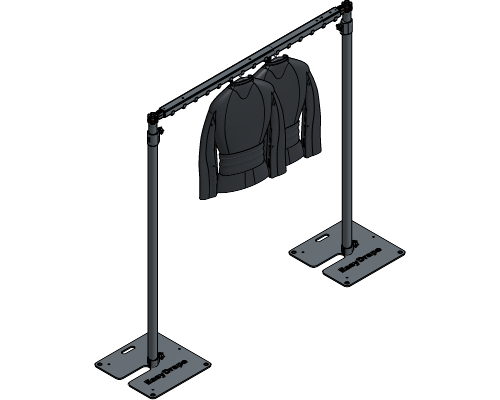

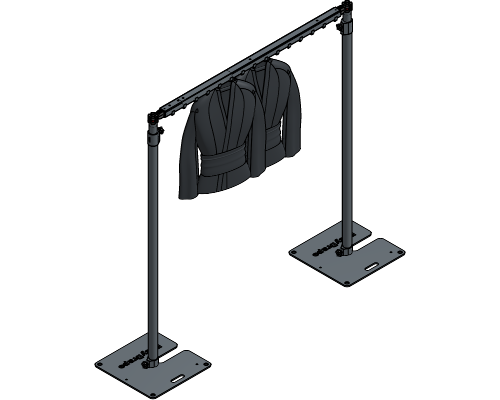

4.3 Coat Hooks

The coat hooks component makes it effortless to create a cloakroom in absolutely no time. Simply hang the Coat Hooks onto the Horizontal of the EasyDrape setup you have created and adjust the Uprights to the desired height.

If you want to create a cloakroom for kids, it’s also possible to use our smaller Front of House Base Plates and Uprights to achieve the perfect height for them. This is ideal for any temporary cloakroom where no coat rack is provided.

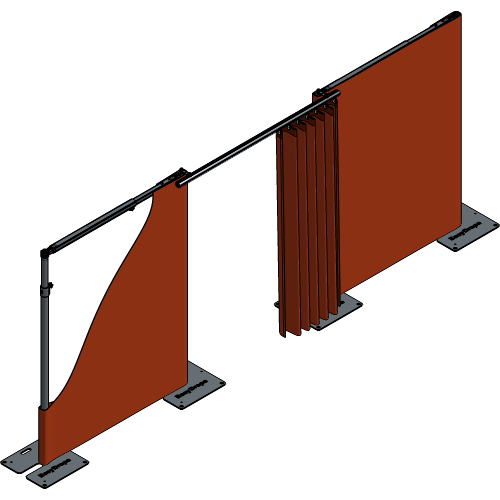

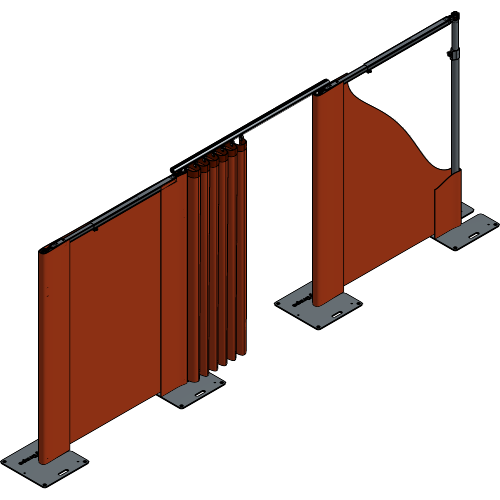

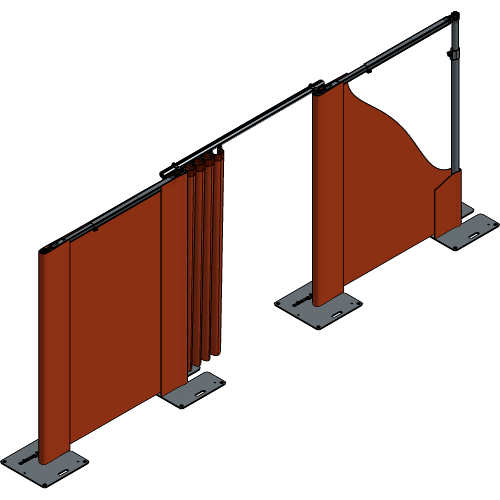

4.4 Wall Setup with the H100 or ShowPipe on top

The wall setup with the H100 or ShowPipe allows you to create curtain walls like the normal wall setups but with an adjustable opening or doorway in your setup. The track is mounted on top of two Uprights with a 4-Way Connector. The curtain will be able to open and close between those two Uprights, giving you a clean and organized look.

With this wall setup, you easily transform your space into a functional and stylish area that meets your needs.

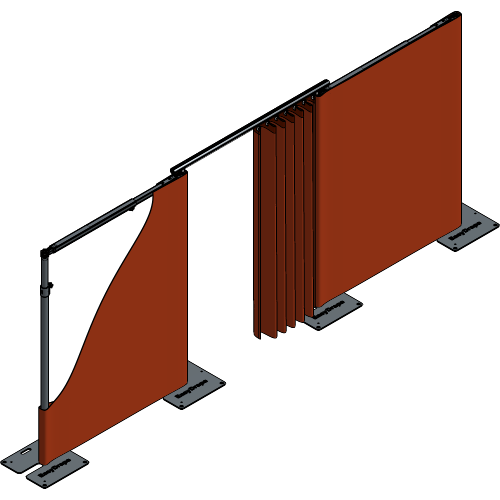

4.5 Wall Setup with the ShowPipe in front

The wall setup with the ShowPipe allows you to create curtain walls like the normal wall setups but with an adjustable opening or doorway in your setup. The track is mounted on top of two Uprights with an Offset Plate. The curtain will be able to open and close in front of those two Uprights, giving you a clean and organized look.

With this wall setup, you easily transform your space into a functional and stylish area that meets your needs.
