Info
The ScreenFrame is a large front or rear projection screen on a black
modular, aluminium frame that can be wall-mounted, freestanding or
suspended from the ceiling.
Specifications:
- The projection screen surface is stretched on an aluminium frame by
using strong spanners.
- Useable for both permanent installations and touring.
- The framework is invisible when a non-transparent fabric is in
place.
- ScreenFrame is ideal for large projection surfaces and can be
adapted to suit all venues: movie theatres, larger conference rooms,
communication rooms or auditoriums.
- The ScreenFrame profile can be bent in-house for projection screens
with particular forms and dimensions.
- Our screens are made-to-measure.
- Optionally, the screen can have a fixed or moveable masking.
Product
Flyer
For more information regarding the set-ups that are possible for this
ShowTex product, be sure to check the Product Flyer of this
product.
Components
Frame

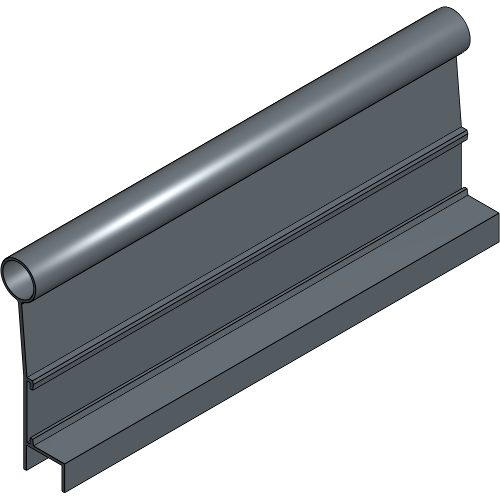

Base Profile
|
Article number
|
Colour
|
Weight
|
Length
|
|
8800 4103 6007
|
Black
|
3.00 kg/m
|
6.00 m
|

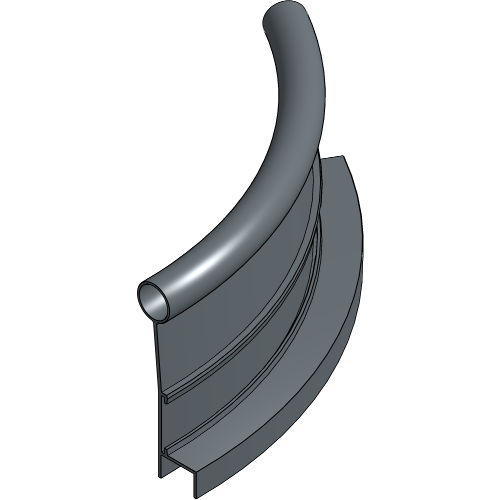

Curved Base Profile
|
Article number
|
Colour
|
Weight
|
Length
|
|
8800 0007 9997
|
Black
|
3.00 kg/m
|
6.00 m
|

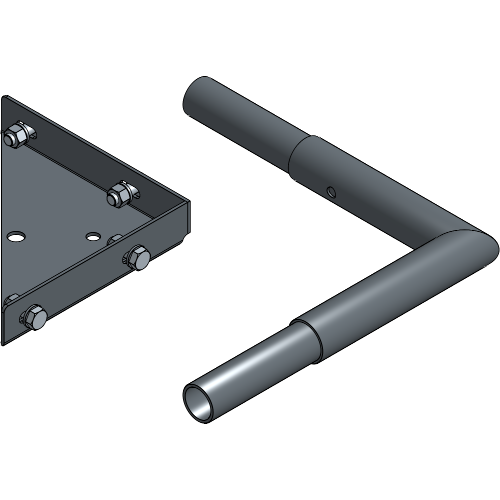

Corner 0°
|
Article number
|
Colour
|
Weight
|
|
8800 4100 0007
|
Black
|
2.42 kg
|

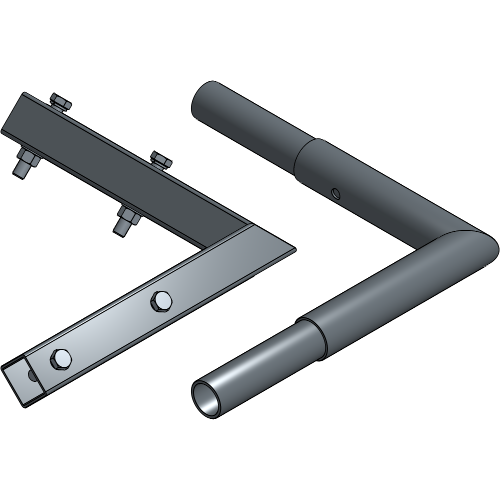

Corner 45°
|
Article number
|
Colour
|
Weight
|
|
8800 4101 0007
|
Black
|
2.60 kg
|

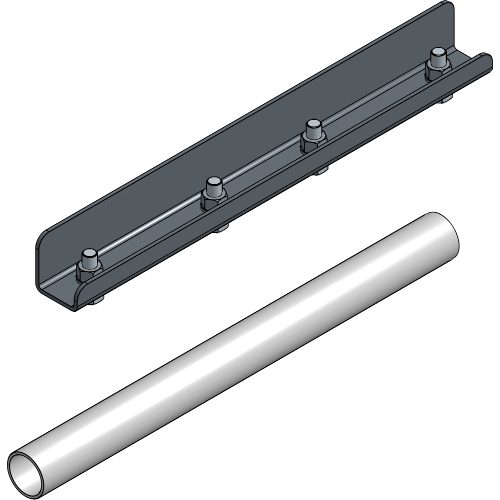

Joint set
|
Article number
|
Colour
|
Weight
|
|
8800 0042 0007
|
Black
|
1.25 kg
|

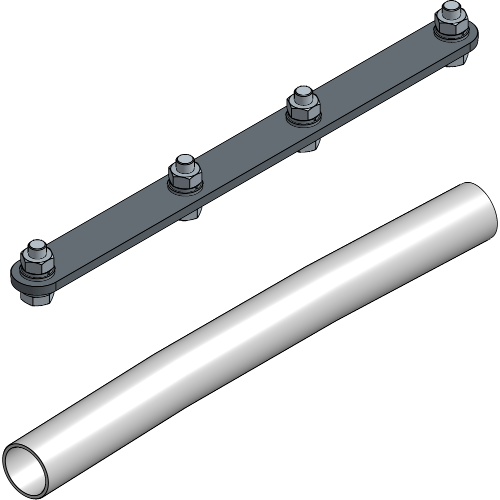

Curved Joint set
|
Article number
|
Colour
|
Weight
|
|
8800 0041 0107
|
Black
|
2.80 kg
|
Joint Pivot
|
Article number
|
Colour
|
Weight
|
|
8800 0042 0024
|
Black
|
0.94 kg
|
Support

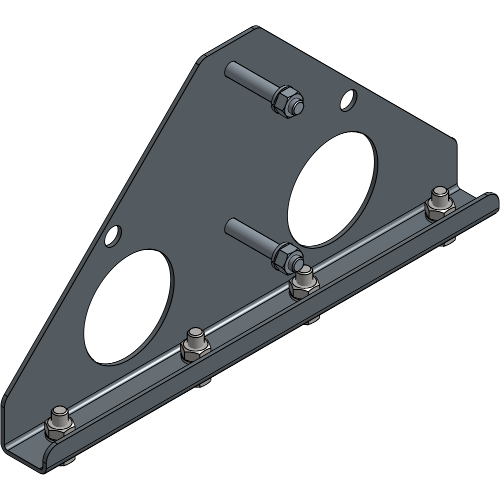

Joint Plate 0°
|
Article number
|
Colour
|
Weight
|
|
8800 0042 0027
|
Black
|
3.58 kg
|

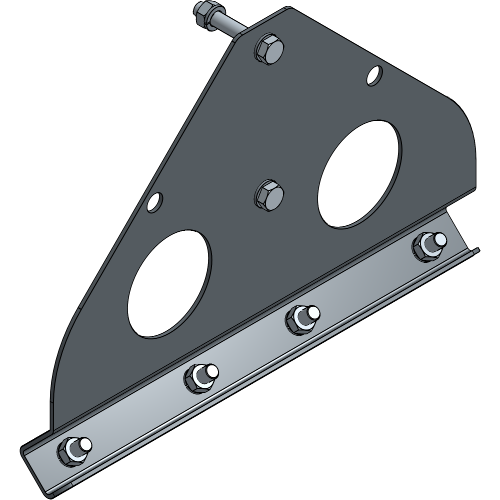

Joint Plate 45°
|
Article number
|
Colour
|
Weight
|
|
8800 0042 0037
|
Black
|
4.84 kg
|

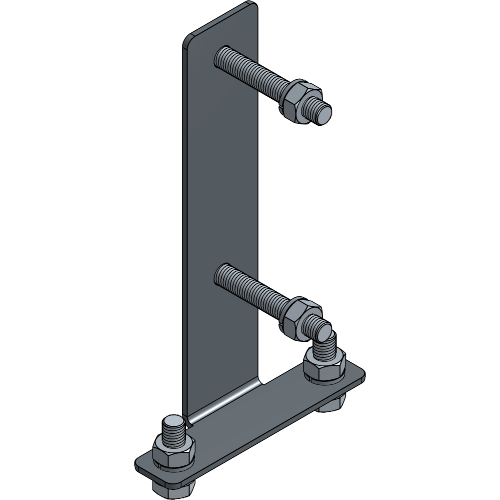

Joint Plate Curved 0°
|
Article number
|
Colour
|
Weight
|
|
8800 0042 0047
|
Black
|
2.07 kg
|

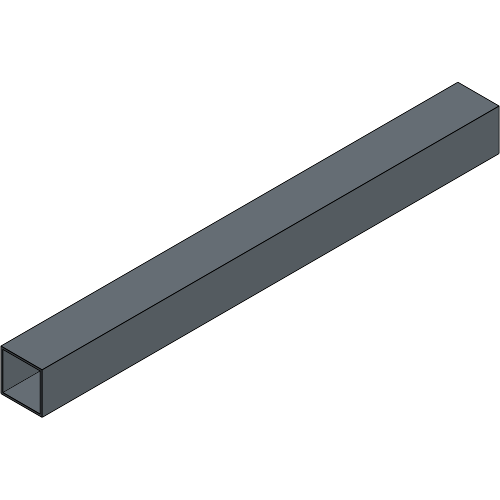

Support Profile
|
Article number
|
Colour
|
Weight
|
|
8800 0010 0457
|
Black
|
0.88 kg/m
|

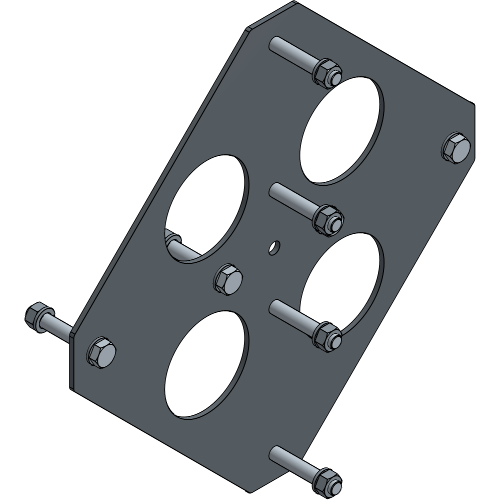

Cross Section Support Plate
|
Article number
|
Colour
|
Weight
|
|
8800 0041 0017
|
Black
|
2.74 kg
|

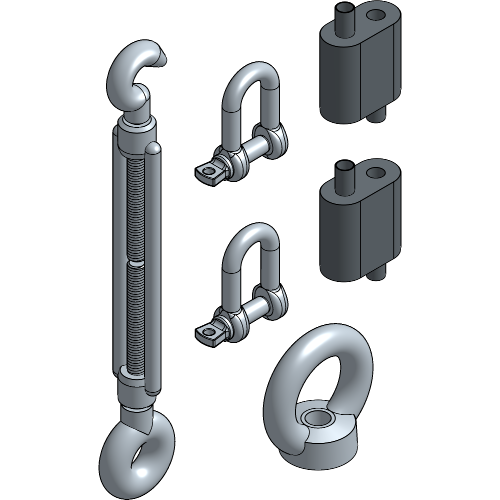

Tension set
|
Article number
|
Colour
|
Weight
|
|
8800 4101 2001
|
Black
|
0.33 kg
|

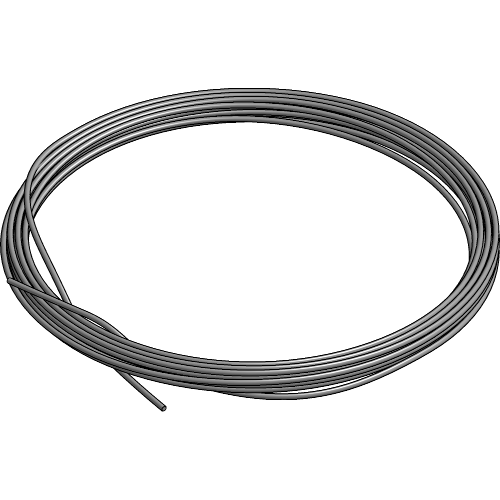

Steel Cable
|
Article number
|
Colour
|
Weight
|
|
8840 9600 7231
|
Steel
|
0.02 kg/m
|
Suspension

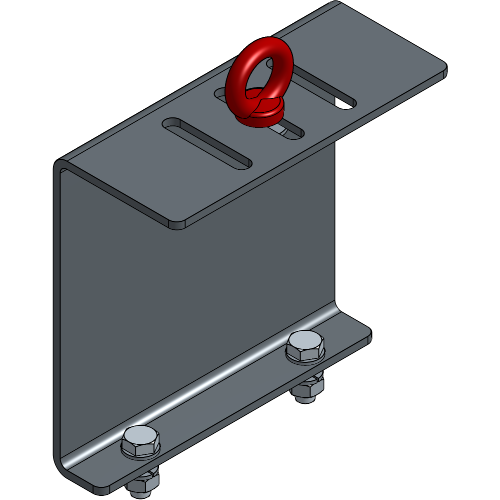

Suspension set 0°
|
Article number
|
Colour
|
Weight
|
WLL
|
SF
|
|
8800 0674 0117
|
Black
|
2.48 kg
|
285.00 kg
|
2:1
|

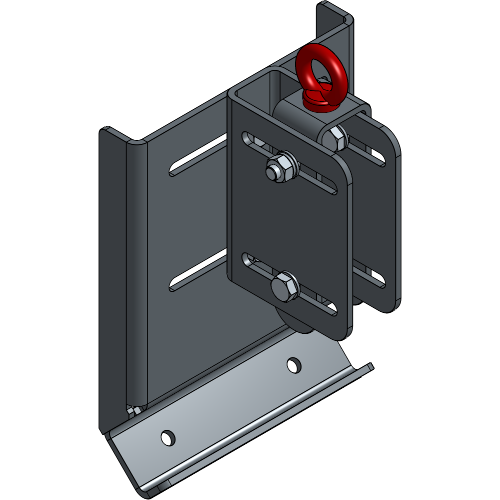

Suspension set 45°
|
Article number
|
Colour
|
Weight
|
WLL
|
SF
|
|
8800 0674 0107
|
Black
|
5.26 kg
|
175.00 kg
|
2:1
|

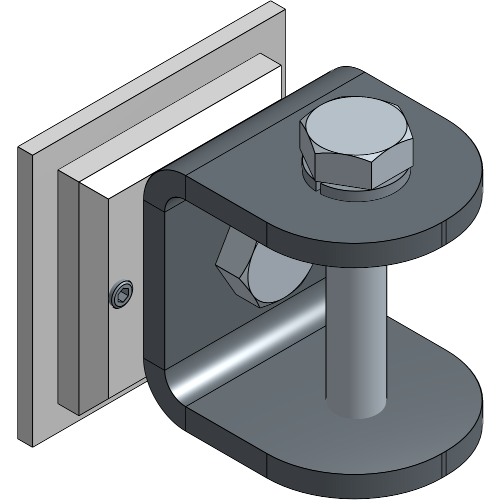

Wall Bracket Plate 0°
|
Article number
|
Colour
|
Weight
|
|
8800 0650 0307
|
Black
|
0.36 kg
|

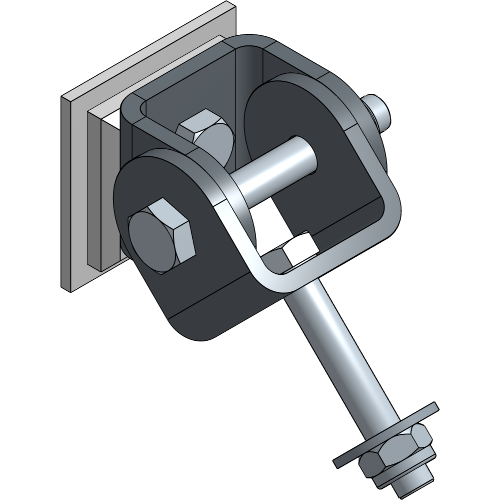

Wall Bracket Plate 45°
|
Article number
|
Colour
|
Weight
|
|
8800 0650 0317
|
Black
|
0.67 kg
|

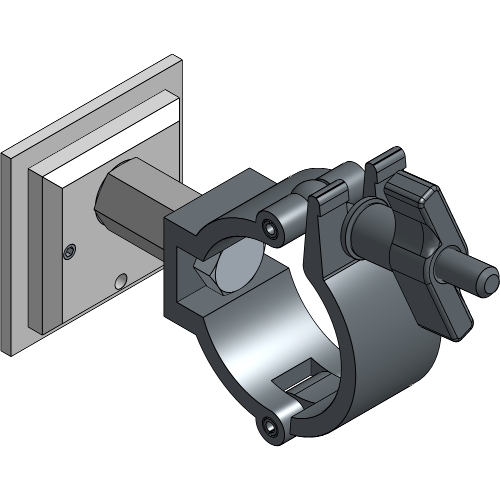

Truss Clamp Plate 0°
|
Article number
|
Colour
|
Weight
|
|
8800 0677 0817
|
Black
|
0.30 kg
|

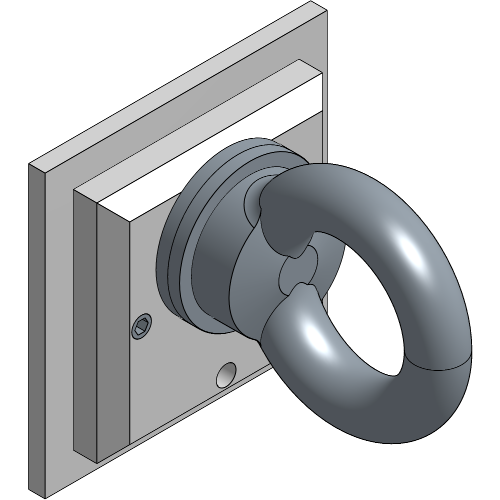

Suspension Plate
|
Article number
|
Colour
|
Weight
|
|
8800 0041 0024
|
Aluminium
|
0.23 kg
|
Universal Clamp
|
Article number
|
Colour
|
Weight
|
WLL
|
SF
|
|
8800 0677 0407
|
Black
|
0.18 kg
|
175.00 kg
|
2:1
|
Tensioning

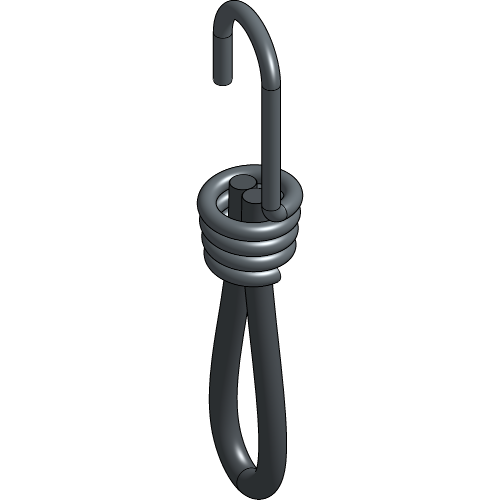

Spanfix Spiral Hook Loop
|
Article number
|
Colour
|
Weight
|
|
7641 0013 0007
|
Black
|
0.02 kg
|

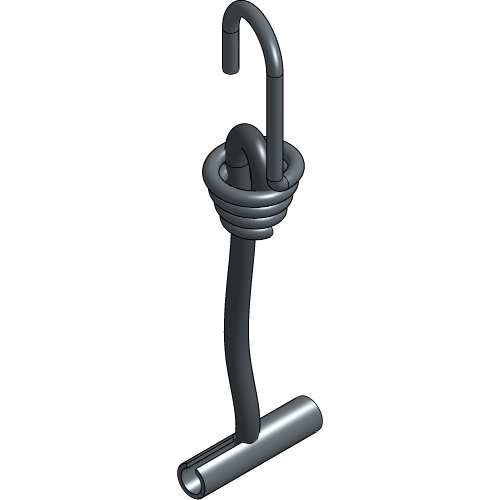

Spanfix Spiral Hook T
|
Article number
|
Colour
|
Weight
|
|
7642 0014 0007
|
Black
|
0.02 kg
|
