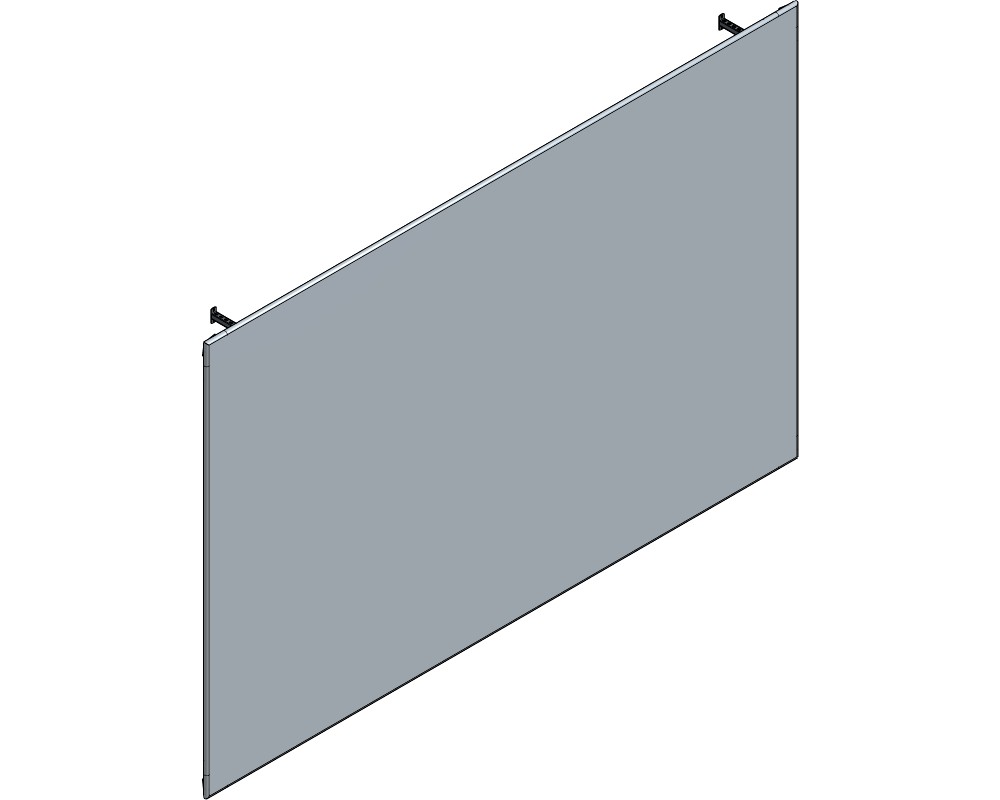

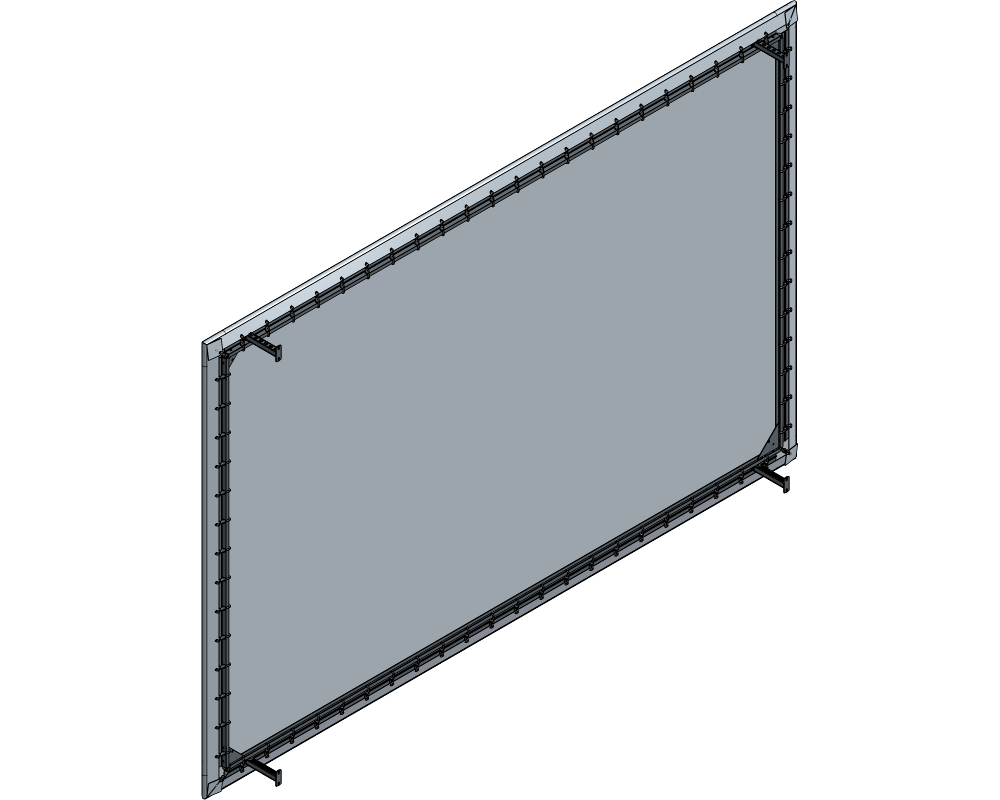

This setup is perfect for permanent installations. Mount your ScreenFrame directly onto a wall. Adding extra wall brackets will allow for endless extensions in size, which means there is no need for Support Profiles.

The distance between the wall and the screen can be customised by choosing the desired length of Wall Brackets.

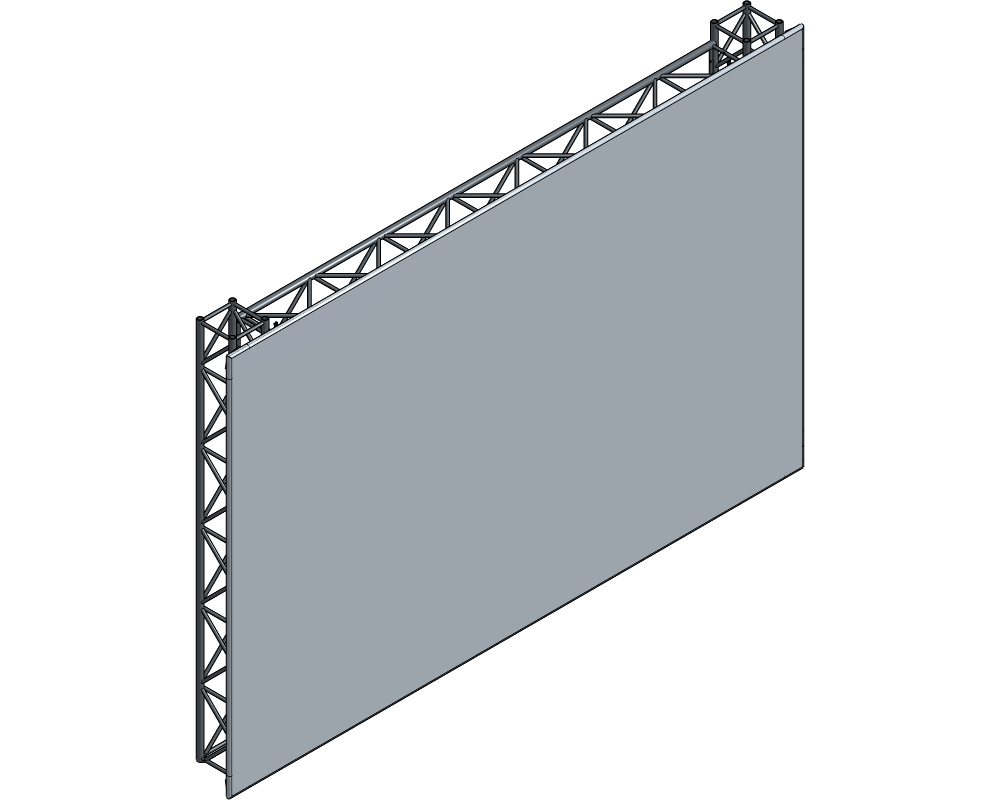

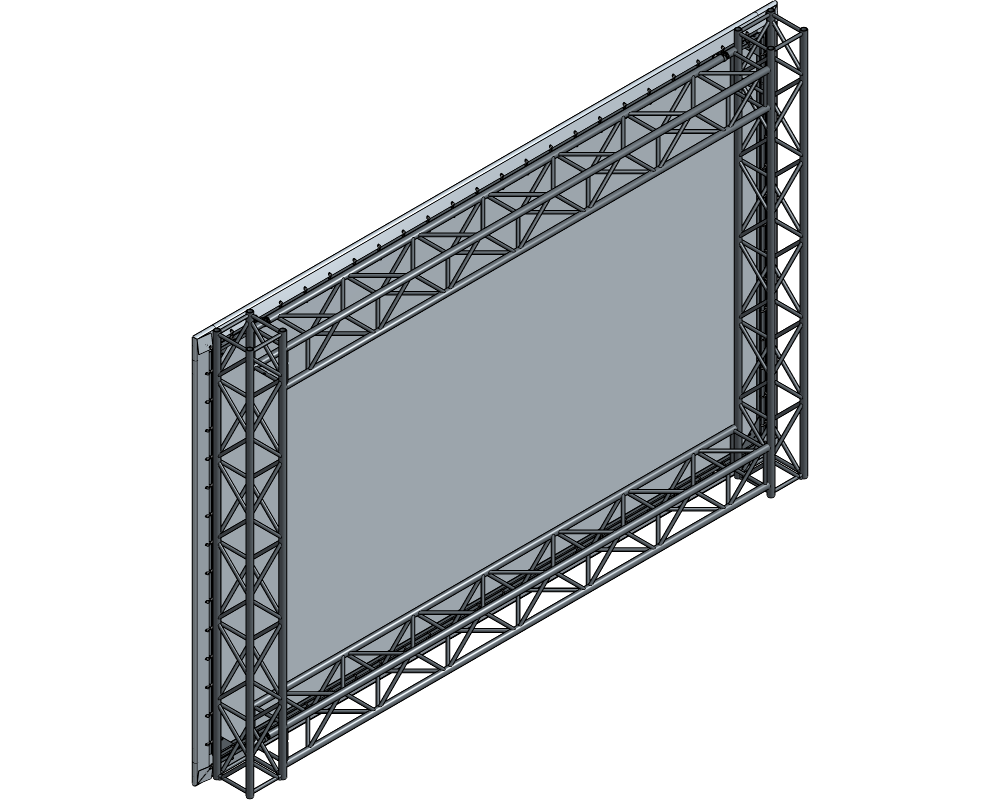

Truss Clamp Plates provide the ideal solution to suspend a ScreenFrame onto a truss setup. The clamps provide a reliable grip to ensure stable and adjustable positioning.

Multiple Truss Clamp Plates will be needed all around to suspend the ScreenFrame onto the truss setup.

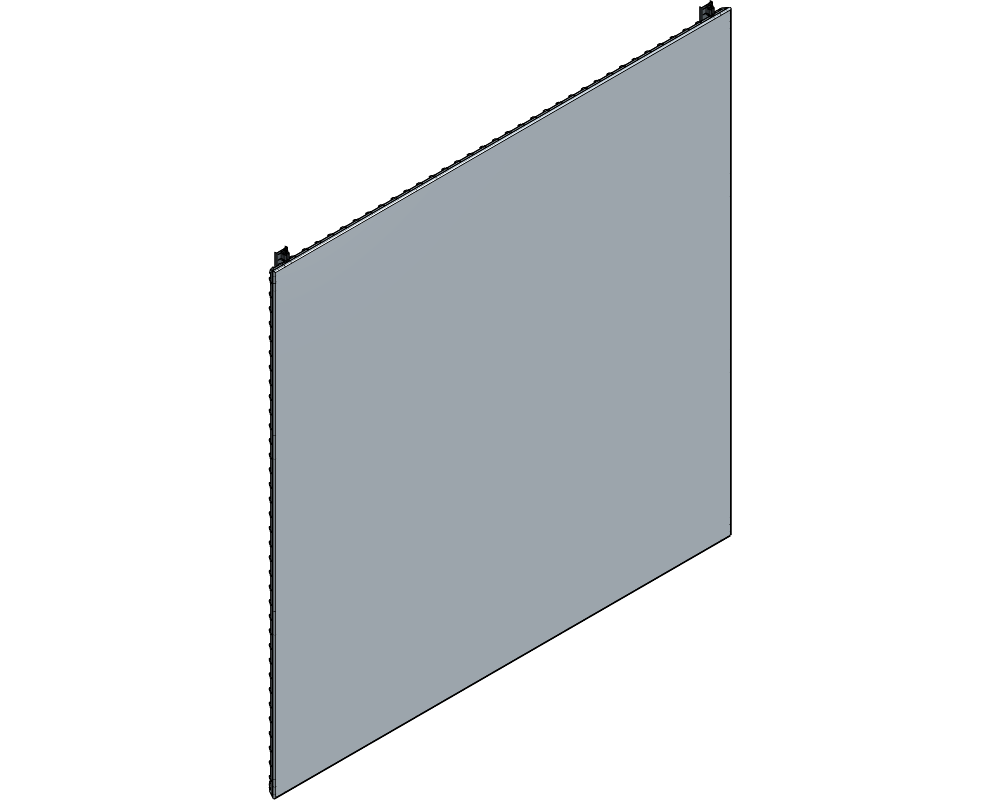

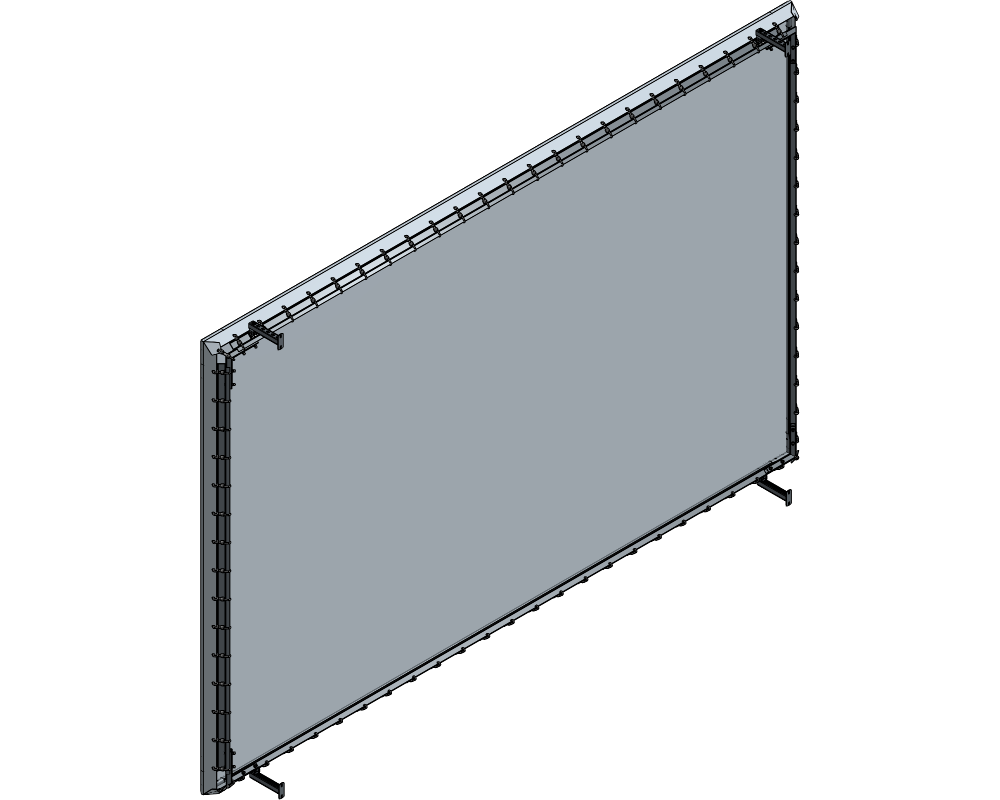

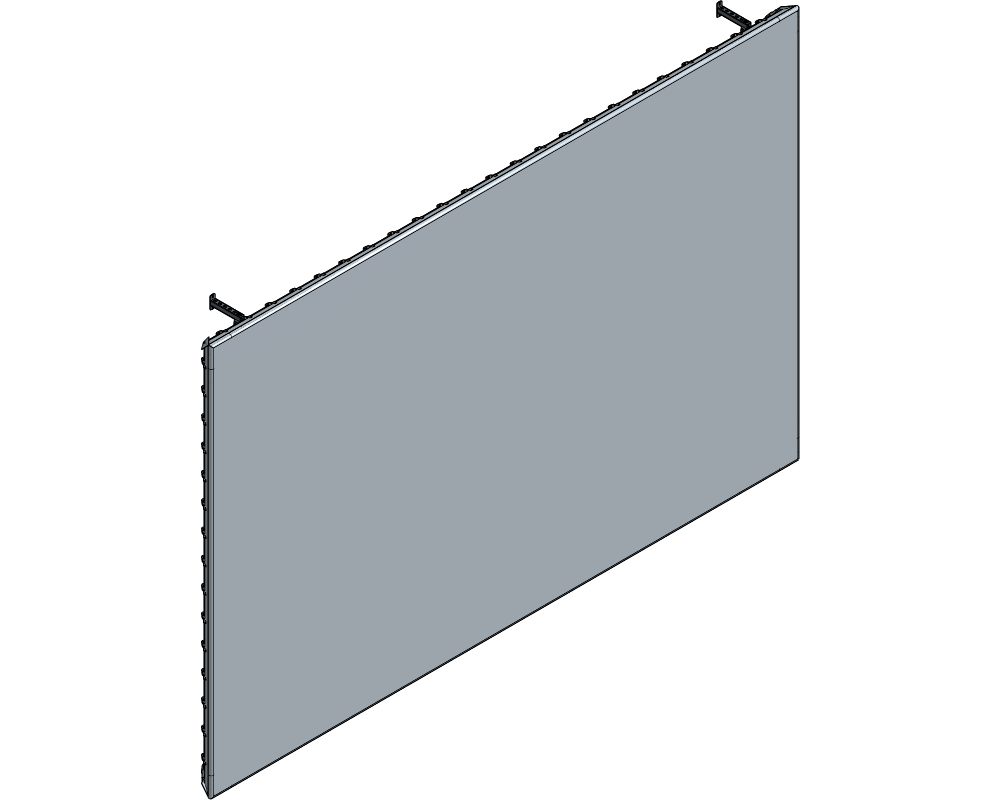

This is the maximum size of ScreenFrame to use without Support Profiles in combination with PVC screens. Using the Suspension set, you can balance the frame perfectly with only two suspension points at the corners.

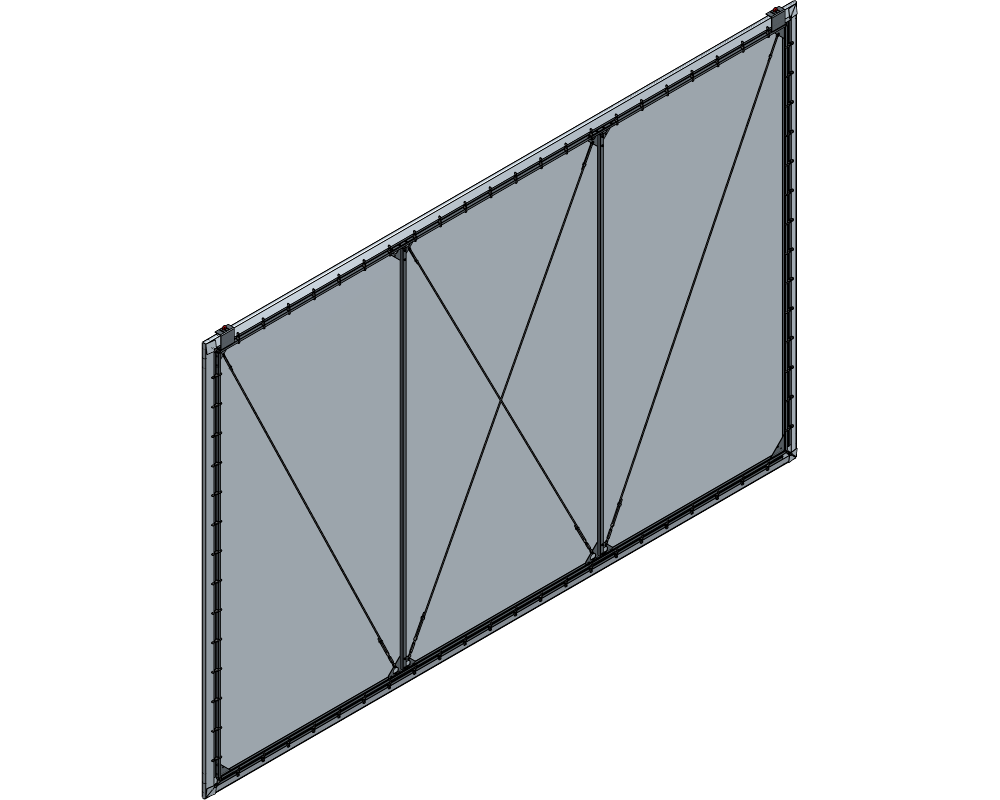

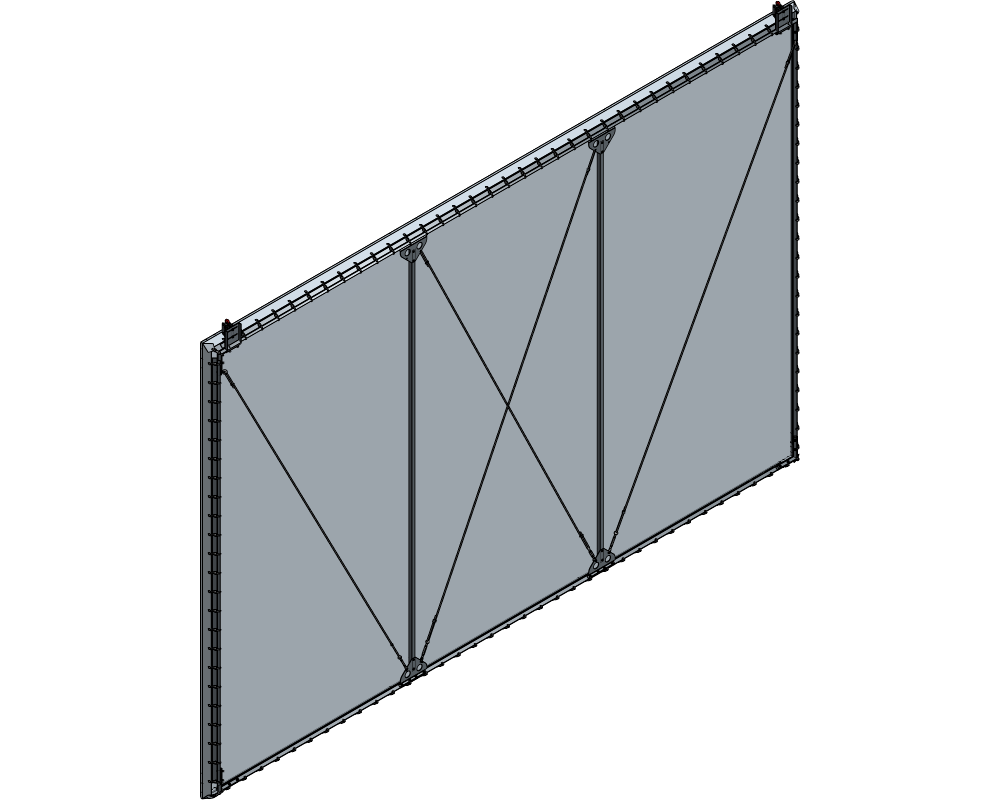

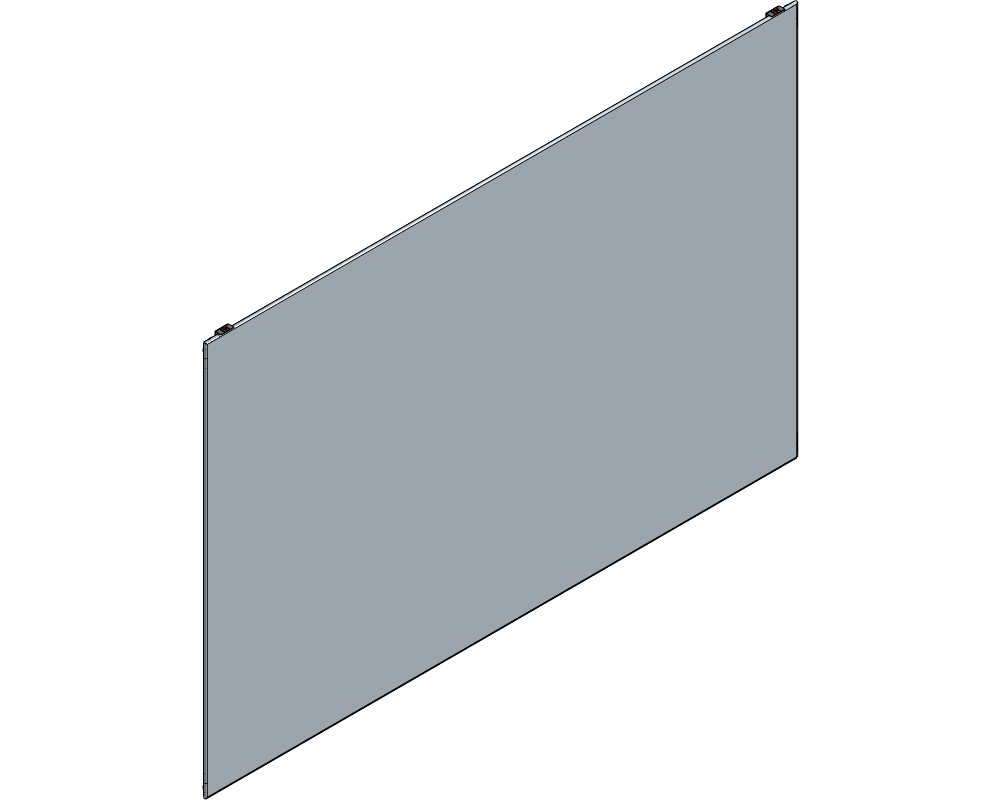

When exceeding the 6 meters width, a combination of Support Profiles and Tension sets must be added. Using the Suspension set, you can balance the frame perfectly with only two suspension points at the corners.

With Support Profiles and Tension sets, the ScreenFrame can be easily extended to a width up to 20 meters.

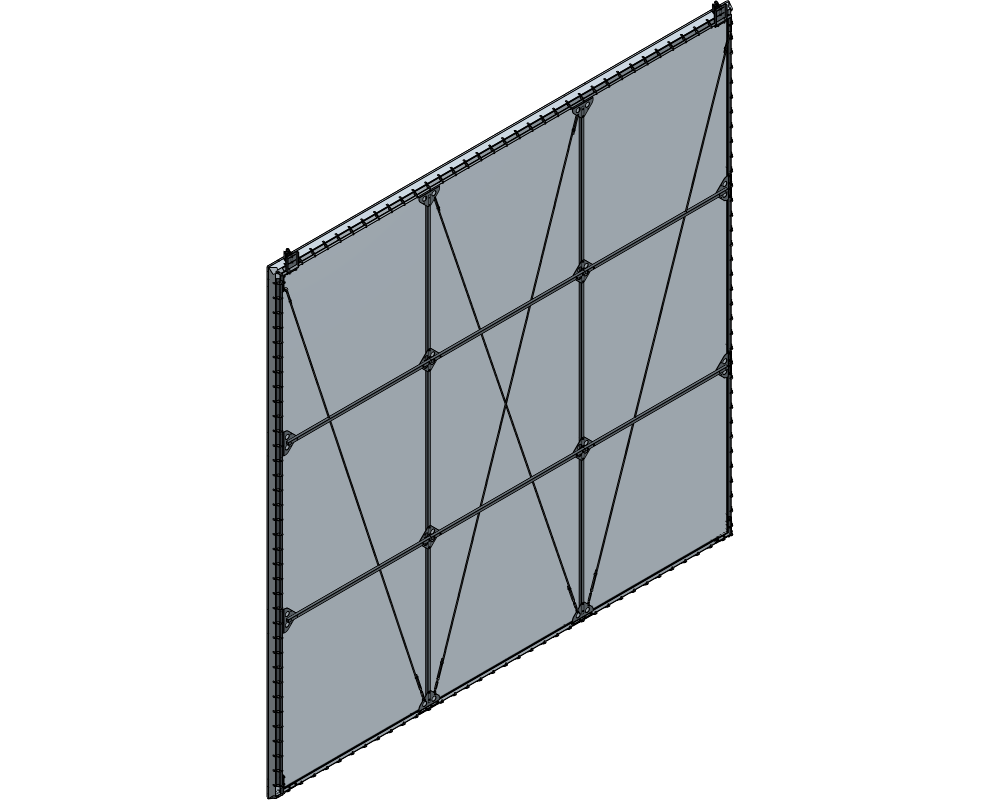

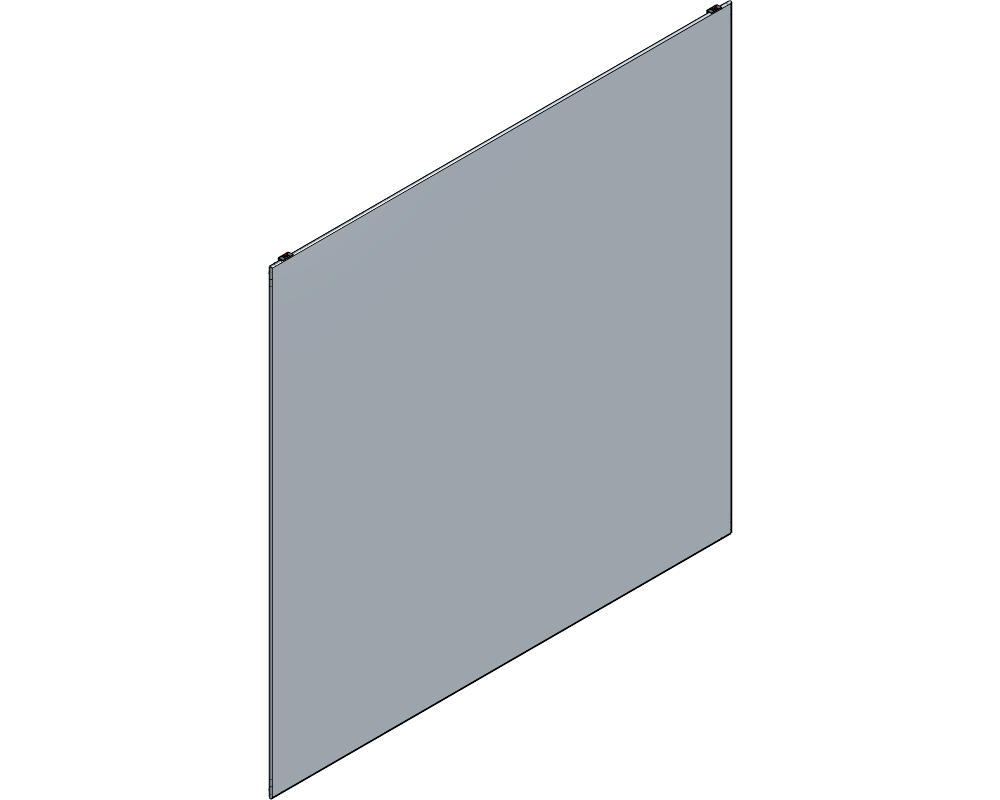

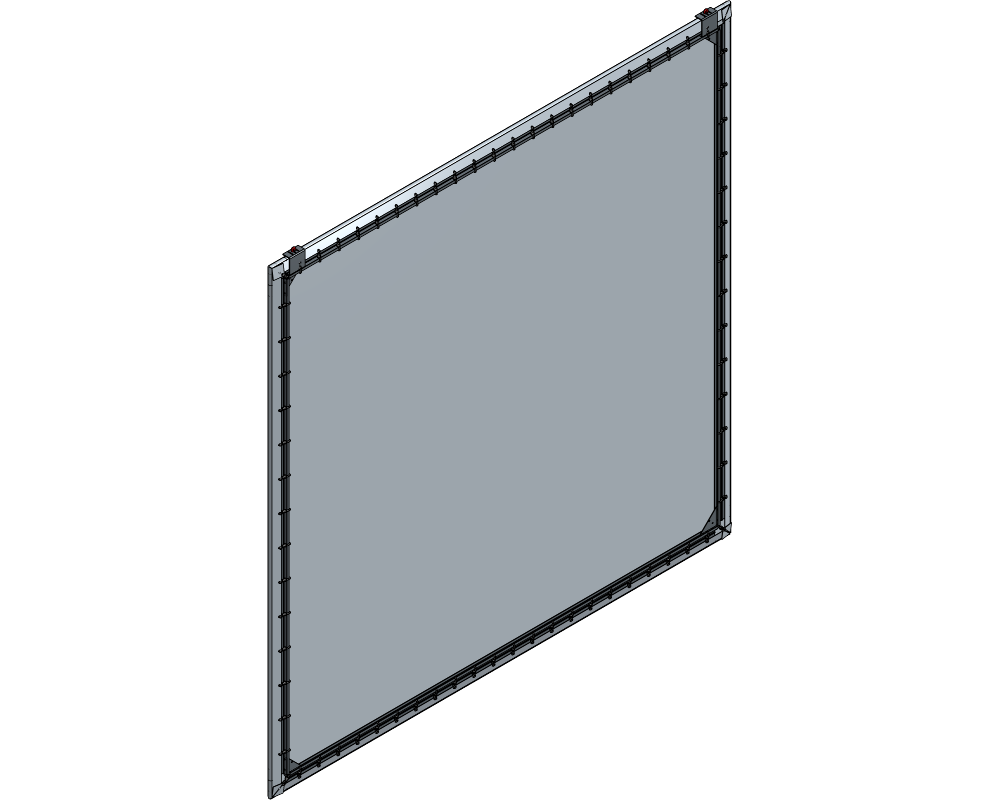

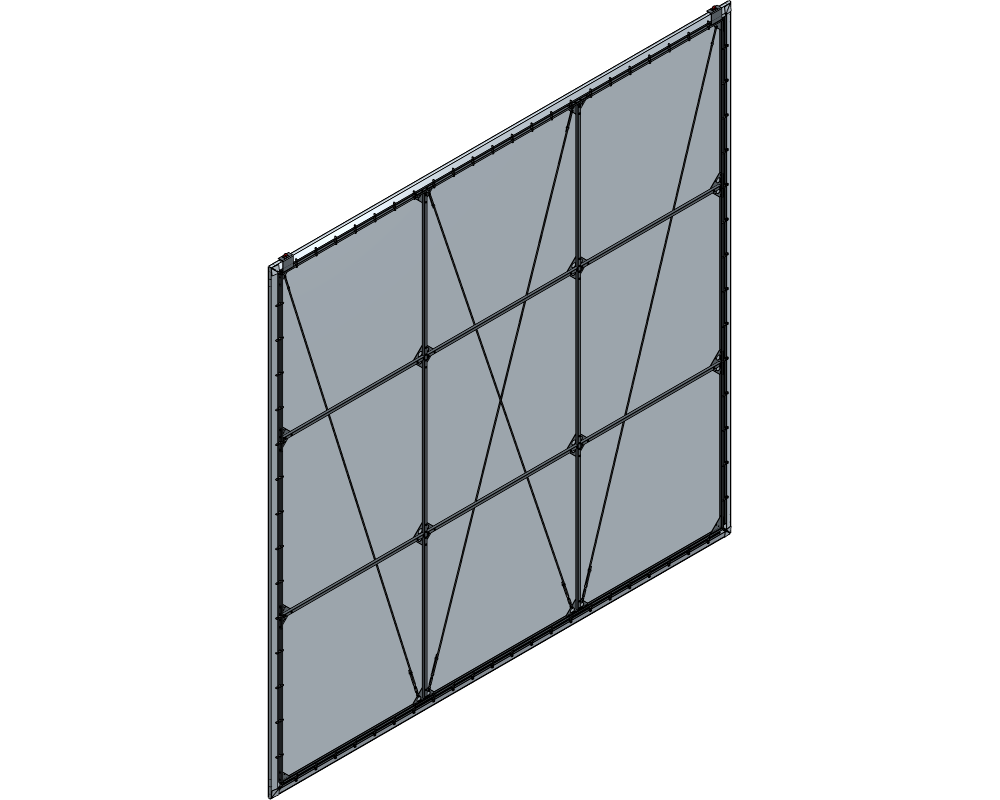

When exceeding 6 meters in width and height, you must use Cross Section Support Plates with Tension sets, horizontal and vertical Support Profiles. Using the Suspension set 0°, you can balance the frame with only two suspension points.

You can easily extend the height of this ScreenFrame setup up to 10 meters.

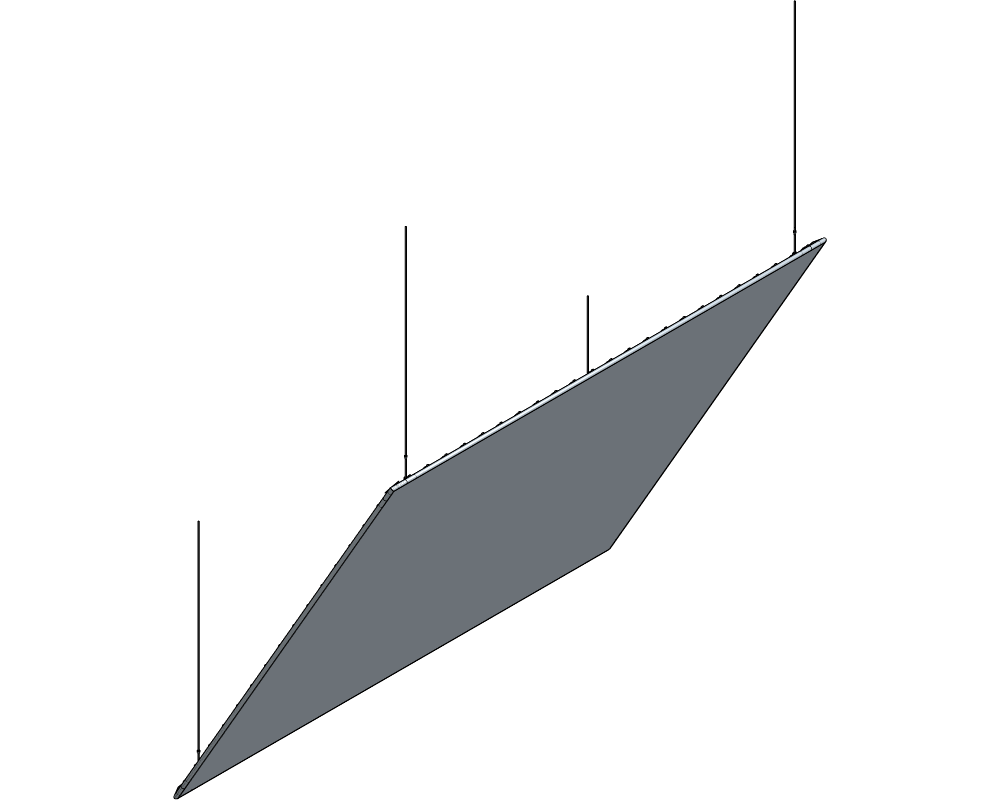

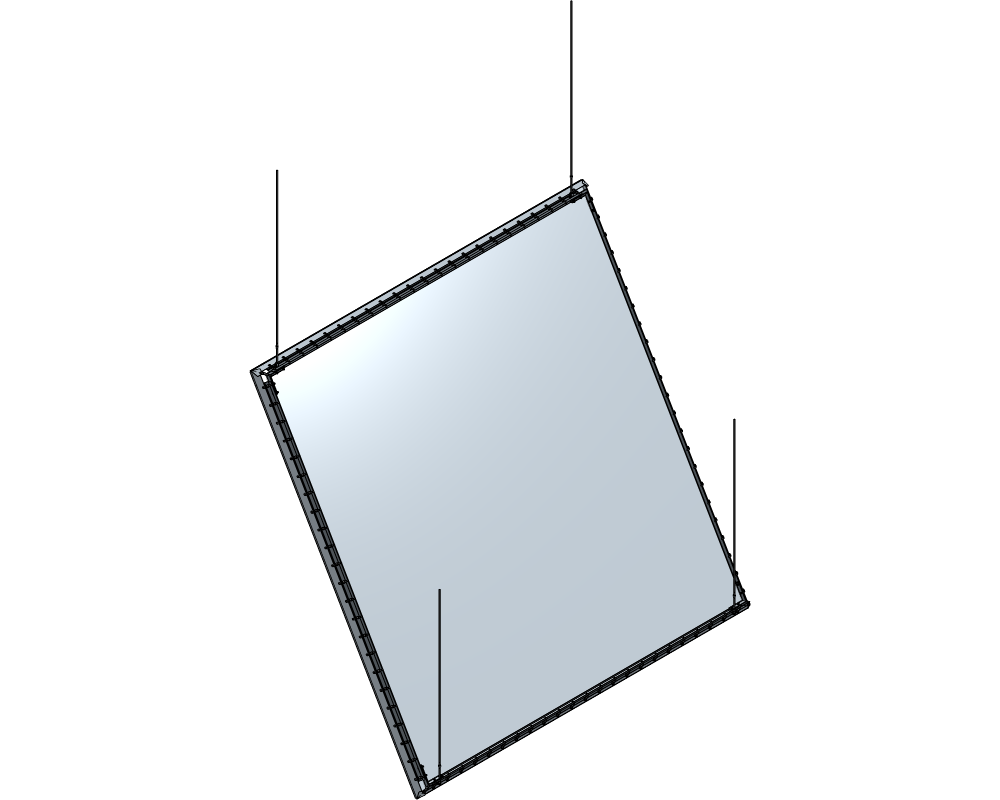

This setup is suitable for frames inclined under an angle or hung horizontally. Once you exceed 6 meters in width or height, a combination of eyebolts and Suspension Plates will need to be added every 2 to 3 meters.

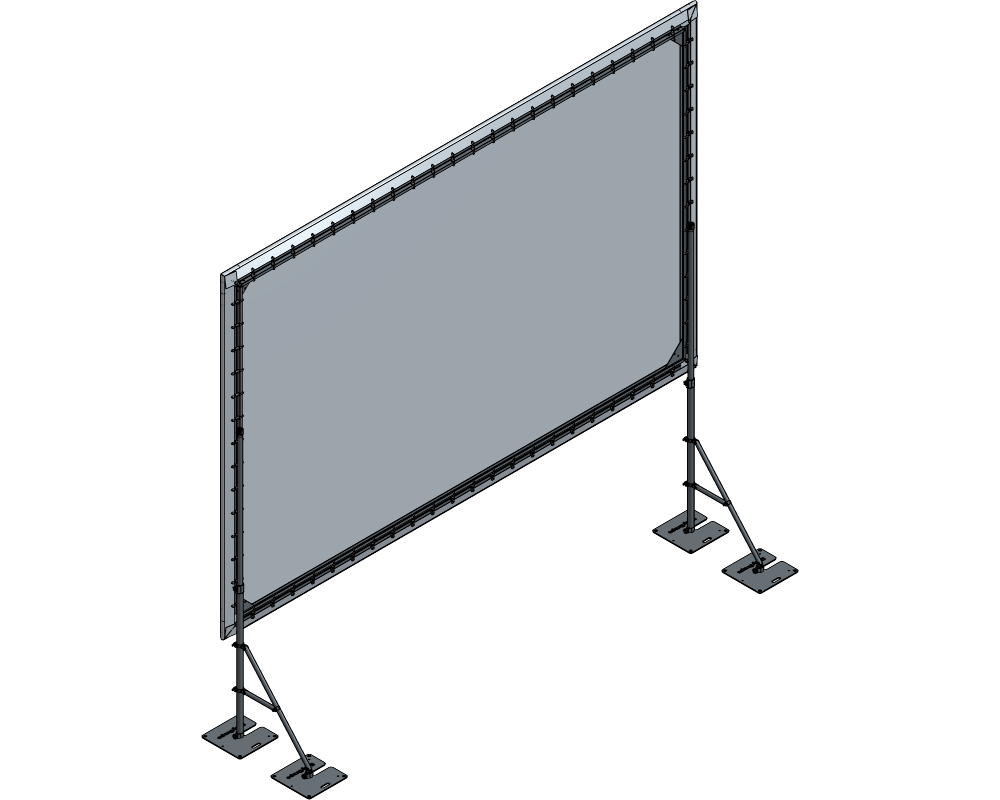

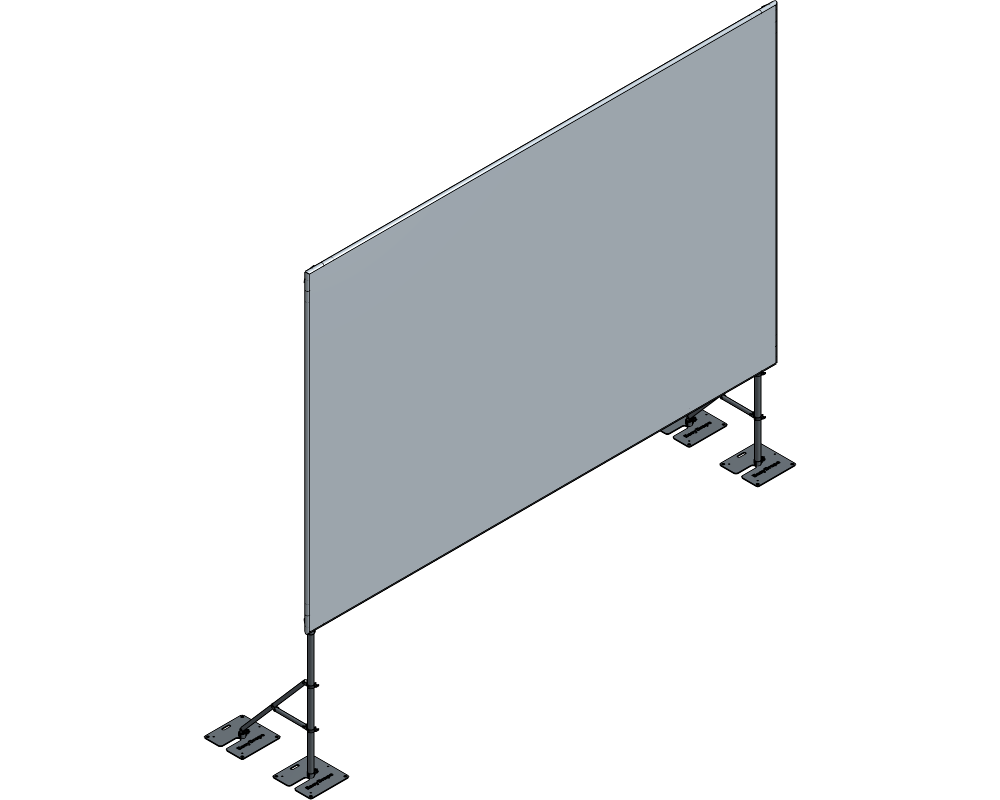

This setup is used when the frame stands free on the floor with EasyDrape Uprights and Supports. Extra counterweights on top of the Supports are most likely needed to make this setup possible.

The maximum size of this setup is 4x6 m.

This setup is perfect for permanent installations. Mount your ScreenFrame directly onto a wall. dding extra wall brackets will allow for endless extensions in size, which means there is no need for Support Profiles.

The distance between the wall and the screen can be customised by choosing the desired length of Wall Brackets.

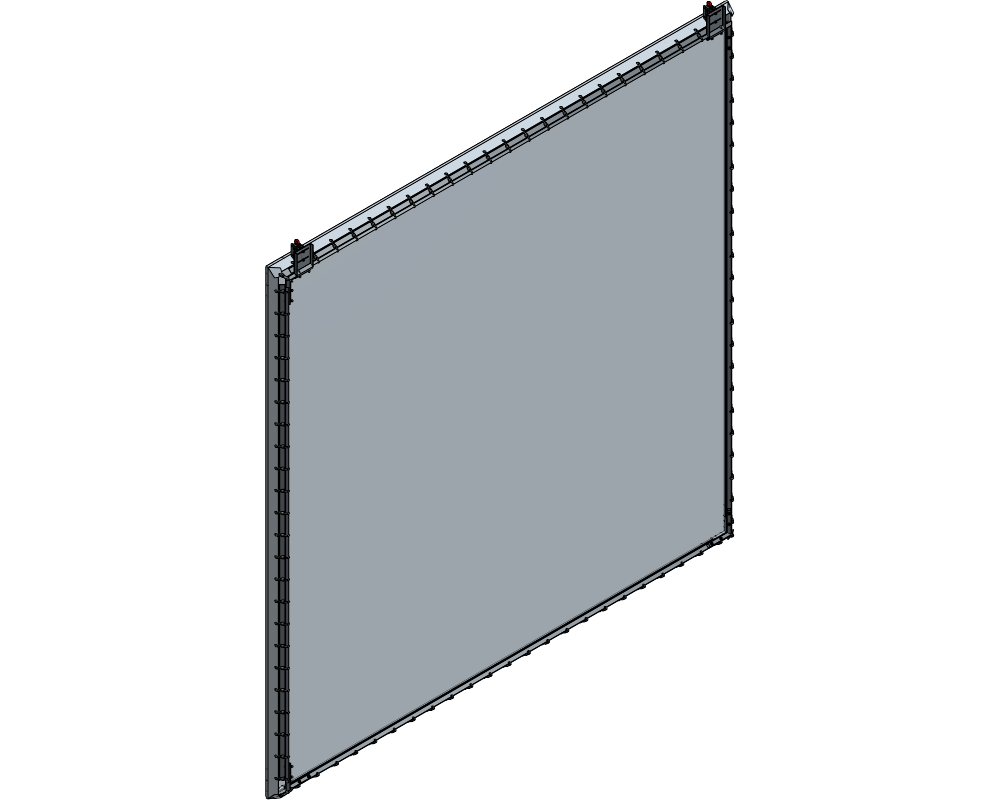

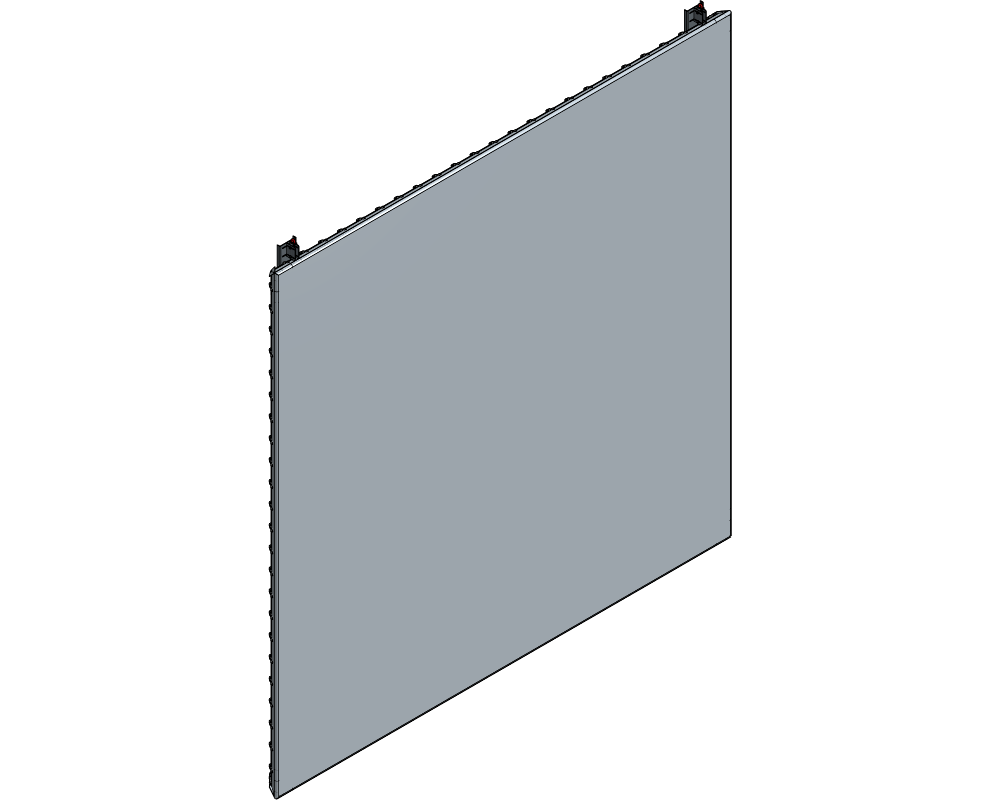

This is the maximum size of ScreenFrame that can be used in combination with PVC screens without need for Support Profiles. With the Suspension set 45°, you can vertically balance the frame perfectly with only two suspension points at the corners.

In case you exceed the width of 6 meters, add a combination of Support Profiles and Tension sets. With the Suspension set 45°, you can vertically balance the frame perfectly with only two suspension points at the corners.

With Support Profiles and Tension sets, the ScreenFrame can be easily extended to a width up to 20 meters.

When exceeding 6 meters in width and height, you must use Cross Section Support Plates with Tension sets, horizontal and vertical Support Profiles. Using the Suspension set, you can vertically balance the frame perfectly with only two suspension points at the corners.

Easily extend the frame height up to 10 meters with this setup.

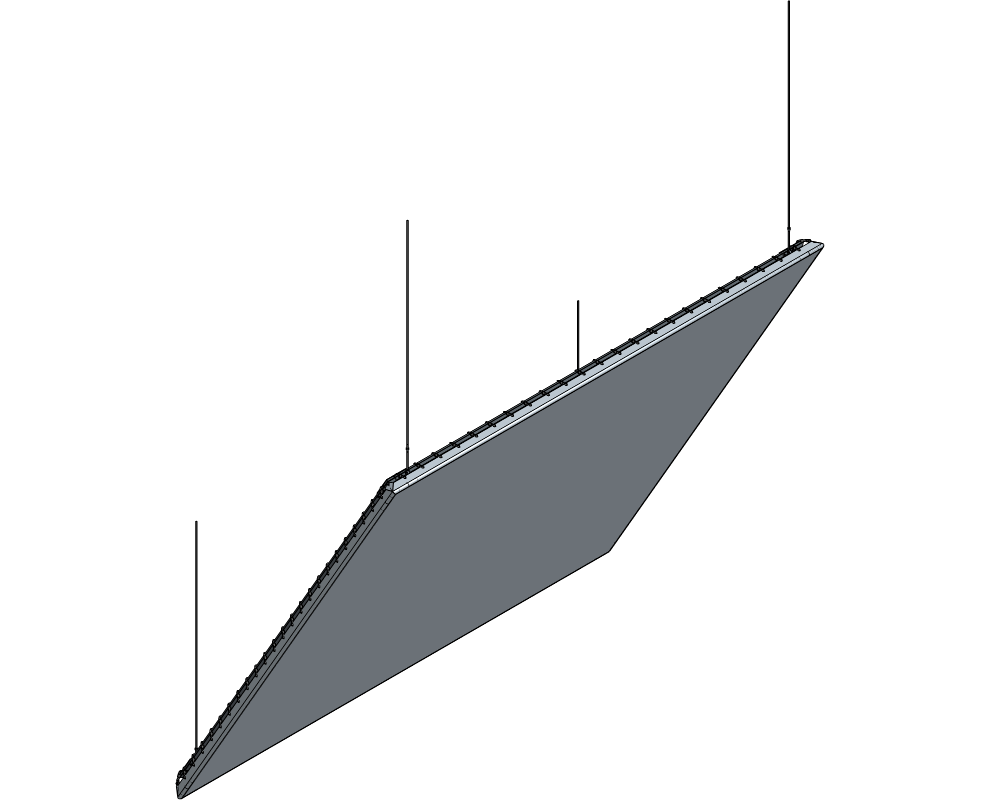

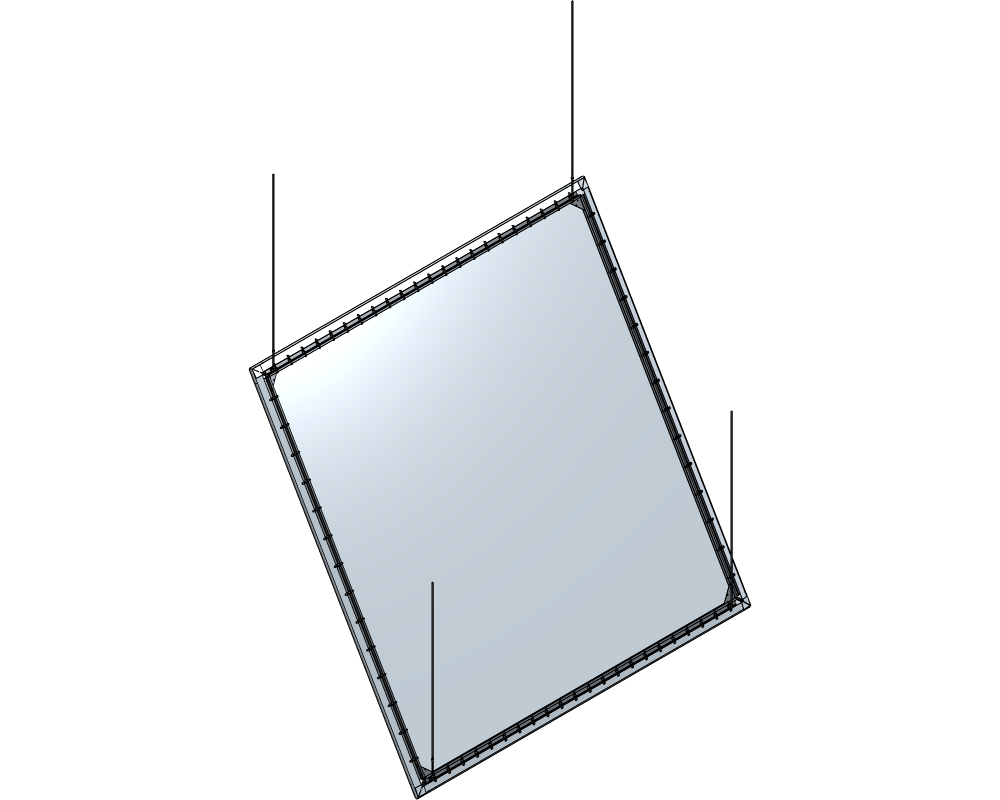

This setup is suitable for frames inclined under an angle or hung horizontally. Once you exceed 6m in width or height, a combination of eyebolts and Suspension Plates will need to be added every 2 to 3 meters.

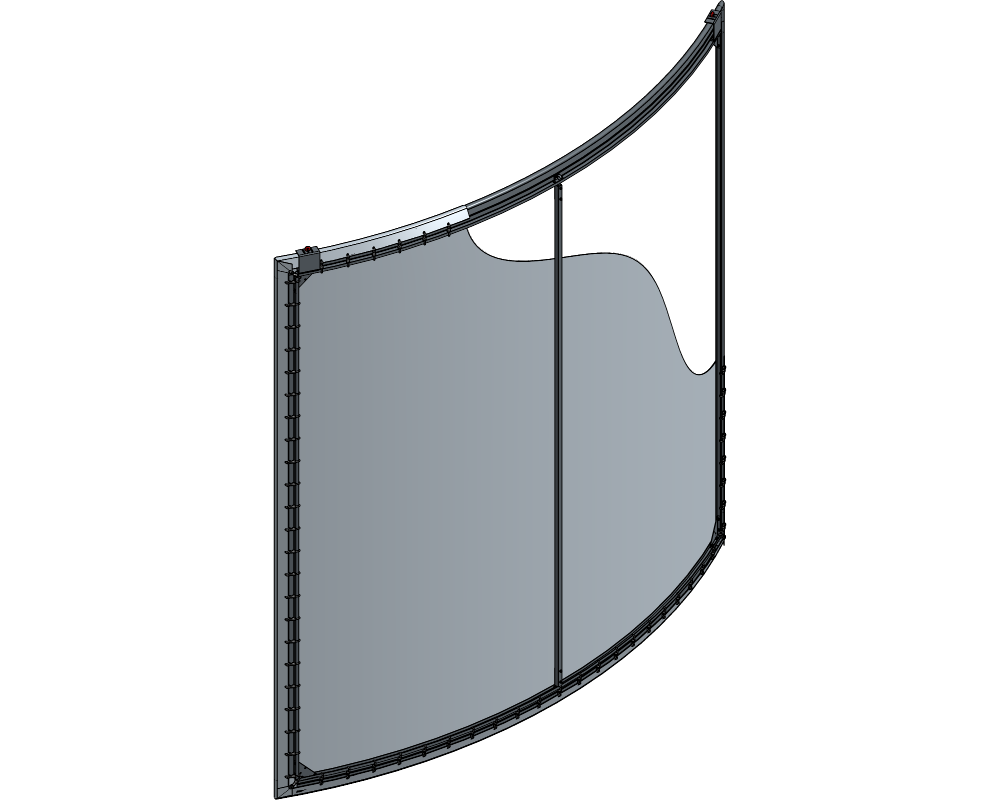

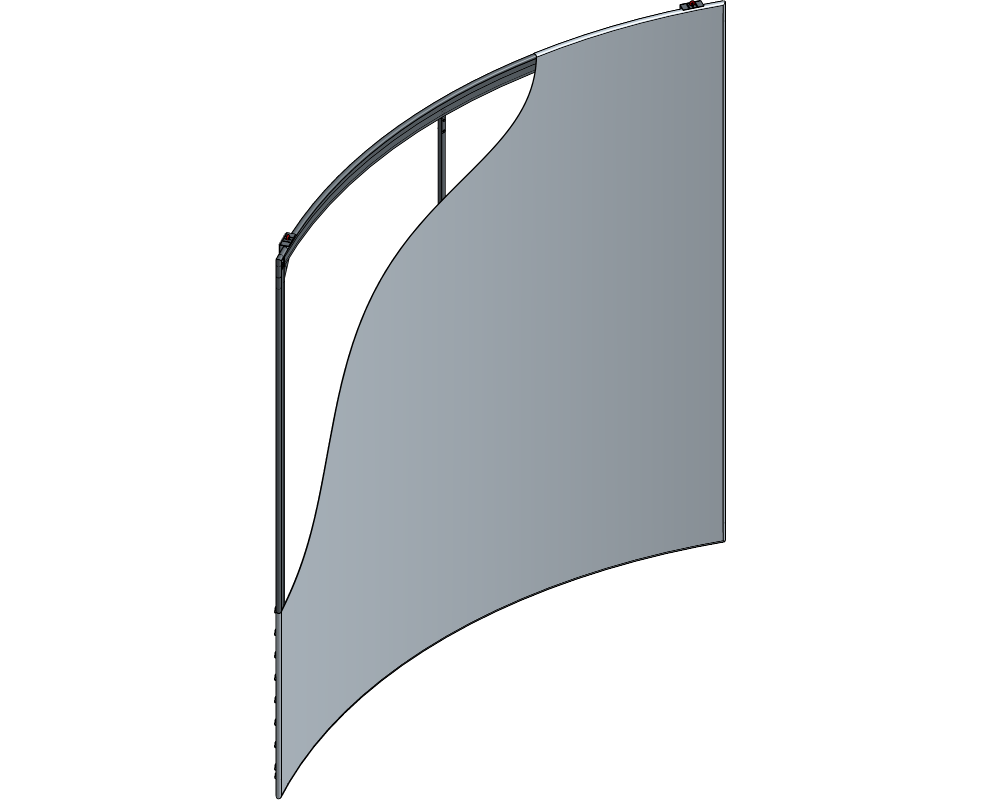

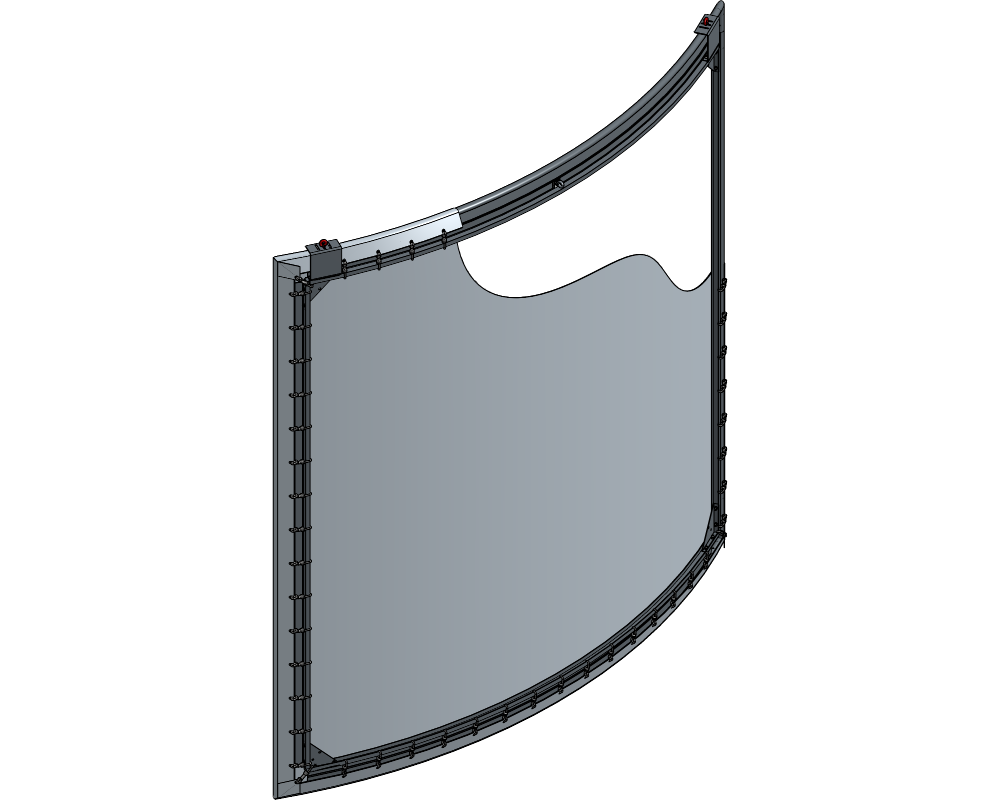

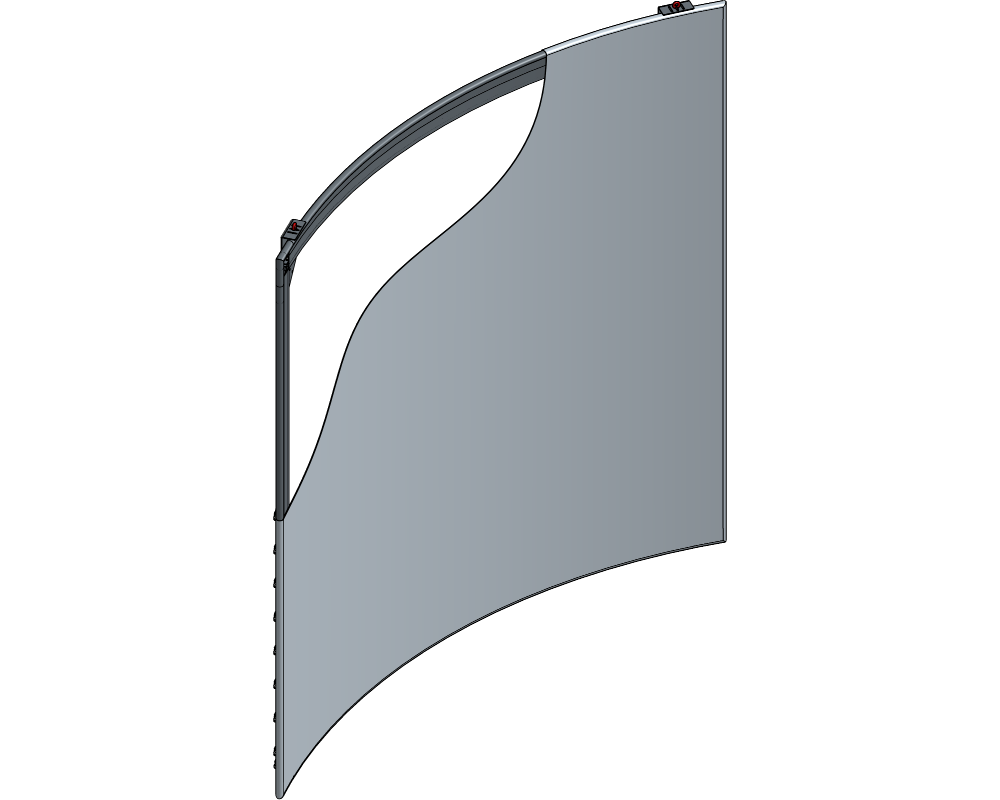

Custom bend your ScreenFrame profiles starting from a minimum radius of 3 meters, up to the size of 4x4 m without Support Profiles. Suspending your curved frame requires both the Suspension set 0° and Suspension Plates to balance the curved part.

Curved frames are only available with a 0° Corner.

When exceeding 4 meters in width and height, Support Profiles will need to be added. Suspending your curved frame requires both the Suspension set 0° and Suspension Plates to balance the curved part.

Curved frames are only available with a 0° Corner.
