Rope Drive Lite

Get your rope-operated stage drapes and set pieces moving at fixed speed with Rope Drive Lite. The electric track motor offers basic curtain motion and is perfectly compatible with the Rail H100, ShowPipe, OrientTrack and ShowTrack curtain rails.

Choose Rope Drive Lite when you’re in need of an affordable solution for basic curtain track control at a fixed speed. Both for permanent as well as temporary installations.

  • Equipped with a motor for continuous use (Duty Cycle S1 - 100 %) and integrated head pulley.
  • 180 W motor with fixed speed of 45 cm/sec.
  • Equipped with an easy-to-use remote control with open/close switch.
  • Optionally controllable from the lighting desk/console with the (Rope Drive Lite) DMX Remote, which uses 2 DMX channels: open & close.
  • All connections are made with plugs, making touring and installation fast and easy.
  • Compatible with our RF Remote and Receiver.



TECHNICAL DATA - ROPE DRIVE LITE - MOTORISED TRACK CONTROL

AccessoryArticle codeInformation

01. Rope Transmission

8050 0400 0017

Weight: 3.84 kg • Black

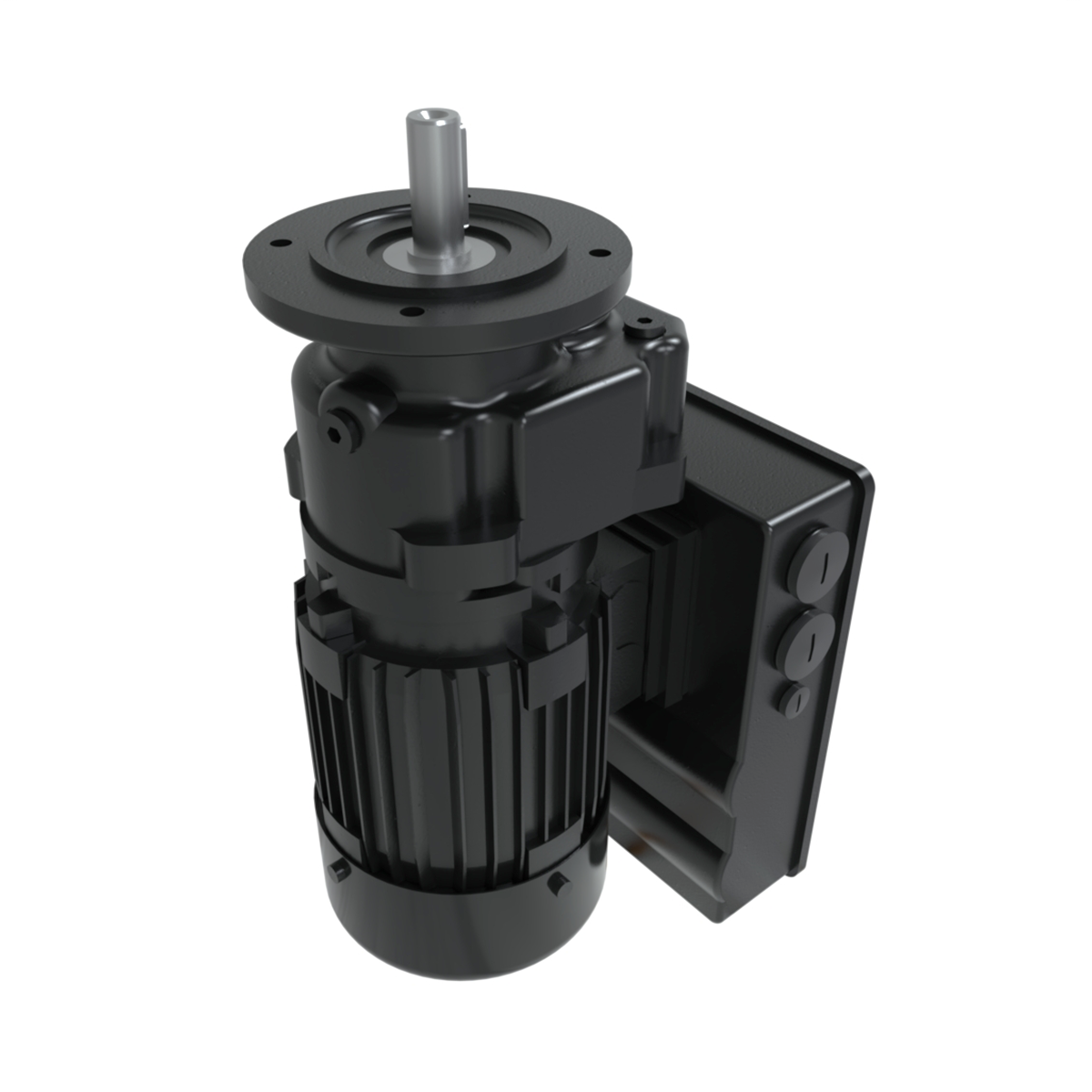

02. Motor Unit

8050 0713 2227

Weight: 11.92 kg • Black

03. Remote

8050 0950 0007

Weight: 1.76 kg • Black • Including 2 m cable

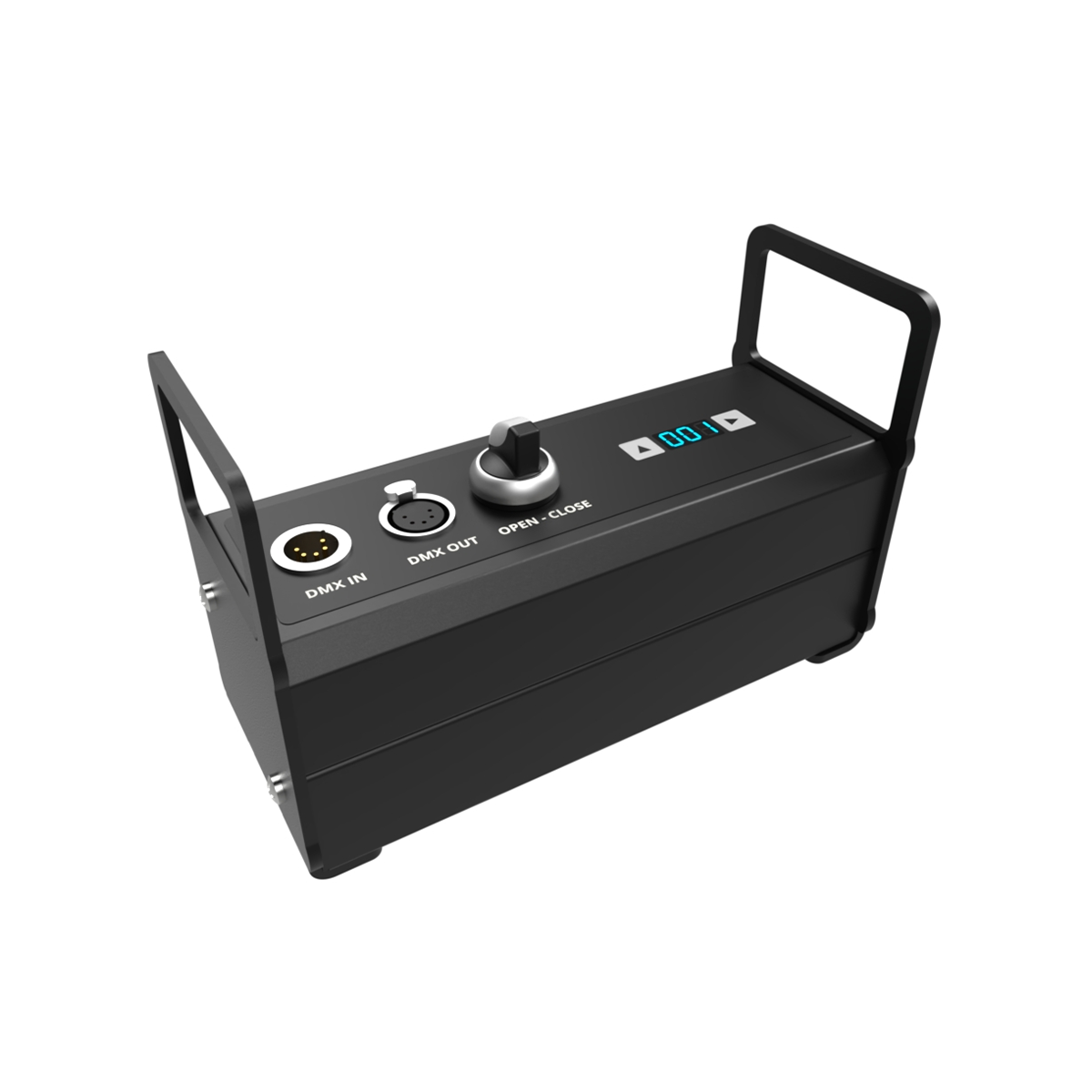

04. DMX Remote

8050 0766 0200

Weight: 2.20 kg • Black • Including 2 m cable

05. RF Remote

8050 0950 0200

Weight: 0.14 kg • Black

06. RF Receiver

8050 0950 0300

Weight: 0.32 kg • Black

07. Power Supply Cable

8150 0912 0027

Weight: 0.40 kg • Black • Length: 2 m

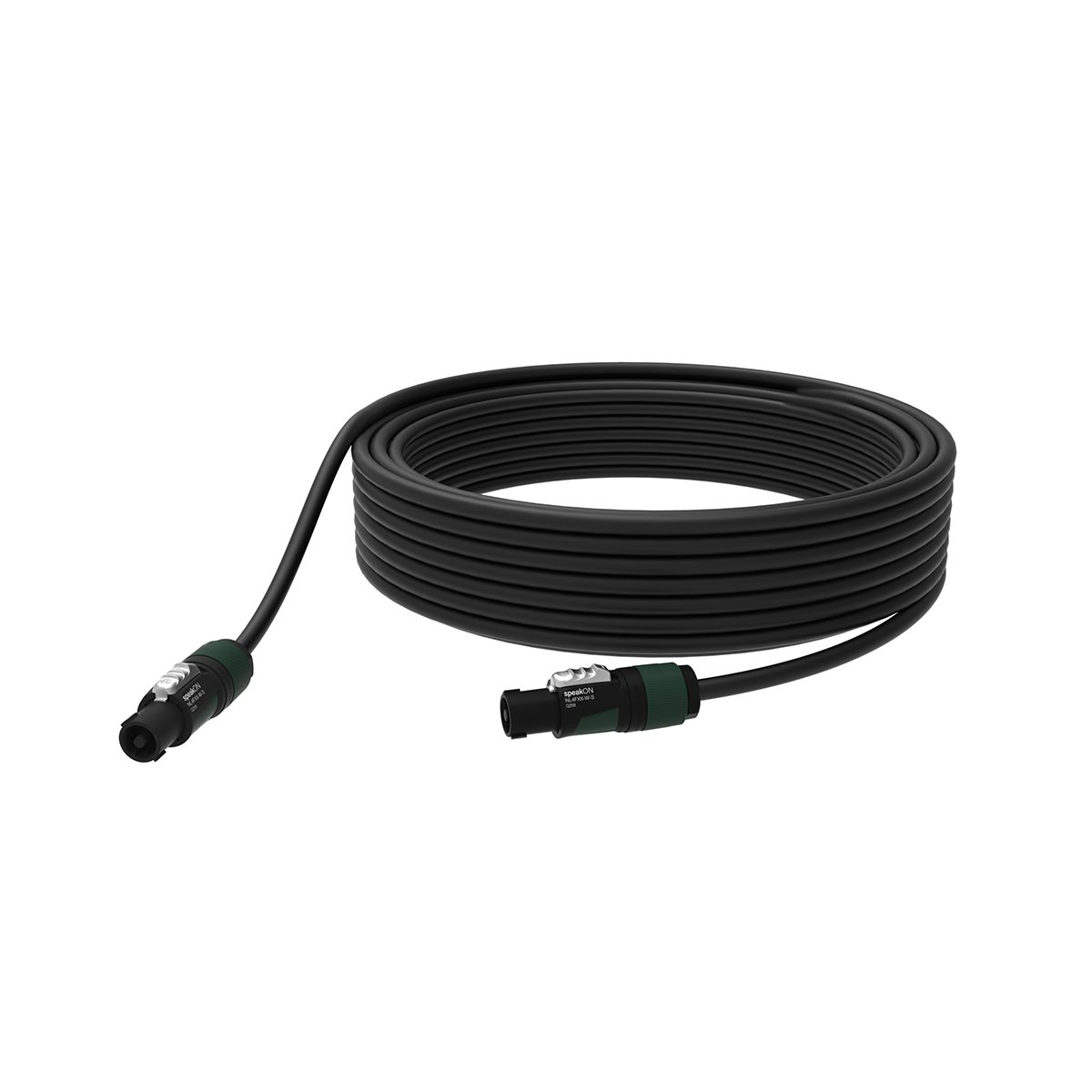

08. Link Cable

8160 0915 0257

Weight: 2.60 kg • Black • Length: 25 m

09. Limit Switch set

8050 0770 0020

Weight: 0.23 kg • Black • Set of 2 pieces • For H100

10. Limit Switch set

8050 0770 0010

Weight: 0.23 kg • Black • Set of 2 pieces • For ShowPipe

11. Limit Switch set

8050 0770 0013

Weight: 0.23 kg • Black • Set of 2 pieces • For ShowTrack & OrientTrack

12. Limit Switch Ski

8075 0770 0017

Weight: 0.23 kg • Black • For ShowTrack

13. Limit Switch Ski

8067 0770 0007

Weight: 0.18 kg • Black • For OrientTrack
