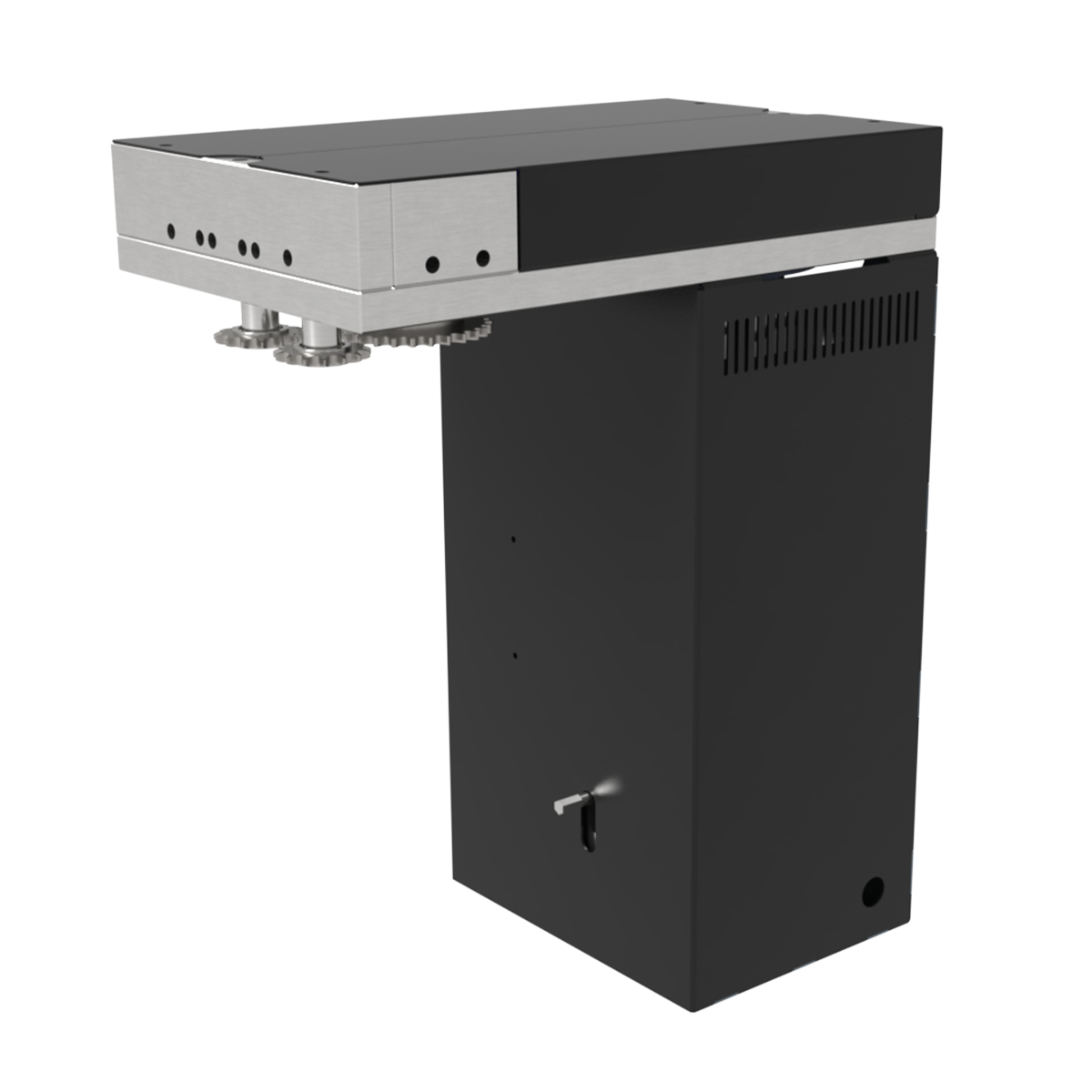

Chain Drive Pro Flex
A durable and heavy-duty Chain Drive motor for precision curtain movement.
Wanna go all out? This high-end Chain Drive motor will get the job done, either horizontal or vertical.
- Equipped with a motor for continuous use (Duty Cycle S1 - 100 %).
- To save space, the control unit is suspended independently from the track.
- Equipped with an easy-to-use remote control with open/close switch, fixed speed switch & emergency stop.
- All connections use plugs, which makes it easy to install.
- Can be controlled from a lighting console with 3 DMX channels: position - position fine - speed.
- A 750 W motor with variable speed up to 85 cm/sec.
- Precision positioning.
- Chain force: 1394 N
TECHNICAL DATA - CHAIN DRIVE PRO FLEX - MOTORISED TRACK CONTROL WITH CHAIN
| Accessory | Article code | Information |
|---|---|---|
01. Chain Drive Pro Flex | 8080 0702 7507 | Weight: 35 kg/pc • 750 W • 3 x 230 VAC + N • 50 Hz • 3,6 A • including brake |
02. Control Unit | 8080 0750 7507 | Weight: 11.6 kg/pc • Black • Including 2 clamps of 75 kg |

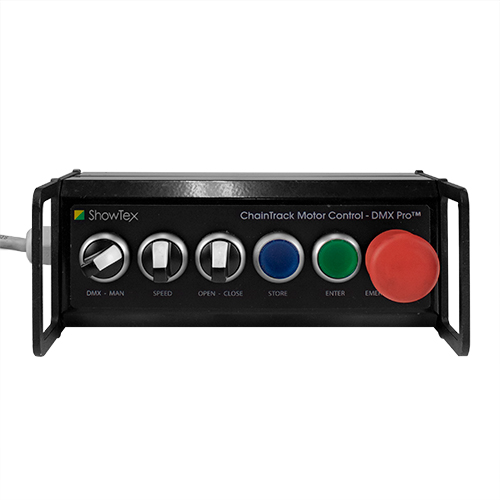

03. Remote | 8080 0766 7507 | Weight: 4.92 kg/pc • Black • With emergency stop 25m cable |
04. Power Supply Cable | 8150 0912 0027 | Weight: 0.43 kg/pc • Black • Length: 2m |

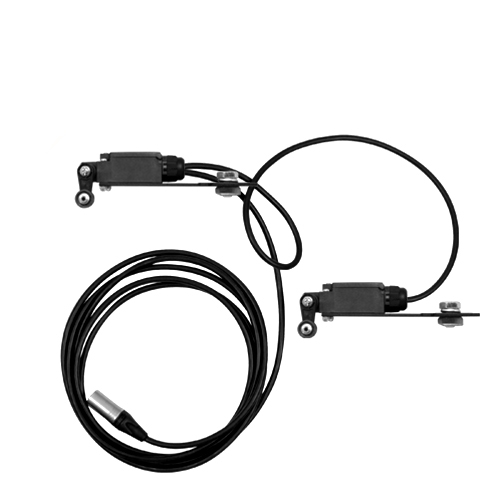

05. Limit Switch Set | 8050 0770 0015 | Weight: 0.85 kg/pc • Grey • 2 pieces • 25m cable |
06. Hook Clamp 100 kg | 8080 0680 0007 | Weight: 1.22 kg/pc • Black |
+ Channel Nut M10 |
Chain Drive Pro Flex accessories:
1
2
3
4
5
6
