Kabuki 50

Unveil a new product with a curtain drop and add an element of surprise they’ll never forget. A Kabuki system is perfect for revealing the top act in your show at the push of a button.

  • The immediate response makes it the fastest Kabuki drop in the industry.
  • You can create a perfectly even curtain wall and drop it at exactly the right moment.
  • The modular system allows for an almost endless extension by connecting brakes and bearings to the Profile.
  • The unique design will not release the curtain in the event of a power outage.

Do you want to impress your audience even more? Combine a Kabuki drop with our HiSpeed Reveal system!

Kabuki is also available in a single module: discover Kabuki 30.



TECHNICAL DATA - KABUKI 50 - KABUKI SYSTEM

AccessoryArticle codeInformation

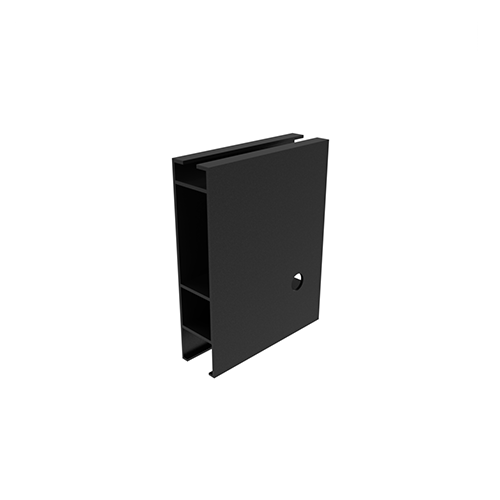

01. Click Profile End Piece

8150 0906 0107

Weight: 0.18 kg • Length: 0.10 m • Black

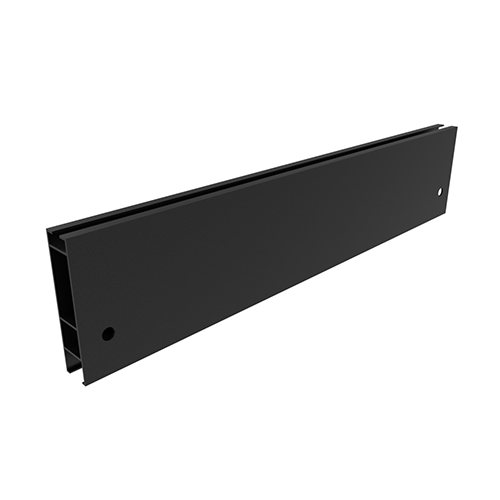

02. Click Profile

8150 0906 1007

Weight: 1.85 kg • Length: 1.00 m • Black

8150 0906 2007

Weight: 3.70 kg • Length: 2.00 m • Black

8150 0906 3007

Weight: 5.55 kg • Length: 3.00 m • Black

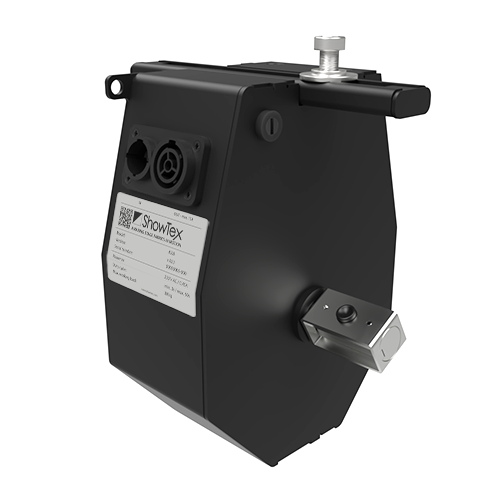

03. Brake 230V

8150 0900 0017

Weight: 8.96 kg • Black • WLL: 30 kg SF: 1:1 • 230 V

8150 0900 0027

Weight: 8.96 kg • Black • WLL: 30 kg SF: 1:1 • 110 V

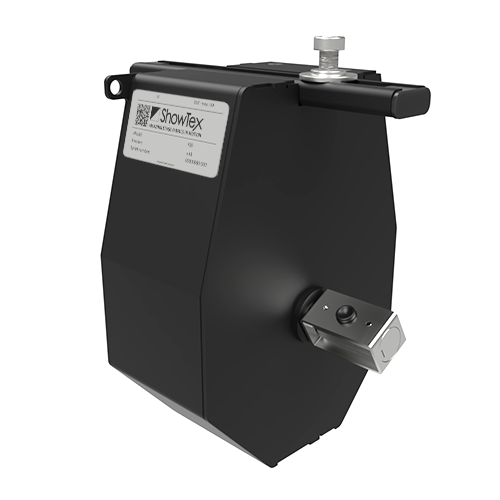

04. Bearing

8150 0903 0007

Weight: 4.20 kg • Black

05. Sliding Pin

8150 0909 0005

Weight: 0.02 kg • Inox

06. End Stop

8150 0050 0001

Weight: 0.03 kg • Galvanised

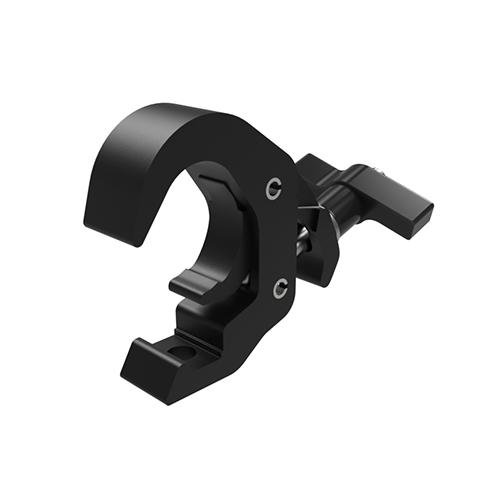

07. Hook Clamp

8700 0677 1007

Weight: 3.70 kg • Black • WLL: 100 kg SF: 2:1

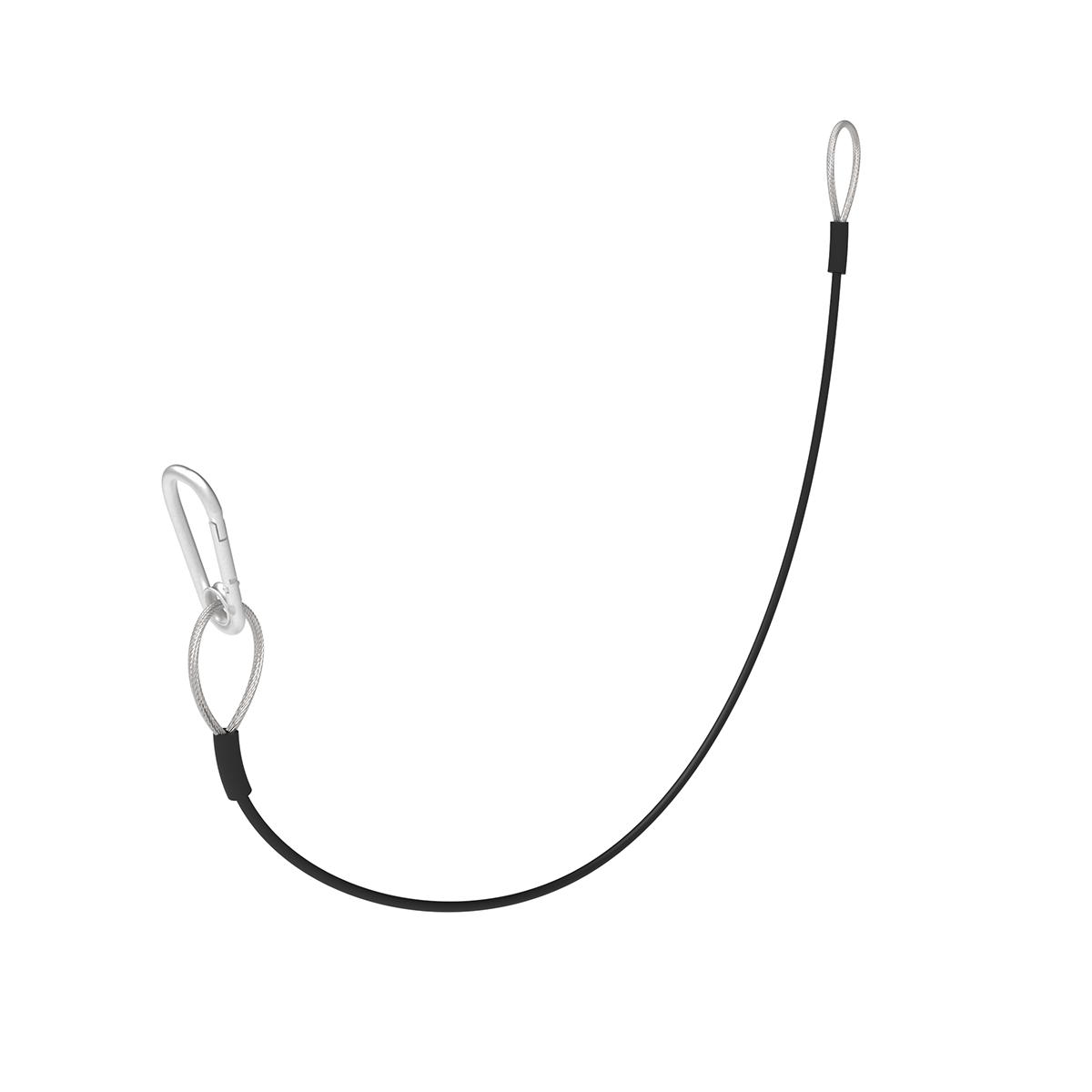

08. Safety Cable

8700 0306 0607

Weight: 0.08 kg • Length: 0.60 m • Black

8700 0306 1207

Weight: 0.11 kg • Length: 1.20 m • Black

09. Remote

8150 0950 0010

Weight: 0.82 kg • Black

10. Power Supply Cable

8145 0912 0017

Weight: 0.40 kg • Length: 2 m

11. Link Cable

8150 0915 0087

Weight: 0.97 kg • Length: 7 m

8140 3117 0027

Weight: 3.27 kg • Length: 25 m
