ShowTex is a worldwide leader in inventing, manufacturing and installing innovative flame retardant fabrics, tracks and motion control systems for achieving the creative vision of theatre, event and entertainment professionals.
HiSpeed Reveal
Smooth & silent unveilings
HiSpeed Reveal smoothly and silently rolls-up lightweight drapes to spectacularly reveal anything you want. Combine the roll-up motion with a selection of our flame-retardant fabrics and make your audience go wild thanks to the ultimate stage reveal! From Satinac or GobelinTulle to PolyStretch and even StretchVelours, this high-tech roll-up system offers a ton of possibilities. Watch the video here!
HiSpeed Reveal & Kabuki: a match made in heaven
To enhance the spectacular effect even more, combine HiSpeed Reveal with our Kabuki drop system and start the action by just pushing a single button. The remote control allows activation, arming and slow feeding of the system from ground level, all while displaying the real-time status.
The impressive Sniffer Effect
When a drape is elegantly dropped using a Kabuki and immediately pulled up to magically disappear, this is called a sniffer effect. HiSpeed Reveal can do exactly that. Just as the curtain falls, the motor will come into action and roll up ("sniff") the fabric at high speeds to make it fly completely out of sight. An impressive combined effect that will leave your audience wondering. Get in touch to discuss!
Compact & touring-proof
The compact HiSpeed Reveal can be used in different positions, suspended or grounded. It features a unique configuration which makes the curtain “ready to shoot” in all possible directions! Thanks to the handy reverse slow feed, the fabric can also be easily unrolled during stage tests or after a show.
Ultra-fast roll-up system
- Max. fabric weight: 15 kg (use lightweight fabrics)
- Max. fabric size: 100 m2
- Max. speed: 7.5 m/s
- Motor power: 4 kw
- Power supply: 3 x 380 V - 32 A
Contact your local office for more information about your ideal HiSpeed Reveal set-up!
TECHNICAL DATA - HISPEED REVEAL - REVEAL SYSTEM
| Accessory | Article code | Information |
|---|---|---|
1. HiSpeed Reveal | 8140 3117 0087 | Dimensions: 52x52x250 cm • Ø: 10 cm • Weight: 130 kg/pc |
2. RibCord (2 mm) | 7550 0002 0007 | Weight: 0.45 kg/pc • Black |
7550 0002 0003 | Weight: 0.45 kg/pc • White | |
3. Turn Coupler 750 kg small | 8700 0683 7497 | Weight: 1.31 kg/pc |
4. Remote Unit | 8140 3117 0077 | Weight: 2.7 5kg/pc |
5. Emergency Unit | 8140 3117 0037 | Weight: 0.75 kg/pc |
6. Control Unit | 8150 0950 0010 | Weight: 0.82 kg/pc |
7. Power Supply Cable CEE 32 | 8140 3117 0017 | Weight: 6.00 kg/pc • Cable length: 10 m |

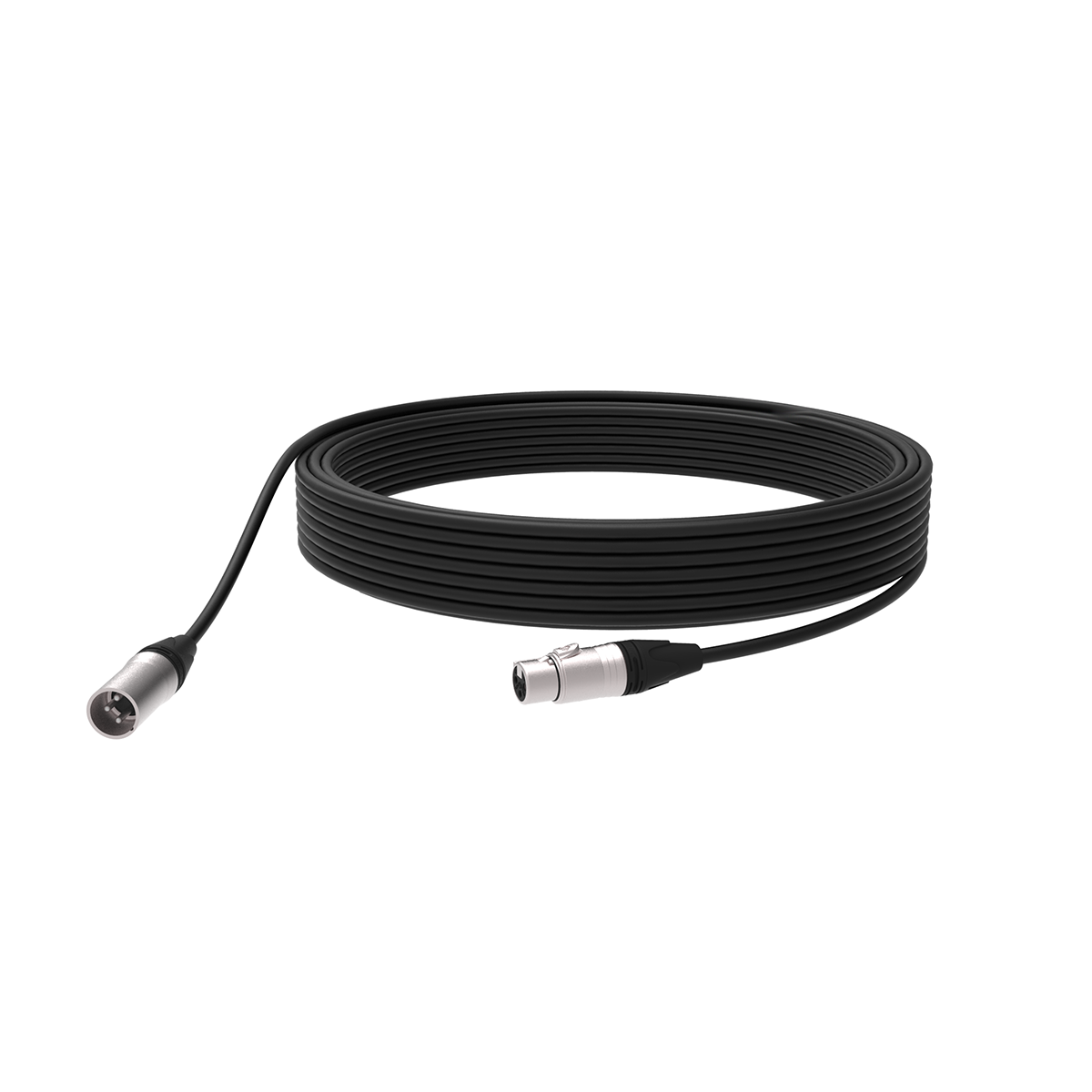

8. Emergency Stop Link Cable | 8140 3117 0047 | Weight: 1.20 kg/pc • Cable length: 25 m |
9. Remote Cable | 8140 3117 0057 | Weight: 6.50 kg/pc • Cable length: 25 m |
10. Remote Cable Connector | 8140 3117 0067 | Weight: 0.60 kg/pc |
11. Trigger Cable | 0350 1410 1030 | Weight: 0.78 kg/pc • Cable length: 5 m |
12. Extension Cable | Cable length : 5 / 10 / 25 m | |
13. USB Cable | 0350 1410 1070 | Weight: 0.13 kg/pc • Cable length: 1 m |

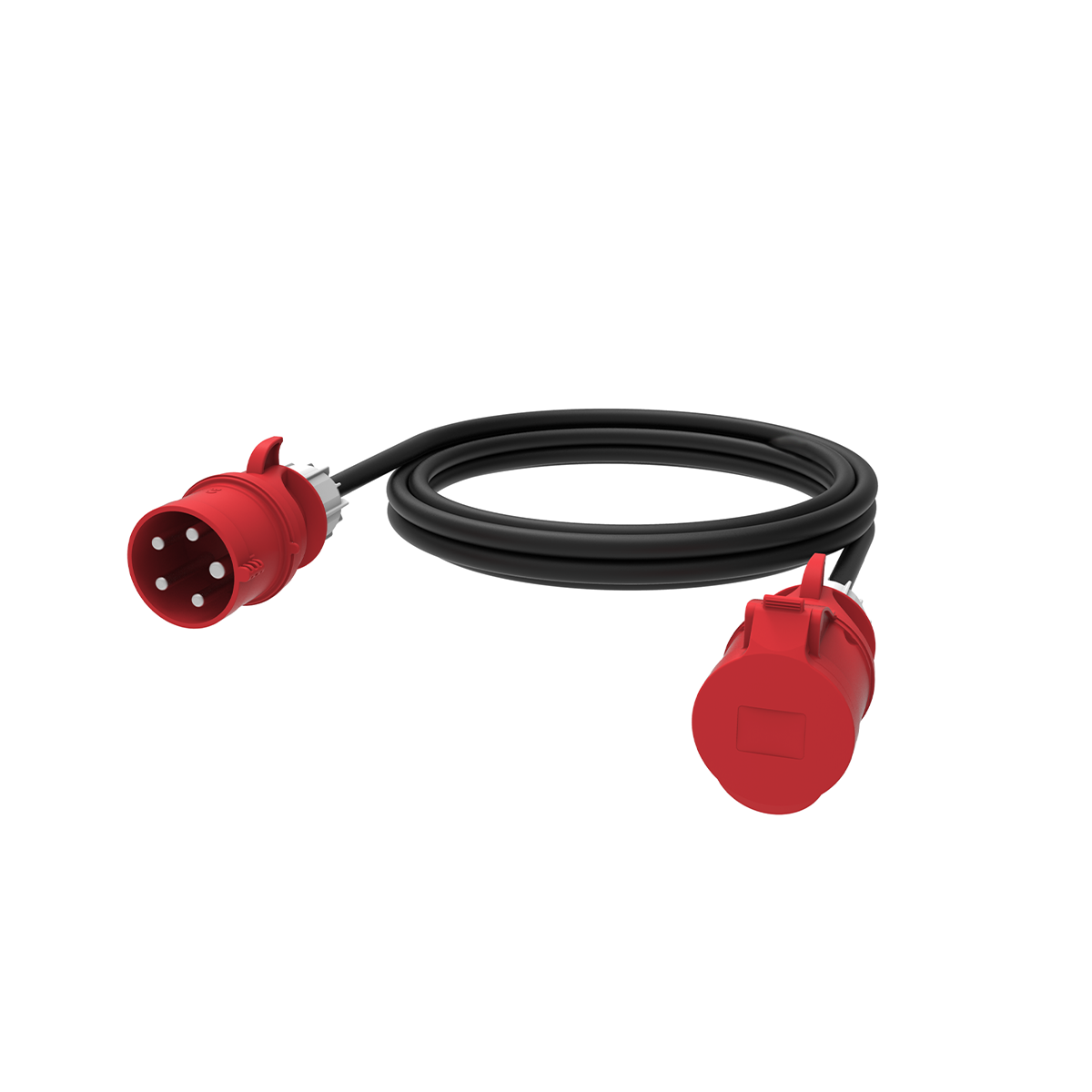

14. Extension Cable true 1 M/F - 25m | 8140 3117 0027 | Weight: 3.28 kg/pc • Cable length: 25 m |
15. Adapter USB/UTP | 8140 3117 0207 | Weight: 0.04 kg/pc • Extends USB Cable |
16. UTP Cable | 0350 1410 1100 | Weight: 0.88 kg/pc • Cable length: 30 m |

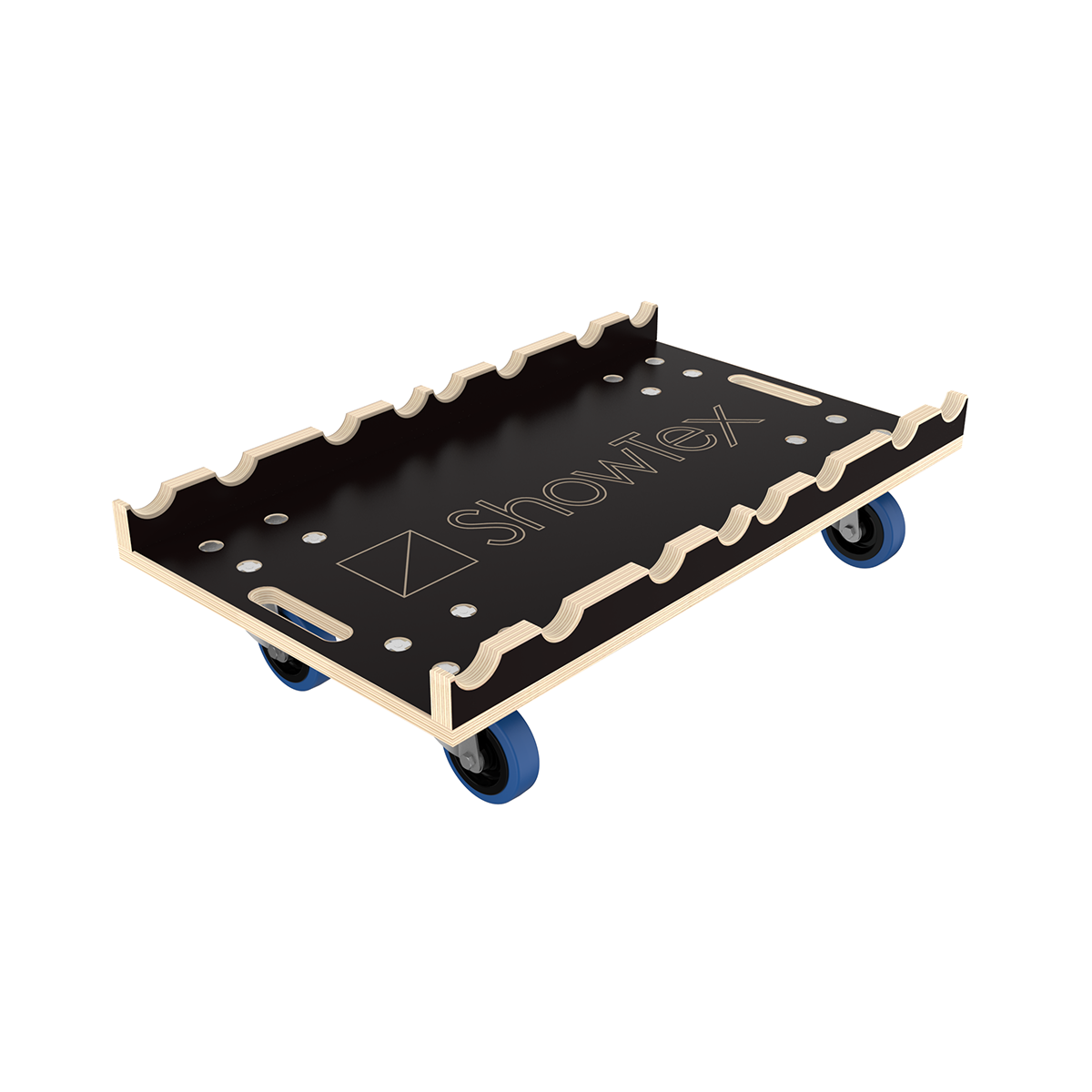

17. Truss Trolley | 8140 6050 0407 | Dimensions: 60.5x106.2x19.4 cm • Weight: 12 kg/pc |
18. Flightcase HiSpeed Reveal | 8140 6050 0507 | Dimensions: 90x60x266 cm • Weight: 110 kg/pc (260 kg full set) |
19. Ratchet Fastener | 8800 0372 3007 | Weight: 0.25 kg/pc • Length: 300 cm |
8800 0372 5009 | Weight: 0.25 kg/pc • Length: 500 cm |
