ShowTex is a worldwide leader in inventing, manufacturing and installing innovative flame retardant fabrics, tracks and motion control systems for achieving the creative vision of theatre, event and entertainment professionals.
AutoReveal 600
The XL model of the AutoReveal system can be used to reveal bigger items the size of a van or a small truck. The limits can easily be set, resulting in a quick installation!
At the push of a button, the AutoReveal 600 makes the unveiling curtain disappear like magic. It is perfect to launch bigger products or to unveil new vans or trucks.

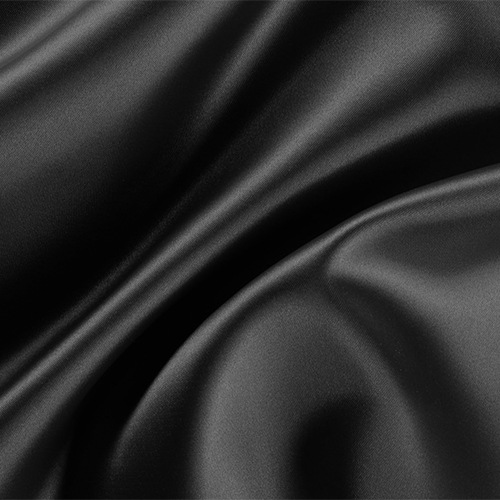

The Satinac reveal curtain has a maximum size of 17m by 12m and unveils fully in 20 seconds. This AutoReveal curtain is custom made and sold separately. Change the reveal curtain as much as you want with the easy hook-and-loop attachment.
For revealing smaller items, the size of a regular car, check out the AutoReveal 300.
Specifications
- 220V single phase motor with wired remote control
- Power supply : 230v • 50Hz • 16A
- Motor output : 0.435 Kw
- Output speed : 70 RPM
- Output torque : 18 Nm
- Duty cycle : S2:4min
TECHNICAL DATA - AUTOREVEAL 600 - REVEAL SYSTEM
| Accessory | Article code | Information |
|---|---|---|

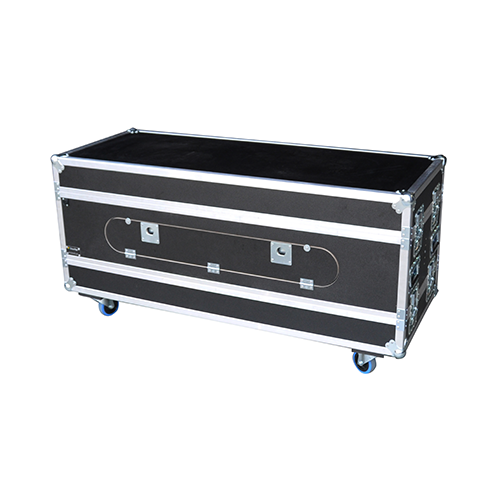

1. Flight Case | 8160 7400 1057 | 150 x 60 x 60 cm (includes all parts) |
2. Power Cable | 8150 0912 0027 | Length: 2 m |
3. Link Cable | 8160 0915 0257 | Length: 25 m |

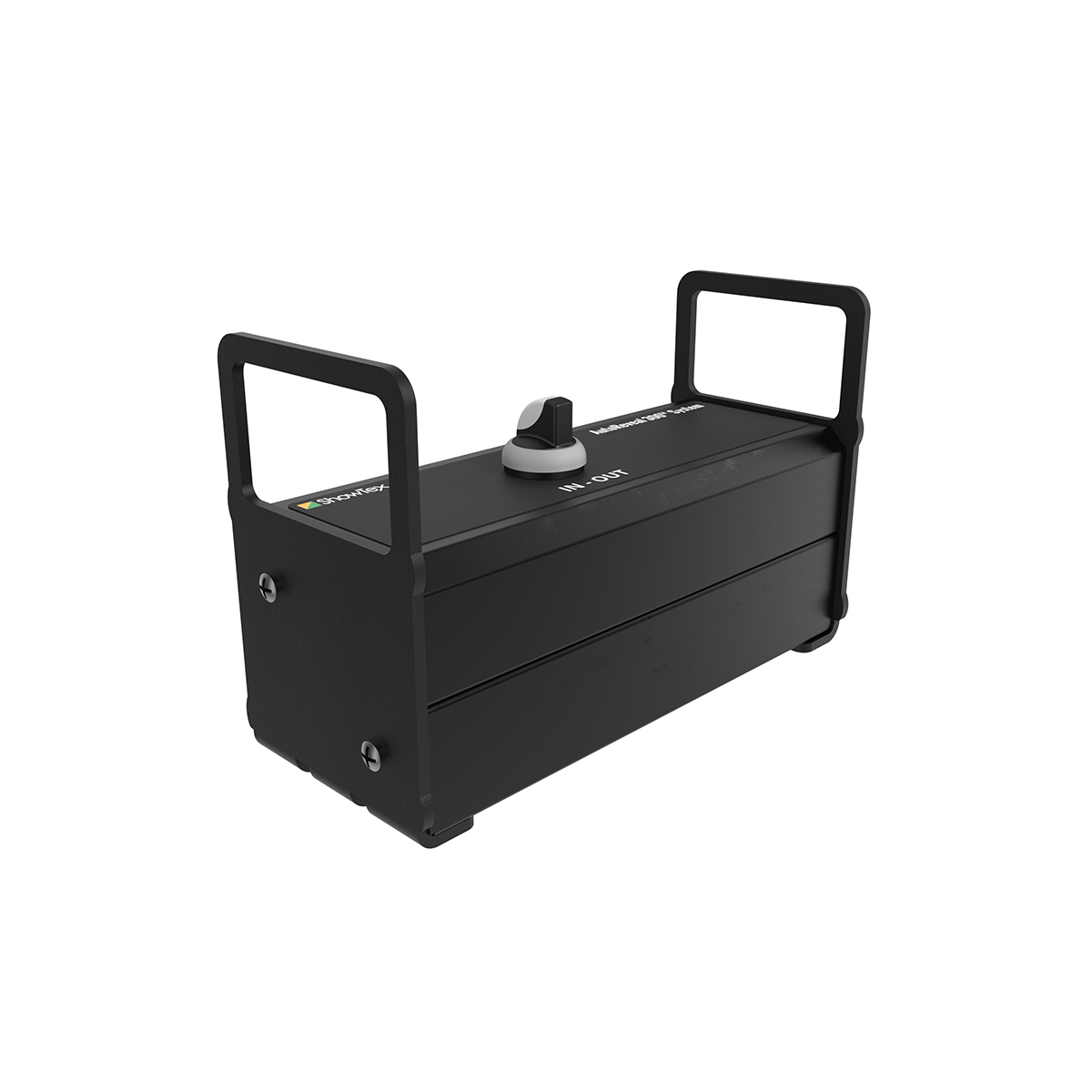

4. Remote Control | 8160 0950 0017 | |

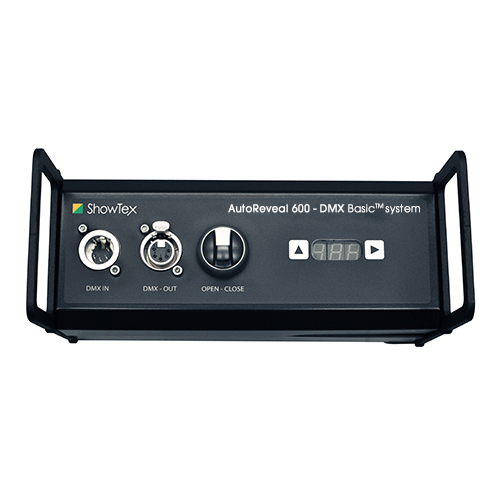

5. DMX Control | 8160 0950 0037 | Optional |

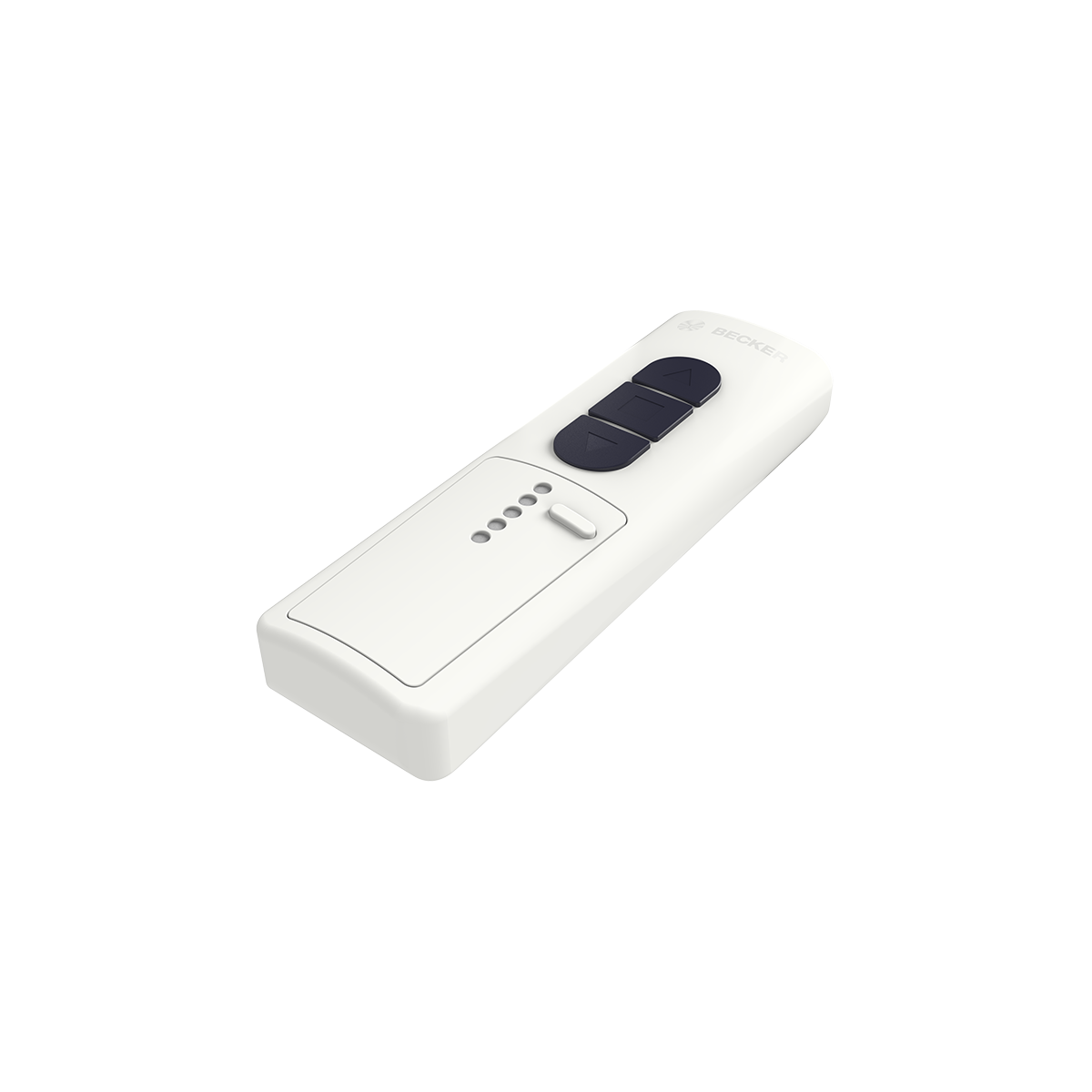

6. RF Remote | 8160 7400 13## | Optional • choose 1/5/10 channels • range: 20 m (indoor) to 200 m (open space) |

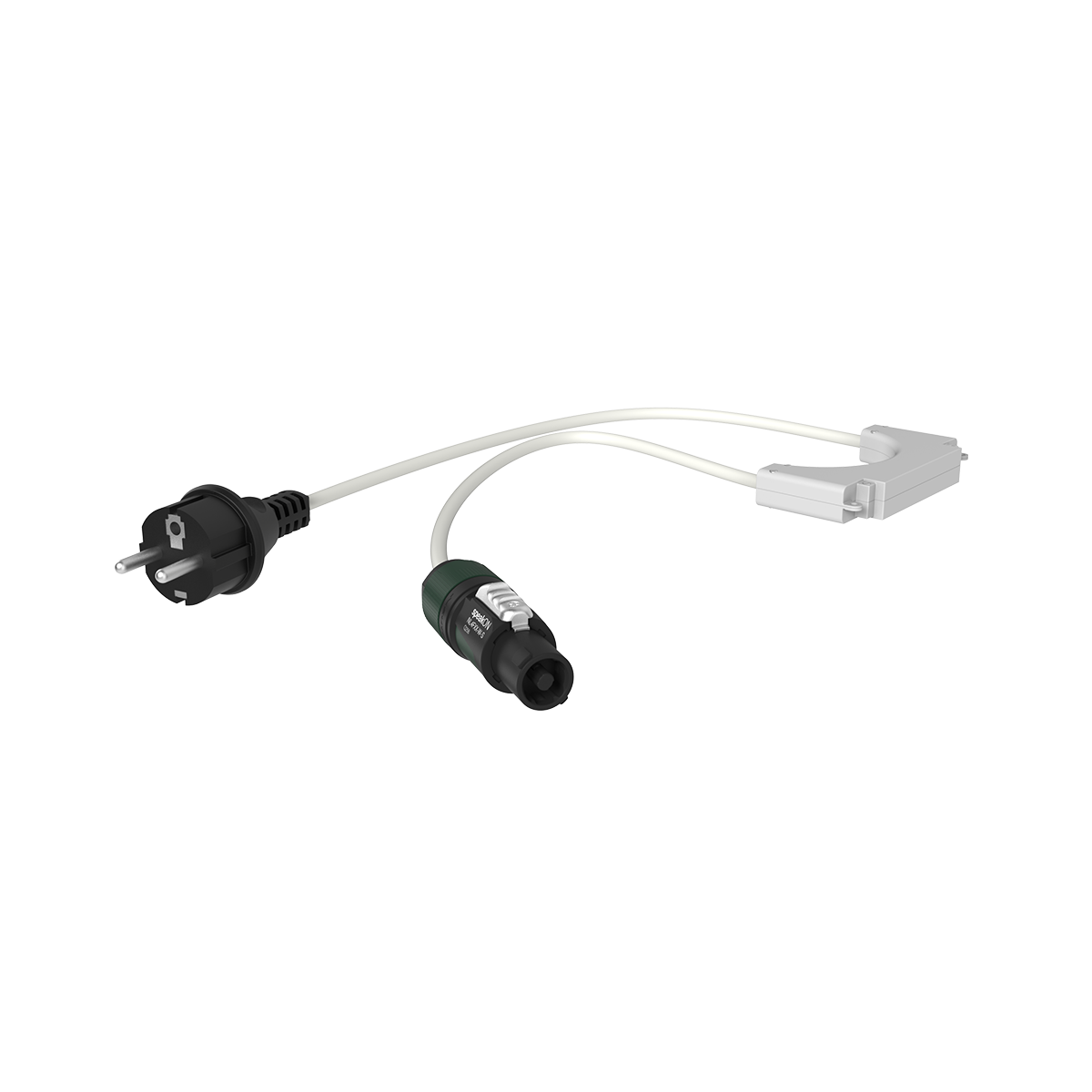

7. RF Receiver | 8160 7400 1337 | Optional |
8. AutoReveal Curtain | custom-made | Max 12 m x 17 m • sold separately |
AutoReveal 600 accessories:
1
2
3
4
5
6
7
8
