ShowTrack
RopeAssist Installation
Annex
Annex
No part of this publication may be duplicated or edited in any form or by any means, including any type of electronic or mechanical method without prior written permission from ShowTex.
ShowTex and its employees are fully aware of their task to provide a reliable edition of this document. Nevertheless, they cannot accept any form of liability for the direct or indirect consequences of imperfections that might remain in this edition. The material in this manual is subject to change without notice.
ShowTex warrants that its mechanical and technical products, when delivered in new condition, in original packing, sold directly and used in normal conditions are free from any defects in manufacturing, materials and workmanship. For more information about your local warranty terms, please check our website or contact your local ShowTex office.
All products from the ShowTex Rental range are supposed to be returned in the same state as they were rented. Please treat our products with care, allowing the next user to enjoy the products as much as you did. The rented products are internally checked according to the general rental conditions. Be sure to check our rental guidelines on our website before installing and using this product: ShowTex rental guidelines
Read and understand this user manual before installing and or operating the system. Failure to follow the instructions in this document could result in serious injury!
Following the guidelines of this manual will reduce the risk of damaging the equipment or injuring yourself and the people around you. Nevertheless, ShowTex cannot be held accountable for any use or misuse of the equipment and supplies.
Damage to the system caused by any other method of installation than the one shown in this manual can only be repaired or fixed at the customer’s expense.
As a result of the above warning, any ShowTex product must be installed and operated by a qualified technician who knows its capabilities as well as its limitations.
In case you are uncertain about the eligibility of any hardware in your product, please get in touch with your local ShowTex office to receive additional guidance.
Thank you for choosing for ShowTex and purchasing one of our products. We want to ensure that your experience is as smooth and safe as possible, so we kindly request that you take a few moments to carefully read this manual before installing your new system.
This manual contains important information that will help you comply with health and safety regulations, as well as provide guidance on how to safely install, operate and maintain your product. Our team has taken great care to ensure that this manual is easy to understand and follow, using straightforward language and clear illustrations.
If you have any questions or concerns regarding the installation or use of your product, please feel free to contact your local ShowTex office. Our knowledgeable team members are always available to assist you and answer any questions you may have.
| Article number | Colour | Weight |
|---|---|---|
| 8050 0425 0107 | Black | 6.54 kg |
| Article number | Colour | Weight | Length |
|---|---|---|---|
| 7525 0400 0007 | Black | 1.78 kg | 7.40 m |
| 7525 0600 0007 | Black | 2.74 kg | 11.40 m |
| 7525 0800 0007 | Black | 3.70 kg | 15.40 m |
| 7525 1000 0007 | Black | 4.66 kg | 19.40 m |
| Article number | Colour | Weight |
|---|---|---|
| 8050 2361 0017 | Black | 4.28 kg |
| Article number | Colour | Weight |
|---|---|---|
| 8075 0425 0047 | Black | 0.12 kg |
| Article number | Colour | Weight |
|---|---|---|
| 8075 0425 0037 | Black | 0.58 kg |

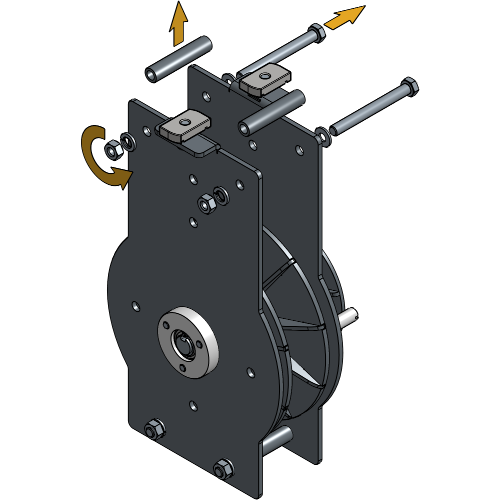

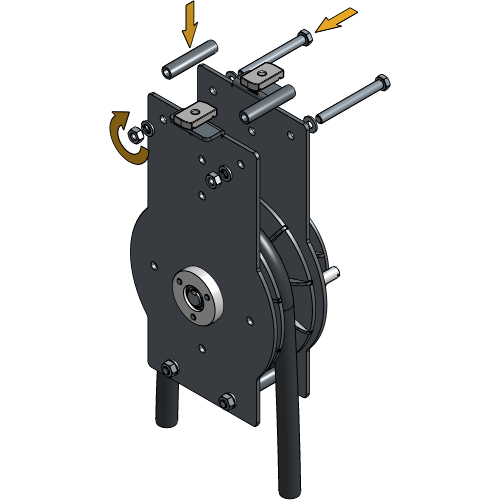

Loosen the bolts and remove the 2 upper spacers of the RopeAssist.

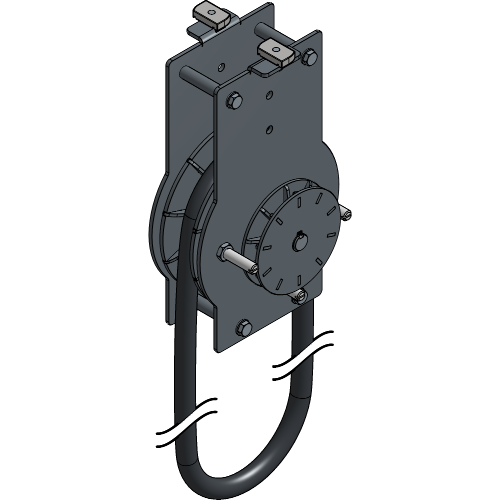

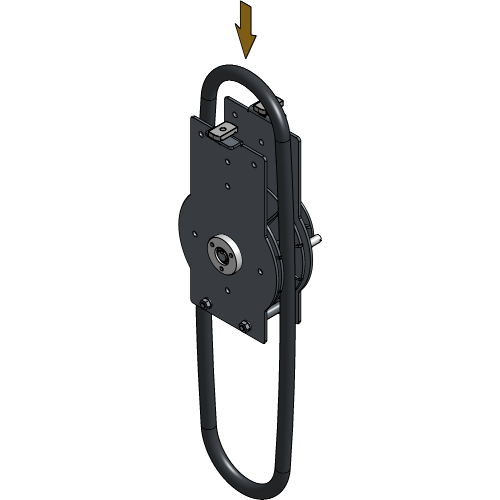

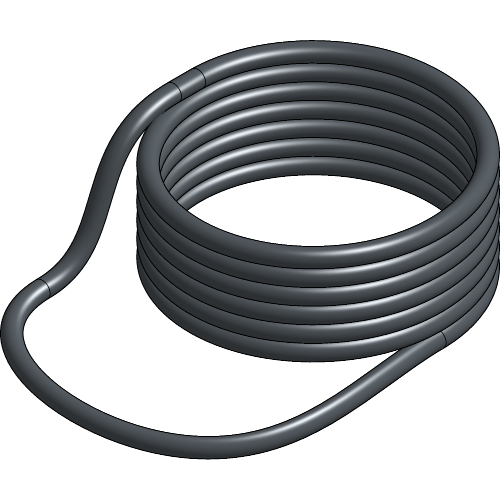

Insert the endless rope into the RopeAssist on top of the big wheel.
Place the upper spacers back and tighten the bolts.

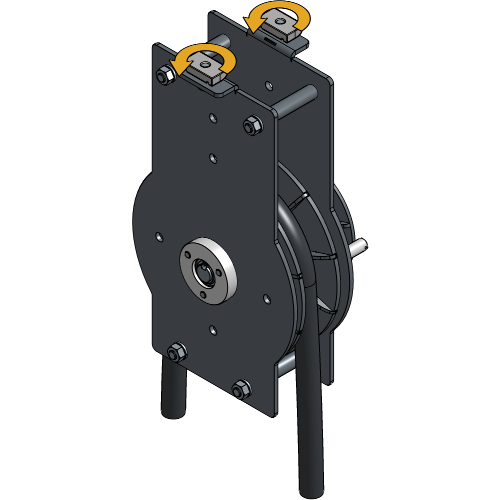

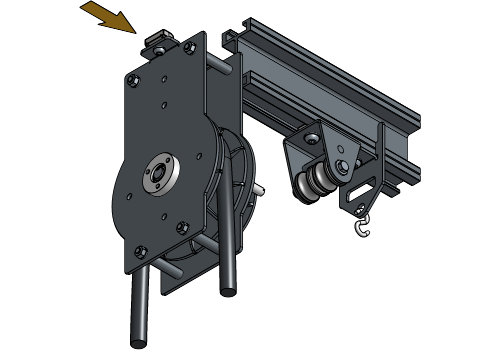

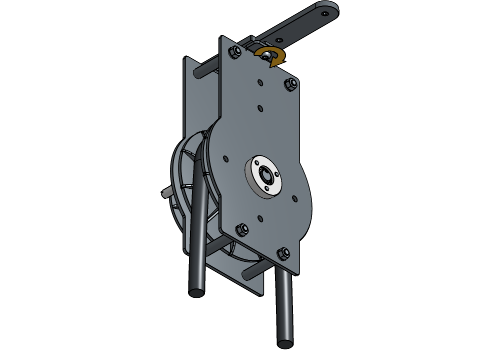

Loosen the channel nuts of the RopeAssist and turn them until they fit inside the track profile.

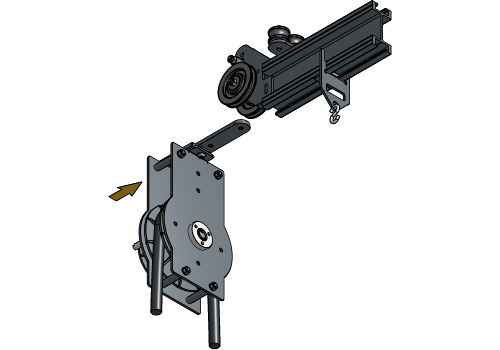

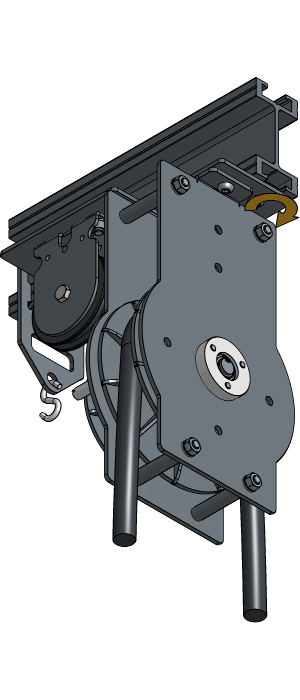

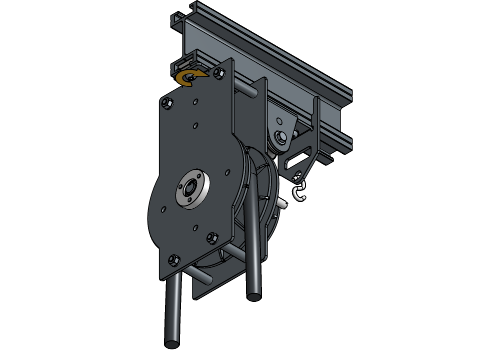

Insert the RopeAssist at the end of the track next to the Head Pulley, rotate the channel nuts a quarter turn and tighten the socket screws.
Make sure that the RopeAssist and Head Pulley are as well aligned as possible. If misaligned, it may result in operational issues with your system.

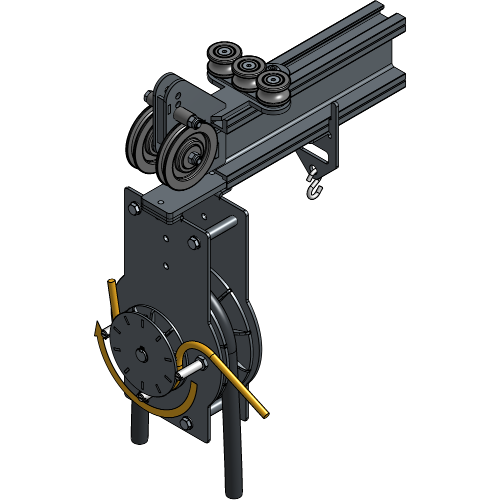

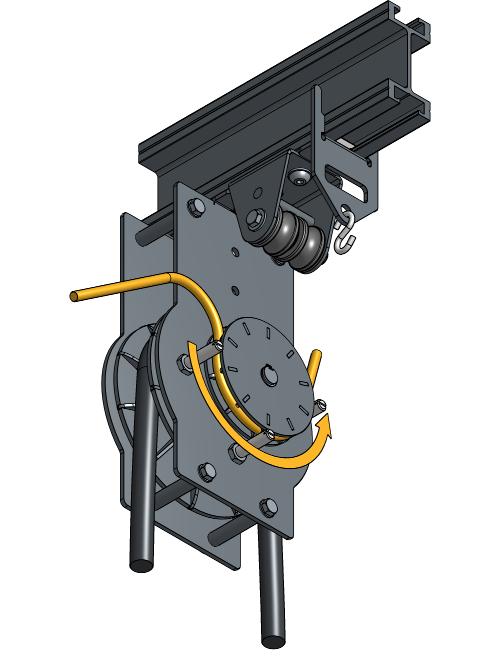

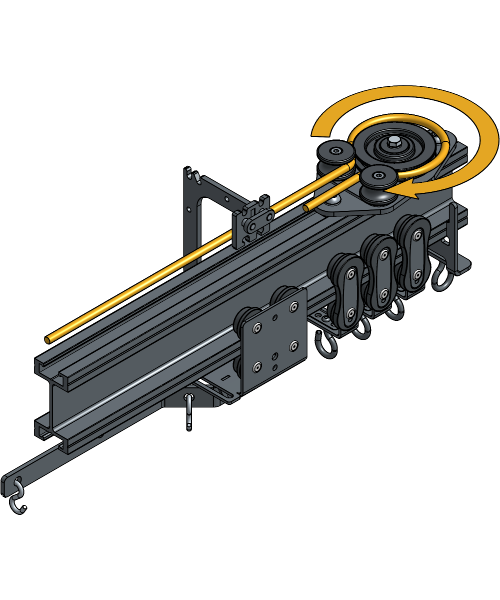

Guide the rope through the small wheel of the RopeAssist.

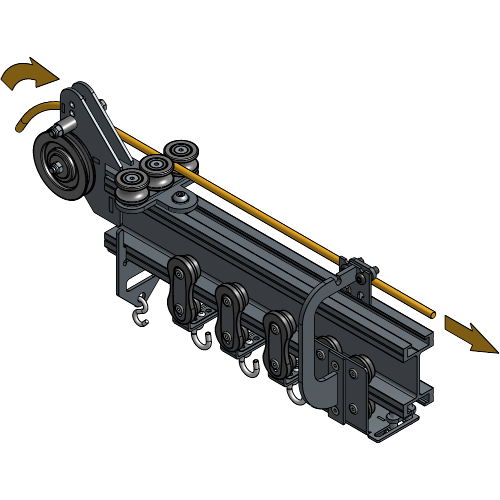

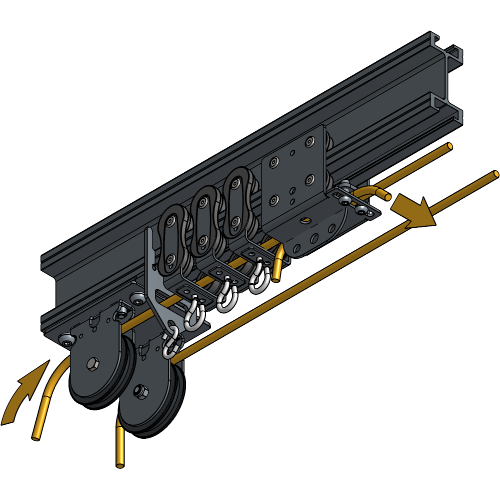

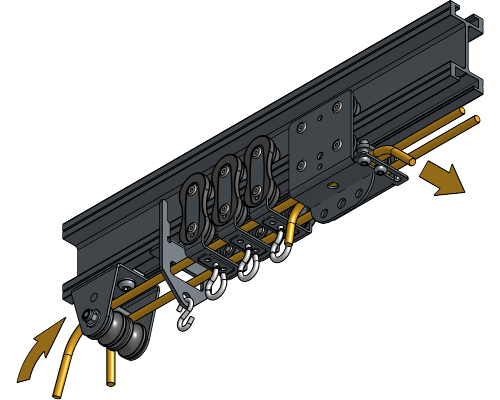

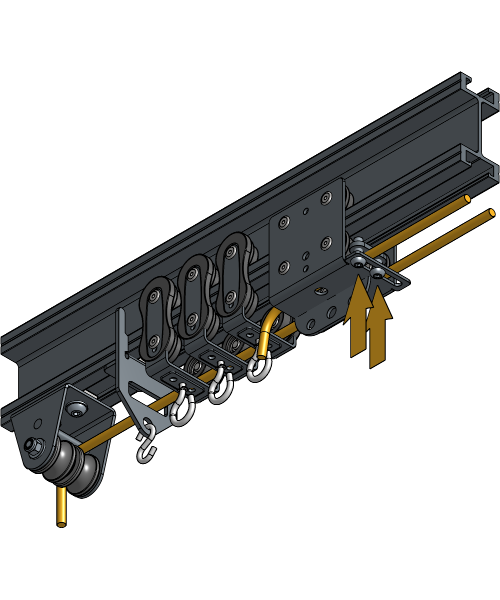

Guide the rope through the backside of the Head Pulley and all End Stops, Runners, and Carriers.

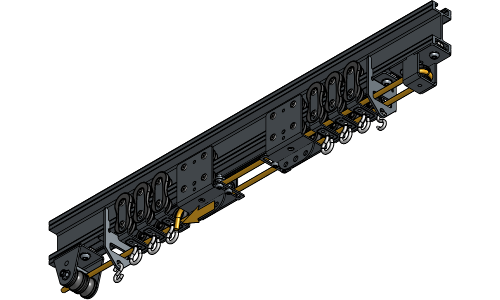

Guide the rope through the Return Pulley and back through the End Stop, Runners and Carriers. End at the Carrier that is closest to the Head Pulley.

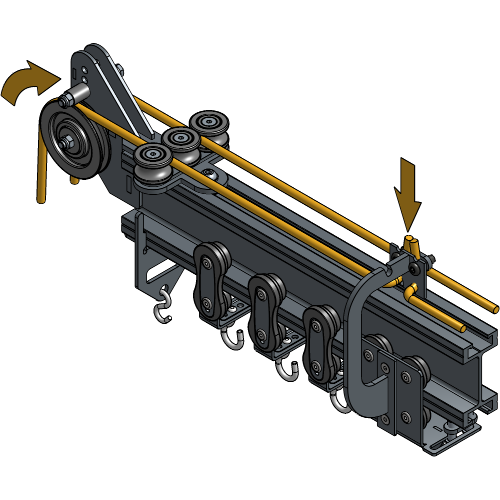

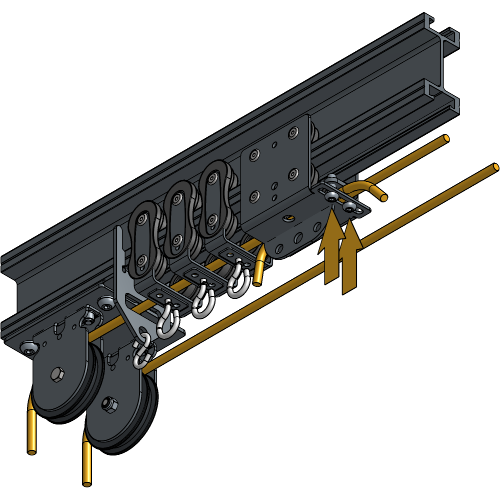

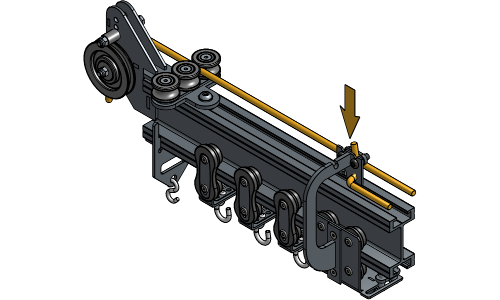

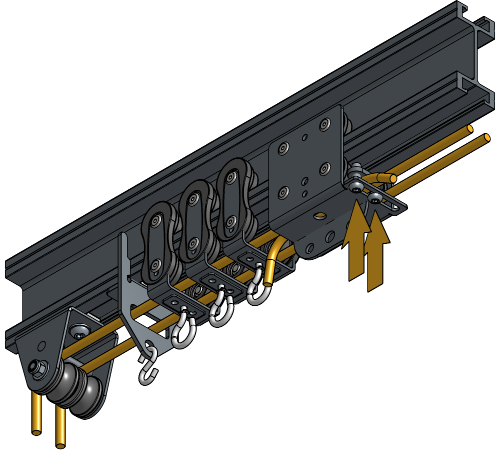

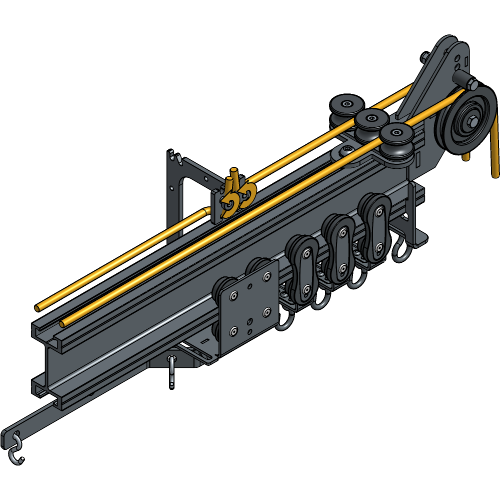

Clamp the first rope end in the rope clamp of that Carrier.
Guide the second rope end through the front side of the Head Pulley, through the End Stop, Runners and Carriers and stop at the same Carrier where the first rope end is clamped.

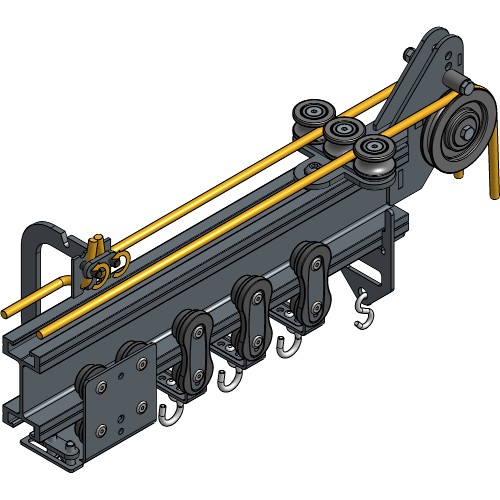

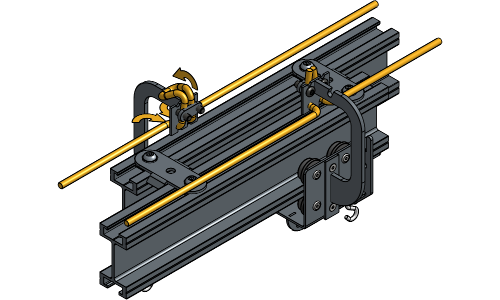

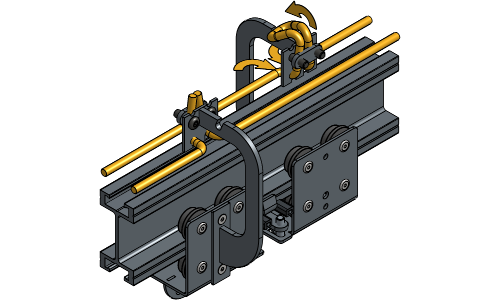

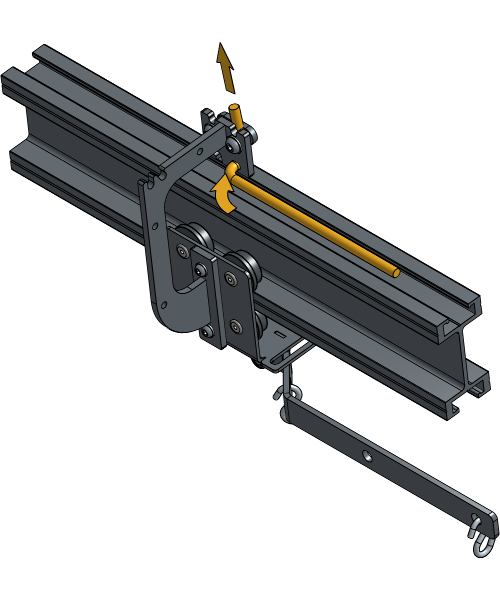

Make sure the rope is tight and clamp the second rope end in the same rope clamp where the first rope end is clamped.

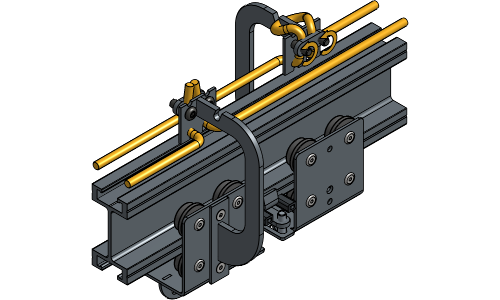

If you have a central opening, align both Carriers at the Flat End Stop.

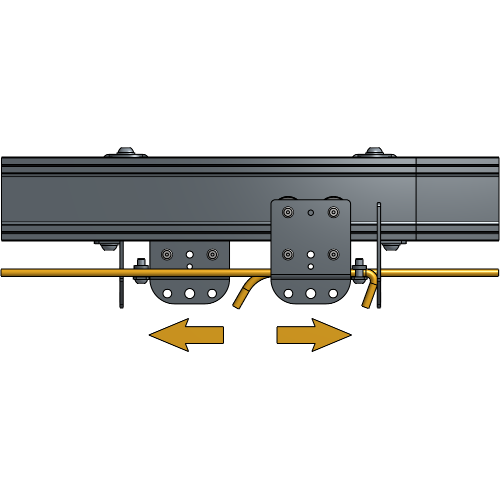

Clamp the other side of the rope in the rope clamp of the second Carrier and tighten the screws.
When all steps from Installation Straight Single Track are done, skip to Installing the Curtain
Loosen the bolts and remove the 2 upper spacers of the RopeAssist.
Insert the endless rope into the RopeAssist on top of the big wheel.
Place the upper spacers back and tighten the bolts.

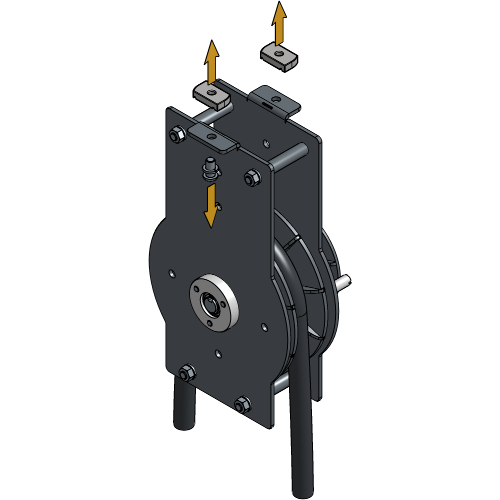

Remove both channel nuts from the RopeAssist.

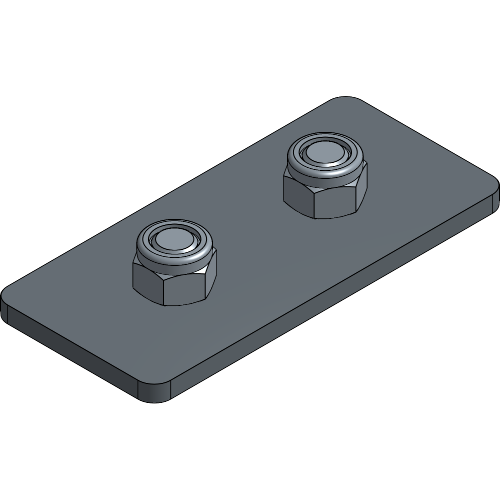

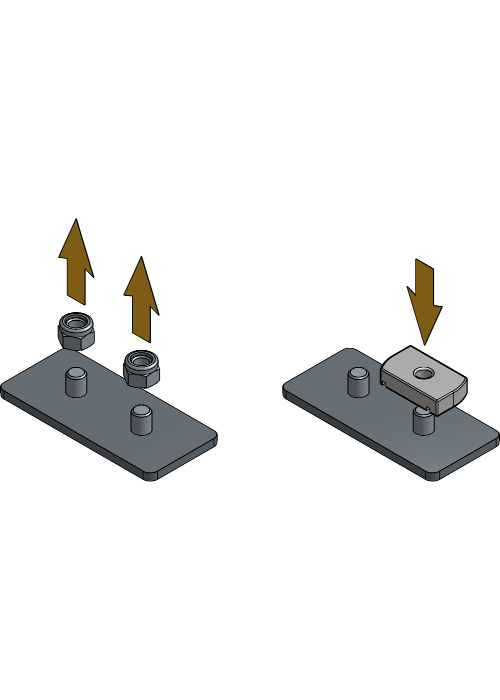

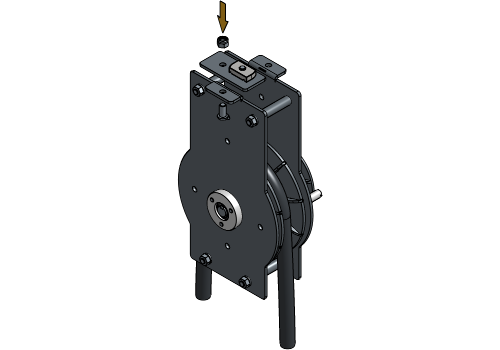

Remove the bolts from the Double Track Mounting set. Replace the nut of 1 bolt with a channel nut.

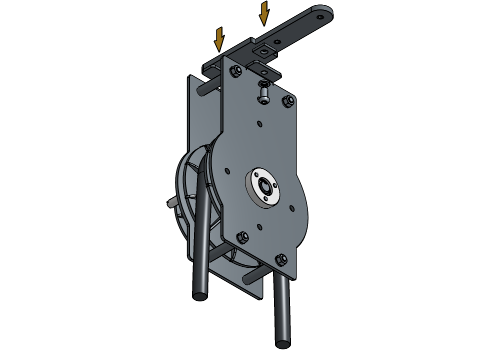

Secure the Double Track Mounting set on top of the RopeAssist on the side where there is no wheel.

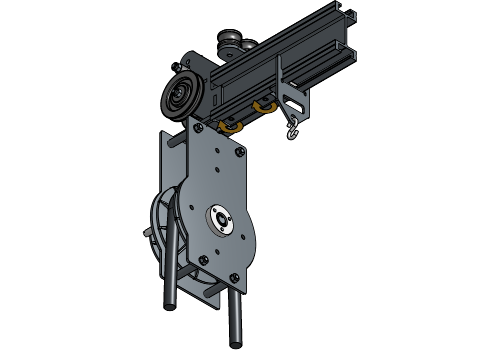

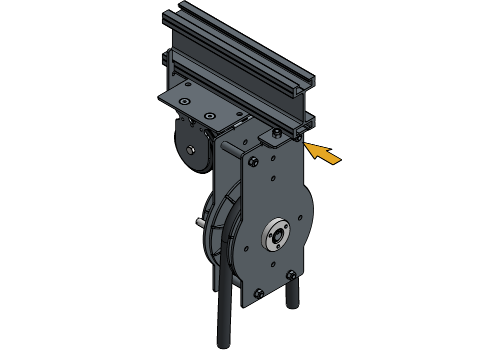

Insert The RopeAssist into the track profile next to the Head Pulley and secure the Double Track Mounting set with the Head Pulley with the previous removed bolt.

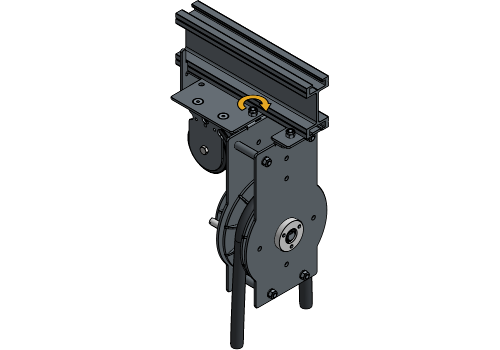

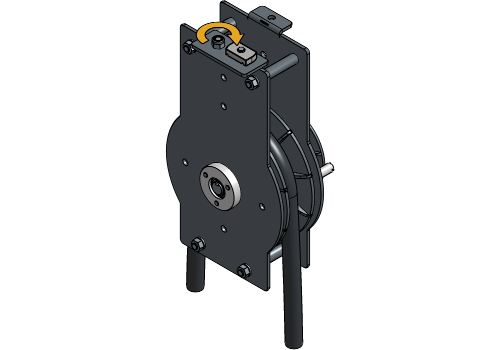

Rotate the Channel nut a quarter turn and tighten the socket screw.
Make sure that the RopeAssist and Head Pulley are as well aligned as possible. If misaligned, it may result in operational issues with your system.

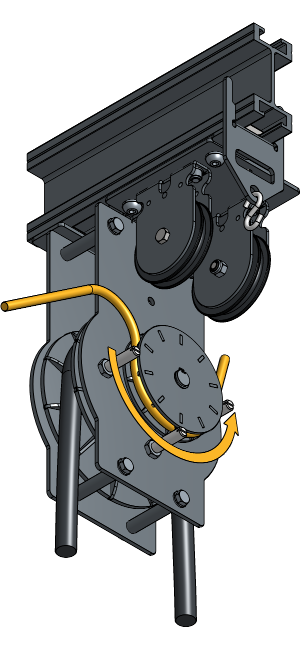

Guide the rope through the small wheel of the RopeAssist.

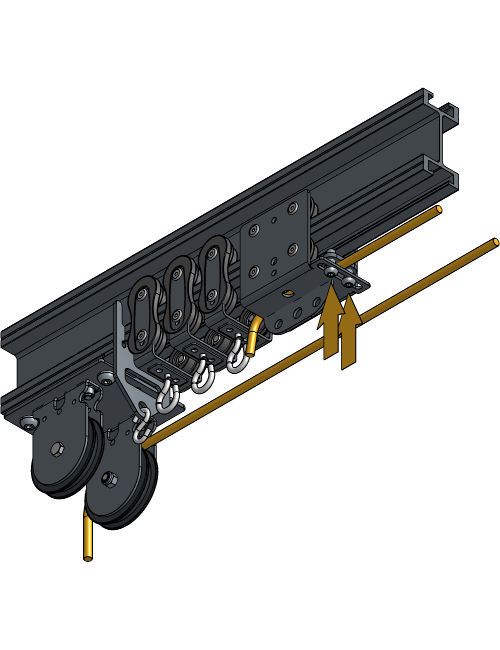

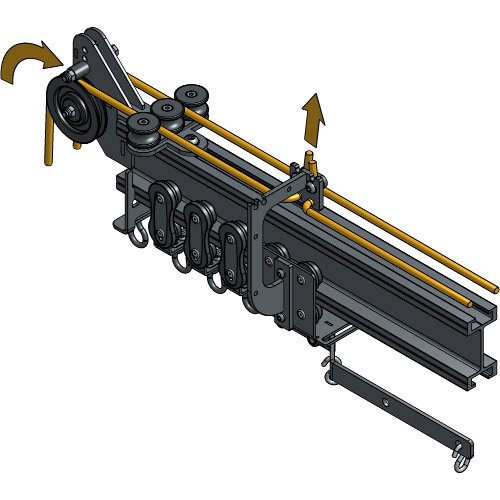

Guide the rope through the backside of the Head Pulley and all End Stops, Runners, and Carriers.
Guide the rope through the Return Pulley and back through the End Stop, Runners and Carriers. End at the Carrier that is closest to the Head Pulley.
Clamp the first rope end in the rope clamp of that Carrier.
Guide the second rope end through the front side of the Head Pulley, the End Stop, Runners and Carriers and stop at the same Carrier where the first rope end is clamped.
Make sure the rope is tight and clamp the second rope end in the same rope clamp where the first rope end is clamped.

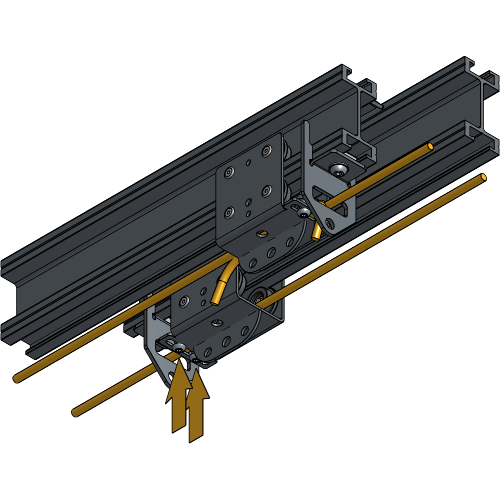

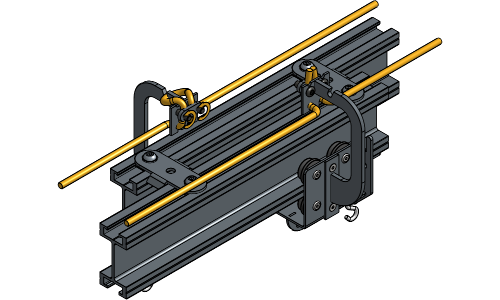

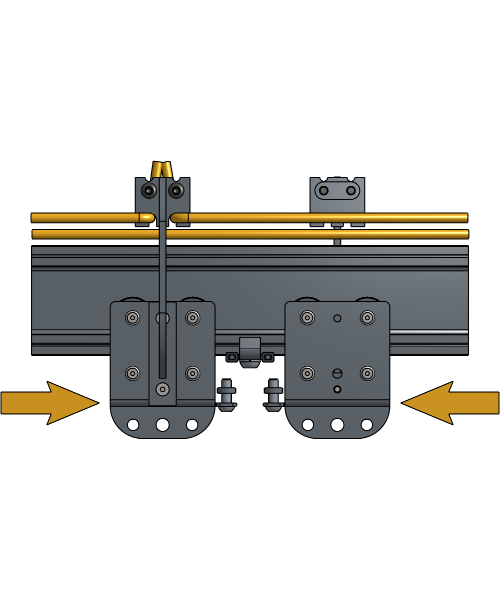

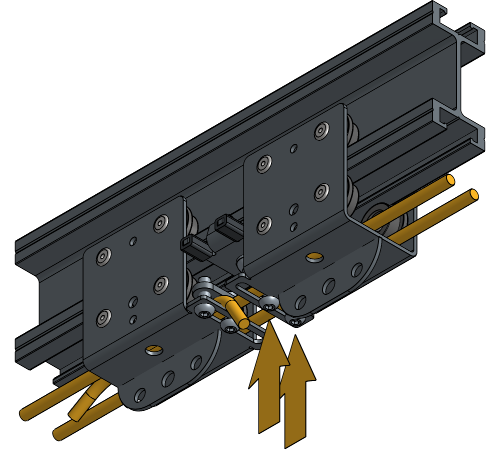

Align both Carriers at the place of overlap.

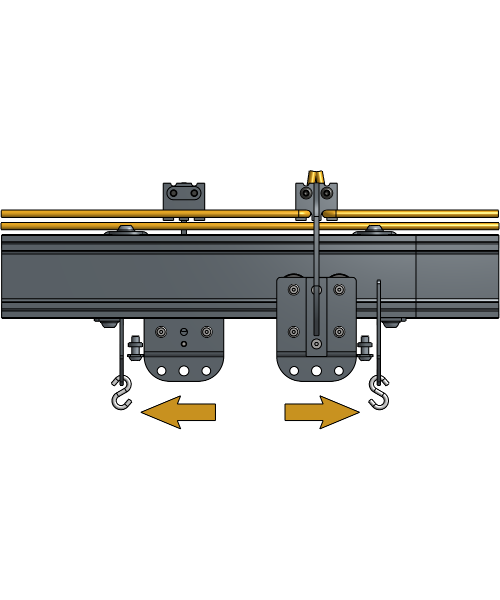

Clamp the other side of the rope in the rope clamp of the second Carrier and tighten the screws.
When all steps from Installation Straight Double Track are done, skip to Installing the Curtain
Loosen the bolts and remove the 2 upper spacers of the RopeAssist.
Insert the endless rope into the RopeAssist on top of the big wheel.
Place the upper spacers back and tighten the bolts.
Remove both channel nuts from the RopeAssist.

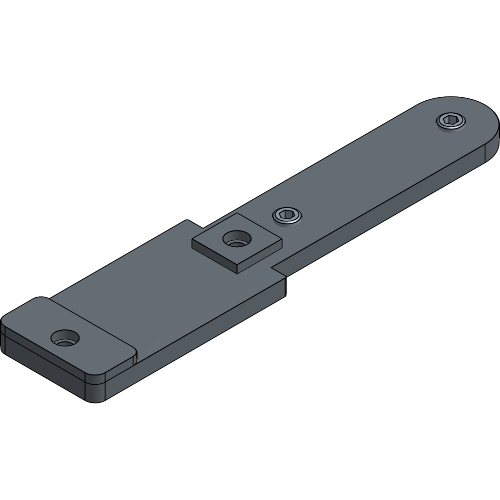

Secure the Top Rope Mounting set on top of the RopeAssist with the thin end towards the side where there is no wheel.

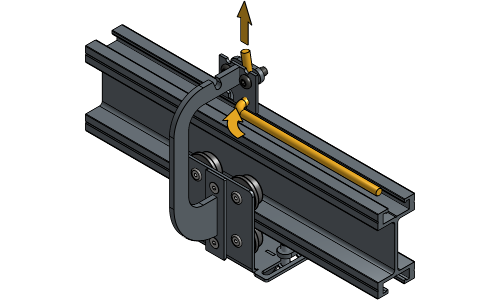

Insert The RopeAssist with the Top Rope Mounting set into the track profile under the Head Pulley and fasten the socket screws.
Make sure that the RopeAssist and Head Pulley are as well aligned as possible. If misaligned, it may result in operational issues with your system.
Guide the rope through the small wheel of the RopeAssist.

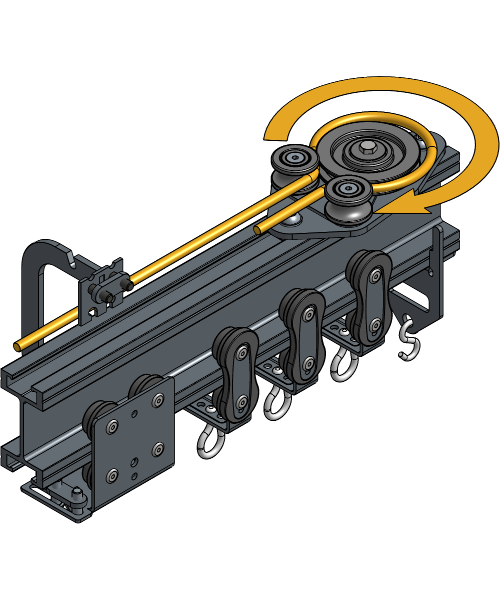

Guide the rope through the backside of the Head Pulley.

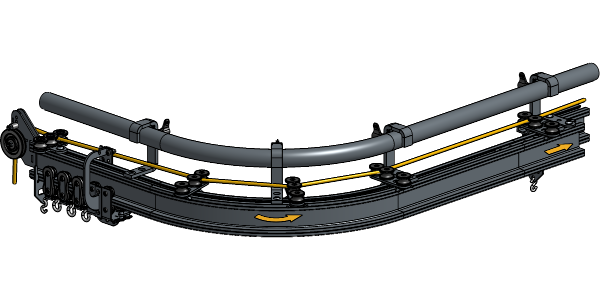

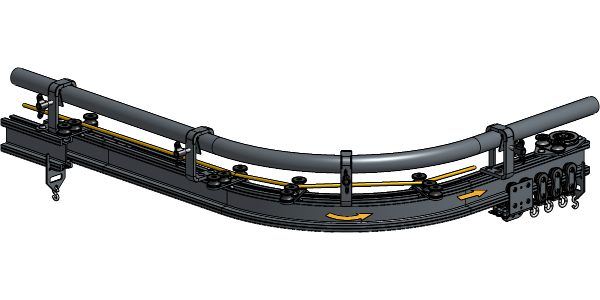

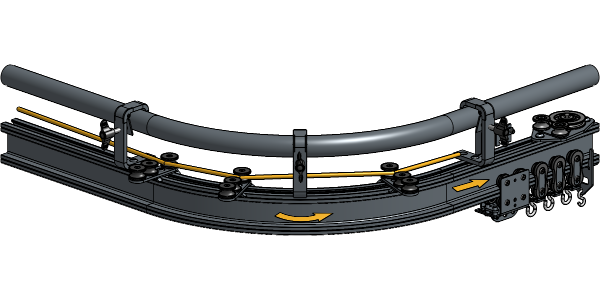

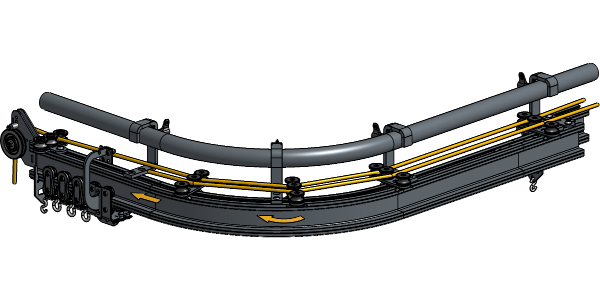

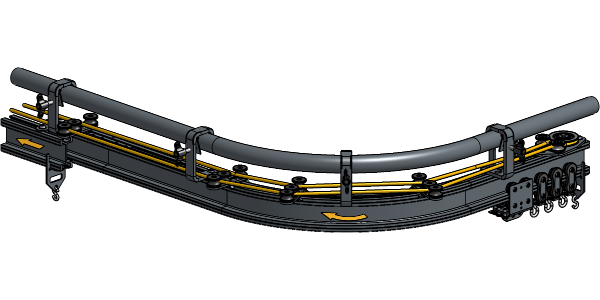

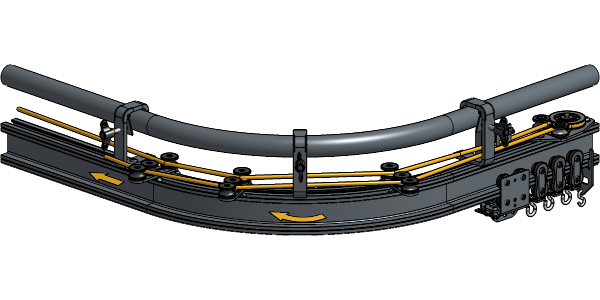

Guide the rope through all Curve Rope Guides towards the Return Pulley.
Guide the rope through the Return Pulley.
Guide the rope back through all Curve Rope Guides. End at the Carrier of which the Rope Clamp is located at this side of the track.
Clamp the first rope end in the Rope Clamp of that Carrier.
Guide the second rope end through the front side of the Head Pulley and all Curve Rope Guides and stop at the same Carrier where the first rope end is clamped.
Make sure the rope is tight and clamp the second rope end in the same rope clamp where the first rope end is clamped.
If you have a central opening, align both Carriers at the Flat End Stop.
Clamp the other side of the rope in the rope clamp of the second Carrier and tighten the screws.
When all steps from Installation Curved Single Track are done, skip to Installing the Curtain
Loosen the bolts and remove the 2 upper spacers of the RopeAssist.
Insert the endless rope into the RopeAssist on top of the big wheel.
Place the upper spacers back and tighten the bolts.
Remove both channel nuts from the RopeAssist.
Secure the Top Rope Mounting set on top of the RopeAssist with the thin end towards the side where there is no wheel.
Insert The RopeAssist with the Top Rope Mounting set into the track profile under the Head Pulley and fasten the socket screws.
Make sure that the RopeAssist and Head Pulley are as well aligned as possible. If misaligned, it may result in operational issues with your system.
Guide the rope through the small wheel of the RopeAssist.
Guide the rope through the backside of the Head Pulley.

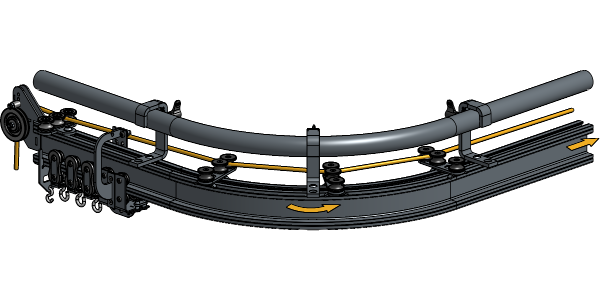

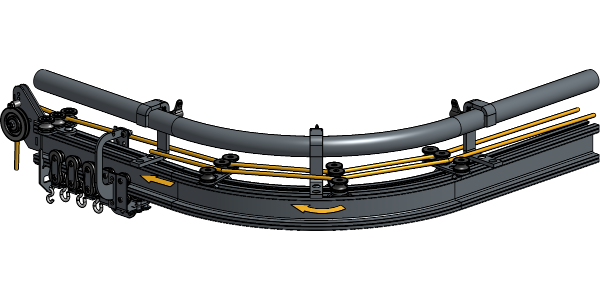

Guide the rope through all Curve Rope Guides towards the Return Pulley.
Guide the rope through the Return Pulley.
Guide the rope back through all Curve Rope Guides. End at the Carrier of which the Rope Clamp is located at this side of the track.
Clamp the first rope end in the Rope Clamp of that Carrier.
Guide the second rope end through the front side of the Head Pulley and all Curve Rope Guides and stop at the same Carrier where the first rope end is clamped.
Make sure the rope is tight and clamp the second rope end in the same rope clamp where the first rope end is clamped.
Align both Carriers at the place of overlap.
Clamp the other side of the rope in the rope clamp of the second Carrier and tighten the screws.
When all steps from Installation Curved Double Track are done, skip to Installing the Curtain
