ShowPipe
Hidden Ceiling Bracket
Annex
Annex
No part of this publication may be duplicated or edited in any form or by any means, including any type of electronic or mechanical method without prior written permission from ShowTex.
ShowTex and its employees are fully aware of their task to provide a reliable edition of this document. Nevertheless, they cannot accept any form of liability for the direct or indirect consequences of imperfections that might remain in this edition. The material in this manual is subject to change without notice.
ShowTex warrants that its mechanical and technical products, when delivered in new condition, in original packing, sold directly and used in normal conditions are free from any defects in manufacturing, materials and workmanship. For more information about your local warranty terms, please check our website or contact your local ShowTex office.
All products from the ShowTex Rental range are supposed to be returned in the same state as they were rented. Please treat our products with care, allowing the next user to enjoy the products as much as you did. The rented products are internally checked according to the general rental conditions. Be sure to check our rental guidelines on our website before installing and using this product: ShowTex rental guidelines
Read and understand this user manual before installing and or operating the system. Failure to follow the instructions in this document could result in serious injury!
Following the guidelines of this manual will reduce the risk of damaging the equipment or injuring yourself and the people around you. Nevertheless, ShowTex cannot be held accountable for any use or misuse of the equipment and supplies.
Damage to the system caused by any other method of installation than the one shown in this manual can only be repaired or fixed at the customer’s expense.
As a result of the above warning, any ShowTex product must be installed and operated by a qualified technician who knows its capabilities as well as its limitations.
In case you are uncertain about the eligibility of any hardware in your product, please get in touch with your local ShowTex office to receive additional guidance.
Thank you for choosing for ShowTex and purchasing one of our products. We want to ensure that your experience is as smooth and safe as possible, so we kindly request that you take a few moments to carefully read this manual before installing your new system.
This manual contains important information that will help you comply with health and safety regulations, as well as provide guidance on how to safely install, operate and maintain your product. Our team has taken great care to ensure that this manual is easy to understand and follow, using straightforward language and clear illustrations.
If you have any questions or concerns regarding the installation or use of your product, please feel free to contact your local ShowTex office. Our knowledgeable team members are always available to assist you and answer any questions you may have.

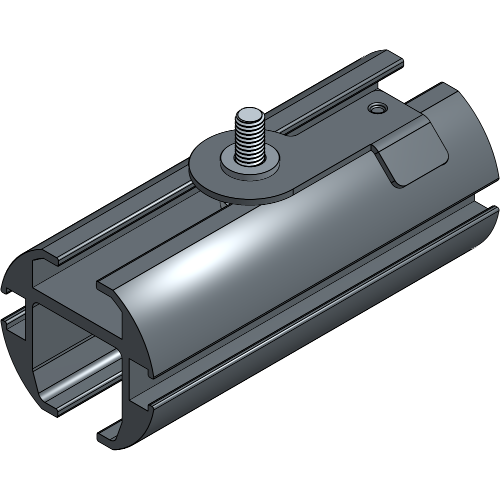

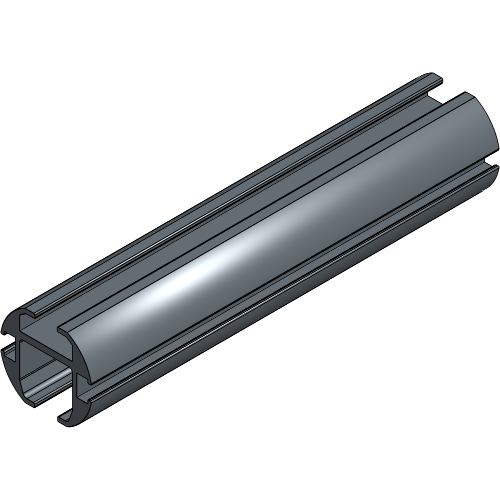

| Article number | Colour | Weight |
|---|---|---|
| 8055 0001 6007 | Black | 1.31 kg |

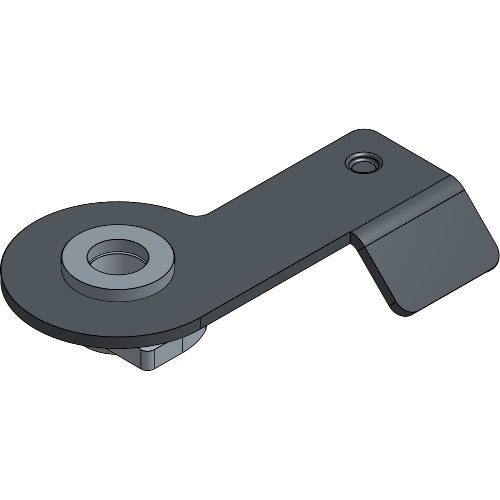

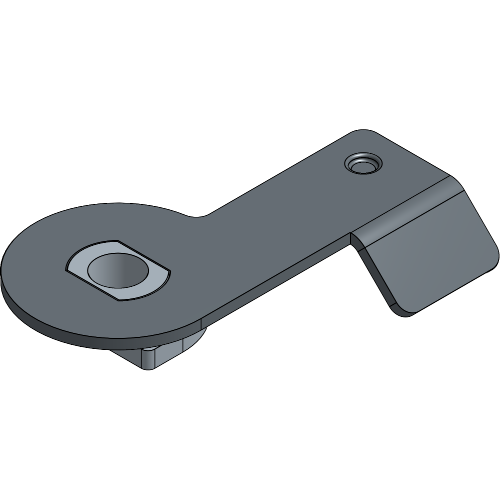

| Article number | Colour | Weight | WLL | SF |
|---|---|---|---|---|
| 8055 0110 0027 | Black | 0.02 kg | 40.00 kg | 2:1 |
The necessary screws and plugs are not included in the Hidden Ceiling Bracket package. These will depend on your mounting surface and material and need to be provided by the customer.

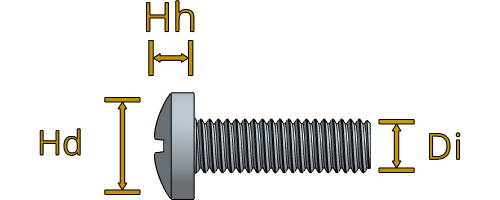

To mount the Hidden Ceiling Bracket correctly, the screw that’s used must meet a few requirements:
The bottom surface of the screw head must be flat.
The head of the screw must have a diameter (Hd)
less than or equal to 11 mm.
The head of the screw
must have a height (Hh) less than or equal to
4.5 mm
The diameter of the screw
(Di) must be less than or equal to 6
mm.

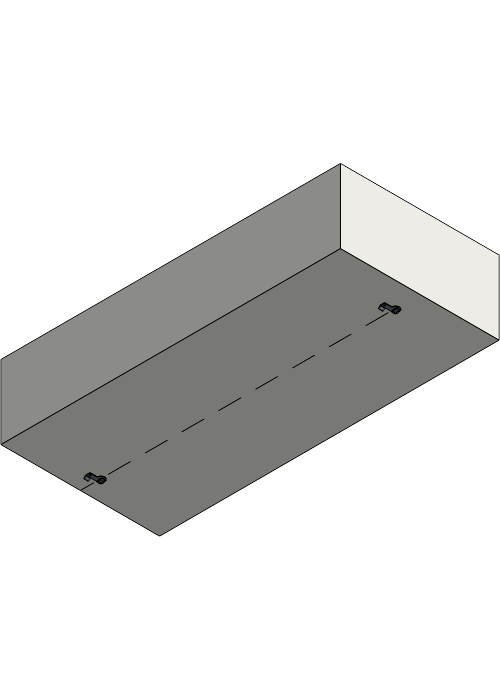

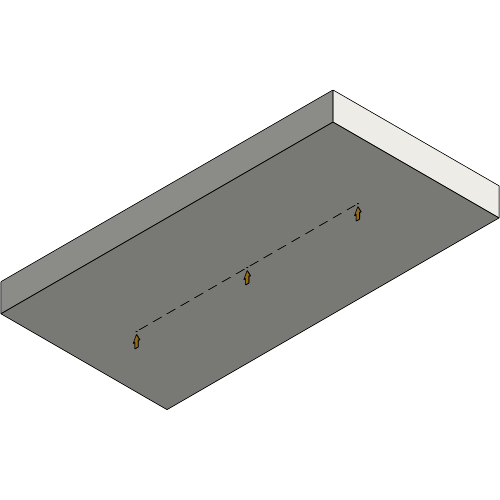

Align and mark all suspension points on the ceiling, ensuring one suspension point is provided every meter.

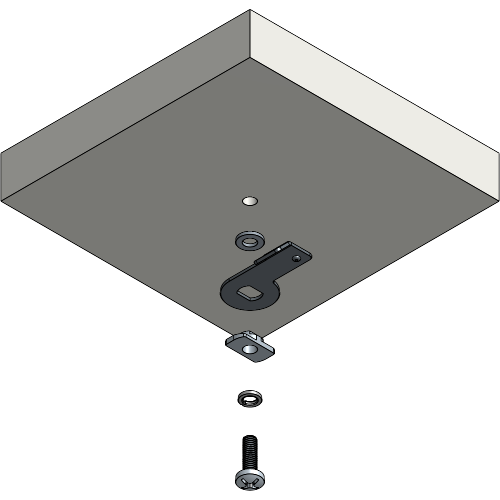

Assemble the Hidden Ceiling Bracket in following order: screw, spring washer, channel nut, bracket and insert this assembly into the ceiling.

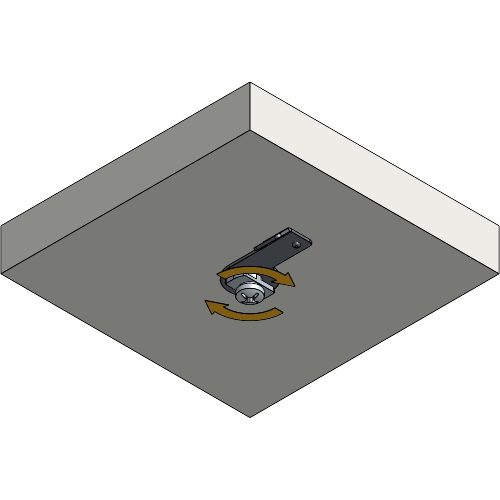

Tighten the screw until the spring washer is fully compressed and flat.
Loosen the screw half a turn to create space for mounting the rail onto the bracket.
Ensure all brackets are positioned at a 90° angle relative to the rail’s suspension direction.

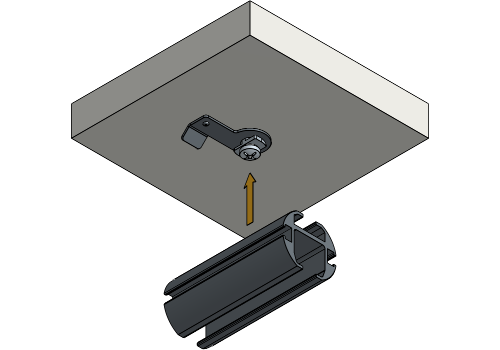

Place the rail onto the Hidden Ceiling Bracket. The rail should be able to hang on its own by slightly turning the Hidden Ceiling Bracket.

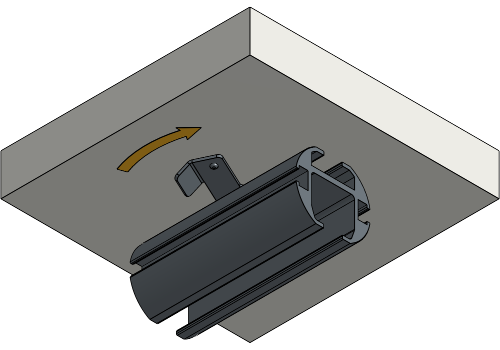

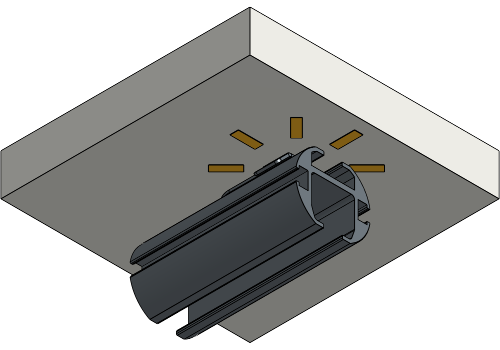

Secure the Hidden Ceiling Bracket by turning it toward the rail until you hear a clicking sound.
For more technical assistance, please contact your local ShowTex
office.
The address and contact information can be found on our website:
www.showtex.com
