RopeAssist

Technical Data Sheet

1 Info

The RopeAssist is an operation accessory for comfortable use of a manually rope operated track system.

Specifications:

  • The RopeAssist adds more grip and comfort for a manually rope operated track system.
  • Compatible with all our rope operated track systems.
  • The RopeAssist can easily be mounted onto an existing track system.
  • Different standard Endless Rope lengths are available for various curtain sizes.
  • Custom Endless Rope lengths can be delivered on demand, ensuring a flawless fit for your setup.
  • A Rope Container is available as a solution to neatly store potential excess rope.

2 Dimensions

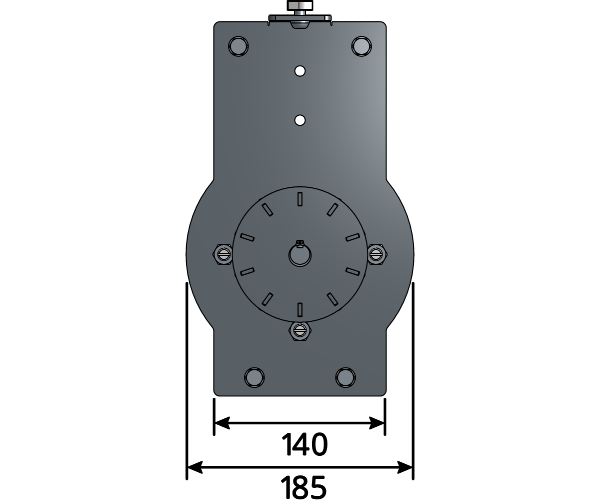

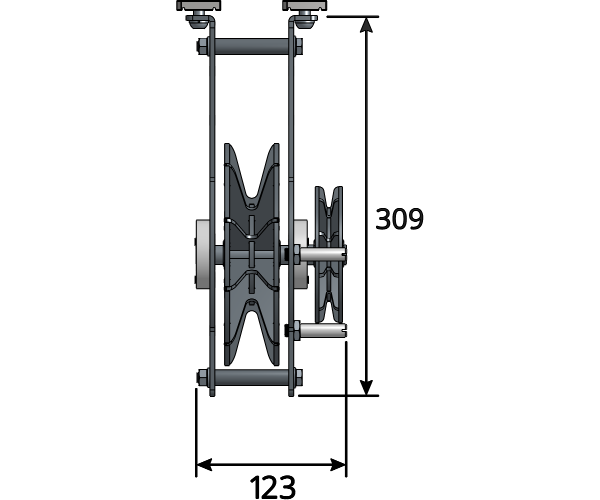

2.1 RopeAssist

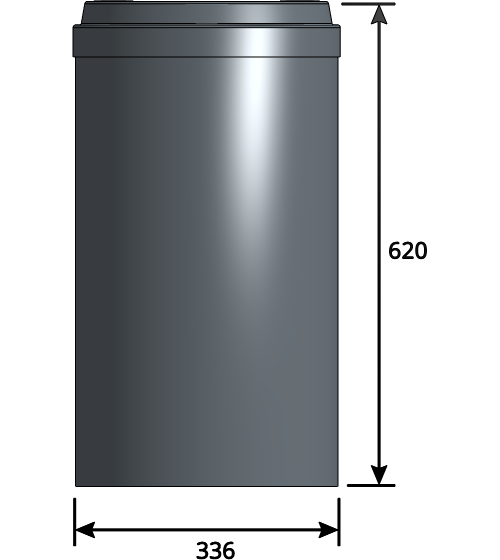

2.2 Rope Container

3 Endless Rope Specifications

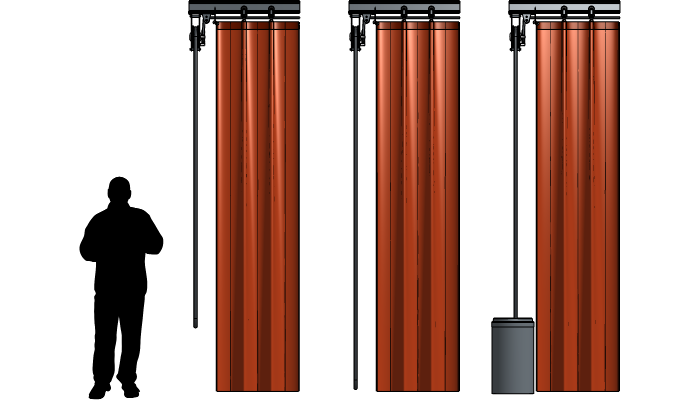

3.1 Ideal Endless Rope Length

Curtain Height Range Endless Rope Length Rope Container
x - 3.80 m 7.40 m X
3.80 m - 4.50 m 7.40 m
4.50 m - 5.80 m 11.40 m X
5.80 m - 6.50 m 11.40 m
6.50 m - 7.80 m 15.40 m X
7.80 m - 8.50 m 15.40 m
8.50 m - 9.80 m 19.40 m X
9.80 m - 10.50 m 19.40 m

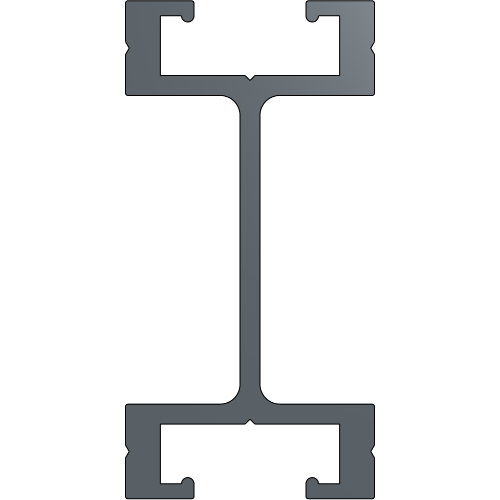

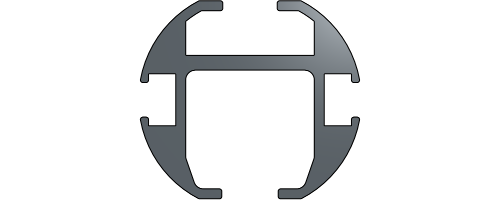

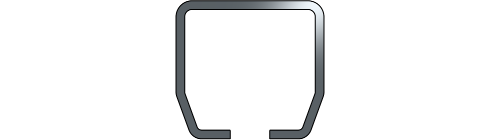

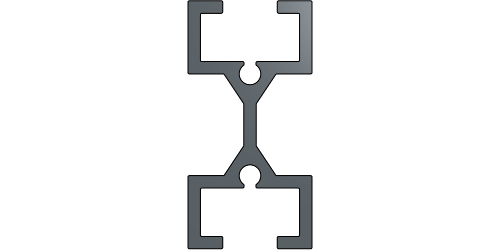

4 Compatible Tracks

5 Technical Specifications

5.1 Components

Operation

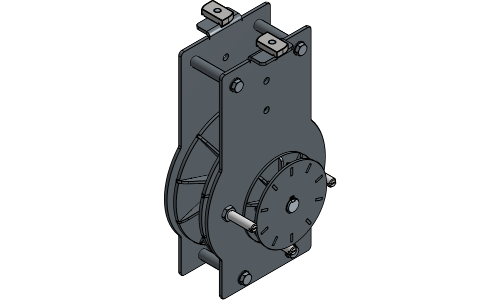

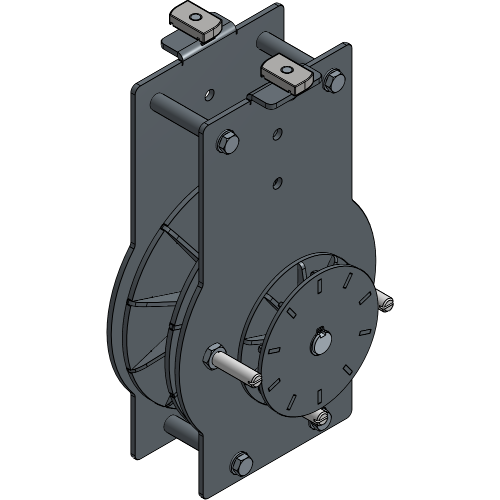

RopeAssist

RopeAssist

Article number Colour Weight
8050 0425 0107 Black 6.54 kg

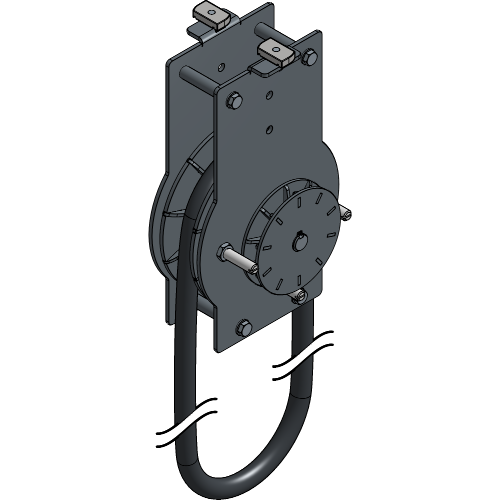

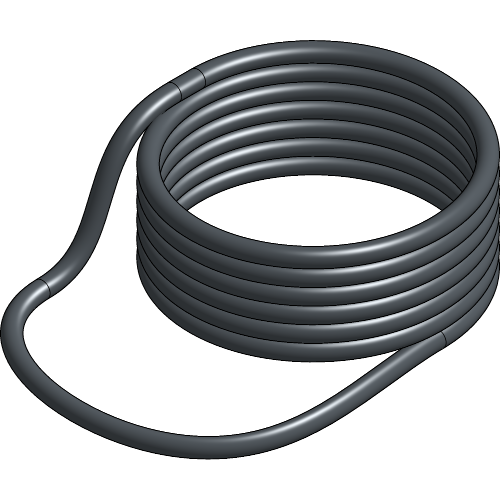

Endless Rope

Endless Rope

Article number Colour Weight Length
7525 0400 0007 Black 1.78 kg 7.40 m
7525 0600 0007 Black 2.74 kg 11.40 m
7525 0800 0007 Black 3.70 kg 15.40 m
7525 1000 0007 Black 4.66 kg 19.40 m

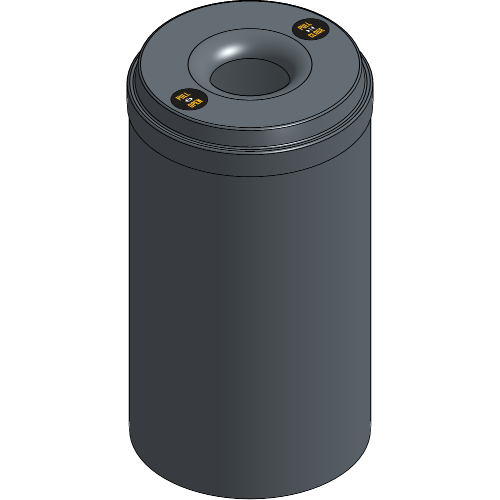

Rope Container

Rope Container

Article number Colour Weight
8050 2361 0017 Black 4.28 kg

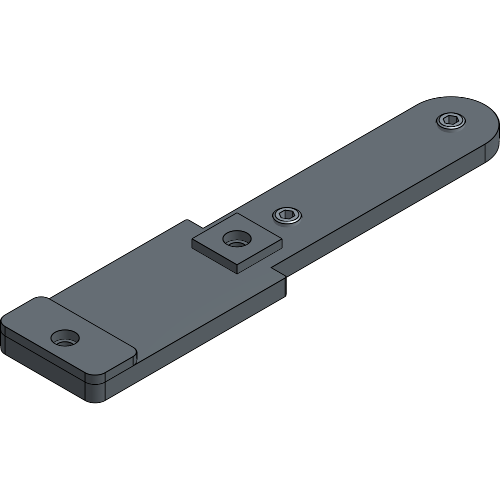

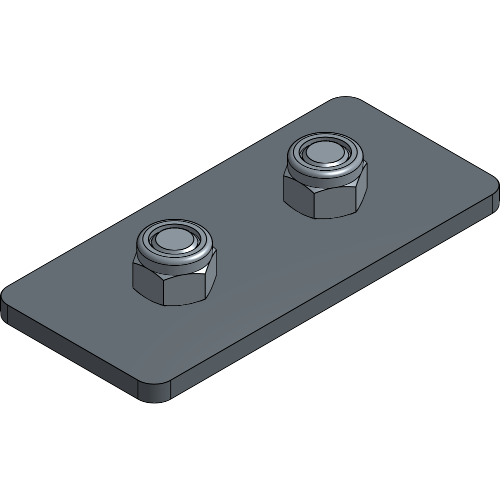

Double Track Mounting set

Double Track Mounting set

Article number Colour Weight
8075 0425 0047 Black 0.12 kg
Top Rope Mounting set

Top Rope Mounting set

Article number Colour Weight
8075 0425 0037 Black 0.58 kg
