Installation Accessories

Technical Data Sheet

1 Components

Installation Accessories

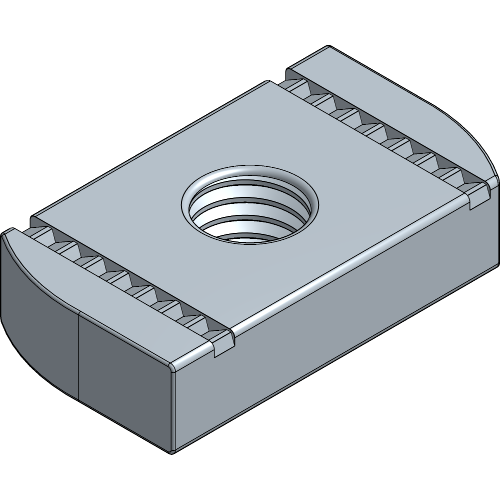

Channel Nut

Channel Nut

Article number Colour Weight Thread WLL SF
8700 9224 0101 Galvanised 0.03 kg M10 500.00 kg 2:1

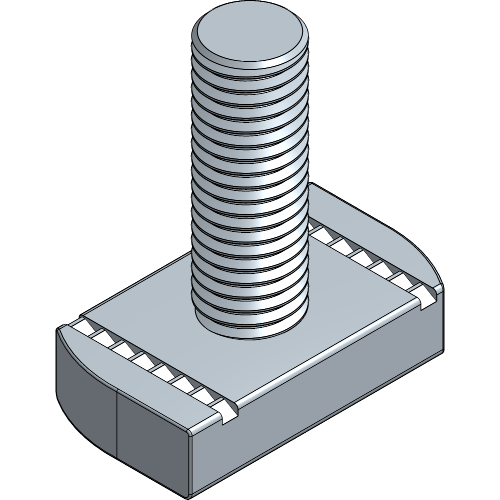

Channel Bolt

Channel Bolt

Article number Colour Weight Thread WLL SF
8200 9213 1031 Galvanised 0.04 kg M10 250.00 kg 2:1

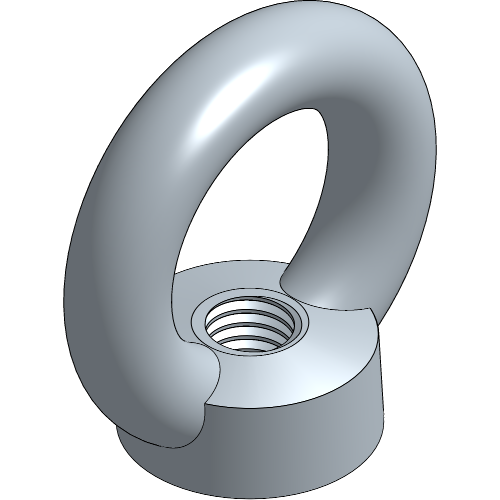

Eye Nut

Eye Nut

Article number Colour Weight Thread WLL SF
8700 9221 0101 Galvanised 0.08 kg M10 230.00 kg 2:1
8700 9221 1001 Red 0.08 kg M10 1000.00 kg 2:1

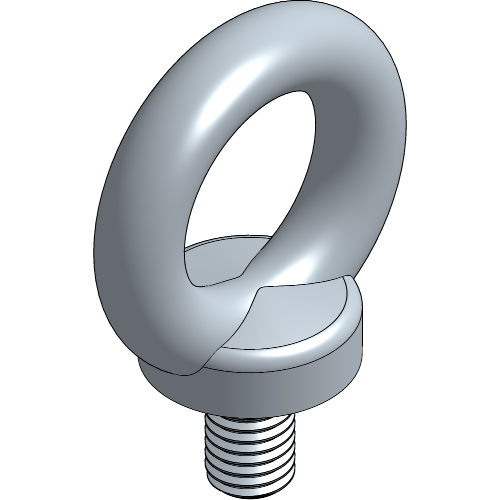

Eye Bolt

Eye Bolt

Article number Colour Weight Thread WLL SF
8700 9212 0101 Galvanised 0.10 kg M10 230.00 kg 2:1
8700 9212 0801 Red 0.10 kg M10 1000.00 kg 2:1

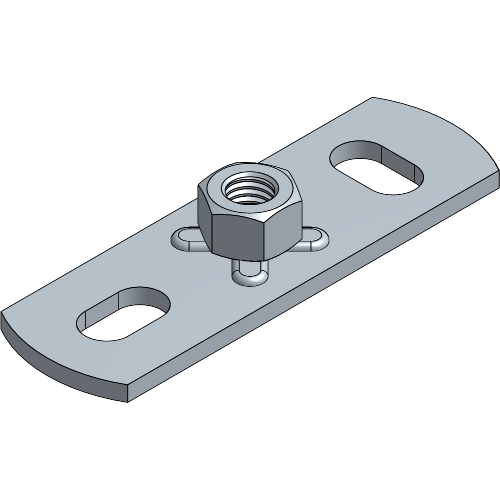

Ceiling Fixing Plate

Ceiling Fixing Plate

Article number Colour Weight Thread WLL SF
8700 0665 0081 Galvanised 0.06 kg M8 250.00 kg 2:1
8700 0665 0101 Galvanised 0.06 kg M10 250.00 kg 2:1

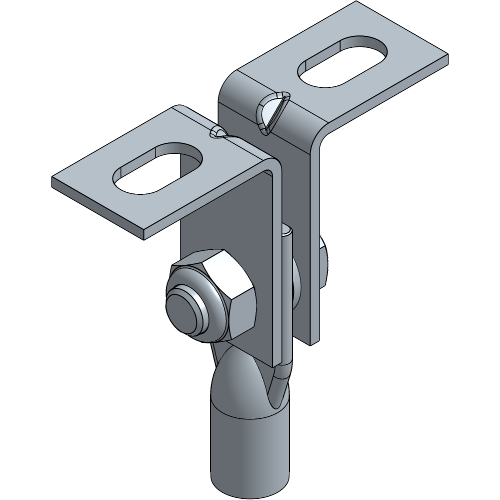

Swiveling Fixing Plate

Swiveling Fixing Plate

Article number Colour Weight Thread
8700 0665 1101 Galvanised 0.06 kg M10

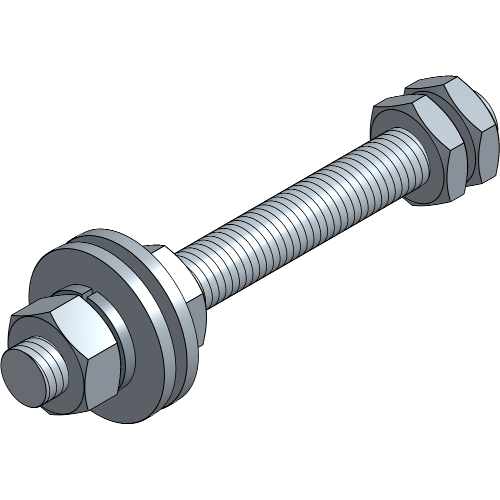

Threaded Rod with Fasteners

Threaded Rod with Fasteners

Article number Colour Weight Length Thread WLL SF
8700 9210 0411 Galvanised 0.10 kg 0.10 m M10 3090.00 kg 2:1
8700 9210 0417 Black 0.10 kg 0.10 m M10 3090.00 kg 2:1
8700 9210 0421 Galvanised 0.01 kg 0.20 m M10 3090.00 kg 2:1
8700 9210 0427 Black 0.01 kg 0.20 m M10 3090.00 kg 2:1
8700 9210 0451 Galvanised 0.02 kg 0.50 m M10 3090.00 kg 2:1
8700 9210 0457 Black 0.02 kg 0.50 m M10 3090.00 kg 2:1

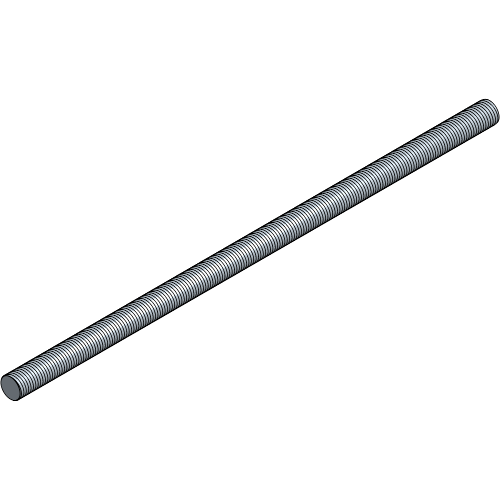

Threaded Rod

Threaded Rod

Article number Colour Weight Length Thread WLL SF
8700 9210 0081 Galvanised 0.48 kg 0.10 m M8 3090.00 kg 2:1
8700 9210 0101 Galvanised 0.48 kg 1.00 m M10 3090.00 kg 2:1
8700 9210 0107 Black 0.48 kg 1.00 m M10 3090.00 kg 2:1
8700 9210 0201 Galvanised 0.96 kg 2.00 m M10 3090.00 kg 2:1
8700 9210 0207 Black 0.96 kg 2.00 m M10 3090.00 kg 2:1

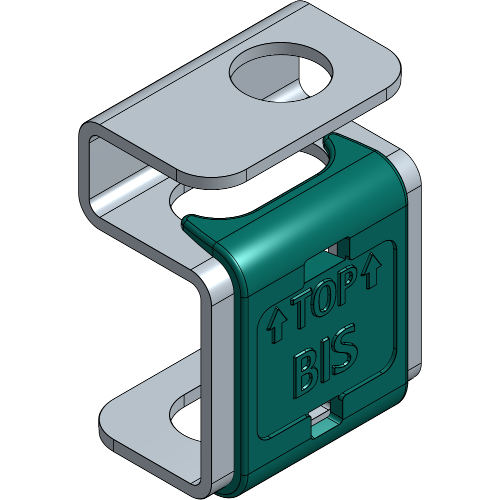

Parallel Threaded Rod Connector

Parallel Threaded Rod Connector

Article number Colour Weight Thread WLL SF
8700 0664 0101 Galvanised 0.02 kg M10 3090.00 kg 2:1

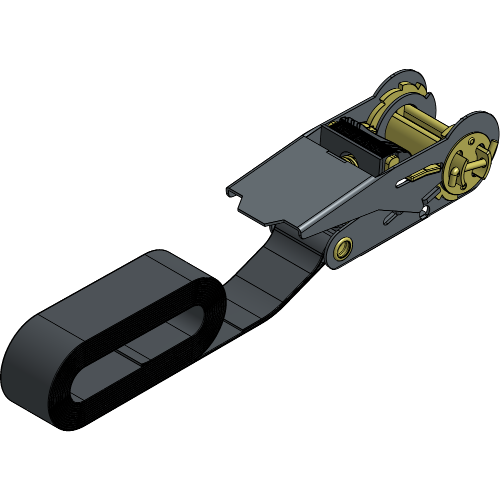

Ratchet Fastener

Ratchet Fastener

Article number Colour Weight Length WLL SF
8800 0372 0507 Black 0.21 kg 0.50 m 40.00 kg 2:1
8800 0372 1007 Black 0.22 kg 1.00 m 40.00 kg 2:1
8800 0372 2007 Black 0.24 kg 2.00 m 40.00 kg 2:1
8800 0372 3007 Black 0.27 kg 3.00 m 40.00 kg 2:1
8800 0372 5009 Black 0.33 kg 5.00 m 40.00 kg 2:1

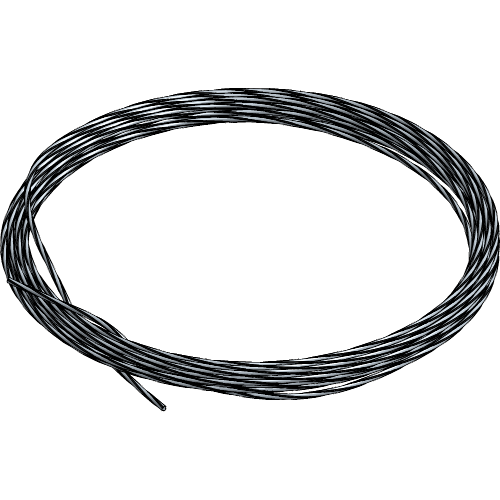

Steel Cable

Steel Cable

Article number Colour ⌀ WLL SF
8840 9600 7101 Alu 1.5 mm 45.00 kg 5:1
8840 9600 7231 Alu 3.0 mm 90.00 kg 5:1
8840 9600 7261 Alu 6.0 mm 200.00 kg 5:1

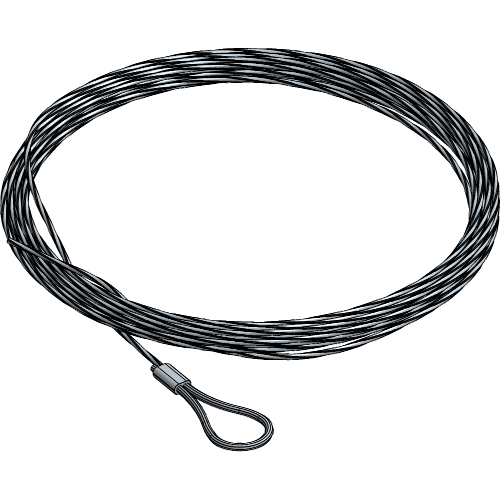

Steel Cable with Loop

Steel Cable with Loop

Article number Colour Weight Length ⌀ WLL SF
8840 9600 7121 Alu 0.05 kg 2.50 m 1.5 mm 45.00 kg 5:1
8840 9600 7127 Black 0.05 kg 2.50 m 1.5 mm 45.00 kg 5:1
8840 9600 7151 Alu 0.11 kg 5.00 m 1.5 mm 45.00 kg 5:1
8840 9600 7191 Alu 0.21 kg 10.00 m 1.5 mm 45.00 kg 5:1

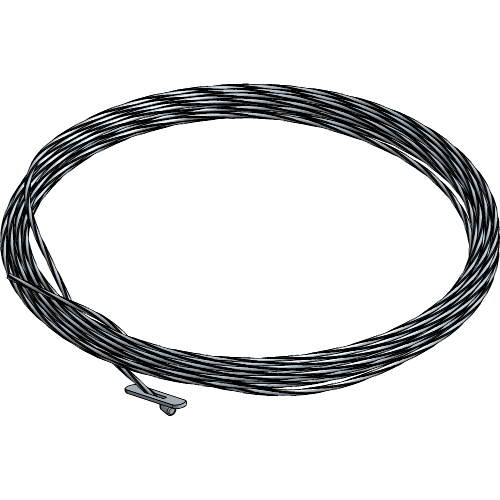

Steel Cable with Anchor

Steel Cable with Anchor

Article number Colour Weight Length ⌀ WLL SF
8700 0304 0431 Alu 0.05 kg 5.00 m 1.5 mm 45.00 kg 5:1

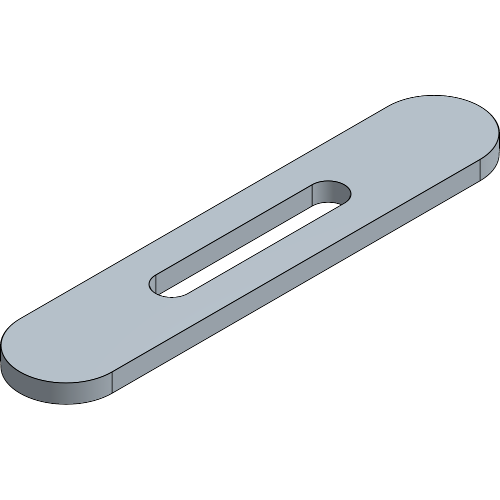

Steel Cable Anchor

Steel Cable Anchor

Article number Colour Weight Length ⌀ WLL SF
8700 0304 0441 Alu 0.05 kg 5.00 m 3.0 mm 90.00 kg 5:1

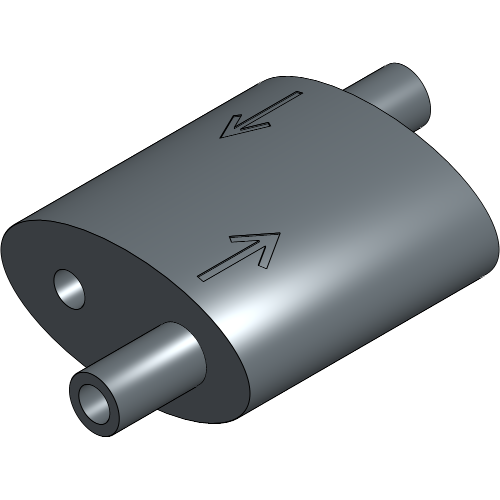

Quick Suspension 1.5 mm

Quick Suspension 1.5 mm

Article number Colour Weight ⌀ WLL SF
8700 0304 0414 Alu 0.01 kg 1.5 mm 45.00 kg 5:1
8700 0304 0417 Black 0.01 kg 1.5 mm 45.00 kg 5:1

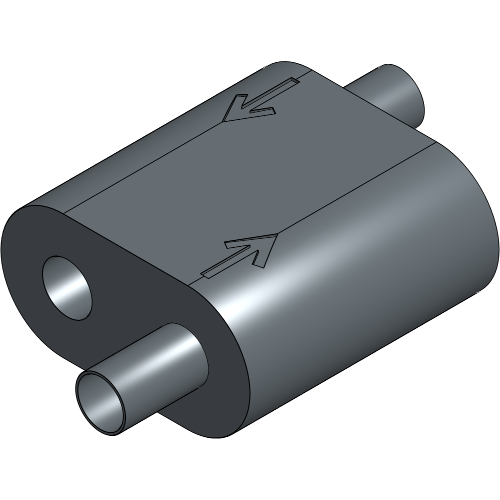

Quick Suspension 3 mm

Quick Suspension 3 mm

Article number Colour Weight ⌀ WLL SF
8700 0304 0424 Alu 0.03 kg 3.0 mm 90.00 kg 5:1
8700 0304 0427 Black 0.03 kg 3.0 mm 90.00 kg 5:1

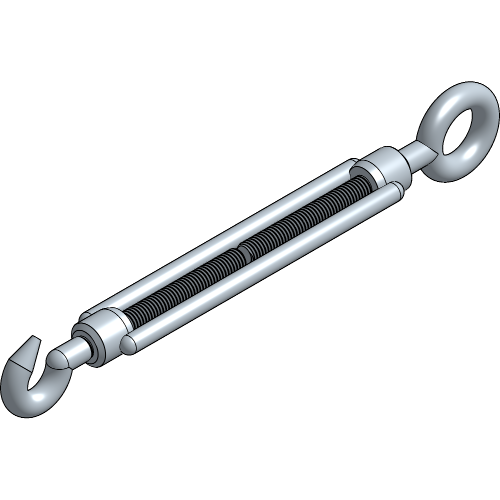

Turnbuckle with Hook and Eye

Turnbuckle with Hook and Eye

Article number Colour Weight Thread
8800 0643 0601 Galvanised 0.10 kg M6
8700 0343 0101 Galvanised 0.10 kg M10

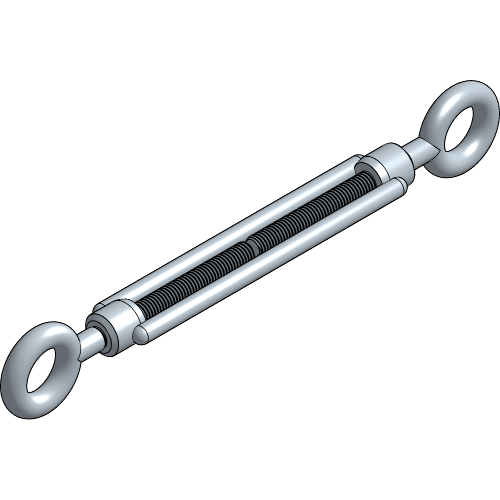

Turnbuckle with 2 Eyes

Turnbuckle with 2 Eyes

Article number Colour Weight Thread
8800 0643 0611 Galvanised 0.10 kg M6
8700 0343 0111 Galvanised 0.10 kg M10

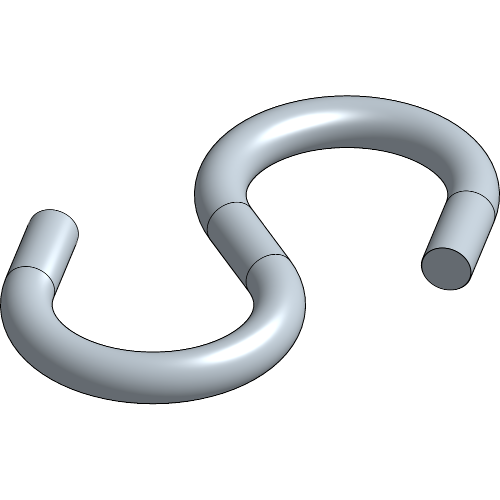

S-Hook

S-Hook

Article number Colour Weight
7770 0440 0901 Alu 0.01 kg

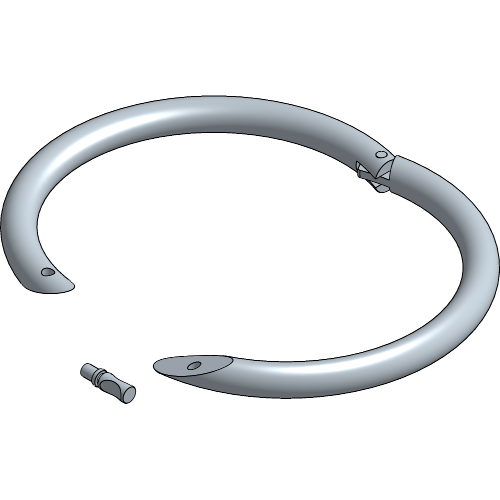

O-Ring

O-Ring

Article number Colour Weight
7915 0001 0901 Galvanised 0.13 kg

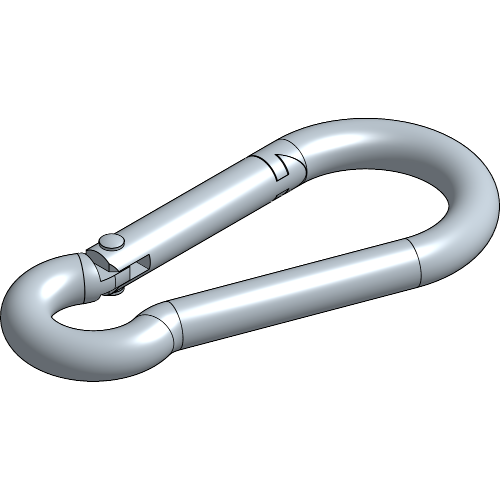

Snaphook

Snaphook

Article number Colour Weight ⌀
7900 0040 0905 Galvanised 0.01 kg 40 mm
7900 0040 0907 Black 0.01 kg 40 mm
7900 0050 0905 Galvanised 0.01 kg 50 mm
7900 0050 0907 Black 0.01 kg 50 mm
7900 0060 0905 Galvanised 0.03 kg 60 mm
7900 0060 0907 Black 0.03 kg 60 mm

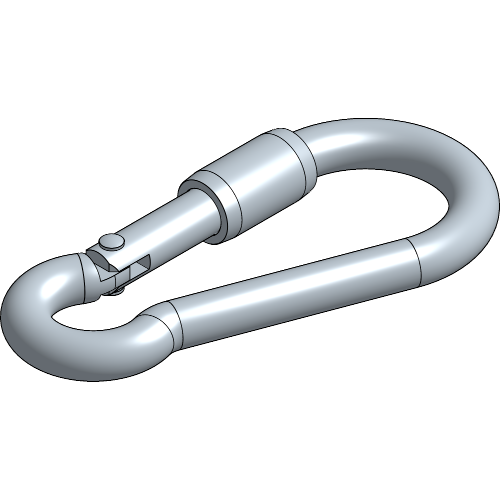

Snaphook with Fastener

Snaphook with Fastener

Article number Colour Weight ⌀
7910 0060 0903 Galvanised 0.03 kg 60 mm
7910 0080 0903 Galvanised 0.03 kg 60 mm

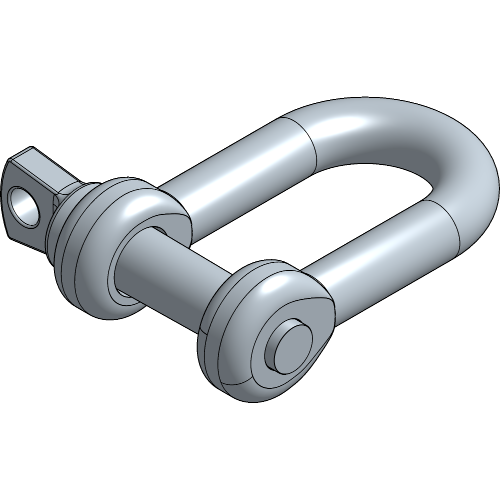

D-Shackle

D-Shackle

Article number Colour Weight ⌀
7920 0008 0901 Galvanised 0.06 kg 8.0 mm
7920 0010 0901 Galvanised 0.07 kg 10.0 mm
7920 0012 0901 Galvanised 0.08 kg 12.0 mm

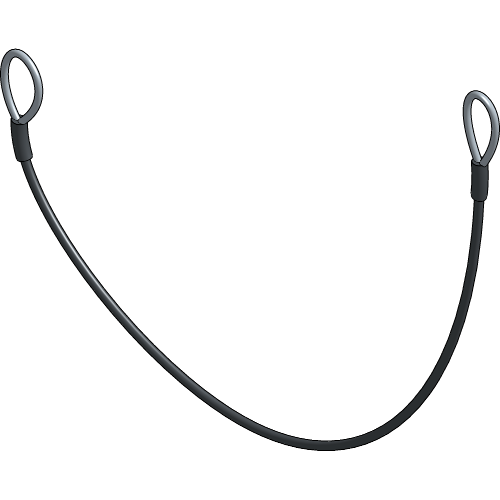

Safety Cable

Safety Cable

Article number Colour Weight Length ⌀ WLL SF
8700 0306 0607 Galvanised 0.08 kg 0.60 m 4.5 mm 190.00 kg 5:1
8700 0306 1207 Galvanised 0.10 kg 1.20 m 4.5 mm 190.00 kg 5:1

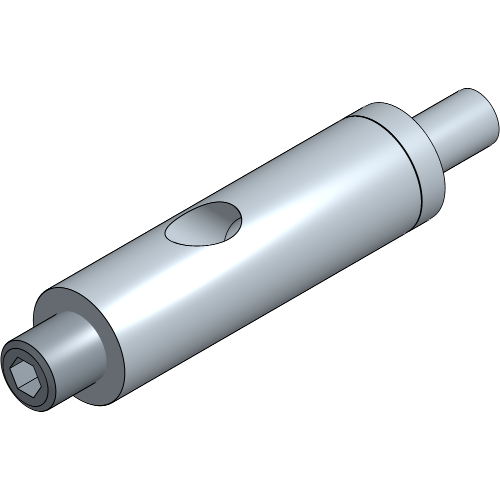

Cable Holder

Cable Holder

Article number Colour Weight WLL SF
8840 9600 1564 Galvanised 0.01 kg 45.00 kg 5:1
8840 9600 3064 Galvanised 0.06 kg 90.00 kg 5:1

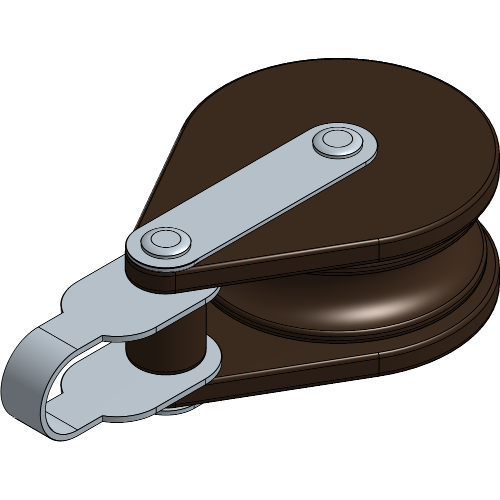

Single Pulley Block

Single Pulley Block

Article number Colour Weight ⌀
7930 0520 0000 Brown 0.02 kg 20 mm
7930 1031 0000 Brown 0.05 kg 30 mm
7930 1060 0000 Brown 0.09 kg 60 mm
Double Pulley Block

Double Pulley Block

Article number Colour Weight ⌀
7930 1032 0000 Brown 0.64 kg 30 mm
Triple Pulley Block

Triple Pulley Block

Article number Colour Weight ⌀
7930 1343 0000 Brown 0.86 kg 43 mm
