Clamps & Couplers

Technical Data Sheet

1 Components

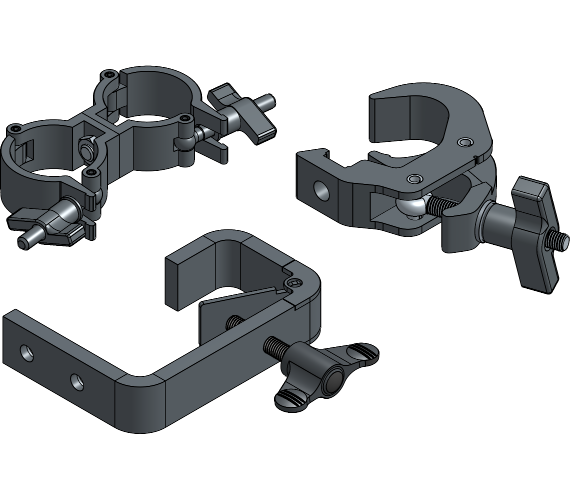

Clamps & Couplers

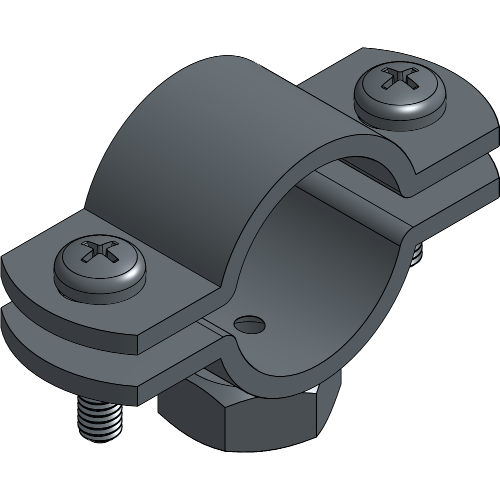

Pipe Clamp

Pipe Clamp

Article number Colour Weight WLL SF ⌀
8700 0673 0257 Black 0.02 kg 70.00 kg 2:1 25-30 mm
8700 0673 0251 Galvanised 0.02 kg 70.00 kg 2:1 25-30 mm
8700 0673 8107 Black 0.04 kg 70.00 kg 2:1 47-52 mm
8700 0673 8101 Galvanised 0.04 kg 70.00 kg 2:1 47-52 mm

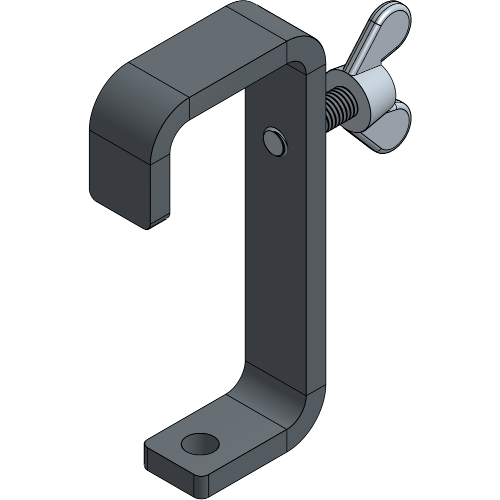

Hook Clamp 40 kg

Hook Clamp 40 kg

Article number Colour Weight WLL SF ⌀
8700 0677 0407 Black 0.42 kg 40.00 kg 5:1 40-45 mm
8700 0677 0401 Galvanised 0.42 kg 40.00 kg 5:1 40-45 mm

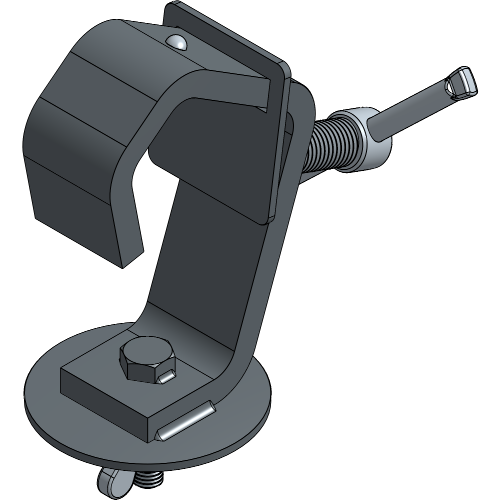

Hook Clamp 50 kg

Hook Clamp 50 kg

Article number Colour Weight WLL SF ⌀
8700 0677 0507 Black 1.16 kg 50.00 kg 5:1 45-60 mm

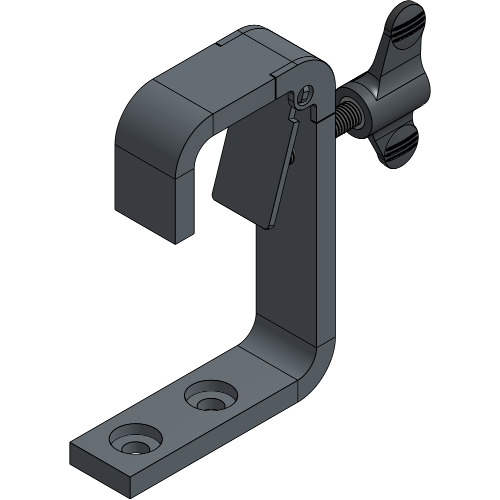

Hook Clamp 60 kg

Hook Clamp 60 kg

Article number Colour Weight WLL SF ⌀
8700 0677 0607 Black 0.48 kg 60.00 kg 5:1 40-50 mm

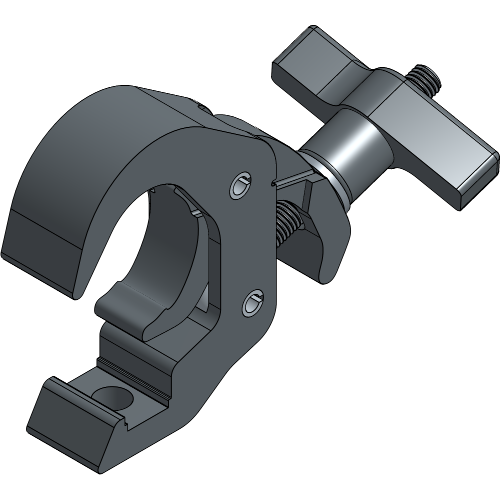

Hook Clamp 100 kg

Hook Clamp 100 kg

Article number Colour Weight WLL SF ⌀
8700 0677 1007 Black 0.48 kg 100.00 kg 5:1 38-51 mm
8700 0677 1004 Galvanised 0.48 kg 100.00 kg 5:1 38-51 mm
8700 0677 2007 Black 0.68 kg 100.00 kg 5:1 48-80 mm

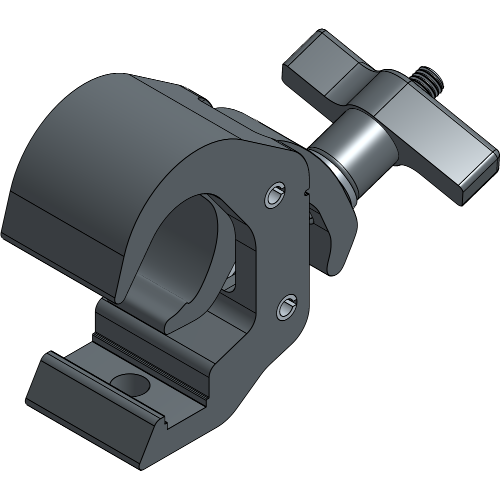

Hook Clamp 250 kg

Hook Clamp 250 kg

Article number Colour Weight WLL SF ⌀
8700 0677 2507 Black 0.68 kg 250.00 kg 5:1 38-51 mm
8700 0677 2504 Galvanised 0.68 kg 250.00 kg 5:1 38-51 mm

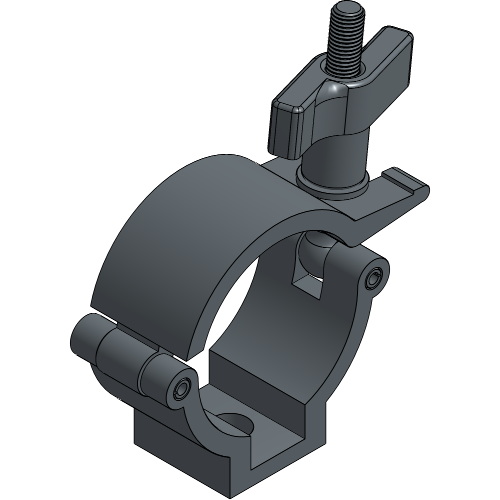

Half Coupler Clamp 100 kg

Half Coupler Clamp 100 kg

Article number Colour Weight WLL SF ⌀
8700 0680 0757 Black 0.14 kg 100.00 kg 5:1 48-51 mm
8700 0680 0754 Galvanised 0.14 kg 100.00 kg 5:1 48-51 mm

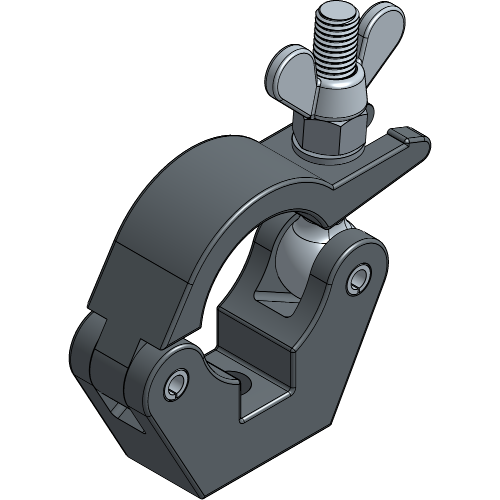

Half Coupler Clamp 750 kg

Half Coupler Clamp 750 kg

Article number Colour Weight WLL SF ⌀
8700 0680 7507 Black 0.40 kg 750.00 kg 5:1 48-51 mm
8700 0680 7504 Galvanised 0.40 kg 750.00 kg 5:1 48-51 mm

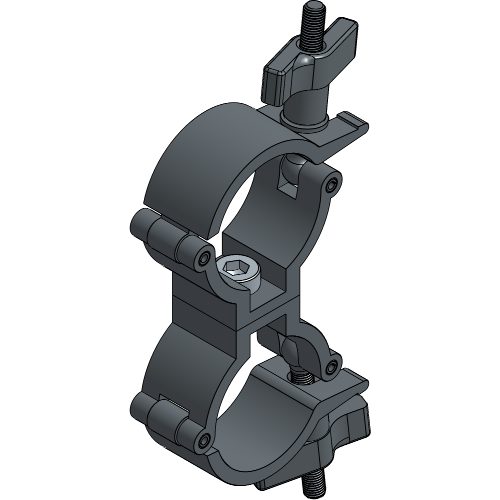

Turn Coupler 100 kg

Turn Coupler 100 kg

Article number Colour Weight WLL SF ⌀
8700 0683 0757 Black 0.28 kg 100.00 kg 5:1 48-51 mm
8700 0683 0754 Galvanised 0.28 kg 100.00 kg 5:1 48-51 mm
Turn Coupler 750 kg

Turn Coupler 750 kg

Article number Colour Weight WLL SF ⌀
8700 0683 7507 Black 0.86 kg 750.00 kg 5:1 48-51 mm
8700 0683 7504 Galvanised 0.86 kg 750.00 kg 5:1 48-51 mm

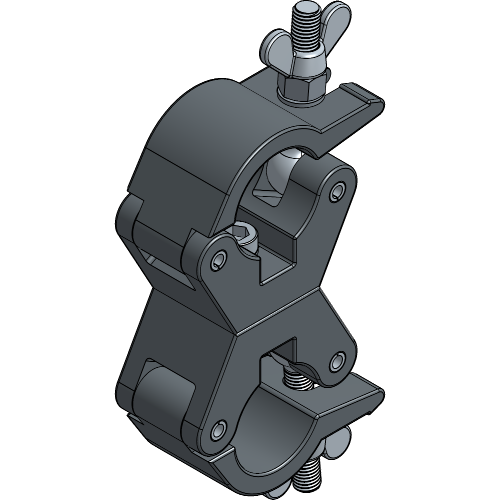

Turn Coupler XL 750 kg

Turn Coupler XL 750 kg

Article number Colour Weight WLL SF ⌀
8700 0683 7497 Black 0.86 kg 750.00 kg 5:1 48-51 mm
8700 0683 7494 Galvanised 0.86 kg 750.00 kg 5:1 48-51 mm
