HiSpeed Motor 3000

Technical Data Sheet

1 Info

The HiSpeed Motor 3000 is the budget solution with a fixed speed in our HiSpeed RollUp range.

Specifications:

  • Compatible with all HiSpeed RollUp Truss Rollers.
  • Ideal for permanent HiSpeed RollUp setups.
  • The HiSpeed Motor 3000 has a fixed speed and 2 positions: up and down.
  • Equipped with a soft start and a soft stop for smooth screen movement.
  • The installation orientation is versatile, so the motor can be installed in all directions.
  • The motor can be operated with an RF Remote and can also be made DMX compatible upon request.

2 Dimensions

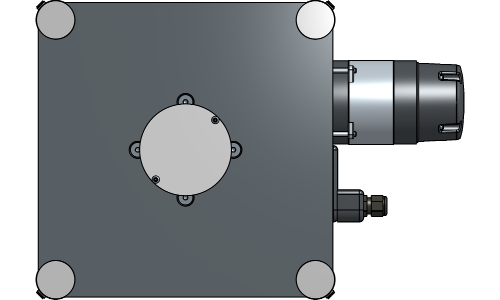

2.1 HiSpeed Motor 3000

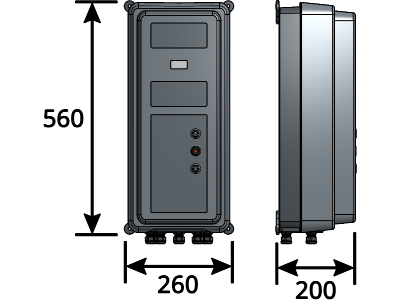

2.2 Control Box

3 Installation Specifications

3.0.1 HiSpeed Motor 3000 Installation Specifications:

The motor is driven by frequency drive, the RFI filters produce a leakage current. For the correct use of the device on a current-sensitive RCD, the use of an all-current sensitive earth leakage circuit breaker (Type K-Curve) is necessary.

4 Electrical and Mechanical Specifications

4.0.1 HiSpeed Motor 3000 Electrical and Mechanical Specifications:

5 Speed and Load Capacity

Roller Axis Ø Article Number Speed Load Capacity
3 m Truss Roller 20 cm 8140 3115 3007 0.40 m/s 112 kg
6 m Truss Roller 20 cm 8140 3115 6007 0.40 m/s 112 kg
9 m Truss Roller 25 cm 8140 3115 9007 0.50 m/s 89 kg
3 m Venetia Truss Roller 13 cm 8140 3116 3007 0.26 m/s 172 kg

6 Electrical Wiring and Connectors

6.1 HiSpeed Motor 3000 with Control Box

6.2 HiSpeed Motor 3000 with Control Box and Remote

7 Components

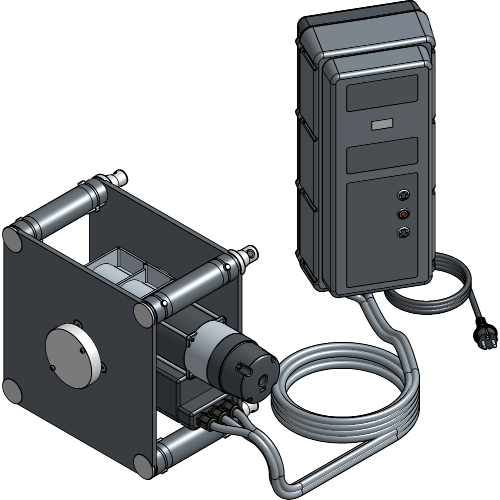

HiSpeed Motor 3000

HiSpeed Motor 3000

HiSpeed Motor 3000

Article number Colour Weight Cable length
8140 3112 1037 Black 50.00 kg 21.00 m
Control Box Truss Mount

Control Box Truss Mount

Article number Colour Weight
8140 0661 1007 Black 1.12 kg

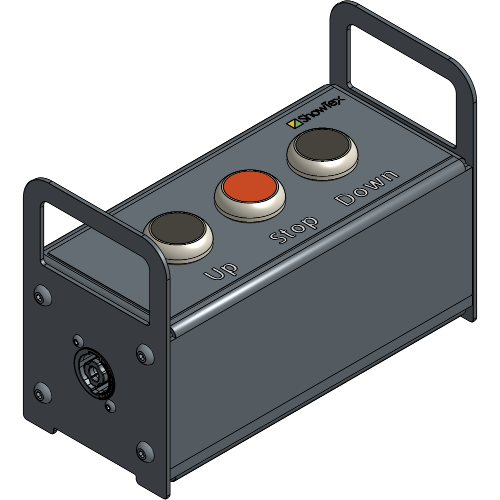

Remote

Remote

Article number Colour Weight
8140 0766 0030 Black 5.75 kg

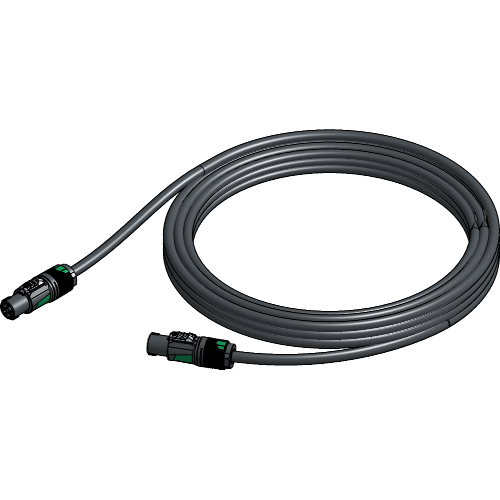

Link Cable

Link Cable

Article number Colour Weight Length
8160 0915 0257 Black 3.42 kg 25.00 m
