The HiSpeed RollUp is an ultra-fast motorised roll-up system that can be configured according to your specific needs.

Specifications:

Projection screens and fabric screens are attached to a Truss Roller.
Venetian and Roman Blind curtains are attached to the truss with a D-Ring with Hook & Loop Fastener while the curtain gets pulled up by RibCord that rolls up on the Flanges.
All Truss Rollers and Venetia Truss Rollers are mounted in a 40/40 truss.
Truss Rollers come in standard lengths of 3, 6 and 9 m, while Venetia Truss Rollers are only available in a single standard length of 3 m.
Various lengths can be achieved by coupling multiple Truss Rollers of 3, 6 and 9 m. Venetian curtains can be wider, as the roller is used as a winch to lift the curtain.
The maximum continuous width for a Truss Roller screen is 8.85 m.
Truss Rollers are physically coupled together through a jaw coupling, and are driven synchronous by a single motor.
Screen heights can reach up to 18 m.

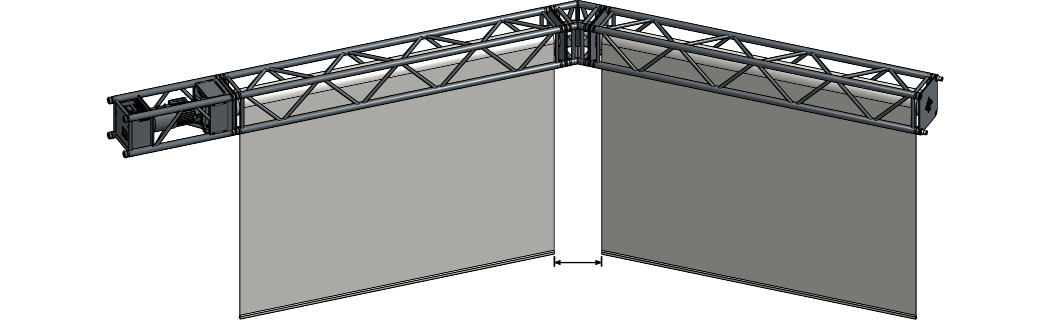

2 Product Flyer

For more information regarding the set-ups that are possible for this ShowTex product, be sure to check the Product Flyer of this product.

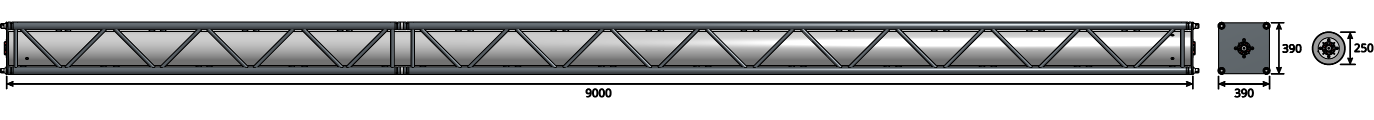

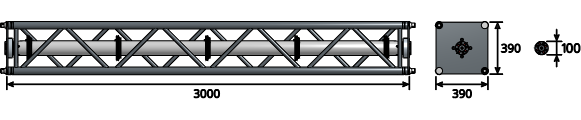

3 Truss Roller Dimensions

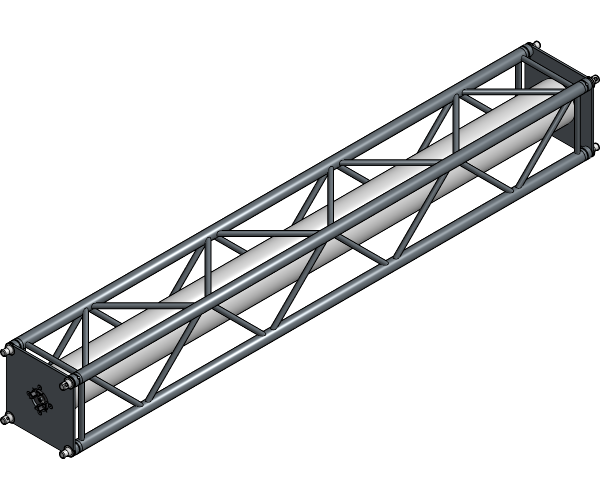

3.1 3 m Truss Roller

3.2 6 m Truss Roller

3.3 9 m Truss Roller

4 Venetia Truss Roller Dimensions

4.1 3 m Venetia Truss Roller

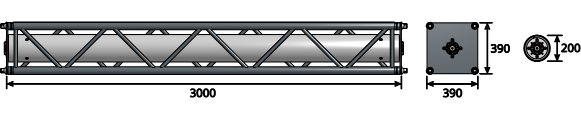

4.2 Flange

5 Truss Roller Rigging Points

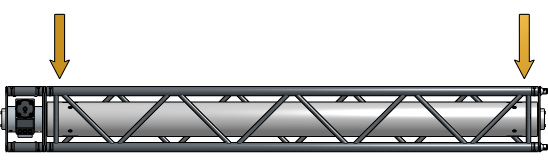

5.1 3, 6 and 9 m Truss Roller with HiSpeed Motor 3000

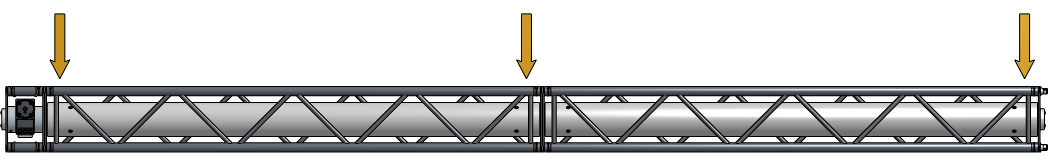

5.2 Multiple Truss Rollers with HiSpeed Motor 3000

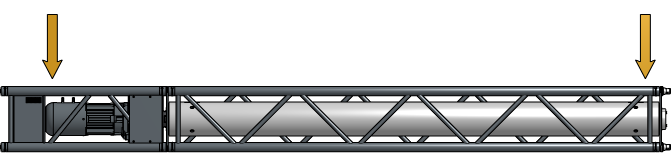

5.3 3 m Truss Roller with HiSpeed Motor 8000

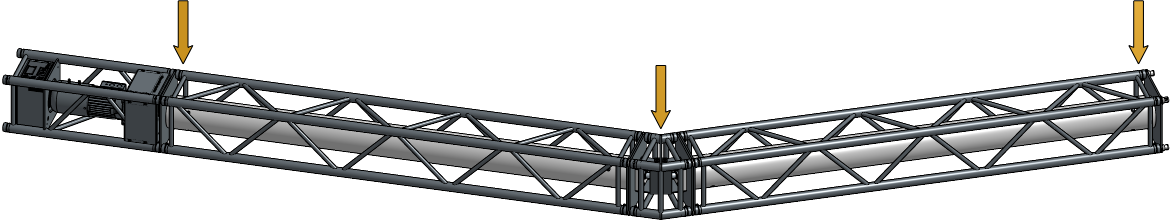

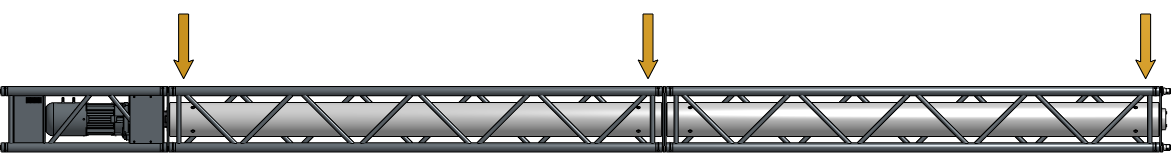

5.4 6 and 9 m Truss Rollers and multiple Truss Rollers with HiSpeed Motor 8000

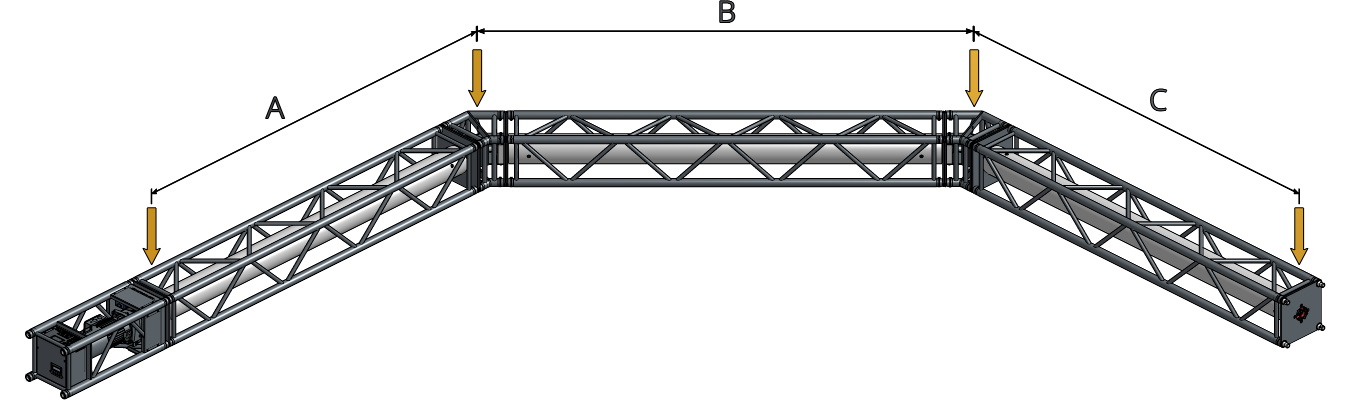

A rigging point at each junction must be provided for Truss Rollers that are coupled together. Standard Truss Roller lengths of 3, 6 and 9 m only require a rigging point at the beginning and at the end of the Truss.

Rigging points for Truss Rollers and Venetia Truss Rollers are identical.

6 Speed and Load Capacity

6.1 With the HiSpeed Motor 3000

Roller	Axis Ø	Article Number	Speed	Load Capacity
3 m Truss Roller	20 cm	8140 3115 3007	0.40 m/s	112 kg
6 m Truss Roller	20 cm	8140 3115 6007	0.40 m/s	112 kg
9 m Truss Roller	25 cm	8140 3115 9007	0.50 m/s	89 kg
3 m Venetia Truss Roller	13 cm	8140 3116 3007	0.26 m/s	172 kg

6.2 With the HiSpeed Motor 8000

Roller	Axis Ø	Article Number	Speed	Load Capacity
3 m Truss Roller	20 cm	8140 3115 3007	0 - 1.45 m/s	125 kg
6 m Truss Roller	20 cm	8140 3115 6007	0 - 1.45 m/s	125 kg
9 m Truss Roller	25 cm	8140 3115 9007	0 - 1.80 m/s	100 kg
3 m Venetia Truss Roller	13 cm	8140 3116 3007	0 - 0.95 m/s	190 kg

7 Compatible Motors

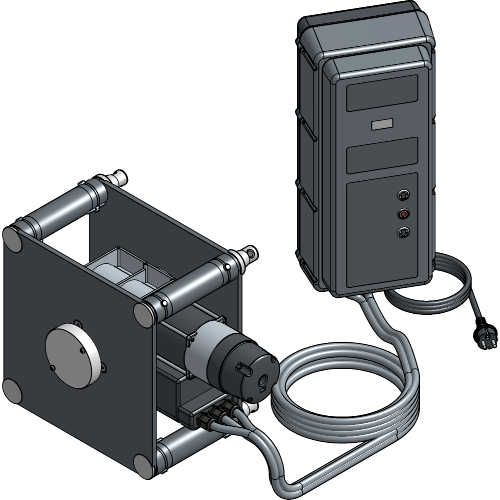

HiSpeed Motor 3000

The HiSpeed Motor 3000 is our go to option for the operation of a permanent, fixed speed HiSpeed RollUp systems. The motor is compatible with all Truss Rollers and can be controlled with an RF Remote upon request.

For more information, check out the HiSpeed Motor 3000 Technical Data Sheet.

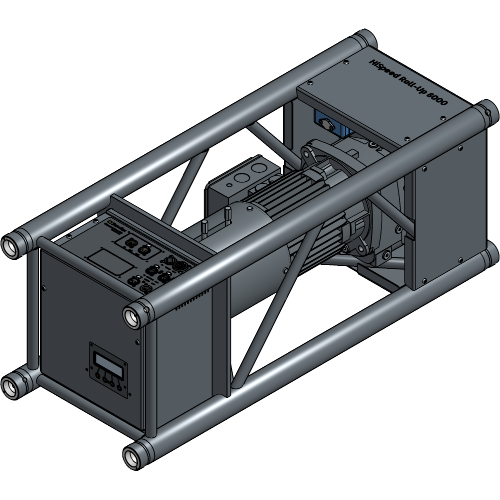

HiSpeed Motor 8000

The HiSpeed Motor 8000 is the fastest, most powerful motor there is to offer in the HiSpeed Rollup range. This ultra-fast motor can roll up projection screens in up to 1.80 m/second, is DMX and OSC compatible and can be controlled with the UMC software for unique positioning control.

For more information, check out the HiSpeed Motor 8000 Technical Data Sheet.

8 Technical Specifications

8.1 Components

Truss Rollers & Motors

Truss Roller

Article number	Colour	Weight	Length
8140 3115 3007	Black	125.00 kg	3.00 m
8140 3115 6007	Black	175.00 kg	6.00 m
8140 3115 9007	Black	225.00 kg	9.00 m

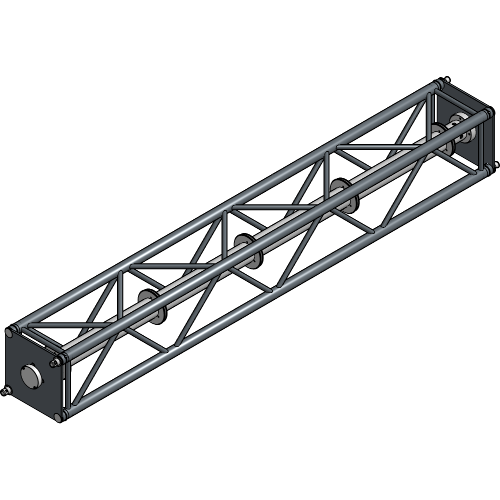

Venetia Truss Roller

Article number	Colour	Weight	Length
8140 3116 3007	Black	64.00 kg	3.00 m

HiSpeed Motor 3000

Article number	Colour	Weight	Cable length
8140 3112 1037	Black	50.00 kg	21.00 m

HiSpeed Motor 8000

Article number	Colour	Weight	Length
8140 3112 1047	Black	100.00 kg	1.00 m

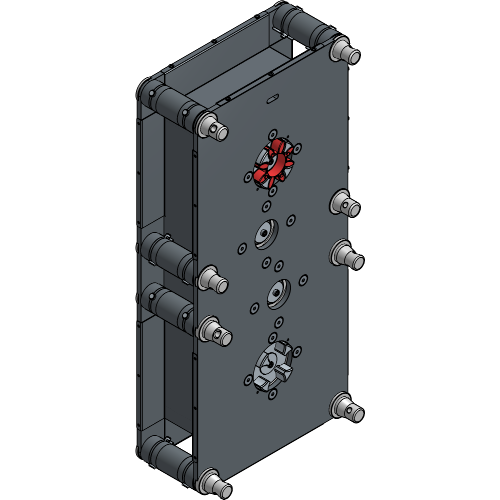

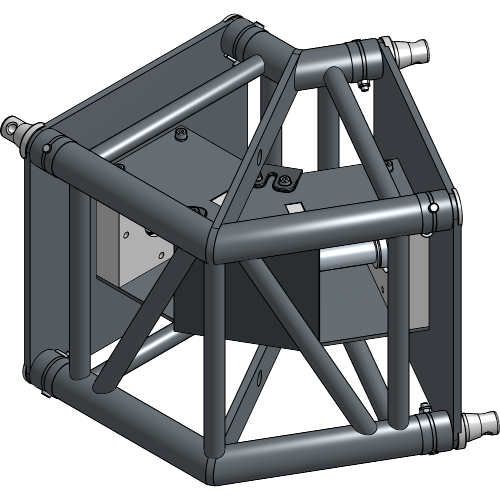

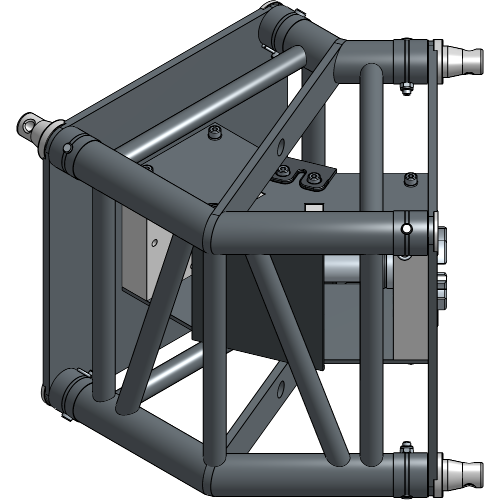

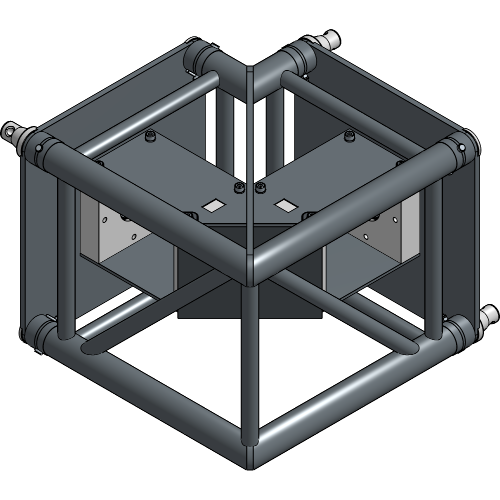

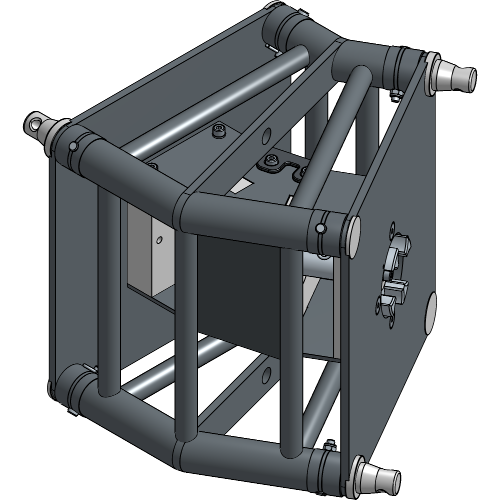

Top Transmission

Article number	Colour	Weight
8140 2263 0007	Black	24.20 kg

Anti-Wrinkle Tube

Article number	Colour	Weight	Length
8140 3120 3007	Black	4.00 kg	3.00 m
8140 3120 6007	Black	8.00 kg	6.00 m
8140 3120 9007	Black	12.00 kg	9.00 m

Coupling

Conical Coupler Truss-Roll

Article number	Colour	Weight
8140 2247 0124	Aluminium	0.18 kg

Conical Coupler Roll-Roll

Article number	Colour	Weight
8140 2247 0224	Aluminium	0.23 kg

Conical End Piece

Article number	Colour	Weight
8140 2247 0004	Aluminium	0.11 kg

Coupling End Cap

Article number	Colour	Weight
8140 3116 3027	Aluminium	0.50 kg

Pin with Safety Clip

Article number	Colour	Weight
8140 2247 0014	Aluminium	0.04 kg

Pin with Safety Nut

Article number	Colour	Weight
8140 2253 0001	Aluminium	0.05 kg

Coupling Spider

Article number	Colour	Weight
8140 9999 0007	Red	0.05 kg

Accessories

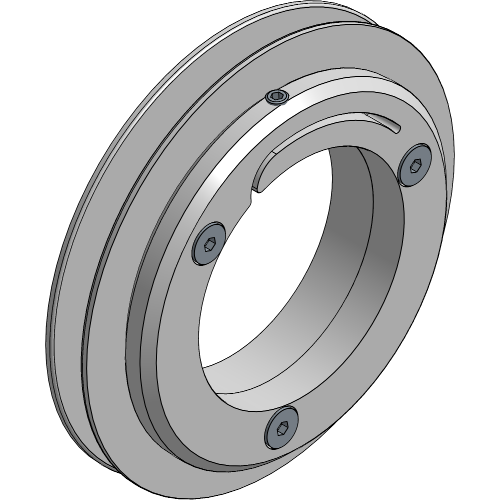

Flange

Article number	Colour	Weight
8140 3116 3017	Aluminium	0.61 kg

RibCord

Article number	Colour	Weight	Length
7550 0002 0007	Black	0.45 kg	100.00 m
7550 0002 0003	White	0.45 kg	100.00 m

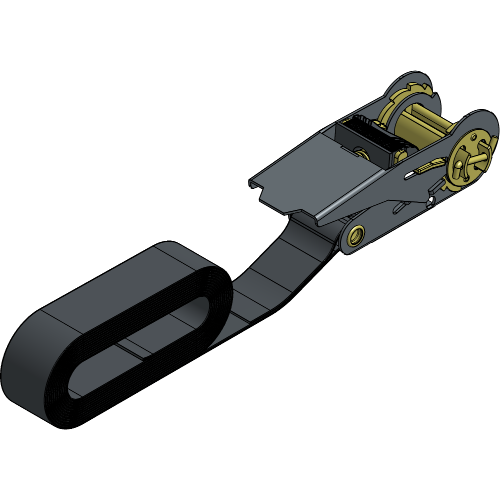

Ratchet Strap

Article number	Colour	Weight	Length
8800 0372 3007	Black	0.27 kg	3.00 m
8800 0372 5009	Black	0.32 kg	5.00 m

D-Ring with Hook & Loop Fastener

Article number	Colour	Weight
8140 3116 3037	Black	0.02 kg

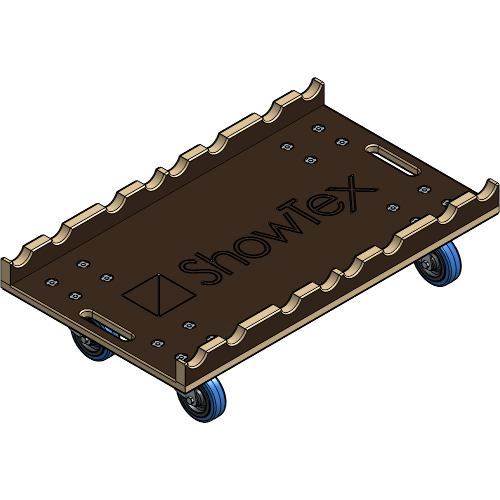

Truss Trolley

Article number	Colour	Weight
8140 6050 0407	Brown	15.20 kg

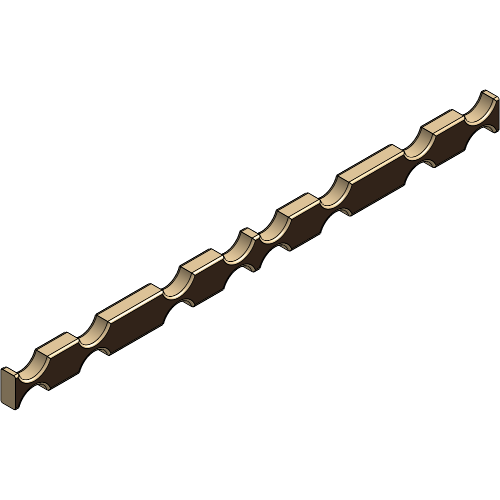

Truss Stacking Spacer

Article number	Colour	Weight	Length
8140 6050 0417	Brown	0.47 kg	0.80 m
