Info
The Kabuki system is perfect for revealing the top act with a curtain
drop at the push of a button to add the element of surprise they’ll
never forget.
Specifications:
- Modular system that can be extended by connecting Brakes and
Bearings to the Click Profile.
- Adjustable Sliding Pins to match the distance between your curtain’s
grommets.
- Specially designed to not let your curtain drop in the event of a
power cut.
- Can be combined with the HiSpeed Reveal for a spectacular effect
after the drop.
- Available in 2 versions 230VAC - 0.2A and 110VAC - 0.45A.
- A maximum of 30 Brakes can be daisy-chained on 1 Remote.
Product
Flyer
For more information regarding the set-ups that are possible for this
ShowTex product, be sure to check the Product Flyer of this
product.
Installation Specifications
Kabuki 50 - 230VAC
- Power Supply : 1 x 230 VAC - 50Hz - 0.2 A + N
- Power Connection : PowerCon True1 - Schuko Mains
Connector (EU)
- Power Distribution : n/a
- Trigger Time : Between 2 and 30 seconds max
Kabuki 50 - 110VAC
- Power Supply : 1 x 110 VAC - 50-60Hz - 0.45 A +
N
- Power Connection : PowerCon True1 - NEMA L14-20
(NA)
- Power Distribution : n/a
- Trigger Time : Between 2 and 30 seconds max
Electrical and Mechanical Specifications
Kabuki 50 - 230VAC
- Power In : 230 VAC - 16A
- Magnet Power : 43 W
- Magnet Torque : 35 Nm
Kabuki 50 - 110VAC
- Power In : 110 VAC - 16A
- Magnet Power : 43 W
- Magnet Torque : 35 Nm
Electrical Wiring & Connectors
Kabuki 50 with Remote
Technical Specifications
Reveal

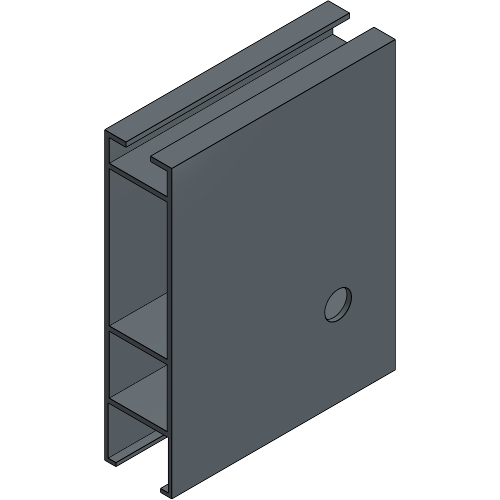

Click Profile End Piece
|
Article number
|
Colour
|
Weight
|
Length
|
|
8150 0906 0107
|
Black
|
0.18 kg
|
0.10 m
|

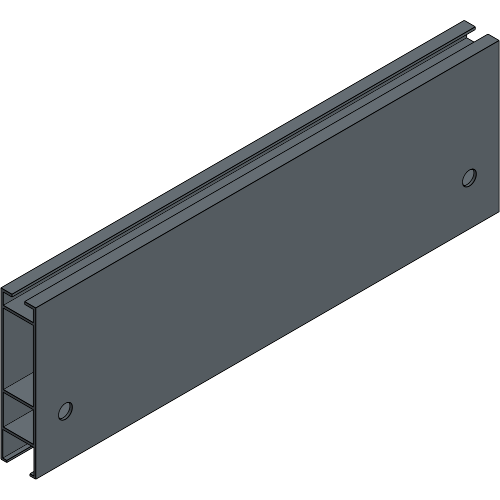

Click Profile
|
Article number
|
Colour
|
Weight
|
Length
|
|
8150 0906 1007
|
Black
|
1.85 kg
|
1.00 m
|
|
8150 0906 2007
|
Black
|
3.70 kg
|
2.00 m
|
|
8150 0906 3007
|
Black
|
5.55 kg
|
3.00 m
|

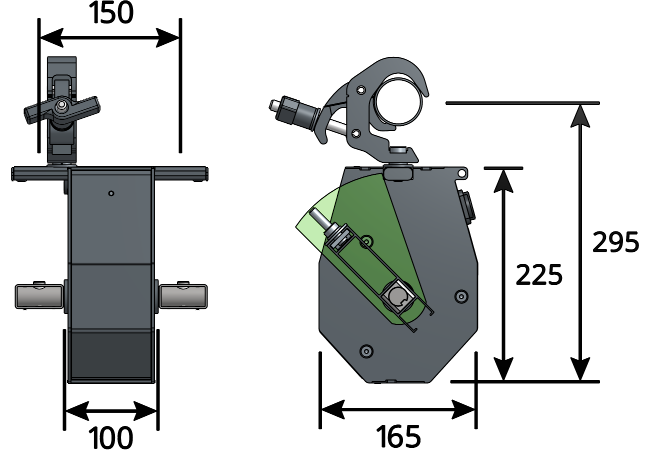

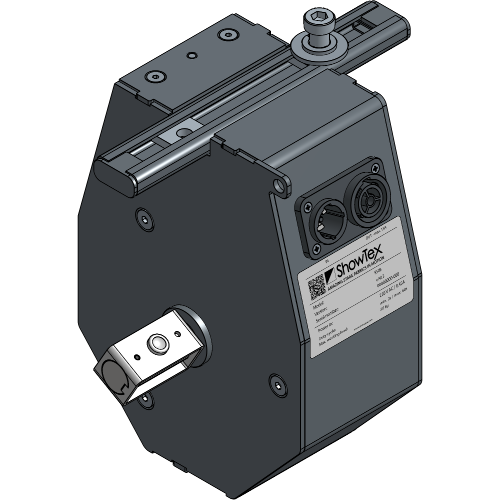

Brake
|
Article number
|
Weight
|
Voltage
|
WLL
|
SF
|
|
8150 0900 0017
|
8.96 kg
|
230 V
|
30.00 kg
|
1:1
|
|
8150 0900 0027
|
8.96 kg
|
110 V
|
30.00 kg
|
1:1
|

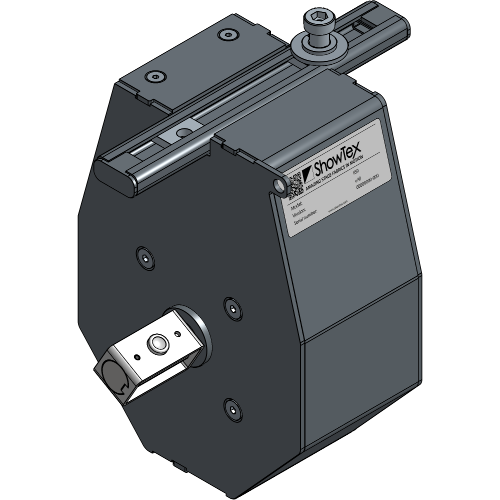

Bearing
|
Article number
|
Colour
|
Weight
|
|
8150 0903 0007
|
Black
|
4.20 kg
|

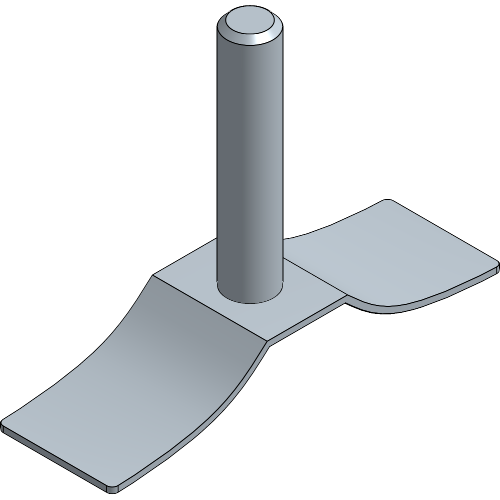

Sliding Pin
|
Article number
|
Colour
|
Weight
|
|
8150 0909 0005
|
Inox
|
0.02 kg
|

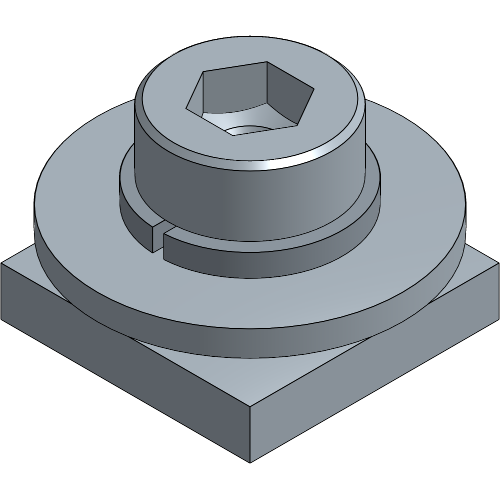

End Stop
|
Article number
|
Colour
|
Weight
|
|
8150 0050 0001
|
Galvanized
|
0.03 kg
|
Suspension
Hook Clamp
|
Article number
|
Colour
|
Weight
|
WLL
|
SF
|
|
8700 0677 1007
|
Black
|
0.50 kg
|
100.00 kg
|
2:1
|

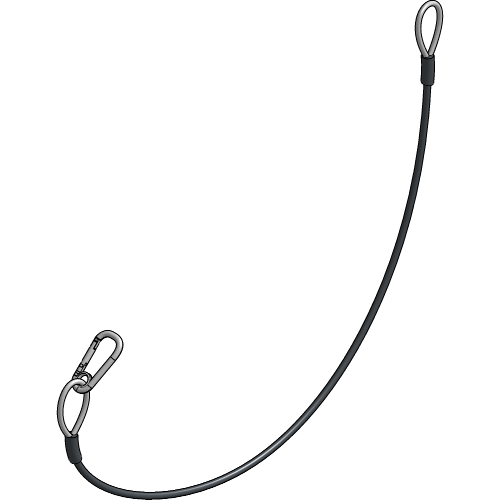

Safety Cable
|
Article number
|
Colour
|
Weight
|
Length
|
|
8700 0306 0607
|
Black
|
0.08 kg
|
0.60 m
|
|
8700 0306 1207
|
Black
|
0.11 kg
|
1.20 m
|
Remotes &
Cables

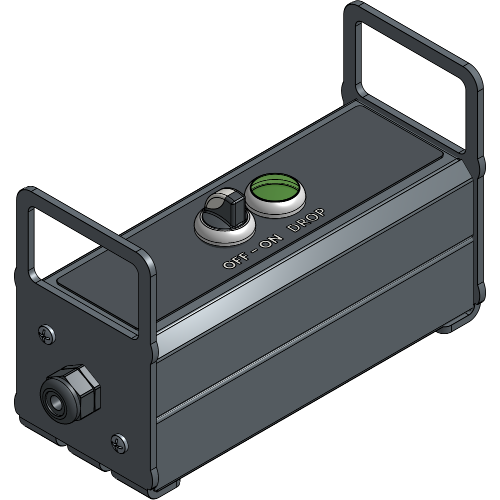

Remote
|
Article number
|
Colour
|
Weight
|
|
8150 0950 0010
|
Black
|
0.82 kg
|

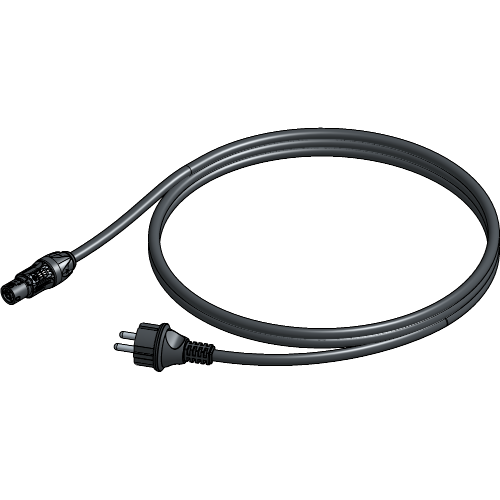

Power Supply Cable
|
Article number
|
Colour
|
Weight
|
Length
|
|
8145 0912 0017
|
Black
|
0.40 kg
|
2.00 m
|

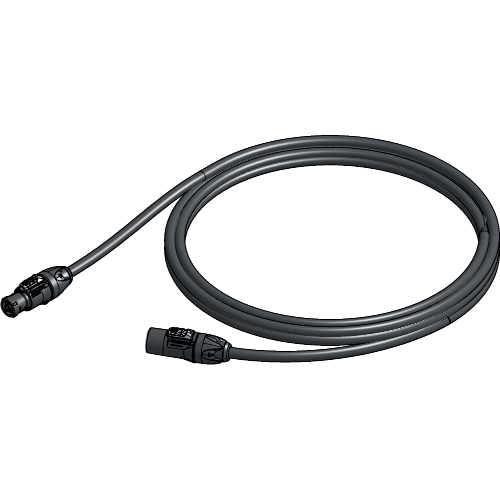

Link Cable
|
Article number
|
Colour
|
Weight
|
Length
|
|
8150 0915 0087
|
Black
|
0.97 kg
|
7.00 m
|
|
8140 3117 0027
|
Black
|
3.27 kg
|
25.00 m
|
