Cube PrintFrame

Technical Data Sheet

1 Info

Lightweight aluminium frame that’s easy to transport and assemble with no professional help needed.

Specifications:

  • Used for directional signage, as a free standing platform or a decorative feature by hanging the frame.
  • Optional to light the Cube PrintFrame from the inside to create an eye catching light box.
  • Made to measure, almost any size for extra large display prints and acoustic panels.
  • Add acoustic characteristics with our acoustic foam to optimize sound quality in the space with a decorative feature.

2 Components

Frame

Cube PrintFrame Profile

Cube PrintFrame Profile

Article number Colour Weight Length
8843 0010 0014 Alu 1.19 kg 6.00 m
Corner Connection set

Corner Connection set

Article number Colour Weight
8843 4099 0014 Alu 0.25 kg

Suspension

Angled Cable Holder

Angled Cable Holder

Article number Colour Weight
8843 9600 0034 Alu 0.01 kg

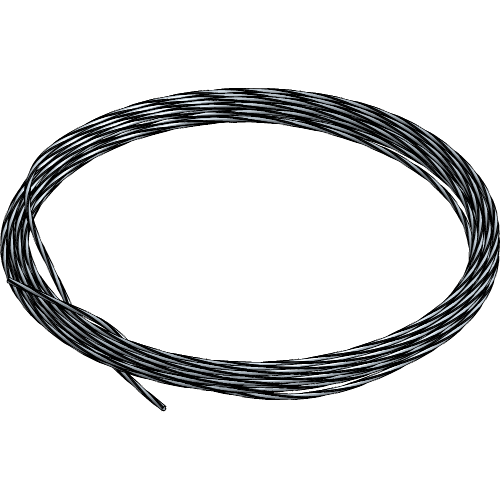

Steel Cable with Loop

Steel Cable with Loop

Article number Colour Weight
8840 9600 7121 Alu 0.05 kg
8840 9600 7127 Black 0.05 kg
8840 9600 7151 Alu 0.11 kg
8840 9600 7191 Alu 0.21 kg
